TP-LINK Archer T4U Plus V1 AC1300 Dual Antennas High-Gain Wireless USB Adapter
| • Ultra-Fast Wi-Fi – 1300Mbps wireless speeds (400Mpbs on the 2.4GHz band and 867Mbps on the 5GHz band) with support for the next generation 802.11ac Wi-Fi standard • Dual Band Wireless - 2.4GHz and 5GHz bands for flexible connectivity • Dual High-Gain antennas – Improved range, signal quality and transmission performance • MU-MIMO –Delivers highly efficient wireless connection • Super Speed USB 3.0 Port - Up to 10x faster transfer speeds than USB 2.0 • Adjustable, Multi-Directional Antenna - Enable flexible deployment for the best reception |
High-Speed, Dual Band WiFi
The Archer T4U Plus grants your PC access to 802.11ac technology while receiving WiFi signals on two separate bands, boosting speeds up to 1.2 Gbps (up to 400 Mbps on 2.4 GHz and 867 Mbps on 5 GHz). This means better networking experience for all your online needs. Choose the 2.4 GHz band for web browsing, email, and social media, or switch to 5 GHz for gaming, HD streaming, and large file downloads.
Dual High-Gain Antennas, Broader Coverage
Two powerful 5 dBi high-gain external antennas ensure stronger signal transmission and reception between web devices and your router even from farther away or across multiple walls and floors. Enjoy stable wireless connections and faster speeds without WiFi drops and lag.
A Great Match for Faster Speeds
Connect the newest hardware with USB 3.0. USB 3.0 is specially suited for the 802.11ac WiFi protocol and utilizes its transfer rate for better connections. Take full advantage of USB 3.0 and 802.11ac WiFi for optimized network performance.
Boosted Throughput with MU-MIMO
MU-MIMO technology provides two simultaneous data streams, improving the throughput and efficiency of your entire network when using a compatible MU-MIMO router.

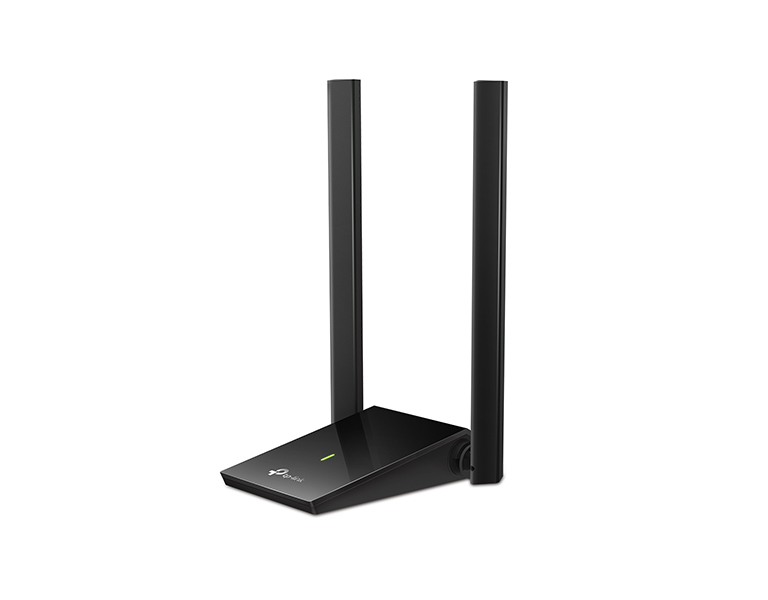

Adjustable, Multi-Directional Antenna
Rotate and adjust the antenna 180° for the best reception in different environments.
Flexible Design, Easy Setup

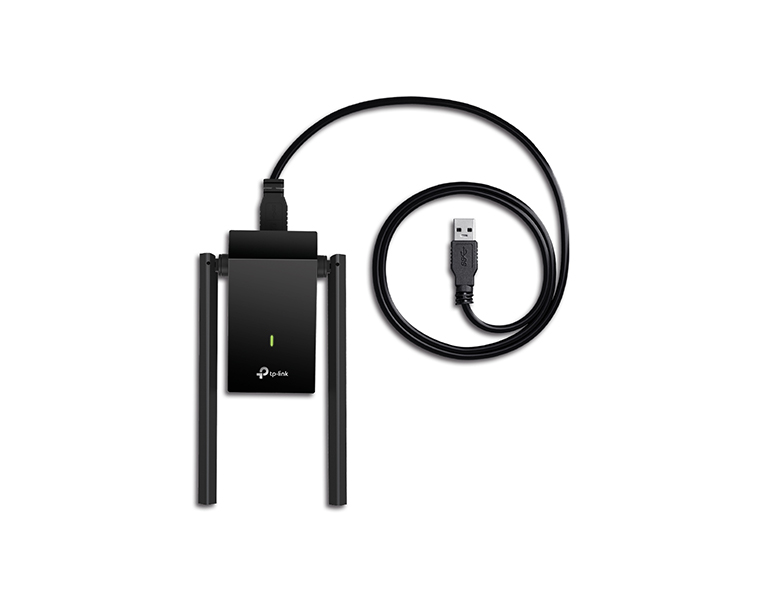

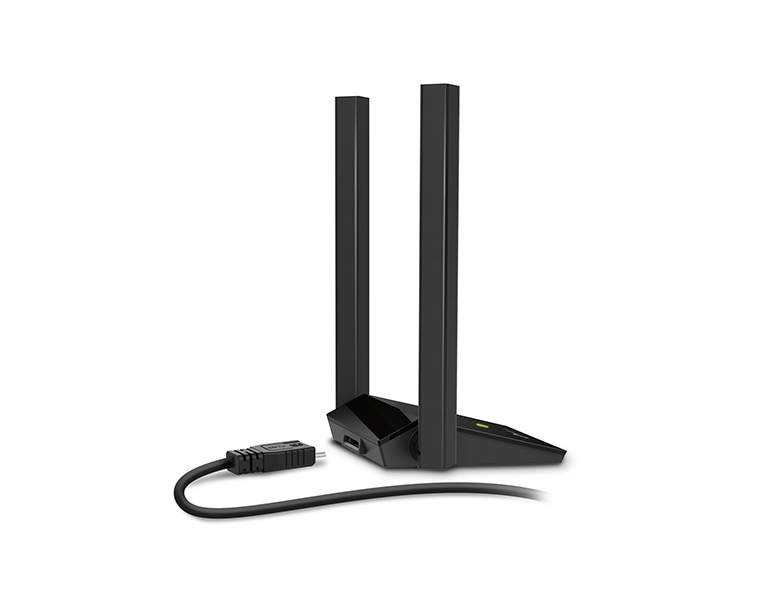

The adapter’s desktop-style design and 1.0 m USB cable help you find the best spot for network reception. Enjoy an easy and desktop-friendly setup for flexible deployment.
| HARDWARE FEATURES | |
| Antennas | 2x External 5 dBi High Gain Antennas |
| LED | Status |
| Dimensions | 84 x 156.3 x 19.2 mm |
| WIRELESS FEATURES | |
| Wireless Standard | IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz |
| Signal Rate | 5 GHz: 11ac: Up to 867 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11n: Up to 400 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
| Reception Sensitivity | 5 GHz: 11ac VHT80: -62dBm 11ac VHT40: -65dBm 11ac VHT20: -69dBm 11n HT40: -71dBm 11n HT20: -74dBm 11a 54Mbps: -77dBm 2.4 GHz: 11n HT40: -70dBm 11n HT20: -72dBm 11g 54Mbps: -75dBm 11b 11Mbps: -87dBm |
| Transmit Power | 5 GHz: 20dBm(FCC) / 20dBm(CE) (EIRP) 2.4 GHz: 18dBm(FCC) / 18dBm(CE) (EIRP) |
| Wireless Modes | Infrastructure mode |
| Interface | USB 3.0 |
| Wireless Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| OTHERS | |
| Package Contents | AC1300 Dual Antennas High-Gain Wireless USB Adapter Archer T4U Plus Quick Installation Guide Resource CD 1-meter USB 3.0 Cable |
| Certification | FCC, CE, RoHS |
| Environment | Operating Temperature: 0°C~40°C Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
