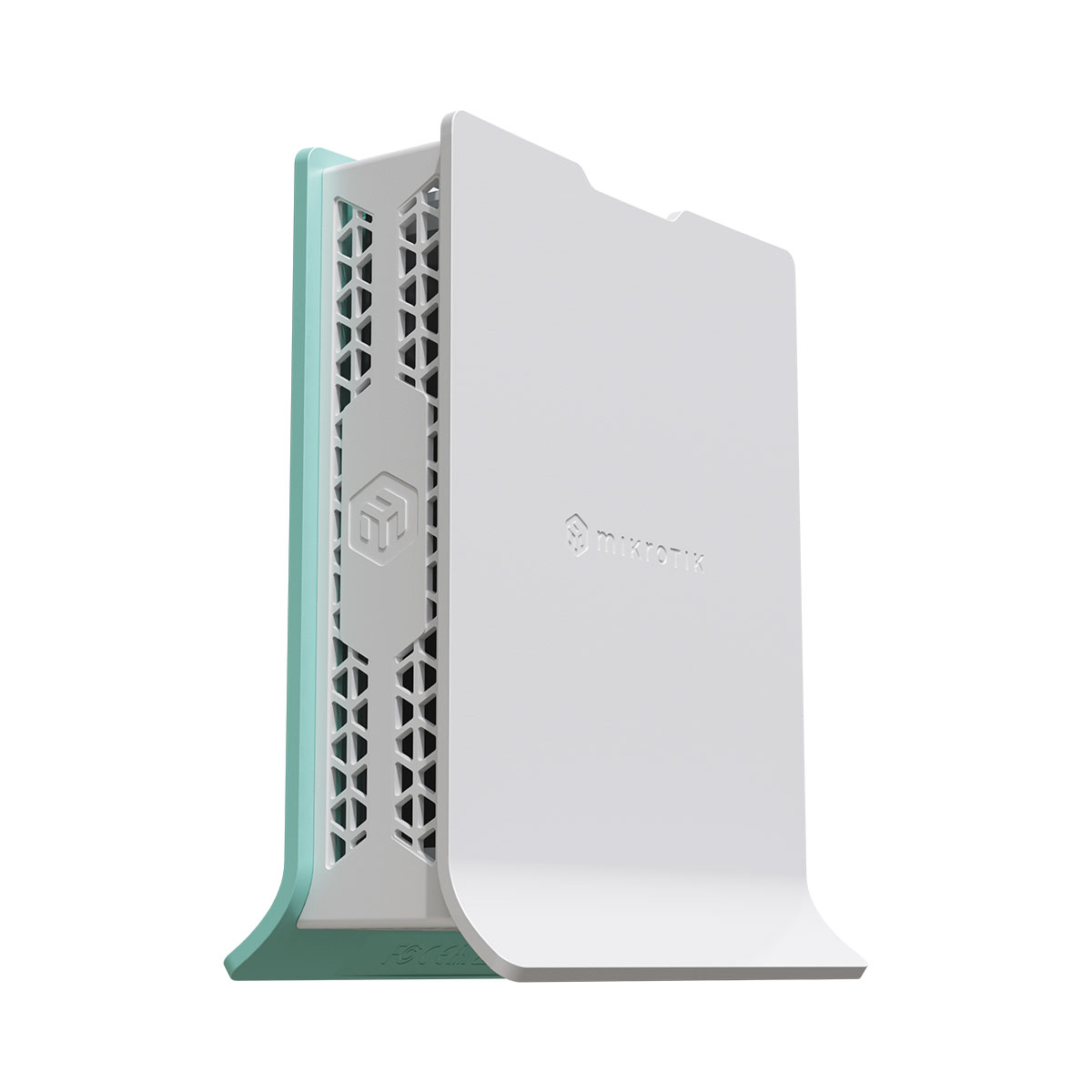

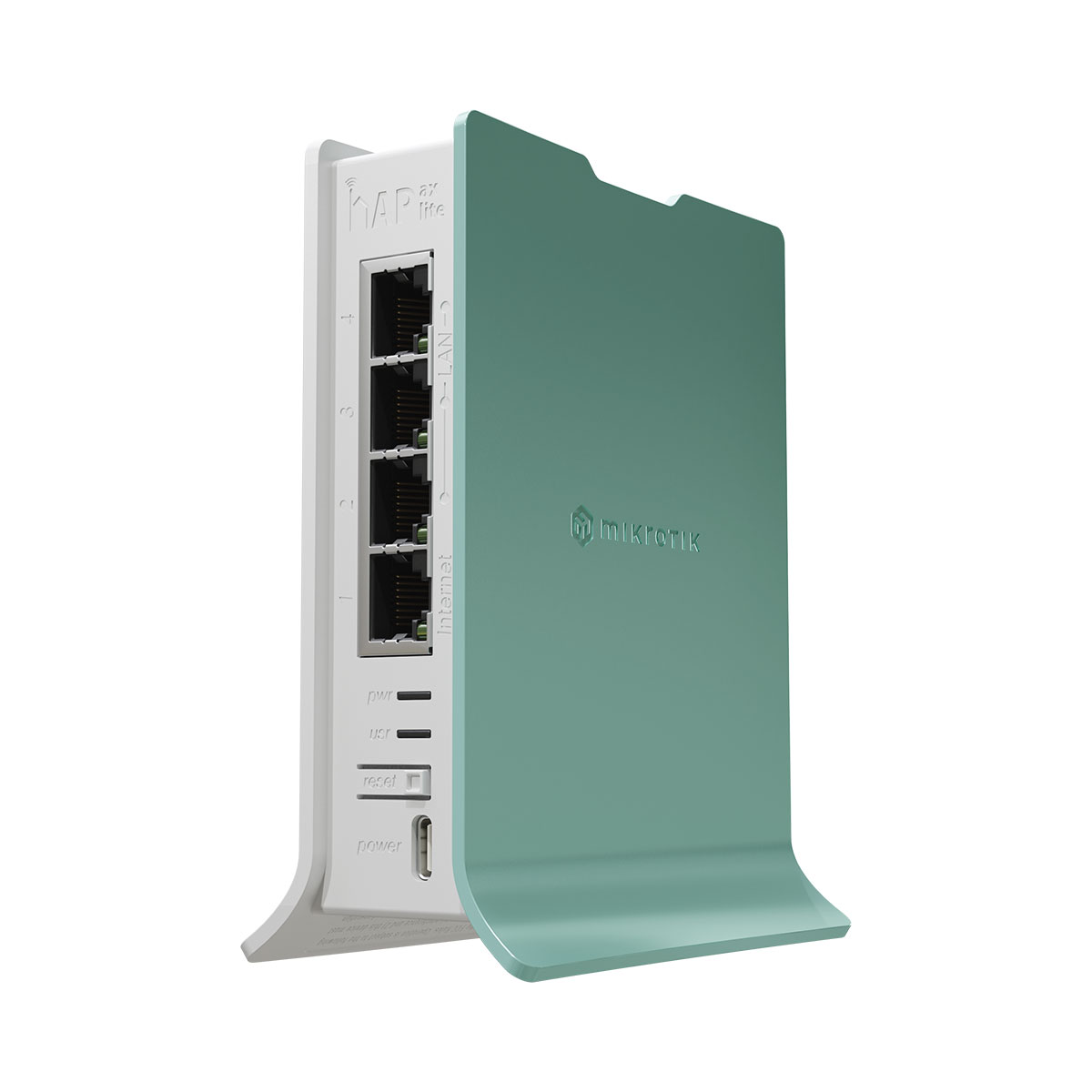

MikroTik L41G-2axD - hAP ax lite
Package contains power supply (5V 2,4A 12W USB)
hAP ax lite is the perfect tiny solution when you’ve got to cut costs but can’t afford to sacrifice performance. Our latest Gen6 AX wireless chip allows you to squeeze the traditional 2.4 GHz wireless spectrum like a lemon! Depending on your overall setup, you can expect an increase in speed of up to 90%!
Very useful in scalable setups like hotels or expanding offices – the appealing price point, compact size, and a strong set of features allows adding more devices without a doubt! And – speaking of hotels – why not pack a hAP ax lite for your vacation? It takes up almost no space in your suitcase and allows you to break free from the restrictive guest networks.
Our hAP lite devices have always been about value. With 256 MB of RAM , a modern ARM CPU running at 1GHz, 4x Gigabit Ethernet ports , much higher dual-chain antenna gain (up to 4.3 dBi!), and a complete visual redesign, the new hAP ax lite is a real trailblazer of value and affordable networking.
| Specifications | |
| Product code | L41G-2axD |
| CPU | Dual-Core IPQ-5010 800 MHz |
| CPU architecture | ARM 64bit (RouterOS 32bit) |
| Size of RAM | 256 MB |
| Storage | 128 MB, NAND |
| Number of 1G Ethernet ports | 4 |
| Switch chip mode | MT7531BE |
| Wireless band | 2.4 GHz |
| Wireless interface model | IPQ-5010 |
| Wireless | 802.11b/g/n/ax dual-chain |
| Wireless antenna max gain | 4.3 dBi |
| Dimensions | 124 x 100 x 54 mm |
| Operating system | RouterOS v7, License level 4 |
| Operating temperature | -40°C to +70°C |
| Powering | |
| Number of DC inputs | 1 USB type C |
| Min voltage | 5 V |
| Max voltage | 5 V |
| Max current at Min voltage | 1.54 A |
| Max current at Max voltage | 1.54 A |
| Power adapter nominal voltage | 5 V |
| Power adapter nominal current | 2.4 A |
| Max power consumption | 8 W |

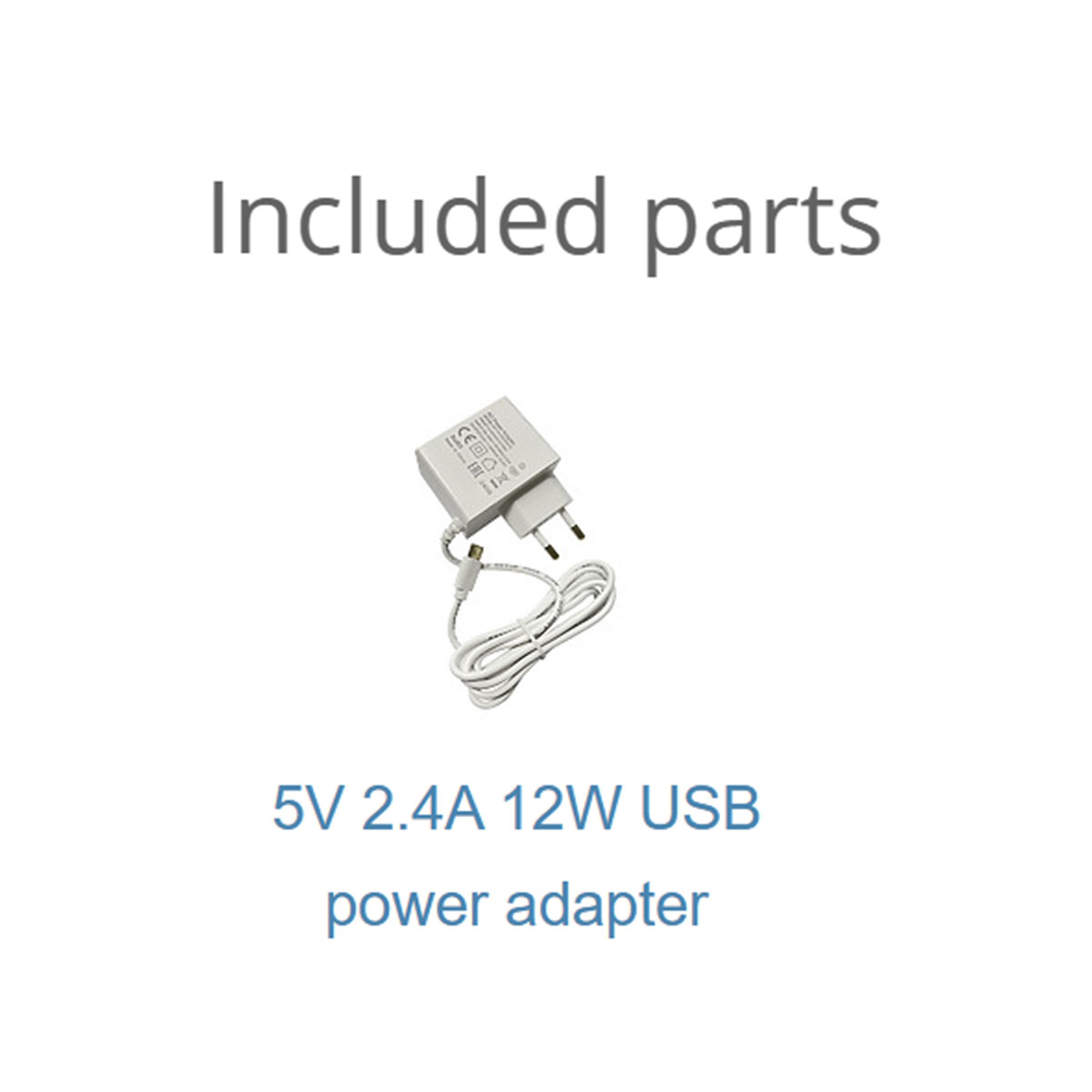

| Included parts | 5V 2.4A 12W USB power adapter |
| Wireless specifications | ||
| Rate (2.4 GHz) | Tx (dBm) | Rx (dBm) |
| 1MBit/s | 22 | -100 |
| 11MBit/s | 22 | -100 |
| 6MBit/s | 22 | -95 |
| 54MBit/s | 18 | -77 |
| MCS0 | 22 | -95 |
| MCS7 | 17 | -75 |
| MCS9 | 16 | -69 |
| MCS11 | 15 | -61 |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
