MikroTik L009UiGS-2HaxD-IN 512MB RAM, 8xLAN, 1x1G PoE-out Ethernet port, RouterOS L5
L009 features a powerful dual-core ARM CPU. It offers significant improvement when it comes to routing and filtering, complex firewall rules, IPsec hardware encryption, and various advanced RouterOS features. ARM CPU architecture provides significant advantages over older MIPS-based devices. Like using all the latest Linux Kernel features. Or implementing your own container projects. The combination of a modern ARM CPU and a full-sized USB port is perfect for running custom container projects. You could run a Pi-hole adblock on this router, for example. Or you could use the USB to add an LTE modem of your choice. Imagination is the real limit here.
L009 is more than just a router. This product line is up to 4 times faster than RB2011, it has a modern ARM CPU with container support, an innovative enclosure that allows mounting up to four routers in a single 1U space, more RAM, PoE, and 2.5G SFP support. This version comes with 2.4 GHz ax dual-chain wireless.
| Specifications | |
| Product code | L009UiGS-2HaxD-IN |
| Architecture | ARM 64bit (RouterOS 32bit) |
| CPU | Dual-Core IPQ-5018 800 MHz |
| Size of RAM | 512 MB |
| RAM type | DDR3L |
| Storage | 128 MB, NAND |
| Number of 1G Ethernet ports | 8 |
| Number of 1G SFP ports | 1 (2.5G supported) |
| USB port | 1 (3.0 type A) |
| Serial console port | RJ45 |
| Switch chip model | 88E6190 |
| Wireless interface model | IPQ-5018 |
| Wireless | 2.4 GHz 802.11b/g/n/ax dual-chain |
| Antenna gain | 4 dBi |
| Dimensions | 220 x 125 x 22 mm |
| Operating system | RouterOS v7, License level 5 |
| Operating temperature | -40°C to +70°C |
| Powering | |
| PoE in | 802.3af |
| PoE-Out* | Passive PoE |
| Max out per port output (DC input 24-30 V) | 1 A |
| Max out per port output (DC input 30-56 V) | 450 mA |
| Number of DC inputs | 2 (PoE-in, DC jack) |
| PoE-in input Voltage | 24-56 V |
| DC jack input Voltage | 24-56 V |
| Max USB current | 1.5 A |
| Power adapter nominal voltage | 24 V |
| Power adapter nominal current | 1.5 A |
| Max power consumption without attachments | 12 W |
| Max power consumption | 45W (with appropriate PSU) |

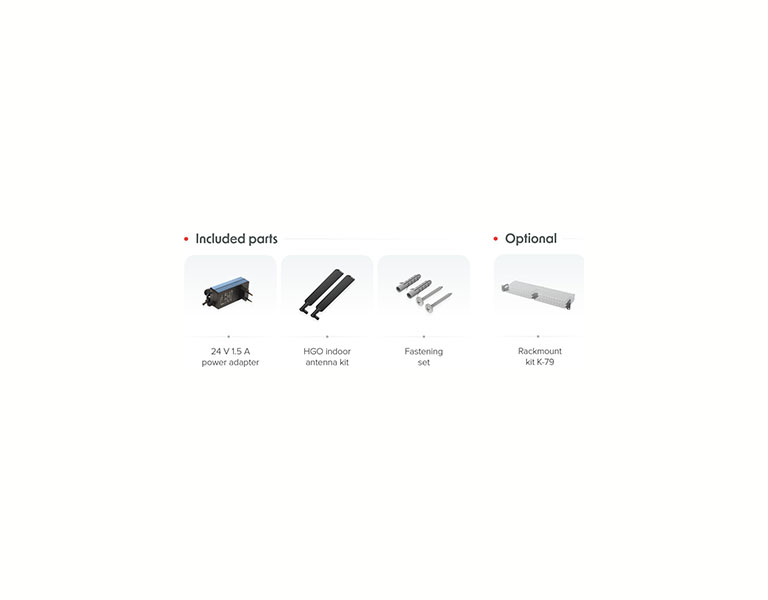

| Package contains | • 24 V 1.5 A power adapter • HGO indoor antenna kit • Fastening set |
* PoE-Out works only if powered by DC jack
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
