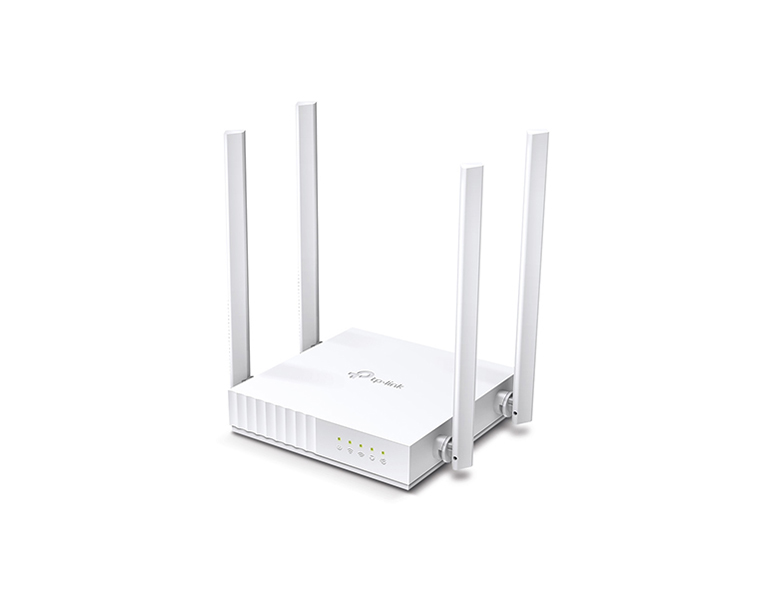

TP-LINK Archer C24 V2 AC750 Dual Band Wi-Fi Router
TP-LINK Archer C24 V2 AC750 Dual Band Wi-Fi Router
| • High-Speed Wi-Fi—AC750 dual-band is ideal for HD video streaming, high-speed downloading. • Far-Reaching Coverage—4× antennas deliver far-reaching Wi-Fi and reliable connections. • Multi-Mode 3 in 1—Supports Router, Access Point, and Range Extender to add flexibilities. • Parental Controls—Manages when and how connected devices can access the internet. • WPA3 Security—Brings new capabilities to improve cybersecurity in personal networks. • Guest Network—Provides separate access for guests while securing the host network. • Smooth HD Streaming—Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming. • IPv6 Supported—Compatible with the IPv6 (the latest Internet Protocol version 6). • Compact and Mountable—Designed to conserve space and complement any décor. |
Stable and Far-Reaching
Featuring 4× diagonally-distributed antennas, Archer C24 cover more direction and expand the WiFi coverage,
supporting buffer-free surfing and stalling-free downloading.
Advanced Security with WPA3
The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.3
Multi-Mode 3 in 1
Router Mode (Default)
Plug in an Ethernet cable to instantly create a private wireless network and share internet access with all your Wi-Fi devices.
Access Point Mode
Transform your existing wired network into a wireless one.
Range Extender Mode
Boost the existing wireless coverage in your house.
Versatile Management
Easily manage your home network with versatile built-in tools, including Parental Controls, Guest Network, QoS, and more.
High Integration, Compact Size
Archer C24's system structure focuses on creating optimal WiFi. The advanced semiconductor technology helps integrate units including CPU, memory, and a 3-stream processing unit onto a single chip to achieve high compatibility, bringing you the same power with a compact design.
As Stable as a Larger One
Archer C24 goes through rigorous repeated testing to ensure a final product reliable under several strenuous environments. The final result: 8 randomly selected Archer C24 routers collectively tested for 1,936 hours.
1. Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
2. Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
3.Use of WPA3 requires clients to also support WPA3.
| HARDWARE FEATURES | |

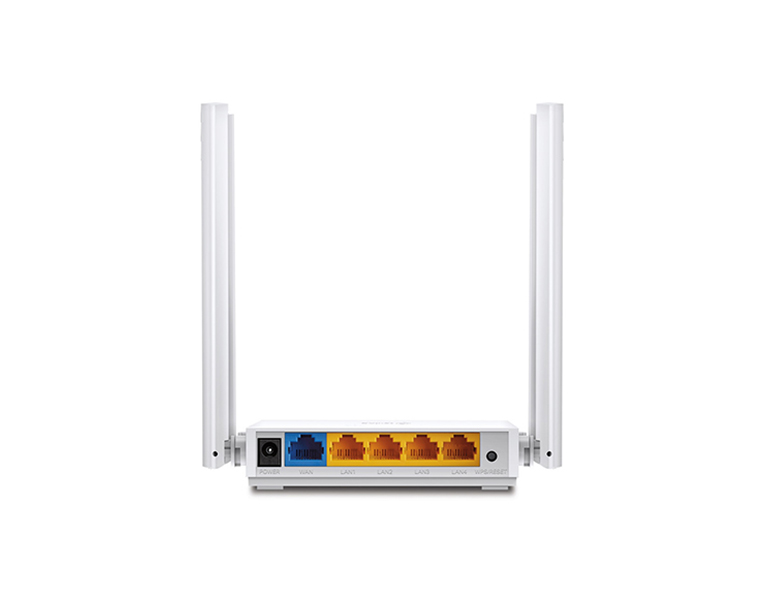

| Ethernet Ports | 4 x 10/100Mbps LAN Ports, 1 x 10/100Mbps WAN Port |
| Buttons | Reset/WPS Button |
| Antennas | 4 Fixed Omni Directional Antennas |
| External Power Supply | 9VDC/0.6A |
| Dimensions(WxDxH) | 115 x 106.7 x 24.3 mm |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 5 GHz: Up to 433 Mbps 2.4 GHz: Up to 300 Mbps |
| Reception Sensitivity | 5GHz: 11a 54M: -76dBm; 11ac VHT20 MCS8: -70dBm; 11ac VHT40 MCS9: -65.5dBm; 11ac VHT80 MCS9: -61.5dBm 2.4GHz: 11g 54M: -76dBm11n; HT20 MCS7: -74dBm; 11n HT40 MCS7: -71dBm |
| Wireless Functions | Enable/Disable Wireless Radio, WMM |
| Wireless Security | WPA / WPA2,WPA-PSK/ WPA2-PSK, WPA3-Personal encryption |
| SOFTWARE FEATURES | |
| Operation Modes | Wireless Router, Range Extender, Access Point |
| WAN Type | Dynamic IP, Static IP, PPPoE, PPTP(Dual Access), L2TP(Dual Access) |
| DHCP | DHCP Server, DHCP Client List, Address Reservation |
| Quality of Service | WMM, Bandwidth Control |
| NAT Forwarding | Port Forwarding, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP |
| Firewall Security | SPI Firewall, IP and MAC Address Binding |
| Protocols | IPv4, IPv6 |
| Management | Parental Controls, Access Control, Local Management, Remote Management |
| Guest Network | 2.4GHz Guest Network, 5GHz Guest Network |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | Wireless Router Archer C24 Power Adapter RJ-45 Ethernet Cable Quick Installation Guide |
| System Requirements | Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an Internet Service Provider (for internet access) |
| Environment | Operating Temperature: 0°C~40°C Storage Temperature: -40°C~60°C Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
