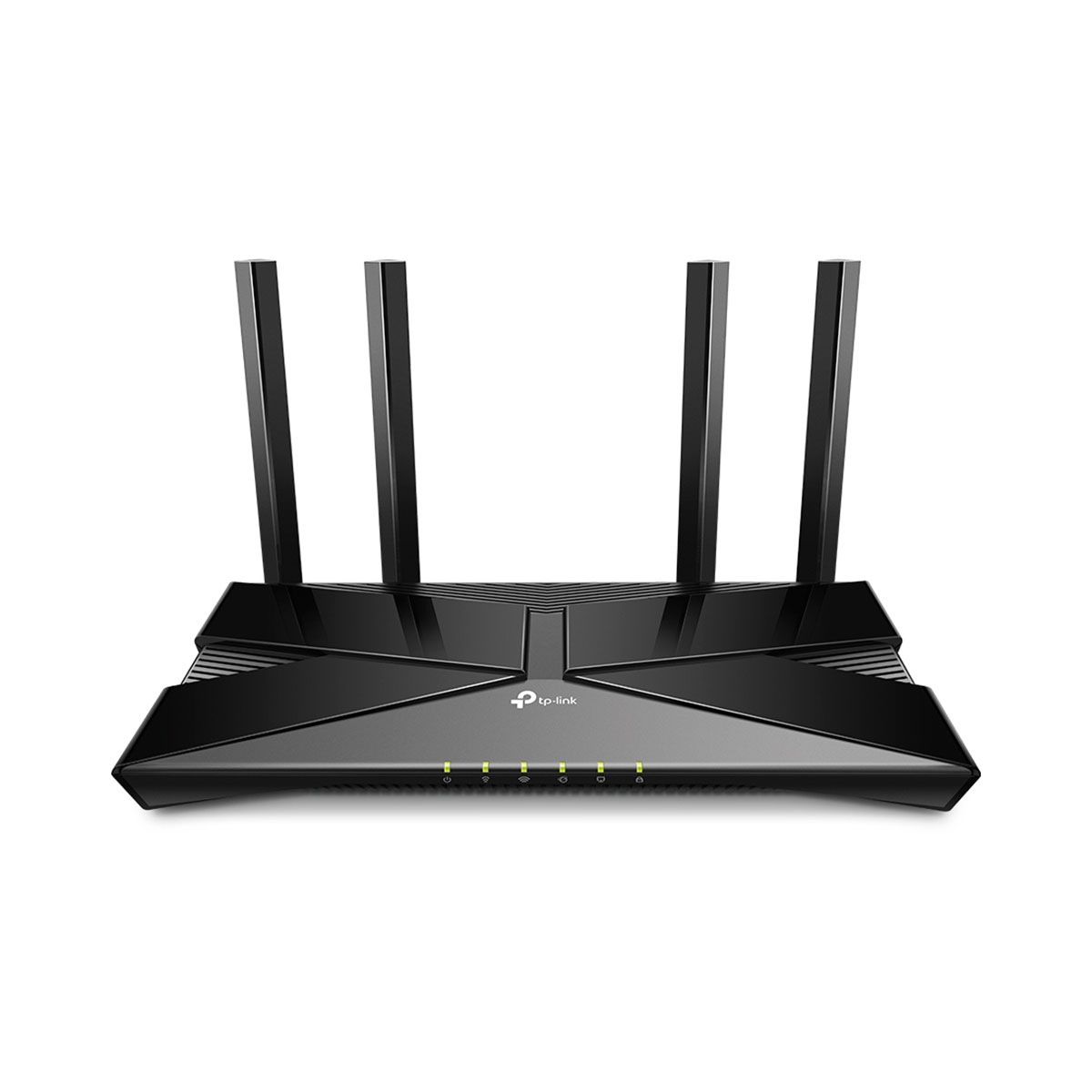

TP-LINK Archer AX53, AX3000 Dual-Band Gigabit Wi-Fi 6 Router
TP-LINK Archer AX53, AX3000 Dual-Band Gigabit Wi-Fi 6 Router
|
Next-Gen Gigabit Wi-Fi 6 Speed—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads. |
Blazingly Fast Gigabit Speed Can't Wait
There is no reason to hold off on buying a Wi-Fi 6 router when you can already take full advantage of the speed it delivers. Featuring a 160 MHz bandwidth and 1024-QAM, Archer AX53 delivers true Gigabit speeds of up to 3 Gbps. Enjoy faster streaming and gaming like never before. Powered by a powerful dual-core CPU, this full-featured Gigabit Wi-Fi 6 router allows numerous bandwidth-intensive tasks to run smoothly at the same time.
Expanded Coverage Throughout Your Home
Four high-gain external antennas and Beamforming technology combine to extend strong, reliable WiFi throughout your home.
TP-Link HomeShield: Advanced Security for Your Everyday Devices
With TP-Link HomeShield, enjoy advanced secuirty features delivering a safe environment that protects your family and network's data and privacy.
Flexibly Create Whole Home Mesh WiFi
If you have any dead zones at home, just add another EasyMesh-compatible devices to further form your whole home mesh WiFi. No more searching for a stable connection.
WPA3—The Next Level of Cybersecurity.
The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home WiFi.
Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AX53 in minutes.
The Tether app allows you to manage network settings from any Android or iOS device.
Protect Your Children
Block inappropriate content for your children, and customize a time range for better online habits.
New Connection Notification
You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It’s as simple as that.
Easy Firmware Upgrade
Tired of upgrading firmware? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up-to-date, just turn on the auto schedule.
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage and number of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of 802.11ax (Wi-Fi 6) and its features including OFDMA, HE160, and TWT requires clients to also support corresponding features. The 160 MHz bandwidth may be unavailable in the 5 GHz band in some regions/countries due to regulatory restrictions. Actual power reduction by Target Wake Time may vary as a result of network conditions, client limitations, and environmental factors.
§The 802.11ax white paper defines standardized modifications to both the IEEE 802.11 physical layers (PHY) and the IEEE 802.11 Medium Access Control (MAC) layer as enabling at least one mode of operation capable of supporting improvement of at least four times the average throughput per station (measured at the MAC data service access point) in a dense deployment scenario.
☆Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
◇TP-Link EasyMesh-Compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-Compatible function is still being developed on some models and will be supported in subsequent software updates.
△HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit https://www.tp-link.com/homeshield for more information
*Use of WPA3 requires clients to support WPA3.
**This router may not support all the mandatory features as ratified in IEEE 802.11ax specification.
***Further software upgrade for feature availability may be required.
| HARDWARE | |
| Antennas | 4× High-Performance Antennas |

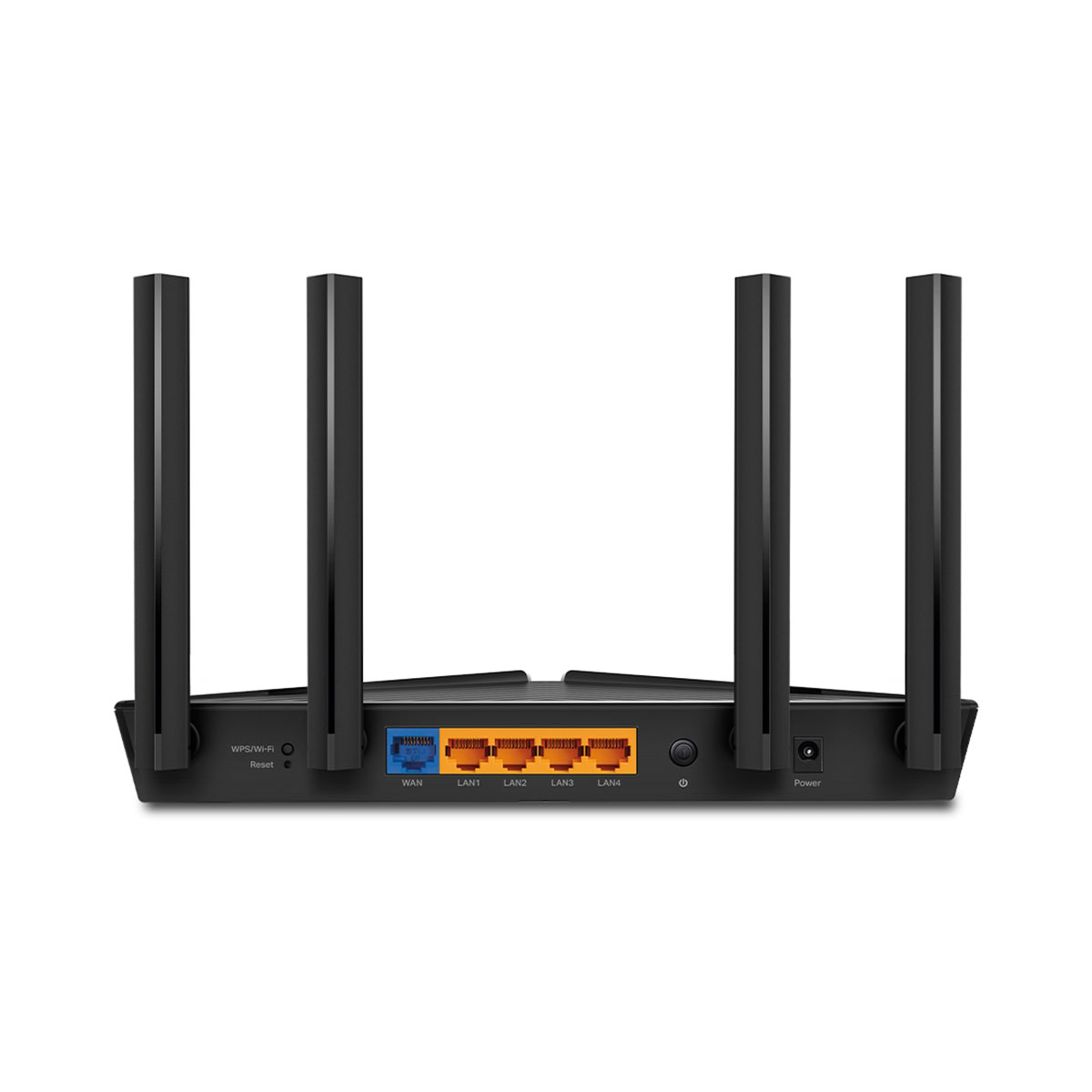

| Ethernet Ports | 1x Gigabit WAN Port, 4x Gigabit LAN Ports |
| Dimensions | 260.2 × 135 × 41.6 mm |
| WIRELESS | |
| Wireless | 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz), compatible with 11a/b/g/n/ac Wi-Fi standards |
| Frequency | 5 GHz , 2.4 GHz |
| Transmit Power | CE: <20dBm (2.4GHz) <23dBm (5.15GHz~5.35GHz) <30dBm (5.47GHz~5.725GHz) |
| Reception Sensitivity | 2.4GHz: 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-74dB 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dB 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm 5GHz: 11ac VHT20_MCS0:-97dBm, 11ac VHT20_MCS8:-75dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dBm 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-67dBm 11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS9:-63dBm 11ax HE20_MCS0:-97dBm, 11ax HE20_MCS11:-66dBm 11ax HE40_MCS0:-94dBm, 11ax HE40_MCS11:-63dBm 11ax HE80_MCS0:-91dBm, 11ax HE80_MCS11:-61dBm 11ax HE160_MCS0:-87dBm, 11ax HE160_MCS11:-58dBm |
| Wireless Function | Enable/Disable Wireless Radio, WMM, Wireless Statistics |
| Wireless Security | WPA/WPA2-Personal, WPA2/WPA3-Personal, WPA/WPA2-Enterprise |
| Software | |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management | Access Control, Local Management, Remote Management |
| DHCP | Server, DHCP Client List, Address Reservation |
| NAT Forwarding | Port Forwarding, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP, TP-Link |
| Access Control | Parental Controls, Local Management Control, Host List, White List, Black List |
| Firewall Security | SPI Firewall, IP and MAC Address Binding |
| Protocols | IPv4, IPv6 |
| Guest Network | 2.4 GHz Guest Network, 5 GHz Guest Network |
| VPN Server | OpenVPN, PPTP VPN |
| Others | |
| Certification | CE, RoHS |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Parental Controls | URL Filtering, Time Controls |
| WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade, TP-Link ID, DDNS |
| NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP, Virtual Server |
| DDNS | TP-Link, NO-IP, DynDNS |
| PHYSICAL | |
| Dimensions (WxDxH) | 260.2 x 135 x 41.6 mm |
| Package Contents | Wi-Fi Router Archer AX23 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| OTHER | |
| Certification | FCC, CE, RoHS |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Environment | Operating Temperature: 0℃~40℃ Operating Humidity: 10%~90% non-condensing |
| Package Contents | Wireless Router Archer AX53 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
