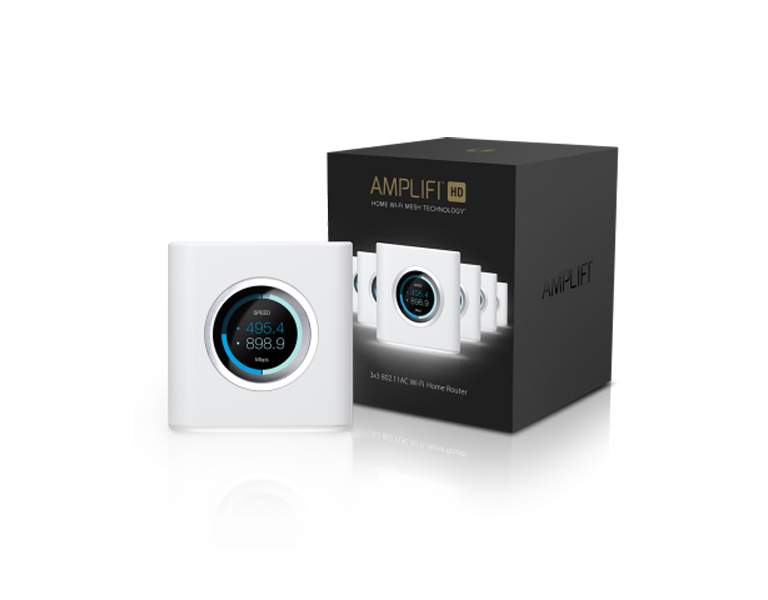

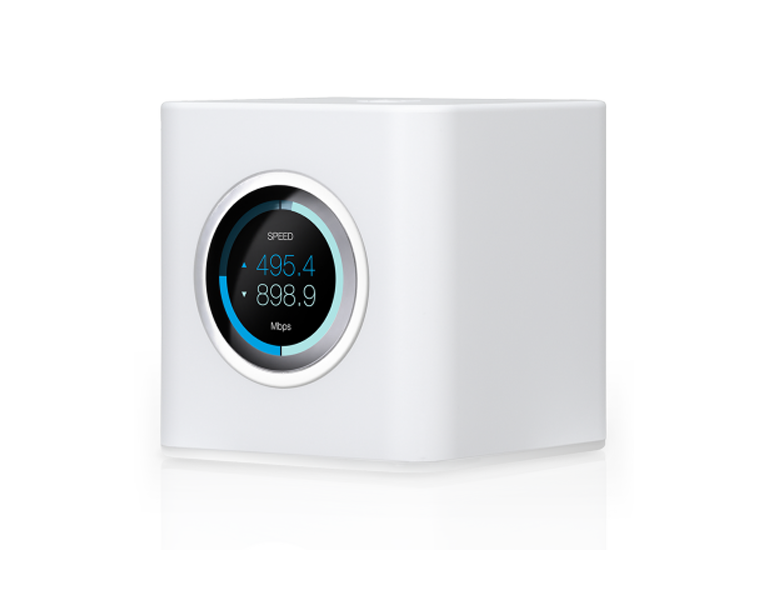

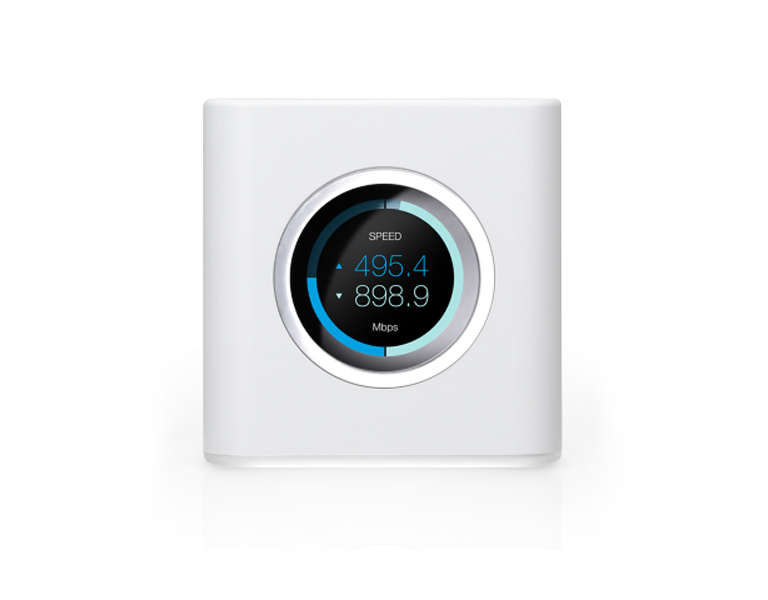

Ubiquiti AFi-R AmpliFi HD Home Wi-Fi Router
Home Wi-Fi Mesh Technology
AmpliFi's multi-radio Wi-Fi system eliminates dead spots to provide premium, Wi-Fi coverage throughout your home.

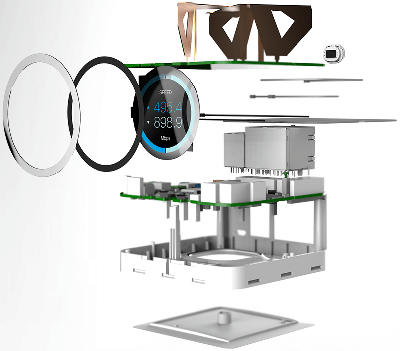

Powerful Antennas
Super Antenna Technology drives superior range and speed.
Significant Signal
Latest 802.11ac Wi-Fi technology, integrated.
Plug and Play Setup
AmpliFi's app directly links AmpliFi devices to your smartphone via Bluetooth.
With a simple, intuitive setup, you can manage your new network, monitor ISP speeds, invite guests, and oversee network security.
| Specifications | |
| Max. TX Power | 26 dBm |
| Radios | 2 |
| MIMO Chains | 6 |
| Speed | 1,750 Mbps |

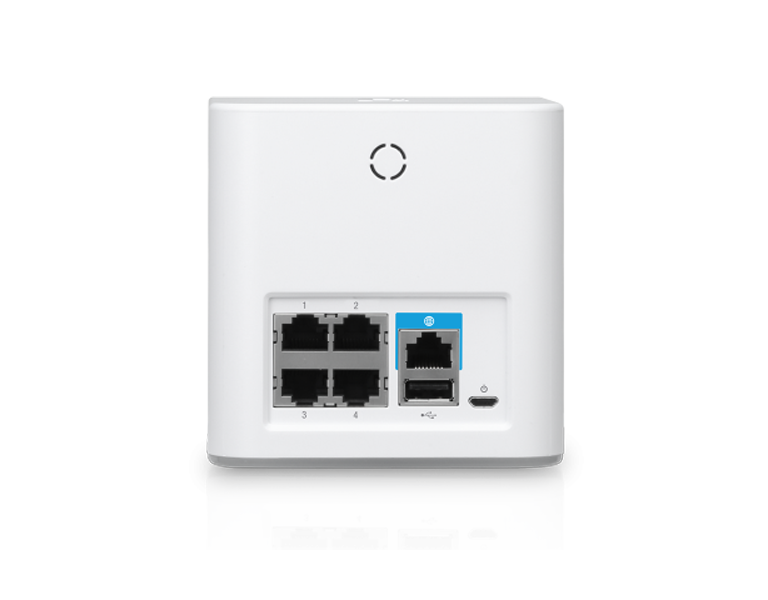

| Networking Interface | Wi-Fi/Gigabit Ethernet (1) WAN, (4) LAN |
| Max. Power Consumption | 11W |
| Buttons | Reset |
| Antennas | (1) Dual-Band Antenna, Tri-Polarity |
| Display | 1.6" (40.6 mm) Diagonal, 240 x 240, 212 ppi, G+F Touch, Full Color |
| Wi-Fi Standards | 802.11ac |
| Power Save | Supported |
| Wireless Security | WPA2-PSK AES/TKIP |
| Operating Temperature | 14 to 131° F (-10 to 55° C) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | FCC / CE / IC |
| Supported Data Rates (Mbps) | |
| Standards | Data Rates |
| 802.11ac | 13 Mbps to 1300 Mbps (MCS0 - MCS9, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
