Teracom TST100 - 1-Wire temperature sensor

Product Code:
TST100
Manufacturer Teracom
Sales price: 28,00 €(Includes 24% VAT)
Sales price without TAX:22,58 €
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews

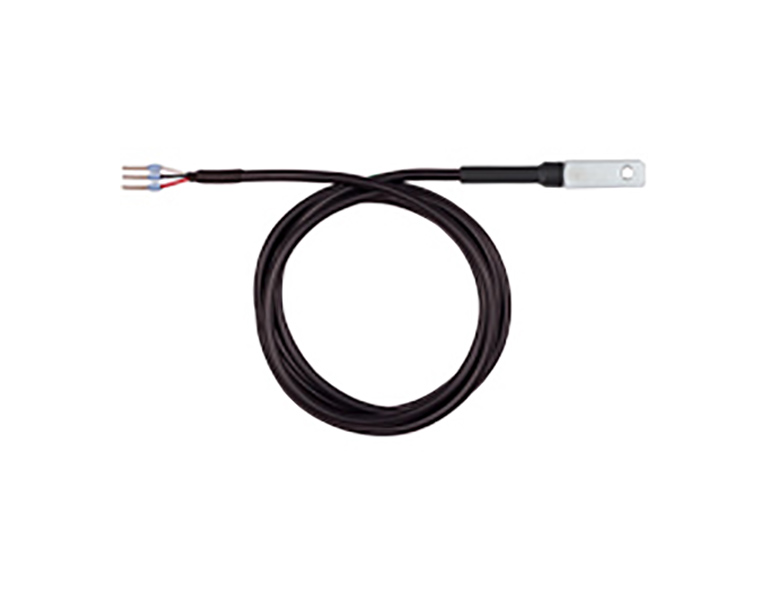

Teracom TST100 - 1-Wire temperature sensor

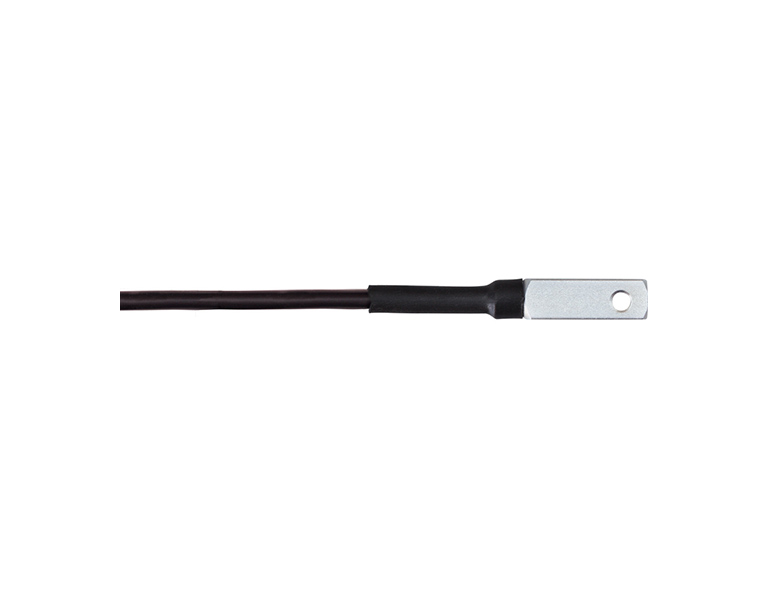

The temperature sensor integrates a band-gap temperature sensor element plus signals processing and provides a fully calibrated digital output. The sensor utilizes special flat aluminum head. It allows direct object assembly. The direct assembly ensures low thermal resistance, respectively fast response of the system. The temperature sensor has 1 meter cable with soldered wires for direct connection to the screw terminals of controller.

Features:
• Aluminum head for low thermal resistance
• Each device has a unique 64-Bit serial number
• ±0.5°C accuracy from -10°C to +85°C
• 12 bits resolutions
• Very low current consumption
• IP65 ingress protection

Typical applications:
• Server room and data centers temperature monitoring and logging
• Temperature monitoring inside buildings or machinery
• Heating, ventilation and air conditioning (HVAC) systems
• Process monitoring and control systems

The 1-Wire temperature sensor can be used with:
• Ethernet IO module TCW241
• Ethernet data logger TCW220
• Remote IO module TCW122B-CM
• GSM-GPRS remote monitoring controller TCG120
• IP watchdog monitoring module TCW122B-WD
• Remote environmental monitoring module TCW112-CM
• IP watchdog relay board TCW112-WD

Warranties - Returns:
Money Return: Repair - Replacement:
20 days 36 months
Specifications
Operating range -40 to +85 °C
Accuracy (max) ± 0.5°C (-10 to 85°C)
Accuracy (max) ±2.0°C (-40 to 85°C)
Resolution 0.1°C
Supply voltage 3 to 5.5VDC
Ingress protection IP65
Head's dimensions 8 x 8 x 23 mm
Connectors LIYY cable - 1 meter
