CAUTION PACKAGE DOES NOT INCLUDE POWER SUPPLY
The GWN7664 is a powerful, enterprise-grade 802.11ax Wi-Fi 6 access point, ideal for small-to-medium sized businesses, multiple floor buildings, residential settings and commercial locations. It offers dual-band 4x4:4 MUMIMO with DL/UL OFDMA technology and a sophisticated internal antenna design for stronger anti-interference, more stable connection, maximum network throughput and expanded Wi-Fi cover age range. The GWN7664 is supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform that and makes managing your network or several networks across multiple locations easier than ever before. It also uses a controller-less network management architecture in which the controller is embedded within the product’s web user interface for easy administration of locally deployed Wi-Fi Aps. The GWN7664 is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low latency real-time applications, mesh networks, captive portals, 750+ concurrent clients and dual Gigabit network ports with PoE/PoE+, the GWN7664 is an ideal Wi-Fi access point for business-grade wireless network deployments with medium-to-high user density.
Features:
• 3.55Gbps aggregate wireless throughput, 3.5Gbps aggregate wired throughput
• Dual-band 4x4:4 MU-MIMO with DL/UL OFDMA technology
• Up to 175-meter coverage range
• Supports 750+ concurrent Wi-Fi client devices
• Includes 1x 1G Port and 1x 2.5G Port
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Self power adaptation upon auto detection of PoE or PoE+
• Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
|
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 36 months |
Specifications | |
WiFi Standards | IEEE 802.11 a/b/g/n/ac/ax |
Antennas | 8 individual internal antennas, 4 per band 2.4GHz, gain 3dBi 5 GHz, gain 4dBi |
WiFi Data Rates | 5G: IEEE 802.11ax: 8 Mbps to 2402 Mbps; IEEE 802.11ac: 6.5 Mbps to 1733 Mbps; IEEE 802.11n: 6.5Mbps to 600Mbps; IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 2.4G: IEEE 802.11ax: 8 Mbps to 1147 Mbps; IEEE 802.11n: 6.5 Mbps to 600 Mbps; IEEE 802.11b: 1, 2, 5.5, 11 Mbps; IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network |
Frequency Bands | 2.4GHz radio: 2412-2484 MHz 5GHz radio: 5180-5825 MHz *Not all frequency bands can be used in all regions |
Channel Bandwidth | 2.4G: 20 and 40 MHz (x4) 5G: 20,40 and 80 MHz (x4) |
WiFi and System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
MIMO | 4x4:4 2.4GHz 4x4:4 5GHz |
Coverage Range | Up to 175 meters *Coverage range can vary based on environment |
Maximum TX Power | 5G: 25dBm 2.4G: 26dBm *Maximum power varies by country, frequency band and MCS rate |
Receiver Sensitivity | 2.4G 802.11b: -99dBm@1Mbps, -91dBm@11Mbps; 802.11g: -94dBm @6Mbps, -78dBm@54Mbps; 802.11n 20MHz: -75dBm @MCS7; 802.11n 40MHz: -71dBm @MCS7; 802.11ax 20MHz: -64dBm @MCS11; 802.11ax 40MHz: -63dBm @MCS11; 5G 802.11a: -95dBm @6Mbps, -77dBm @54Mbps; 802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7 802.11ac 20MHz: -70dBm @MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9; 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -59dBm @MCS11 |
SSIDs | 32 SSIDs total, 16 per radio (2.4GHz and 5 GHz) |
Concurrent Clients | 750+ |
Network Interfaces | 1x 1G Port and 1x 2.5G Port, support 3.5Gbps aggregate wire throughput |

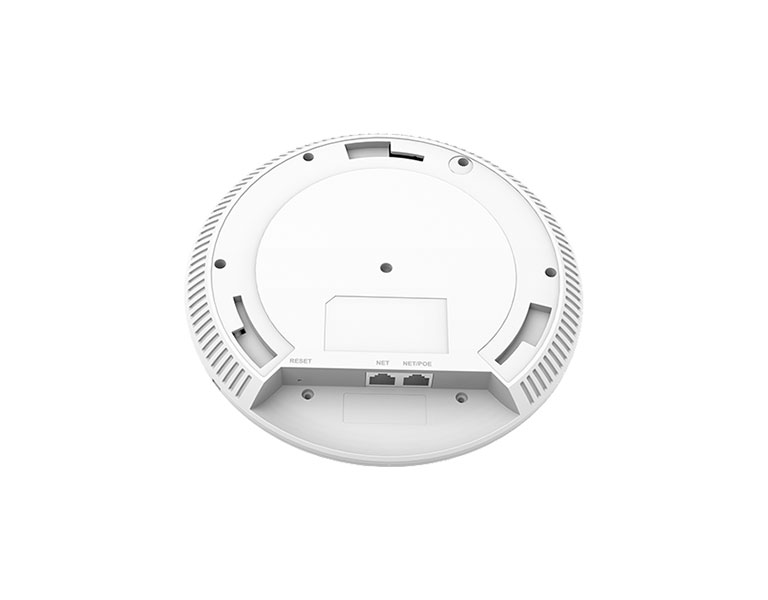

Auxiliary Ports | 1x Reset Pinhole, 1x Kensington lock |

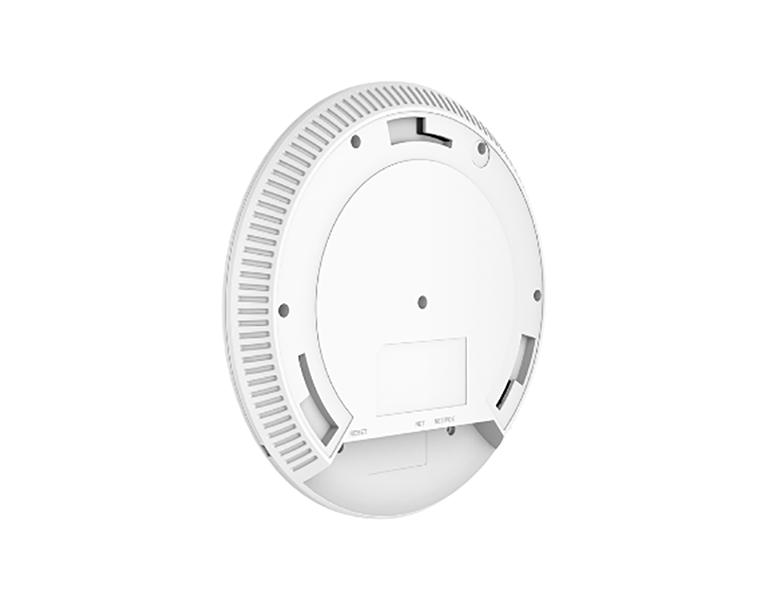

Mounting | Indoor wall mount or ceiling mount, kits included |
LEDs | 1 tri-color LEDs for device tracking and status indication |
Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
QoS | 802.11e/WMM, VLAN, TOS |
Network Management | Embedded controller can manage up to 50 local GWN APs GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN Manager offers premise-based software controller for up to 3,000 GWN APs |
Power and Green Energy Efficiency | PoE 802.3af/802.3at; Maximum Power Consumption: 17W |
Environmental | Operation: 0°C to 50°C Storage: -10°C to 60°C Humidity: 10% to 90% Non-condensing |
Physical | Unit Dimension: 205.3mm(L) x 205.3mm(W) x 405.9mm(H); Unit Weight: 0.714Kg Entire Package Dimension: 258 x 247 x 86mm; Entire Package Weight: 1.06Kg |
Package Content | GWN7664 802.11ax Wireless AP, Mounting Kits, Quick Start Guide |
Compliance | FCC, CE, RCM, IC |
