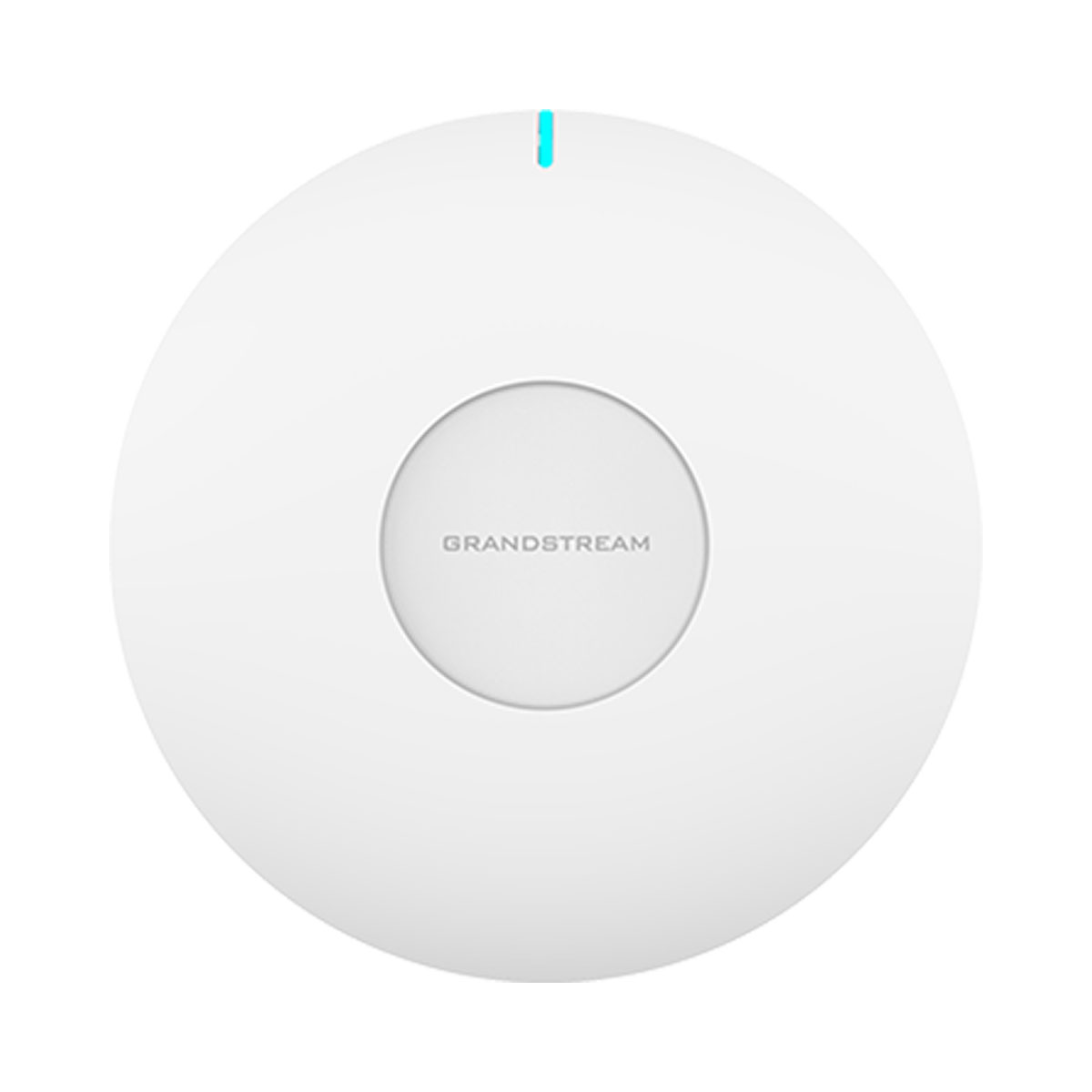

Grandstream GWN7660ΕΜ 802.11AX 2X2:2 Wi-Fi 6 Access Point and Wi-Fi Extender
Grandstream GWN7660ΕΜ 802.11AX 2X2:2 Wi-Fi 6 Access Point and Wi-Fi Extender
Συμπεριλαμβάνεται αντάπτορας AC.
The GWN7660EM is an AX3000 Wi-Fi 6 access point with a socket design, enabling simple deployment and superior performance. It can be used as a wireless extender, which works with the GWN7062E/ET and will work with future Grandstream routers to quickly build a home wireless mesh networking to expand network coverage. It offers 2x2:2 MUMIMO technology on the 2.4G band and 3x3:2 MU-MIMO on the 5G band as well as a sophisticated antenna design and uses XTRA Range technology with beamforming for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7660EM uses a controller-less distributed network management design in which the controller is embedded within the product’s Web user interface. The GWN7660EM is also supported by GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real- time applications, mesh networks, captive portals, 128 concurrent clients per AP and 1 x 1 Gigabit network port, GWN7660EM is an ideal Wi-Fi access point for small and medium household users to achieve high-speed Wi-Fi coverage in the whole house.
• 3Gbps aggregate wireless throughput and 1 Gigabit wireline port
• Dual-band 2.4G 2x2:2 and 5G 3x3:2 MU- MIMO with OFMDA and XTRA Range technology
• Up to 120-meter coverage range
• Supports 128 concurrent Wi-Fi client devices
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Supports Mesh networking with the GWN7062E/ET series, future Grandstream Routers, and other GWN series access points to provide easy network expansion
• Embedded controller can manage up to 10 local GWN series APs; GDMS Networking offers unlimited AP management; GWN • • • Manager offers premise-based software controller
| Specifications | |
| Radio |
|
| Antenna | 1 single frequency antenna and 2 dual frequency antennas 2.4GHz x 2, maximum gain 2.5 dBi 5GHz x 3, maximum gain 2.5 dBi |
| MIMO | 2.4GHz: 2x2:2, MU-MIMO 5GHz: 3x3:2, MU-MIMO |
| Frequency Bands | 2.4GHz Radio: 2400 - 2483.5 MHz 5GHz Radio: 5150 - 5895 MHz *Not all frequency bands can be used in all regions |
| Channel Bandwidth | 2.4G: 20 and 40 MHz 5G: 20, 40, 80 and 160 MHz |
| Wi-Fi Data Rates | 2.4G IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps IEEE 802.11n: 6.5 Mbps to 300 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps 5G IEEE 802.11ax: 7.3 Mbps to 2402 Mbps IEEE 802.11ac: 6.5 Mbps to 867 Mbps IEEE 802.11n: 6.5 Mbps to 600 Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interfe- rence in the operating environment and mix of devices in the network |
| Maximum TX Power | 2.4G: 26 dBm 5G: 24 dBm *Maximum power varies by country, frequency band and MCS rate |
| Receiver Sensitivity | 2.4G 802.11b: -96 dBm @1 Mbps, -88 dBm @11 Mbps; 802.11g: -93 dBm @6 Mbps, -75 dBm @54 Mbps; 802.11n 20 MHz: -73 dBm @MCS7; 802.11n 40 MHz: -70 dBm @MCS7; 802.11ax 20 MHz: -60 dBm @MCS11; 802.11ax 40 MHz: -58 dBm @MCS11; 5G 802.11a: -92 dBm @6 Mbps, -74 dBm @54 Mbps; 802.11n 20 MHz: -73 dBm @MCS7; 802.11n 40 MHz: -70 dBm @MCS7; 802.11ac 20 MHz: -67 dBm @MCS8; 802.11ac 40 MHz: -63 dBm @MCS9; 802.11ac 80 MHz: -59 dBm @MCS9; 802.11ax 20 MHz: -60 dBm @MCS11; 802.11ax 40 MHz: -58 dBm @MCS11; 802.11ax 80 MHz: -56 dBm @MCS11; 802.11ax 160 MHz: -52 dBm@ MCS11; |
| Coverage Range | Up to 120 meters *Coverage range can vary based on environment |
| Interfaces | |
| Network Ports | 1x autosensing 10/100/1000 Base-T Ethernet Port |
| LEDs | 1 tri-color LED for device tracking and status indication |

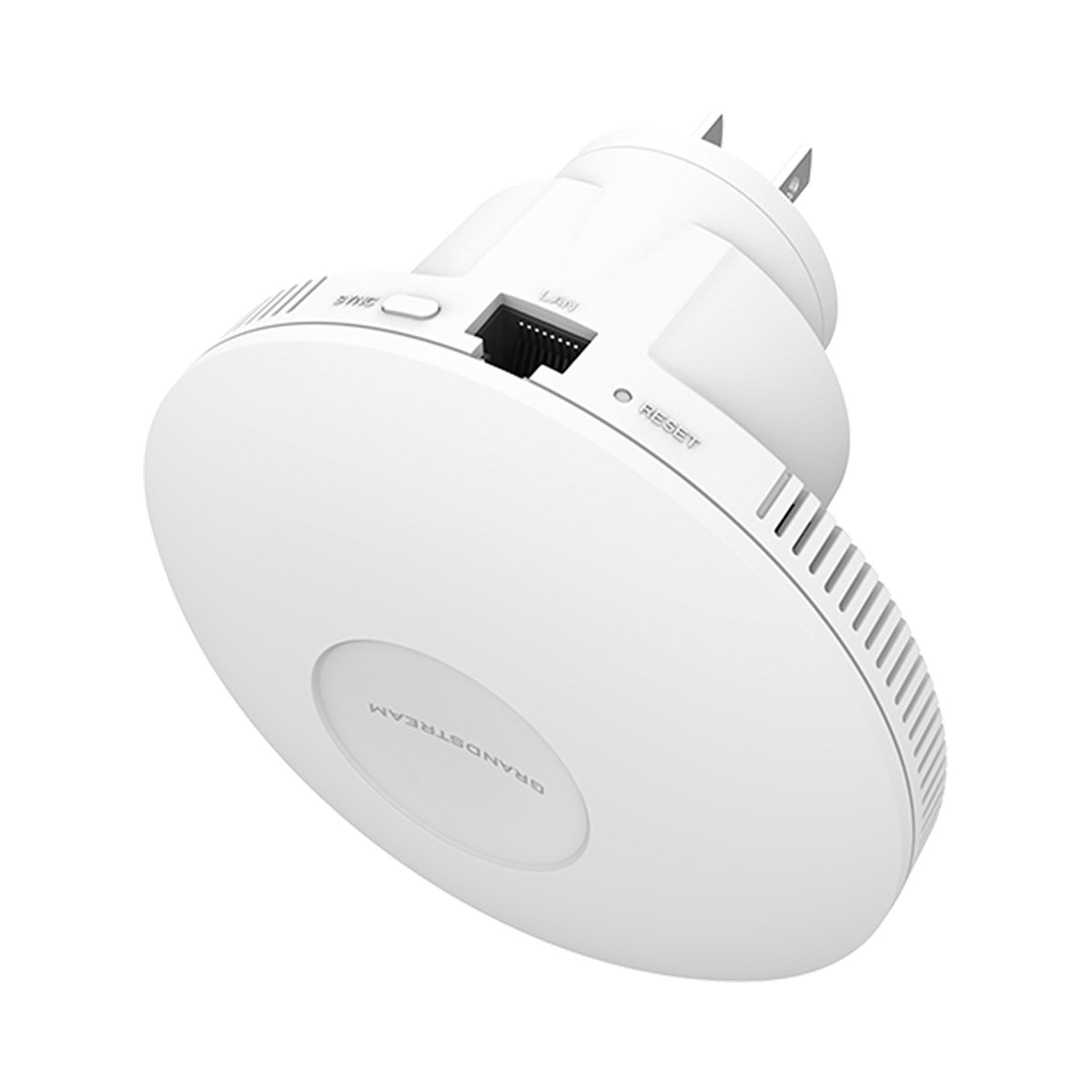

| Auxiliary Ports | 1x Reset Pinhole, 1x SYNC Key |
| Power | |
| AC | 110-240V~50/60Hz 0.4A |
| Maximum Power Consumption |
12W |
| Physical | |
| Dimension | Unit: 110 × 110 × 56.7 mm Entire Package: 125 × 117 × 93 mm |
| Weight | Unit: 210.5 g Entire Package: 314 g |
| Mounting | Indoor wall-plug mount |
| Package Content | GWN7660EM Wi-Fi 6 Wireless AP, AC adapter plug, Quick Start Guide |
| Environmental | |
| Temperature | Operation: 0°C to 40°C Storage: -10°C to 60°C |
| Humidity | 10% to 90% Non-condensing |
| Compliance |
FCC, CE, RCM, IC |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
