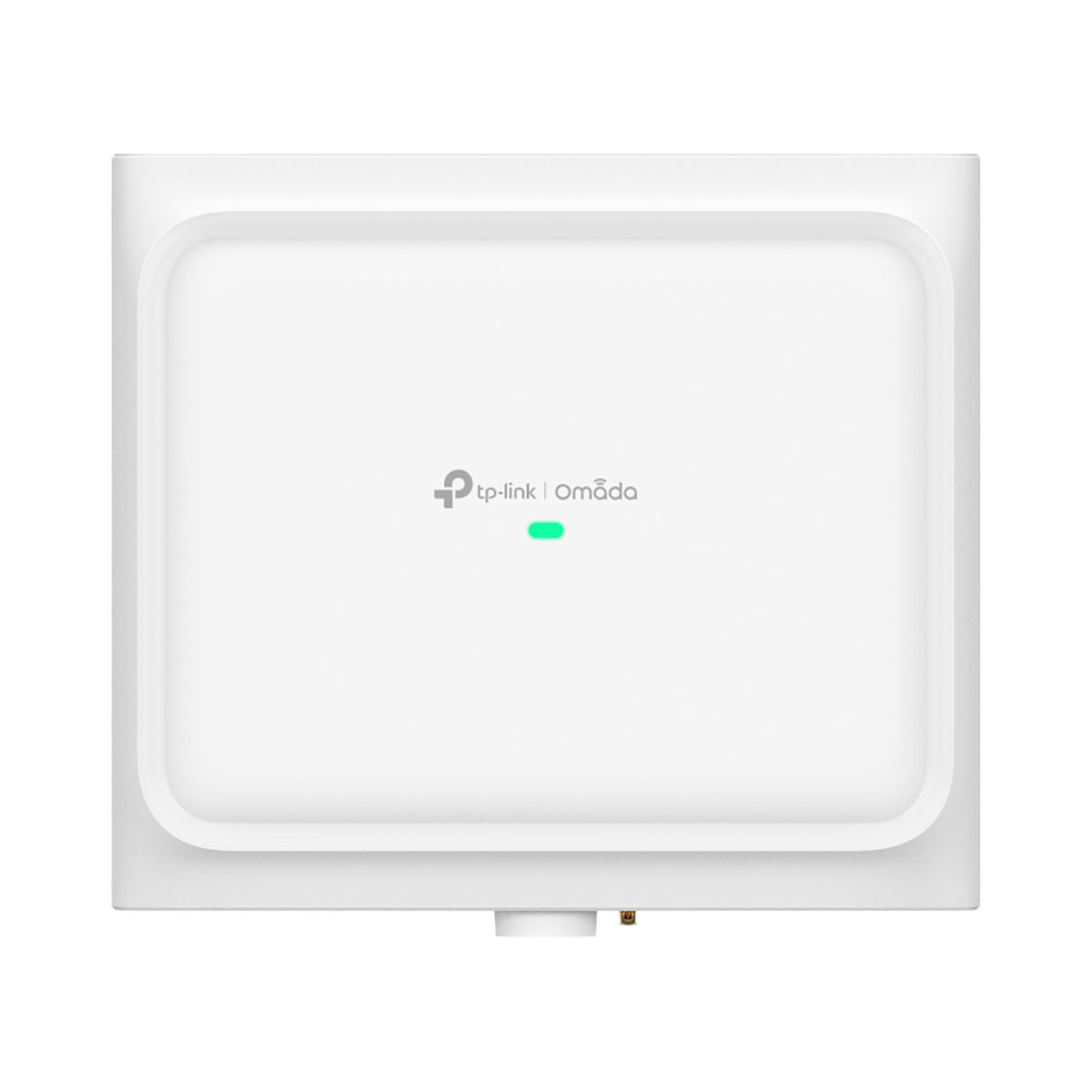

TP-LINK EAP772-OUTDOOR V1, Tri-Band OmniDirectional BE11000 Indoor/Outdoor WiFi 7 AP
|
• Tri-Band Six-Stream Outdoor WiFi 7: Up to 9.3 Gbps.† |
Tri-Band Omnidirectional Coverage, 6 GHz Unlocked by AFC△
Unlock the cleaner 6 GHz outdoors—powered by AFC , the EAP772-Outdoor eliminates congestion and delivers tri-band omnidirectional coverage (2.4 GHz, 5 GHz, and 6 GHz). 300m2 (3,200ft2) recommended coverage brings silky-smooth outdoor networking.

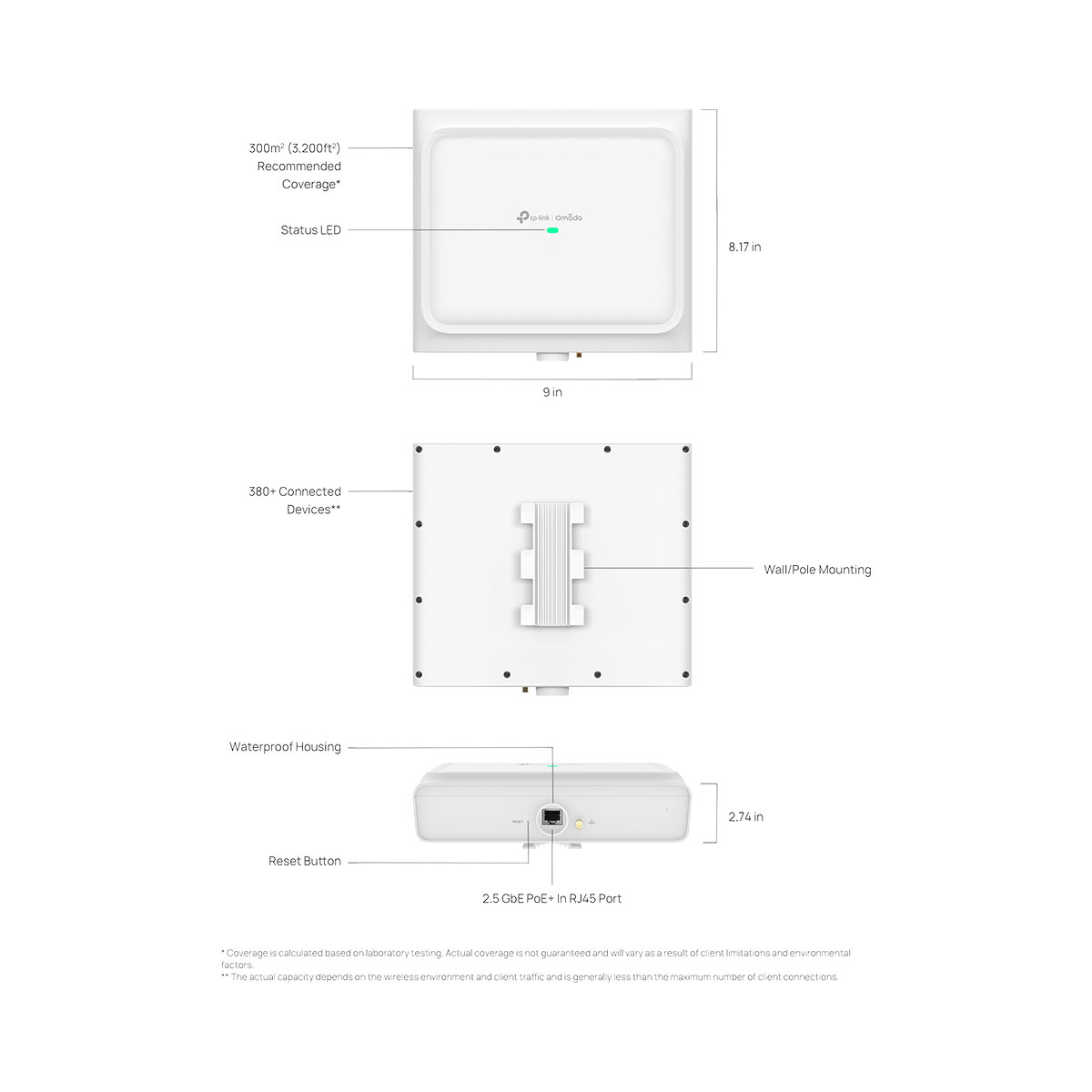

Professional Hardware Design
The EAP772-Outdoor features 1×2.5G PoE+ RJ45 port, providing high throughput for applications such as smooth live streaming and 4K video. Additionally, its dual-polarized antennas in 2.4 GHz band offer better anti-interference capability.
Industry-Leading IP68 Weatherproof Design
The fully sealed EAP772-Outdoor is completely dustproof and can be submerged in water up to 1.5 meters deep for up to 1 hour, exceeding the IP67 standard. It withstands even the harshest outdoor environments.
Seamless Connectivity with Mesh and Roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
Works with Omada SDN for One-Click Setup
Omada SDN allows users to quickly set up the EAP772-Outdoor through automatic device identification and one-click adoption.
Empowering Businesses with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
† Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 routers. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
△ Learn more details about AFC technology and regions that support AFC, please visit: https://www.omadanetworks.com/support/faq/4373/
‡ Use of WiFi 7 (802.11be), WiFi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, and MU-MIMO requires clients to also support the corresponding features.
§ Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada controllers. Go to the Omada Mesh Product List to find all the models supported by Omada mesh technology and refer to the User Guides of Omada controllers for configuration methods.
* Coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
** The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
| Hardware Specifications | |
| Wi-Fi Standards | 6 GHz: IEEE 802.11ax/be 5 GHz: IEEE 802.11a/n/ac/ax/be 2.4 GHz: IEEE 802.11b/g/n/ax/be |
| Antenna | 2.4 GHz: 2 × 4 dBi (peak gain), internal omnidirectional antennas 5 GHz: 2 × 6 dBi (peak gain), internal omnidirectional antennas 6 GHz: 2 × 6 dBi (peak gain), internal omnidirectional antennas *Note: The gains above are the single-antenna peak gains |
| Interfaces | 1 x 10M/100M/1000M/2.5Gbps Ethernet Port (RJ45); PoE in 1 x Grounding Terminal |
| IoT | Bluetooth: 1 × 3 dBi (peak gain), internal omnidirectional antennas |
| GNSS | 1× 3dBi (peak gain), integrated omnidirectional antennas |
| Memory | Flash: 128 Mbit DRAM: 8192 Mbit |
| Button | 1 × Reset button: Press the button for longer than 5 seconds to make the device restore to factory settings. |
| Indicator | 1 × multi - color system LED indicates on the front: •Power - on status •Firmware initialization or upgrade status •Uplink service status •Error status |
| Reliability |
MTBF (Mean Time between Failure) - hours at the operating temperature of 25 |
| Power Supply |
Input 802.3at PoE+: 42.5-57 V=0.6A
|
| Power Consumption | 802.3at (PoE+): 23w, 2.4GHz radio 2×2, 5GHz radio 2×2, 6GHz radio 2×2, wired link rate can be up to 2.5 Gbps, etc Idle mode: 8W(PoE) |
| Surge/Lightning Protection | Ethernet Ports: ± 6 kV |
| ESD/EMP Protection | Air discharge: ± 8 kV Contact discharge: ± 4 kV |
| Tx Power |
Maximum transmit power: FCC (Conducted Power) Minimum transmit power FCC (Conducted Power) |
| Environment |
Temperature: Humidity: Altitude: Windproof: Class 16 Weatherproof Enclosure: IP68 |
| Unit |
Dimensions (W× D× H): Weight: Mounting: |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εξωτερικούς χώρους.
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εξωτερικούς χώρους.
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 5945 – 6425 MHz ορίζεται στο παρόν έγγραφο. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
