RF-Elements TP-ADAPTOR-RM5-S-V2 Twistport shielded adaptor V2

Κωδικός προϊόντος:
TP-ADAPTOR-RM5-S-V2
20,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
16,13 €
Άμεσα διαθέσιμο
RF-Elements TP-ADAPTOR-RM5-S-V2 Twistport shielded adaptor V2
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Προσθήκη στο καλάθι
Κατηγορία:
Κατασκευαστής:
Εγγύηση:
24 Μήνες
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή

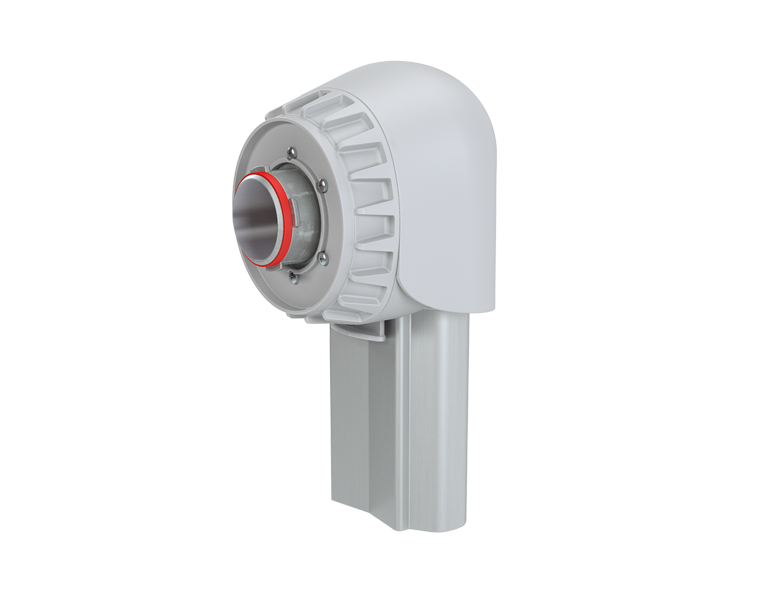

What Is TwistPort Adaptor
TwistPort™ Adaptors make most popular connectorized radios and MikroTik RouterBoards compatible with any TwistPort antennas. They are the key to the entire TwistPort ecosystem with all its benefits - low loss, high scalability, easy co-location, simple deployment, and easy maintenance.

For Ubiquiti Networks Rocket Radios
TwistPort Adaptors for Ubiquiti Networks Rocket radios enable integration with Rocket M5, Rocket 5AC-Lite, Rocket 5AC-PTP, and Rocket 5AC-PTMP. The adaptor uses special coaxial connectors without threads, so the installation is effortless. Simply slide the radio into the adaptor until you hear “click”. To unlock, press the button and slide the radio out.

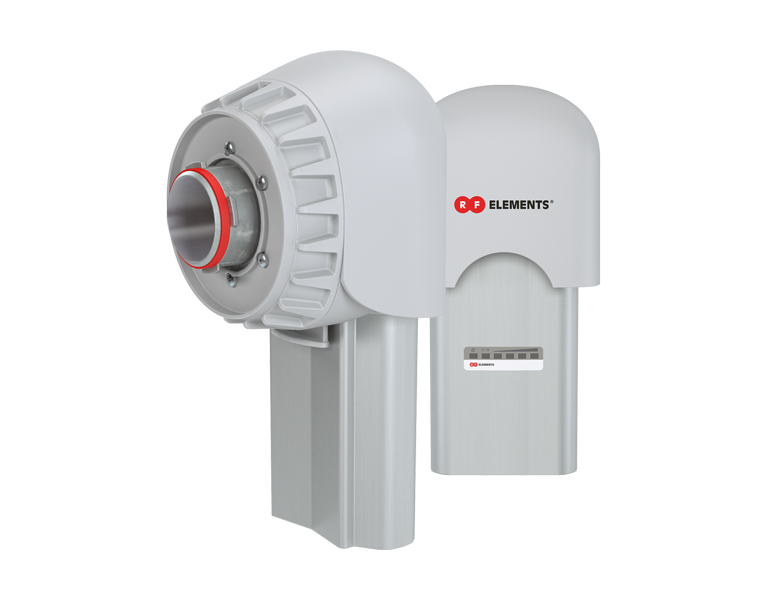

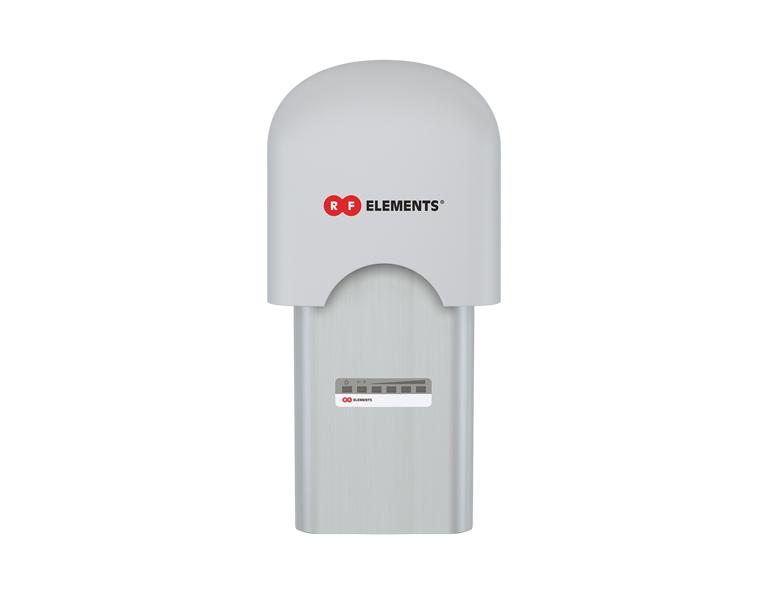

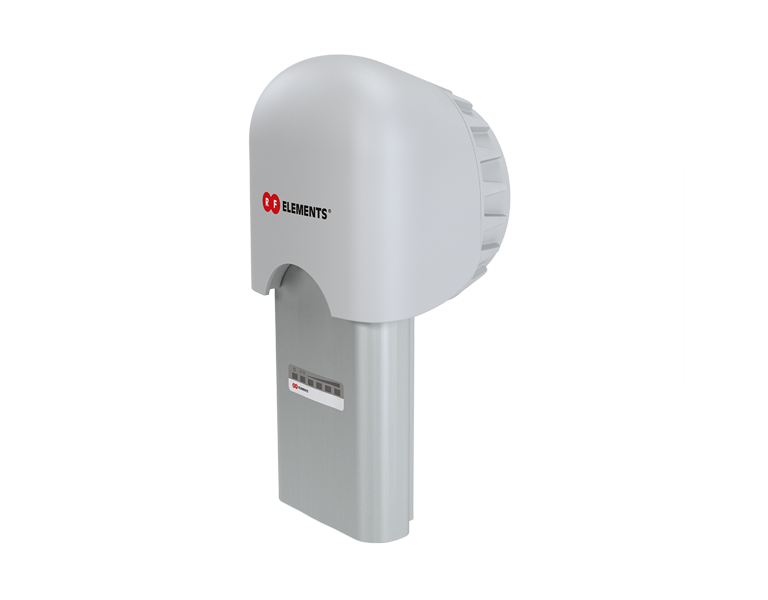

To improve co-location performance and decrease noise emmission, TwistPort Adaptors are available also in a shielded version. Shielded Adaptors for UBNTRocket radios have a visible metal enclosure attached to the main body.

For Cambium Networks ePMP1000
TwistPort Adaptor for Cambium Networks ePMP1000 radios allows easy integration with ePMP1000 AP and CSM radios.
The TwistPort Adaptor uses special coaxial connectors without threads, so the installation of the radio is effortless. Simply slide the radio into the adaptor until you hear “click”. To unlock, press the button and slide the radio out.

Wideband Performance
Starting with version "V2", you can utilize all benefits of TwistPort eco-system and superb performance of TP antennas in wideband. TwistPort Adaptors V2 cover ultra-wideband spectrum: 5180-6400 MHz!

Easy Integration
Check how easy the TwistPort Adaptor integrates connectorized radios and MikroTik RouterBoard.

Integration of the new Rocket 5AC Prism is revolutionary simple!





Χαρακτηριστικά
Specifications

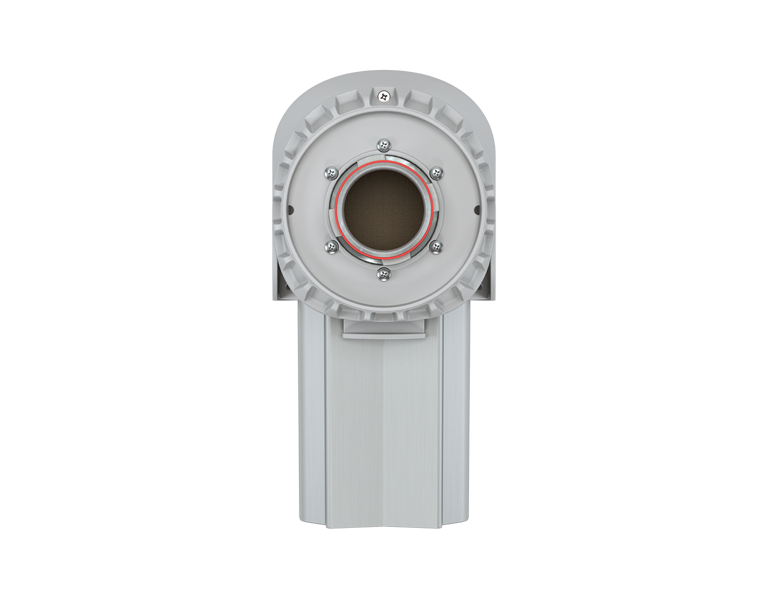

Antenna Connection TwistPort - Quick Locking Waveguide Port
Radio Connection 2x Slide-On RP-SMA
Materials Insert - Aluminium Alloy
Shield - Aluminium Alloy and Zinc Alloy
Adaptor - UV stabilized and weather resistant ABS plastic
Flame Rating UL 94 HB
Temperature -40°C to +60°C (-40°F to +140°F)
Wind Survival 160 km/h
Weight 0.5 Kg / 1.1 lbs – single unit
0.7 Kg / 1.5 lbs – single unit incl. package
Frequency Range 5180 - 6400 MHz
Polarization Dual Linear H + V
VSWR Max 1.8
Impedance 50 Ohm
