Ubiquiti RD-5G30 5Ghz 30dBi, Rocket Dish 5GHz AirMax 2x2 MIMO

Overview
Pair a RocketDish™ antenna with a Rocket^® basestation to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (Rocket sold separately).

Powerful Performance

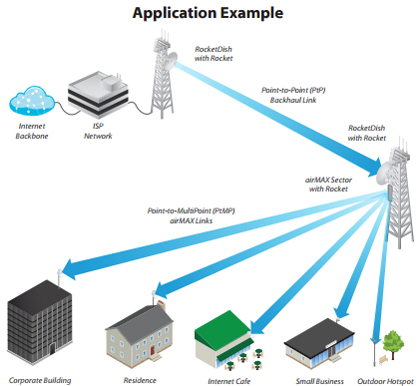

The RocketDish antenna delivers 2x2, dual-polarity performance. Below is one example of how the RocketDish with Rocket can be deployed in a backhaul link to deliver bandwidth from an ISP network out to a neighborhood tower. From there, an airMAX^® Sector with Rocket delivers bandwidth to the ISP’s customers.

Carrier-Class Construction

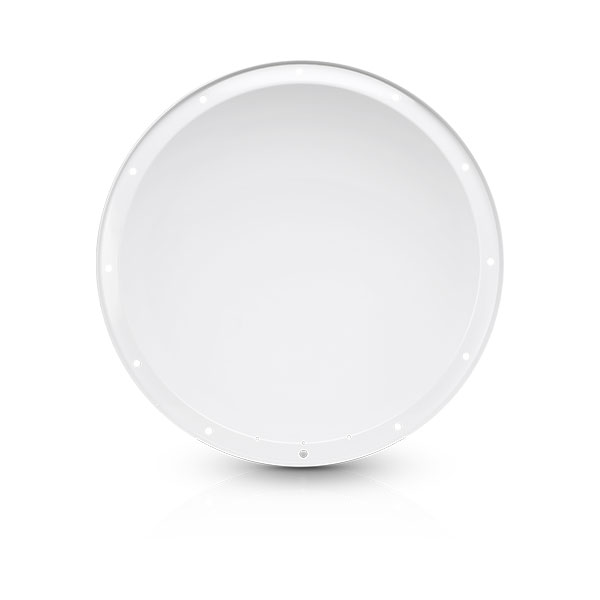

Incorporating a dish reflector design for excellent beam directivity, the RocketDish antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.

Plug and Play Integration
RocketDish antennas and Rocket basestations have been designed to seamlessly work together. Every RocketDish has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of RocketDish and Rocket for your PtP application.

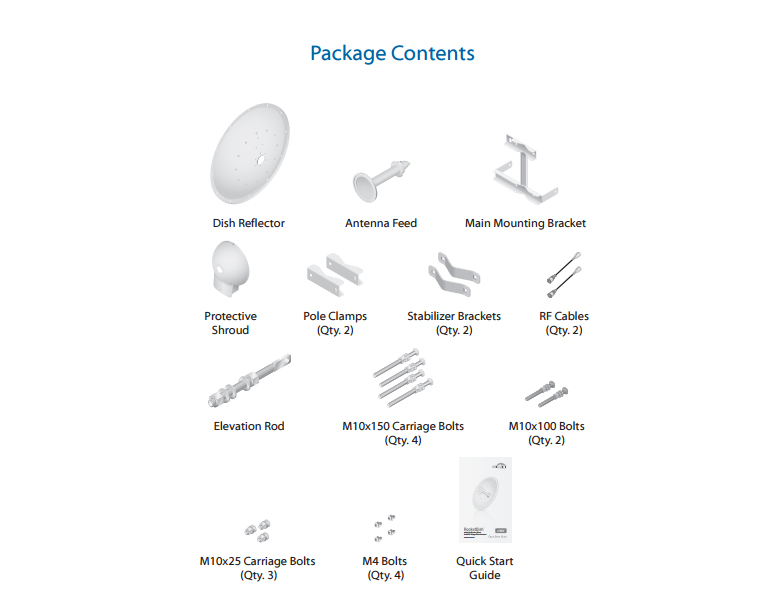

Hardware Overview
Innovative Mechanical Design
• Secure pole-mounting The hardware is designed to securely mount and maintain the position of the dish during harsh outdoor conditions.
• Convenient installation The bubble level allows for easy alignment.
Weatherproof Design

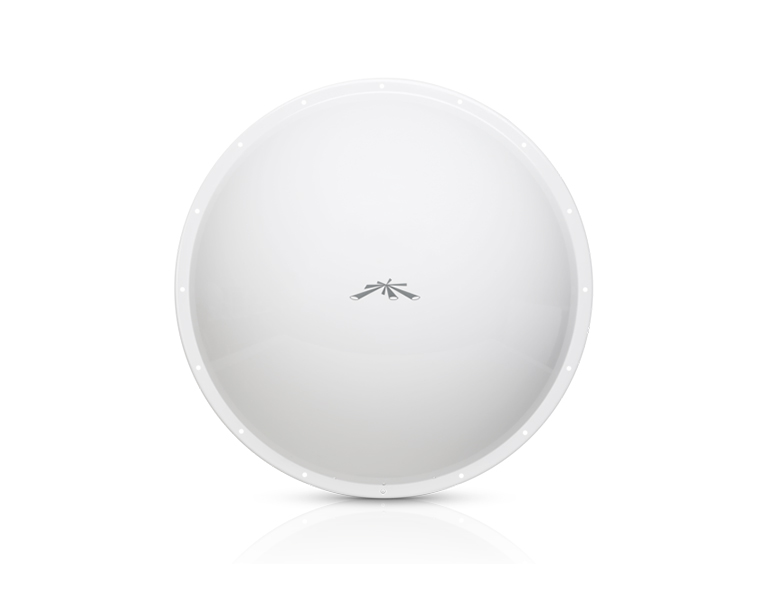

• Protective shroud The shroud protects the cables and connectors from nature’s elements.

The 5 GHz frequency band offers plentiful spectrum and works well for long-distance links. However, 5 GHz signals have more difficulty passing through obstacles than lower-frequency signals. The 4.9 GHz frequency band typically requires a license and is reserved for public safety applications.
