Ubiquiti AF-5G23-S45 5GHz, 23dBi Slant 45 Antenna for airFiberX

Overview
Pair an airFiber^® X antenna with an airFiber X radio to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (airFiber X radio sold separately).

Powerful Performance
The airFiber X antenna delivers 2x2, dual-polarity performance. Below is one example of how the airFiber X antenna with an airFiber X radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a neighborhood tower. From there, an airMAX® Sector antenna with a Rocket® radio delivers bandwidth to the WISP’s customers

Carrier-Class Construction
Incorporating a dish reflector design for excellent beam directivity, the airFiber X antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.

Plug and Play Integration
airFiber X antennas and airFiber X radios have been designed to seamlessly work together. Every airFiber X antenna has a built-in airFiber X radio mount, so installation requires no special tools.
Snap the airFiber X radio securely into place and mount the antenna; you then have the optimal combination of airFiber X antenna and airFiber X radio for your PtP application.

Hardware Overview
Innovative Mechanical Design
Secure pole-mounting
Maintains the position of the dish during harsh outdoor conditions.
Low-Profile Form Factor of the AF-5G23-S45
Reduces wind-loading.

Weatherproof Design

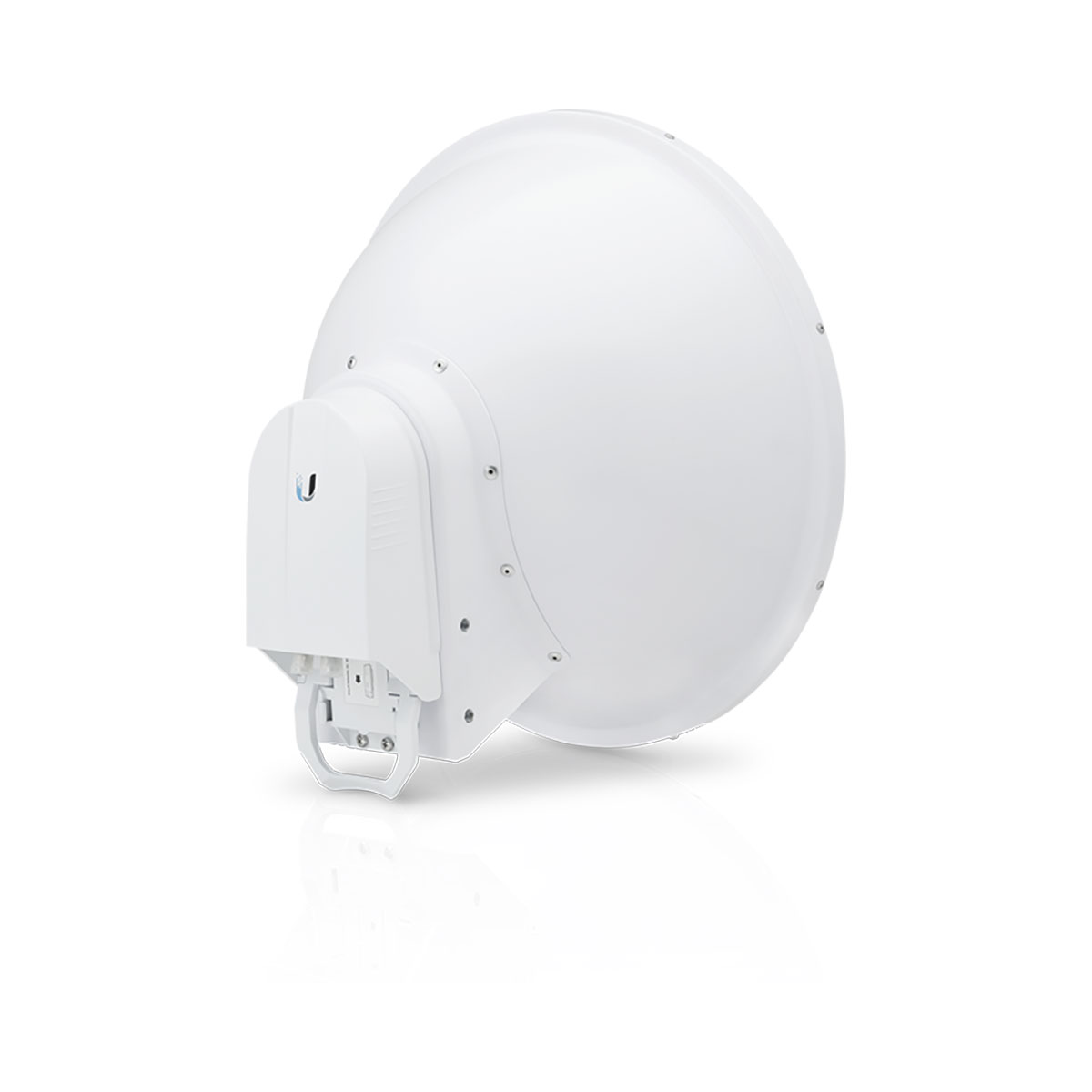

Protective shroud
Protects the cables and connectors from the elements.

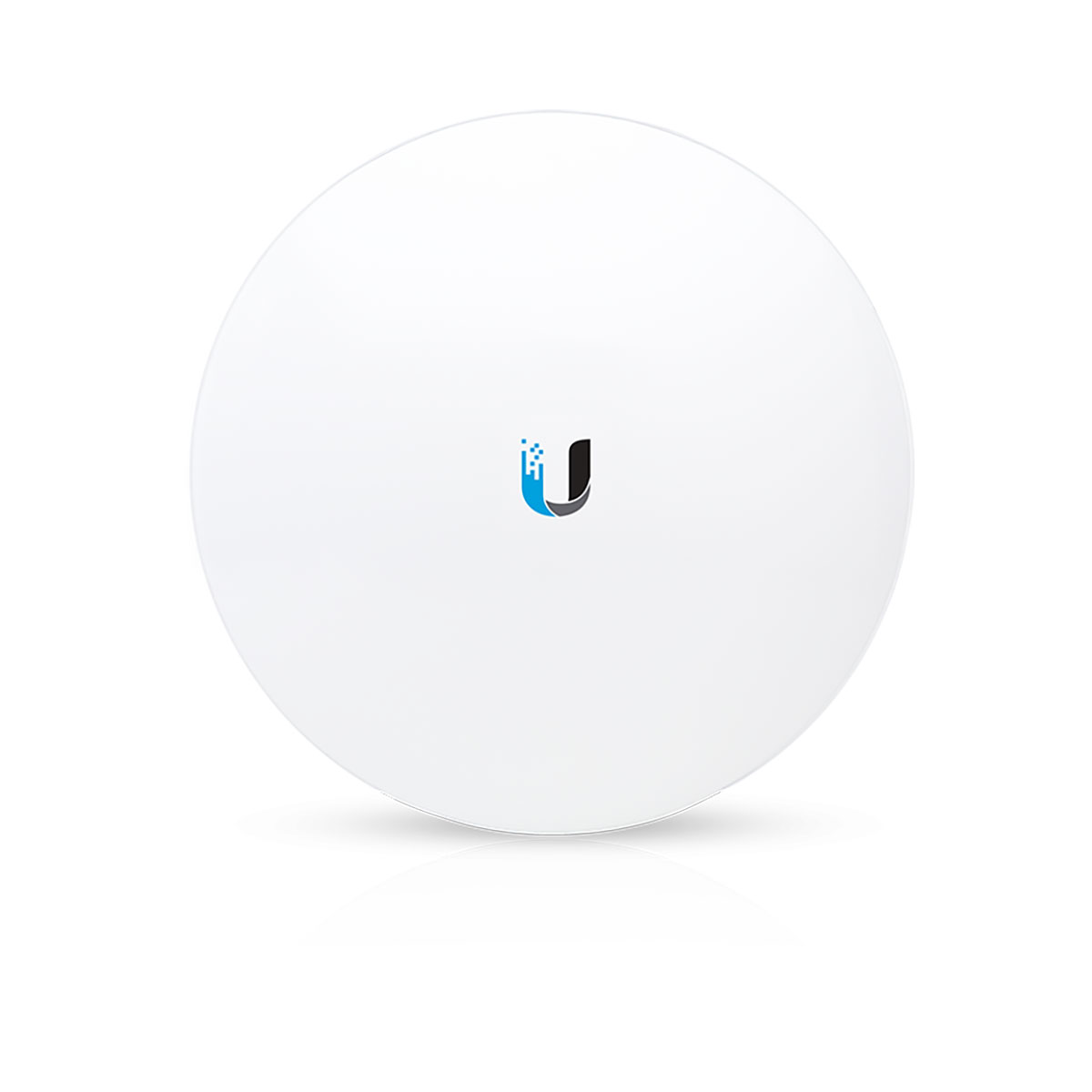

Integrated Radome of the AF-5G23-S45
Shields the radio from the environment.

Avanced RF Isolation Design
The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity, multipoint networks. The near-field plot of the AF-5G23-S45 is displayed in watts and uses a linear scale. The strength of the electromagnetic field is color-coded:
• Red: Highest strength
• Green: Medium strength
• Indigo: Lowest strength
