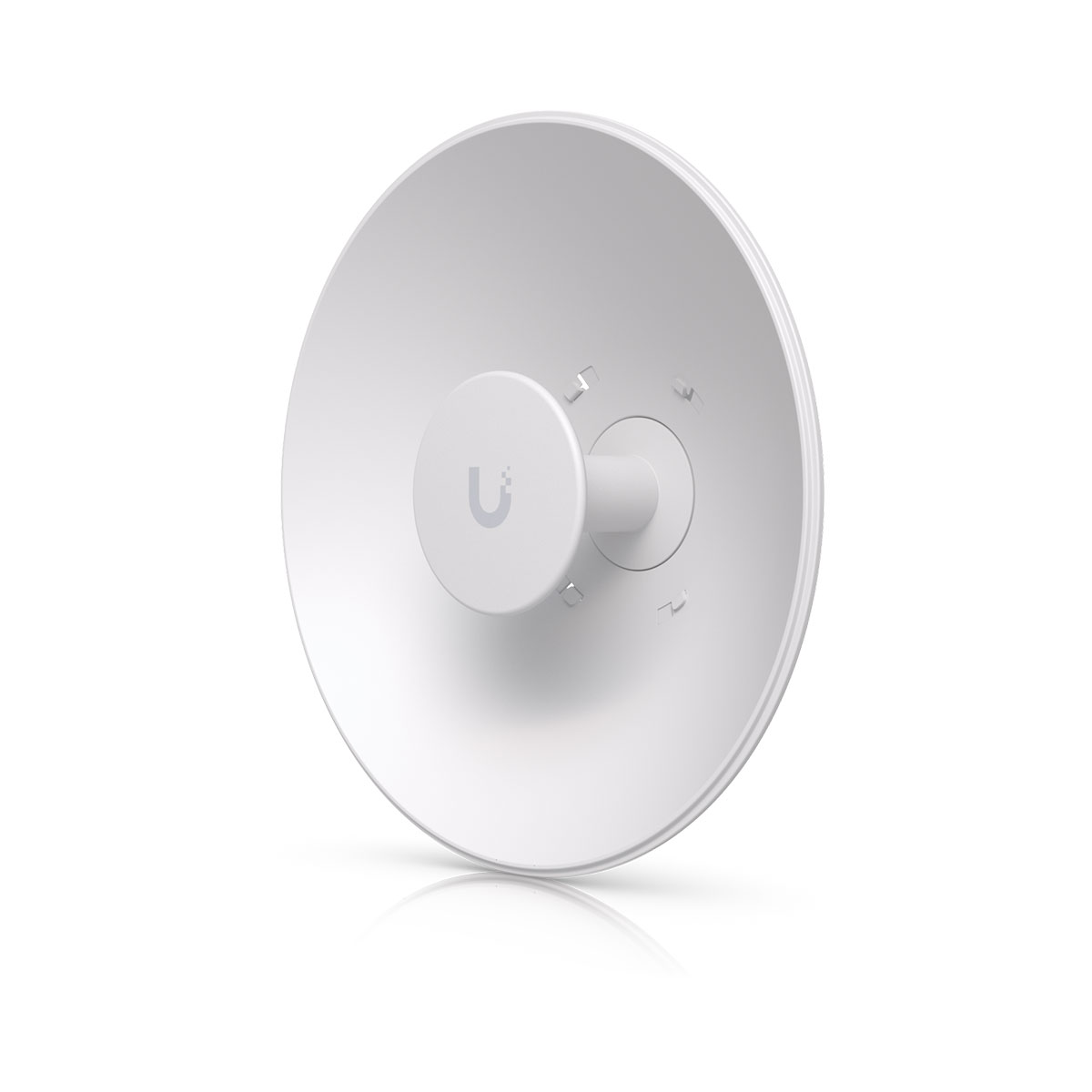

Ubiquiti UISP-DISH-MINI, parabolic antenna, 26dBI, 5 GHz
Ubiquiti UISP-DISH-MINI, parabolic antenna, 26dBI, 5 GHz
A discreet, compact dish designed for demanding wireless links offers high directivity and low noise, ensuring stable data flow even at greater distances. With a gain of 26 dBi and a narrow radiation angle, it is ideal for clean PtP links where precise aiming is critical. Installation is quick and straightforward — the option to directly connect the radio via a waveguide reduces RF losses and facilitates deployment in the field.
Durability and deployment flexibility
The robust construction withstands strong winds of up to 200 km/h, and the IPX6 rating ensures reliability even in extreme conditions. Support for the frequency band 5.15–6.875 GHz and a universal mounting system allow for deployment on poles and roofs, while the small size simplifies handling and servicing. An ideal choice for operators and integration companies that need a powerful antenna with easy installation and long-term durability.
Key features
- Gain of 26 dBi for high performance and precise signal direction
- Narrow radiation angle to minimize interference
- Wind resistance up to 200 km/h and IPX6 rating
- Wide frequency band of 5.15–6.875 GHz
- Quick installation with direct connection option minimizes RF losses
- Compact and lightweight construction suitable for various mounting scenarios
- Compatibility: Wave-MLO5, airMAX Rocket Prism 5AC (RP-5AC-Gen2), airFiber 5XHD (AF-5XHD)
| Mechanical | |

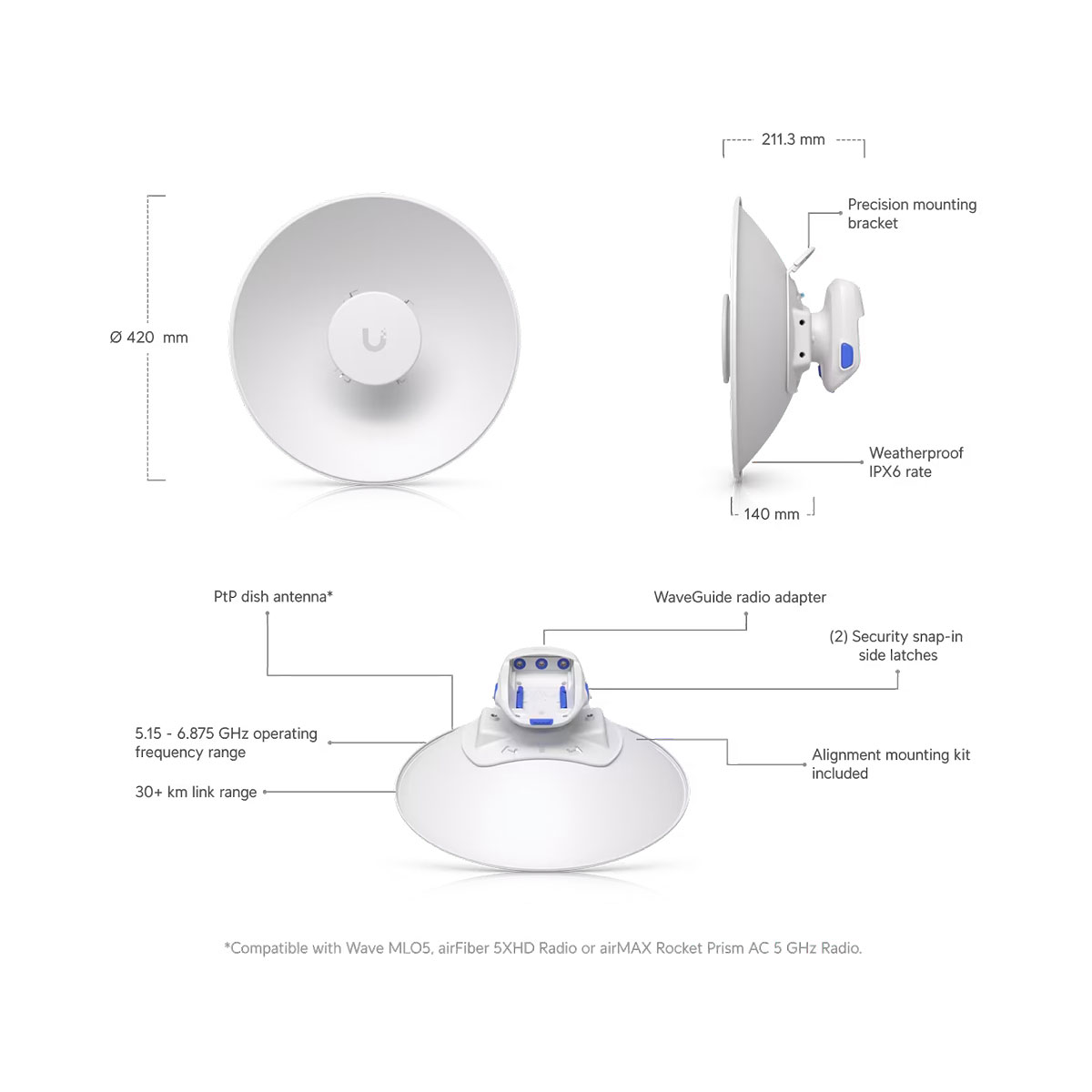

| Dimensions | Antenna dish: ⌀420 x 140 mm Antenna dish with Waveguide: ⌀420 x 211.3 mm |
| Weight | Antenna dish: 1.95 kg Mount: 1 kg Waveguide: 0.45 kg |
| Enclosure materials | Antenna dish: Powder-coated galvanized steel, UV-stabilized polycarbonate Waveguide: Aluminum alloy, UV-stabilized polycarbonate |
| Mount Material | Powder-coated galvanized steel, aluminum alloy |
| Wind Survivability | Up to 200 km/h (124 mph) |
| Wind Loading | 348 N at 200 km/h |
| Mounting | Pole mount Alignment mounting kit (Included) Mechanical adjustment: ±20° elevation |
| Pole Mount Diameter | ⌀32–76 mm |
| Weatherproofing | IPX6 |
| Hardware | |
| Frequency Range | 5.15 to 6.875 GHz |
| Gain | 26 dBi |
| Beamwidth | Azimuth: 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB) Elevation: 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB) |
| Electrical Downtilt | 0° |
| Max. VSWR | 2:1 |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 15 dB |
| NDAA Compliant | ✓ |
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εξωτερικούς χώρους.
