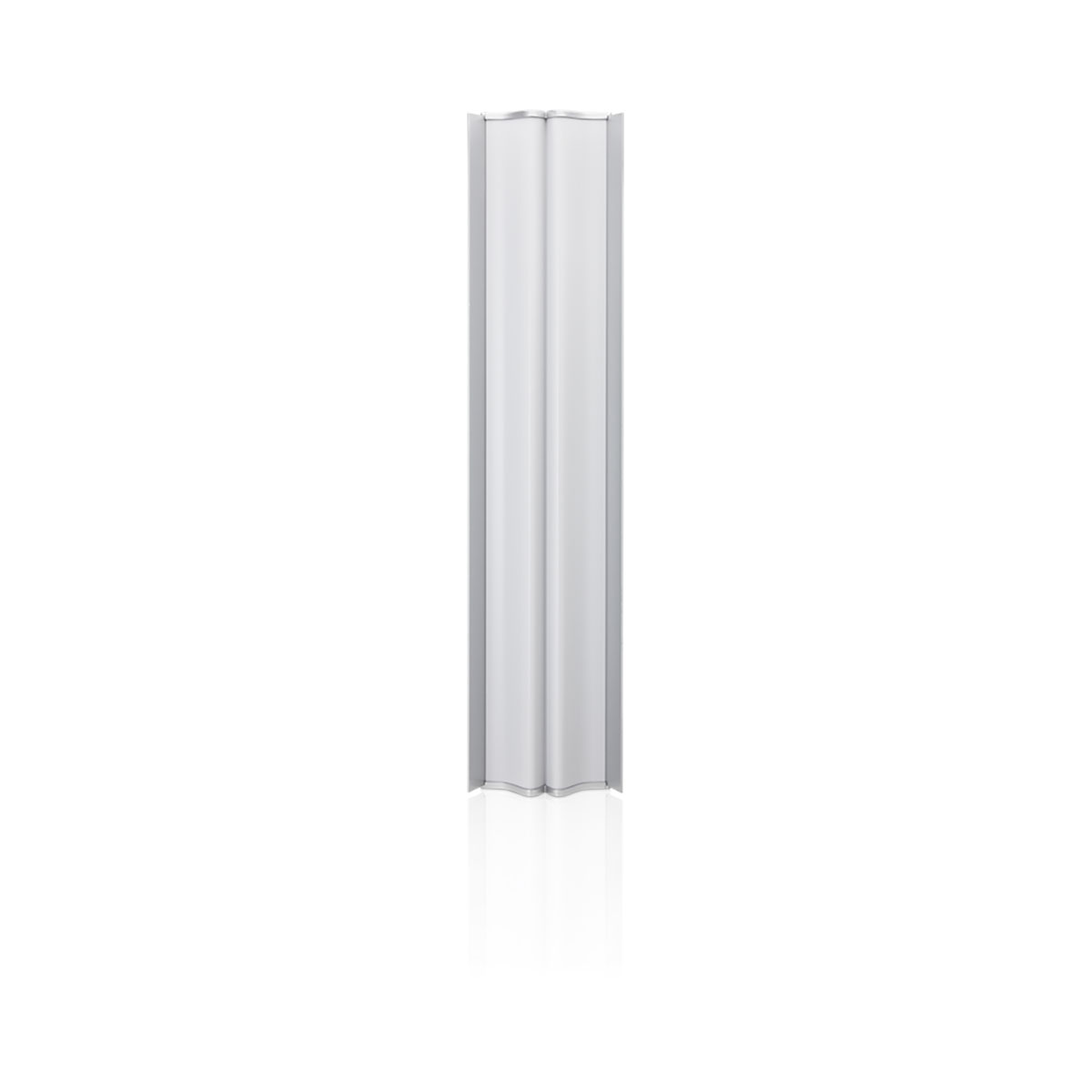

Ubiquiti AM-5AC21-60 5GHz AC AirMax Dual-Chain BaseStation 21dBi 60deg Sector Antenna
Overview
As the next generation of 2x2 MIMO sector antennas from Ubiquiti Networks, the airMAX® ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios. They are also compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.
Breakthrough Performance
The airMAX ac Sector Antennas are highly resistant to noise interference in co-location deployments. The innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area – potentially on the same tower.
Improved Signal-to-Noise Ratio (S/N or SNR) allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This increases the number of bits per second for a fixed bandwidth (or data rate). Due to innovative design, the airMAX ac Sector Antennas provide higher gain and superior beam performance for high-capacity, multipoint networks.

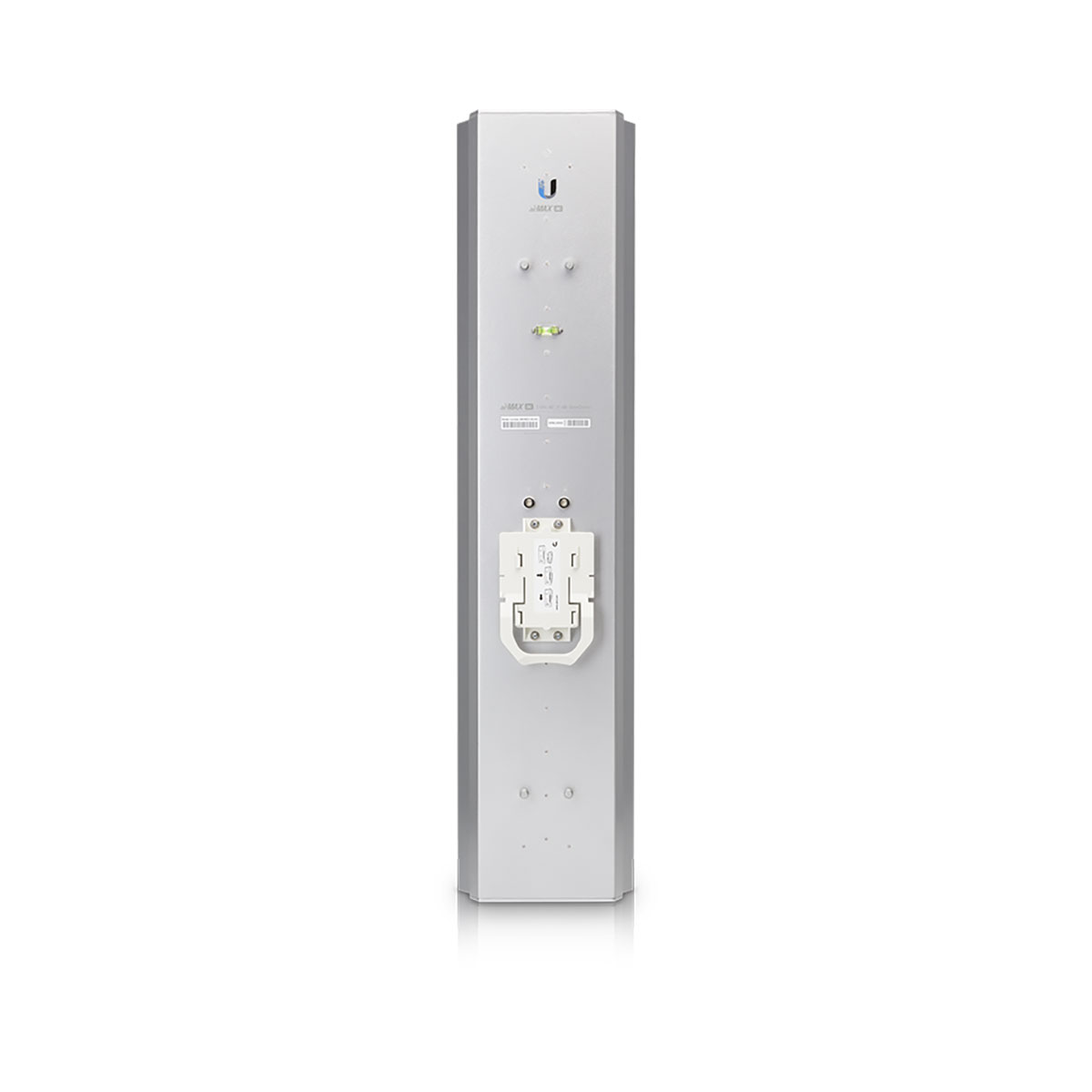

Hardware Overview

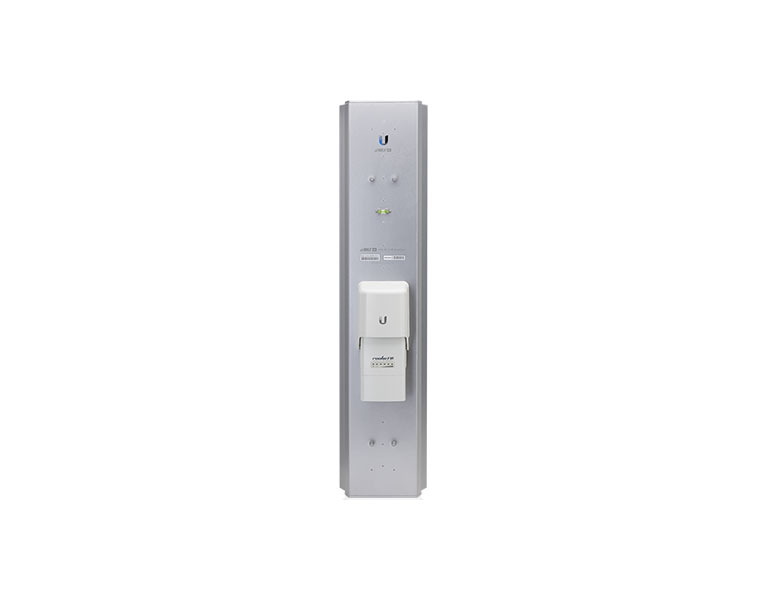

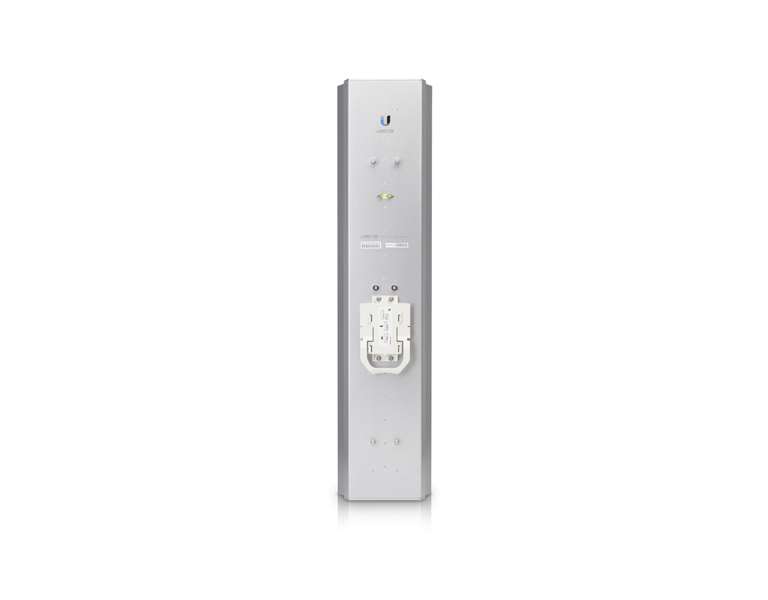

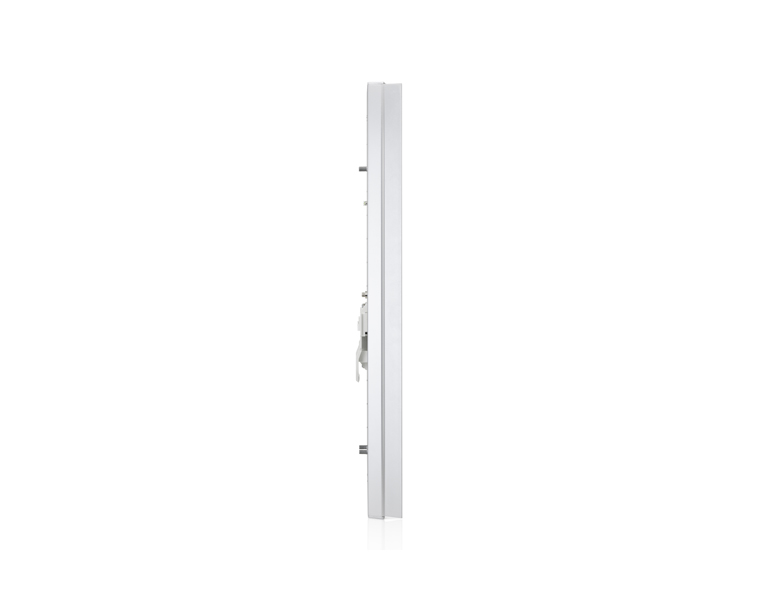

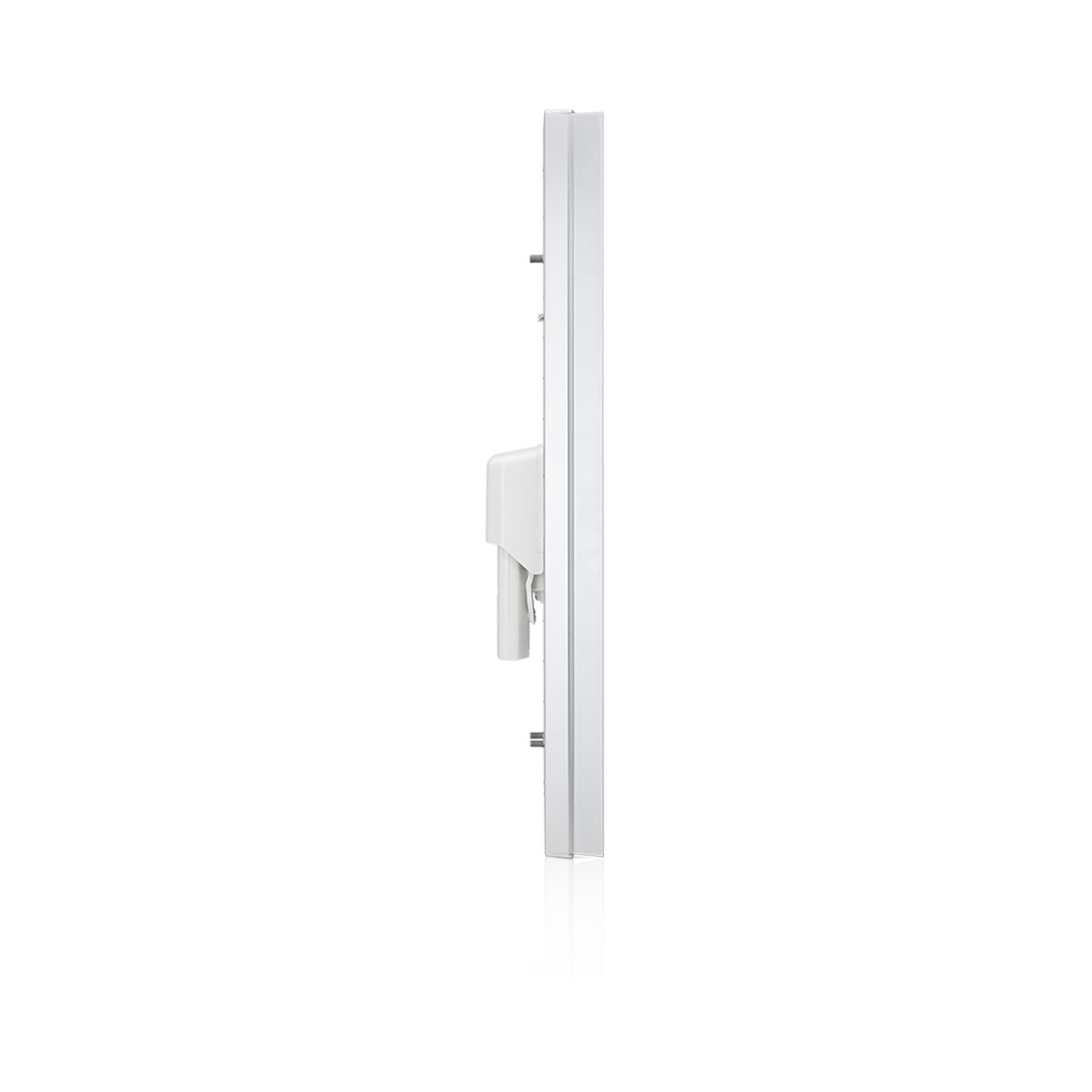

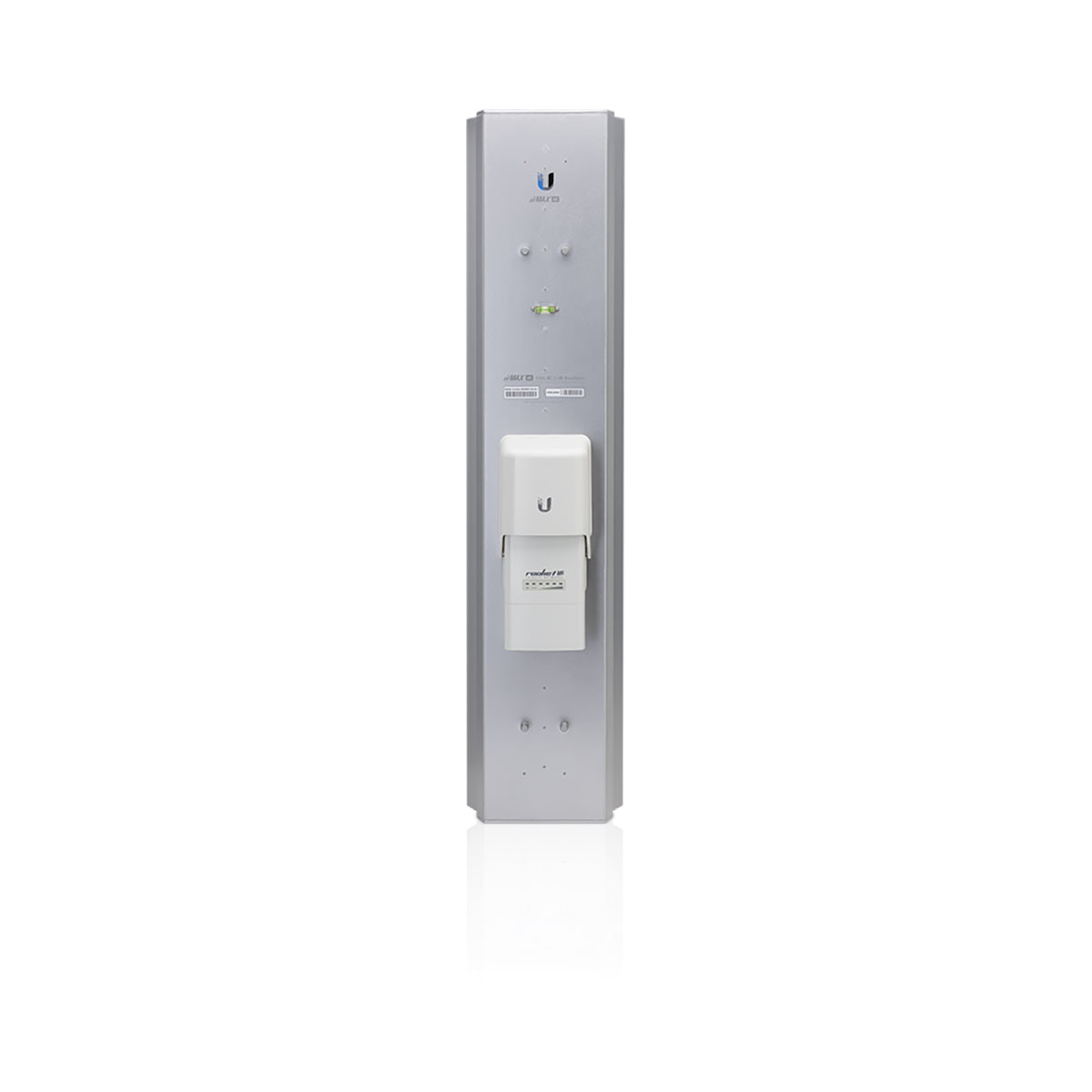

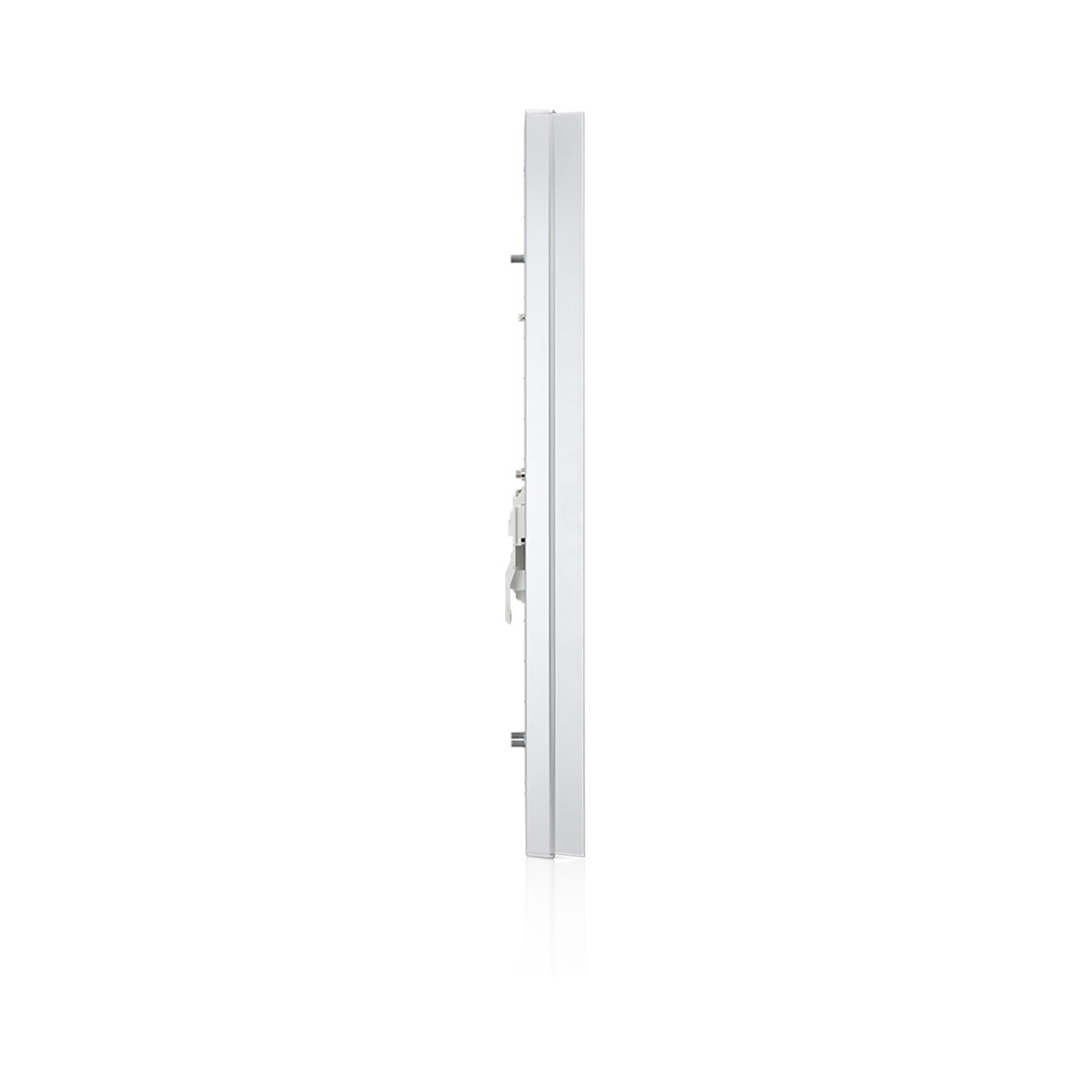

The airMAX ac Sector Antenna features robust construction for industrial-strength durability during outdoor use.
| Specifications | |
| Dimensions* | 750 x 173 x 78 mm |
| Weight** | 4.8 kg |
| Frequency Range | 5.10 - 5.85 GHz |
| Gain | 21 dBi |
| HPOL Beamwidth | 60° (6 dBi) |
| VPOL Beamwidth | 60° (6 dBi) |
| Electrical Beamwidth | 4° |
| Electrical Downtilt | 2° |
| Max. VSWR | 1.5:1 |
| Wind Survivability | 200 km/h |
| Wind Loading | 391 N @ 200 km/h |
| Polarization | Dual-Linear |
| Cross-Polarization Isolation | 25 dB Min. |
| ETSI Specification | EN 302 326 DN2 |

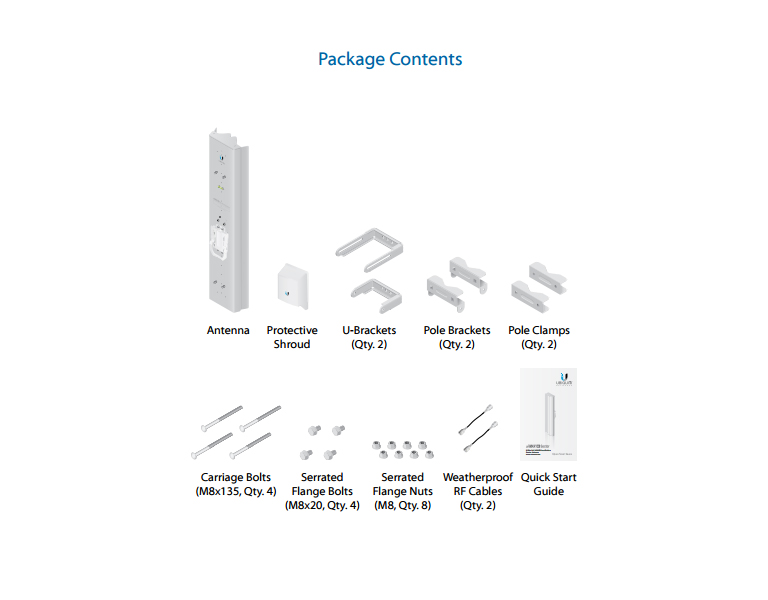

| Mounting | Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included |
*Dimensions exclude pole mount and Rocket radio (Rocket sold separately)
**Weight includes pole mount and excludes Rocket radio (Rocket sold separately)
