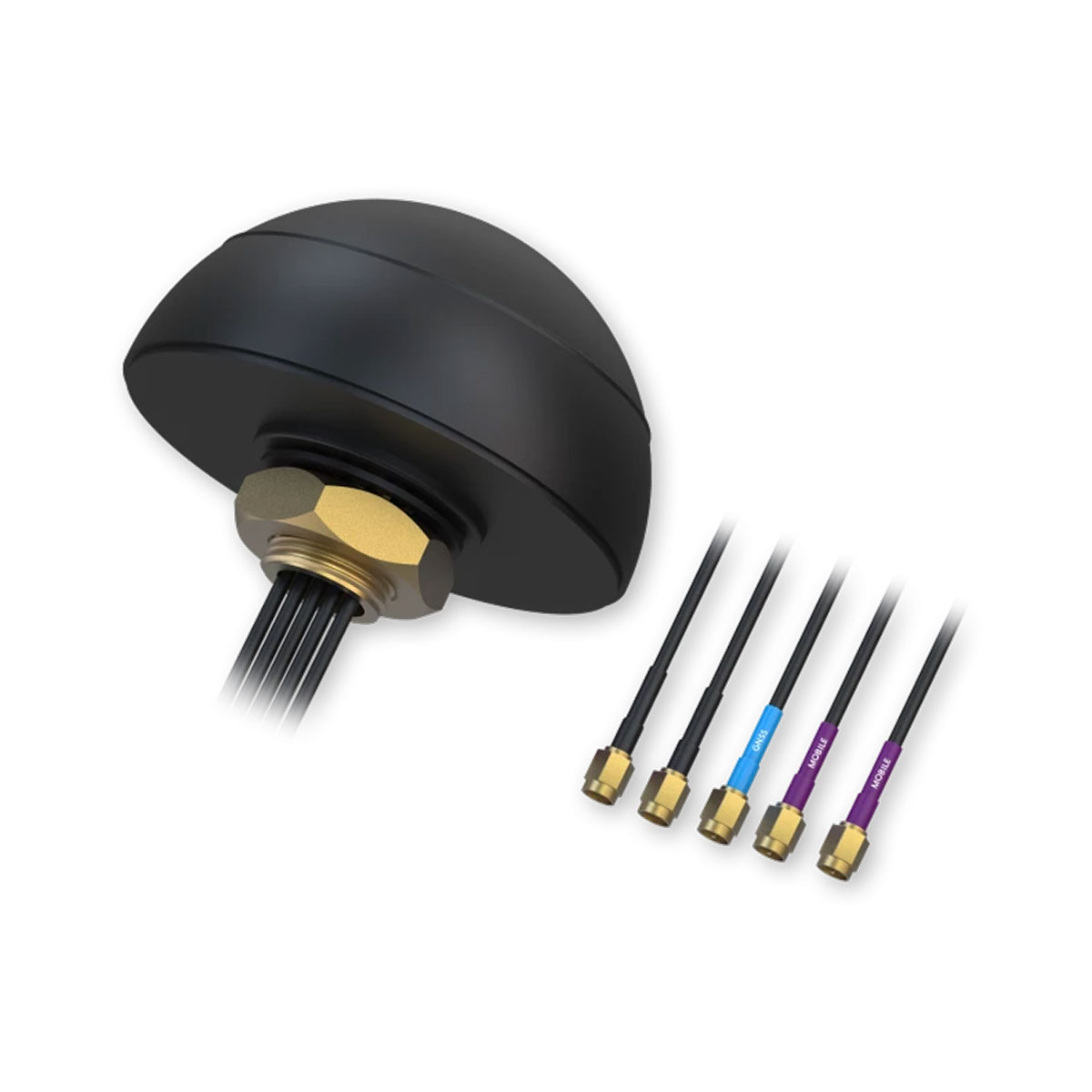

Teltonika PR1KCO28 Combo MIMO Mobile/GNSS/WiFi Roof SMA Antenna
Κωδικός προϊόντος:
PR1KCO28
Άμεσα διαθέσιμο
Teltonika PR1KCO28 Combo MIMO Mobile/GNSS/WiFi Roof SMA Antenna
Υπολογισμός κόστους μεταφορικών:
Καλέστε για τιμή
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
Combo MIMO Mobile/GNSS/WiFi Roof SMA Antenna. Compatible with RUT240, RUT950, RUT955, RUTX11, RUTX12, RUTX14, RUTX10, TR245 and TRB255.
Χαρακτηριστικά
| Specifications | |
| GNSS Antenna | |
| Frequency Range | 1575.42-1610 MHz |
| Polarization | RHCP |
| LNA Gain | 28±2 dB |
| LNA Noise Figure | <1.5 dB |
| Supply Voltage | 3-5 VDC |
| Current Consumption | <15 mA |
| Impedance | 50 Ω |
| LNA V.S.W.R | <2.0 |
| Connector | SMA Male |
| Mechanical/Environmental | |
| Mounting Method | Screw |
| Radome Ingress Protection rating | IP65 (exclude cable outlet) |
| Radome Material | ABS |
| Weight | <550g |
| Housing Dimensions | Ø 110x55 mm |
| Cable | 5x RG174, 3000 mm |
| RoHS Compliant | Yes |
| LTE MIMO Antenna | |
| Frequency Range | 698-960/1710-2690 MHz |
| Polarization | Linear |
| Gain | 3 dBi |
| V.S.W.R | <3.0 |
| Impedance | 50Ω |
| Connector | 2x SMA Male |
| WiFi MIMO Antenna | |
| Frequency Range | 2400-2483.5/4900-5825 MHz |
| Polarization | Linear |
| Gain | 2 dBi |
| V.S.W.R | <2.5 |
| Impedance | 50 Ω |
| Connector | 2x RP SMA Male |
