QuWireless A950M QuMax Antenna for Teltonika RUT951 / RUT950 / RUT901
Κωδικός προϊόντος:
A950M
160,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
129,03 €
Άμεσα διαθέσιμο
QuWireless A950M QuMax Antenna for Teltonika RUT951 / RUT950 / RUT901
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή

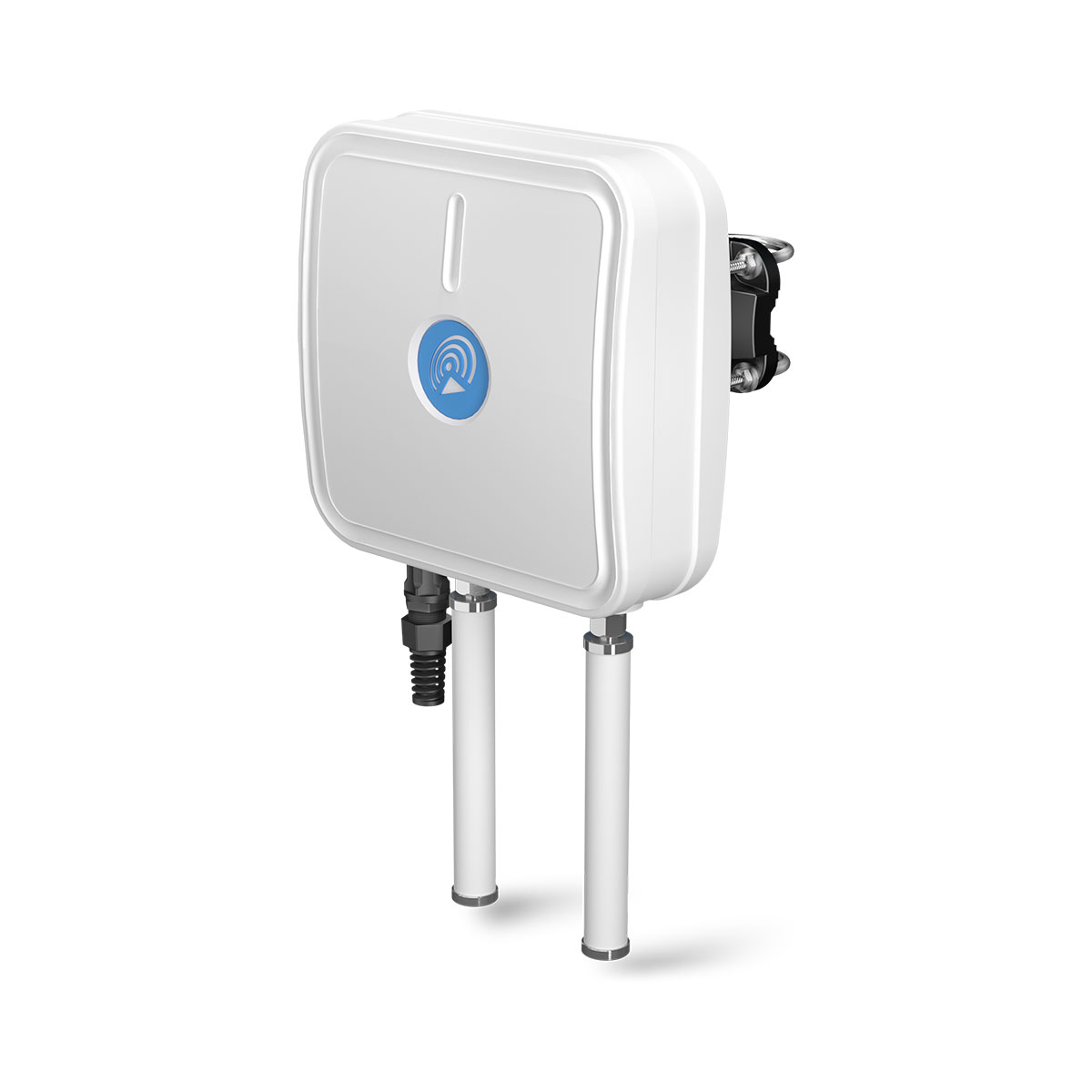

Integrated outdoor multi band high power LTE directional antenna + outdoor Wi-Fi omni antenna + place to install Teltonika RUT951, RUT950 or 900 (All-in-one)

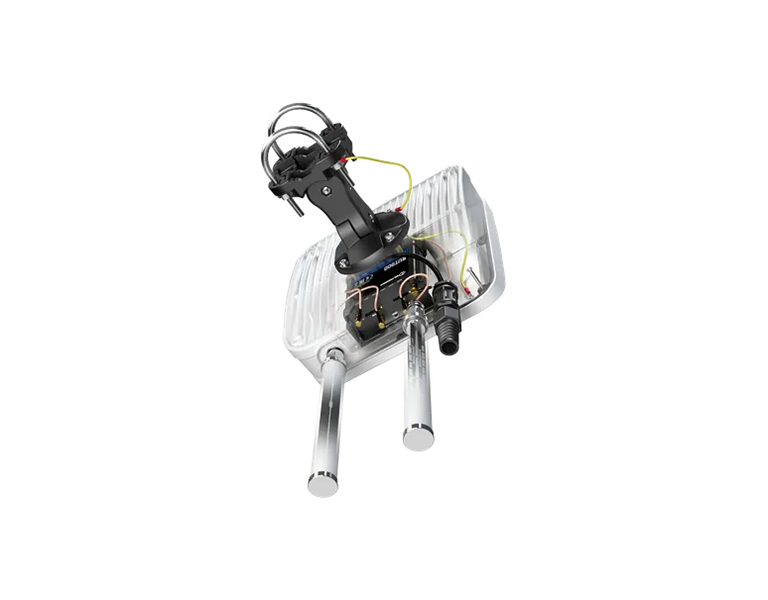

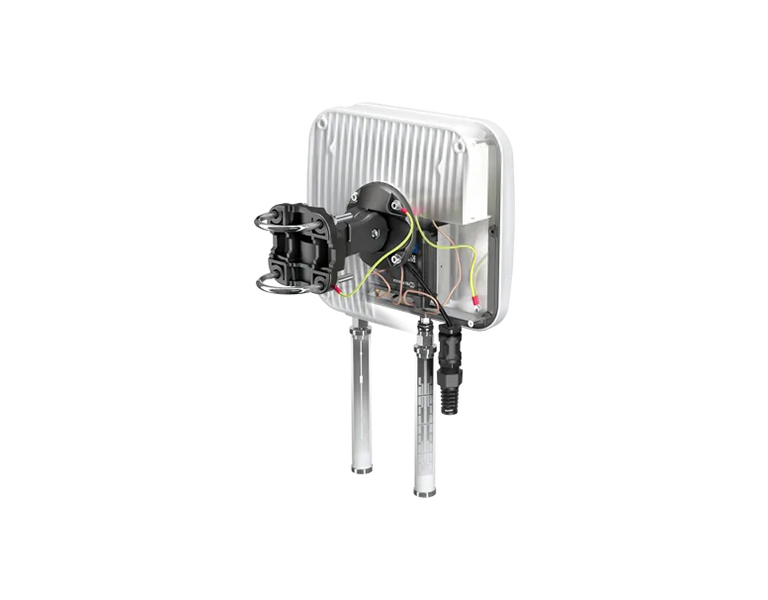

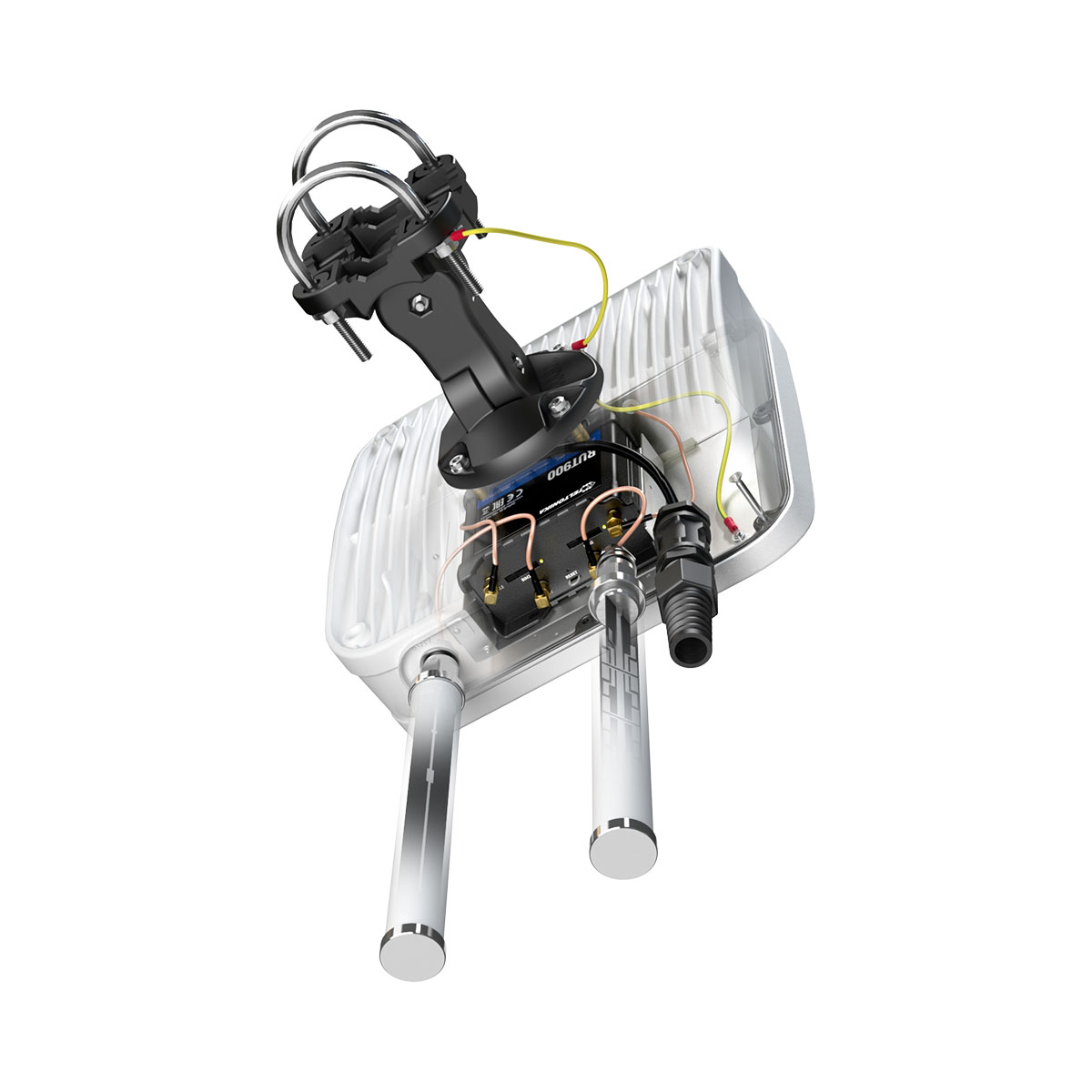

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT951, RUT950 or RUT901 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also outdoor Wi-Fi omni antennas.
Χαρακτηριστικά
| Specifications | |
| LTE Antenna | |
| Frequency | 694 - 960 MHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz |
| Supported LTE/5G Bands | 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256 |
| Gain | 694 - 960 MHz : 4 dBi 1.7 - 2.2 GHz : 5 dBi 2.2 - 2.7 GHz : 6 dBi |
| Front-ToBack | >8 dB |
| VSWR | <1.30, max <1.80 |
| Beamwidth | 90°/90° ±30° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| Wi-Fi Antenna Specification | |
| Frequency | 2.4 - 2.5 GHz |
| Gain | 6 dBi |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 360°/25° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| Mechanical Specification | |
| Materials | ABS, aluminum, PTFE, Fiberglass |
| Connector type | RJ45 + 2xNf + 2xNm in external omni wi-fi antenna |
| Ingress | IP67 |
| Weight | 1.8 kg |
| Operating Temperature | From -40°C to 80°C |
| Mast Diameter | 25-60 mm |
