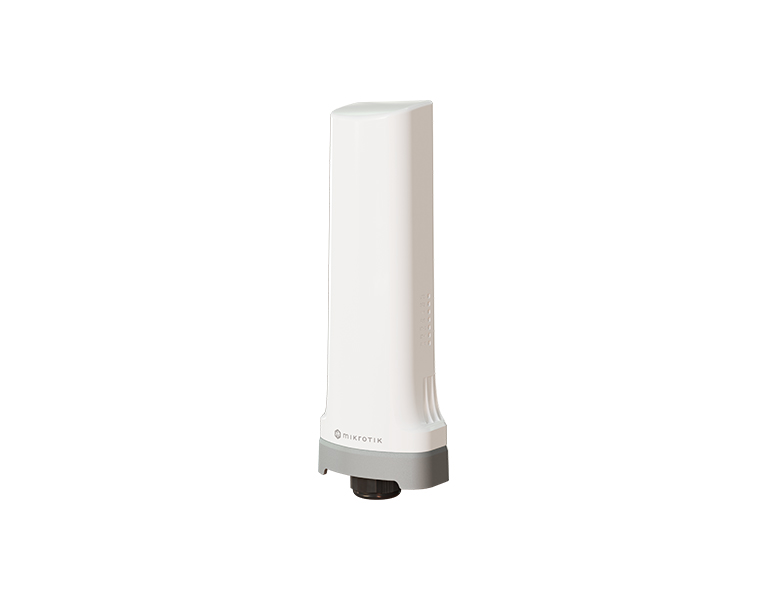

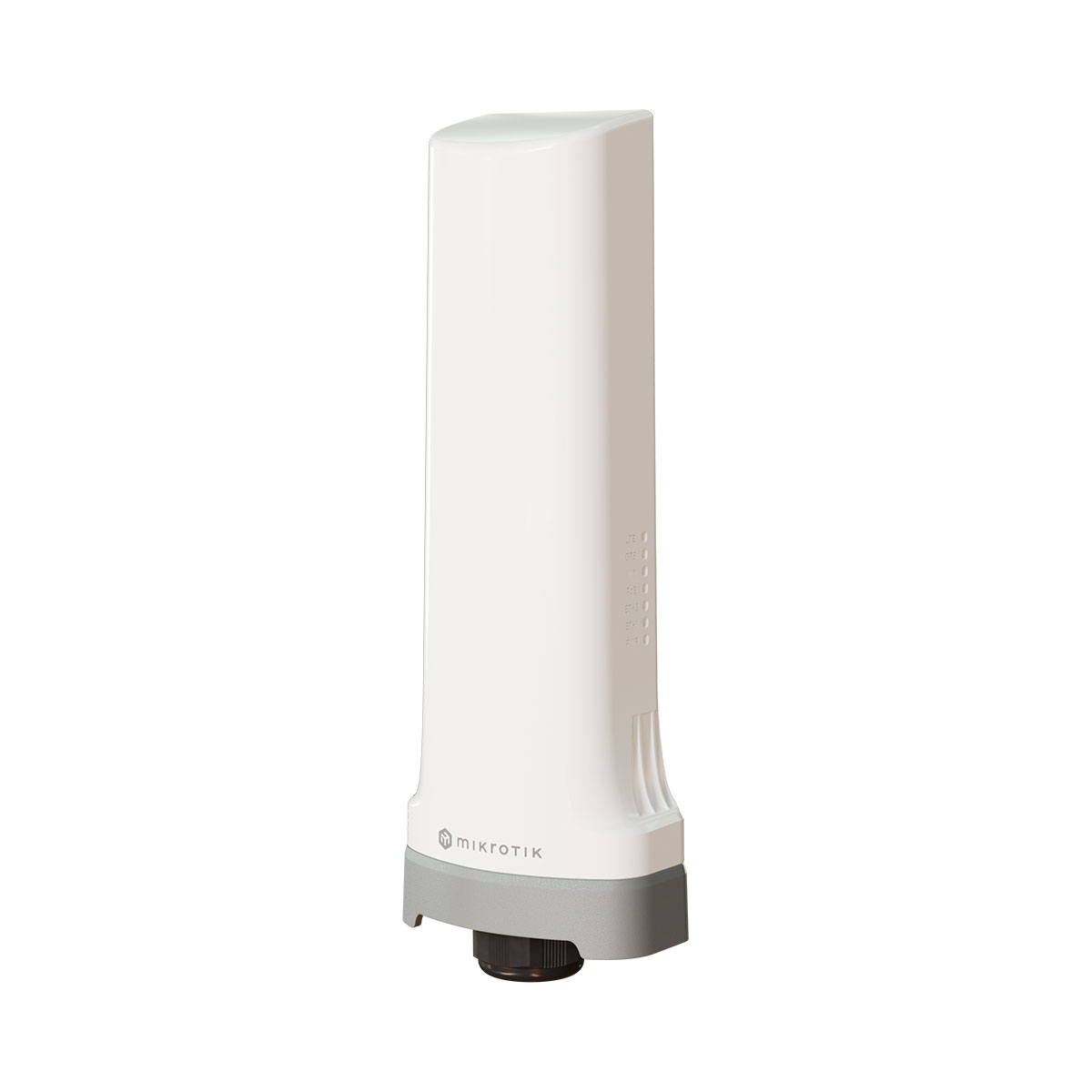

MikroTik CME22-2N-BG77, CME Gateway RouterOS L4
CME22-2N-BG77 has two Ethernet ports, an on-board CPU, some RAM, and the crown jewel: a powerful built-in CAT-M narrow-band LTE modem. For extremely efficient, low-cost, low-bandwidth mobile internet connectivity. Sure, the narrowband won’t be able to stream YouTube videos, but it serves a different purpose: it offers better network coverage and transmits data via the most affordable data plans in the world.

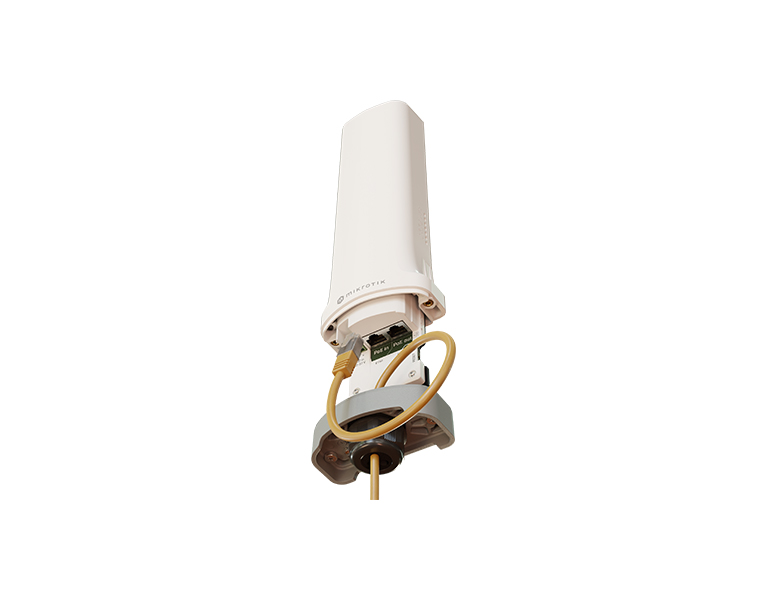

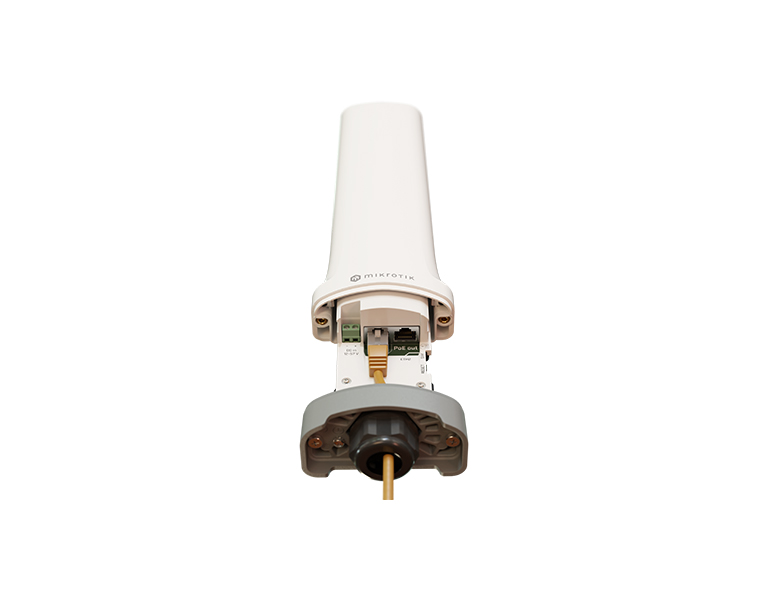

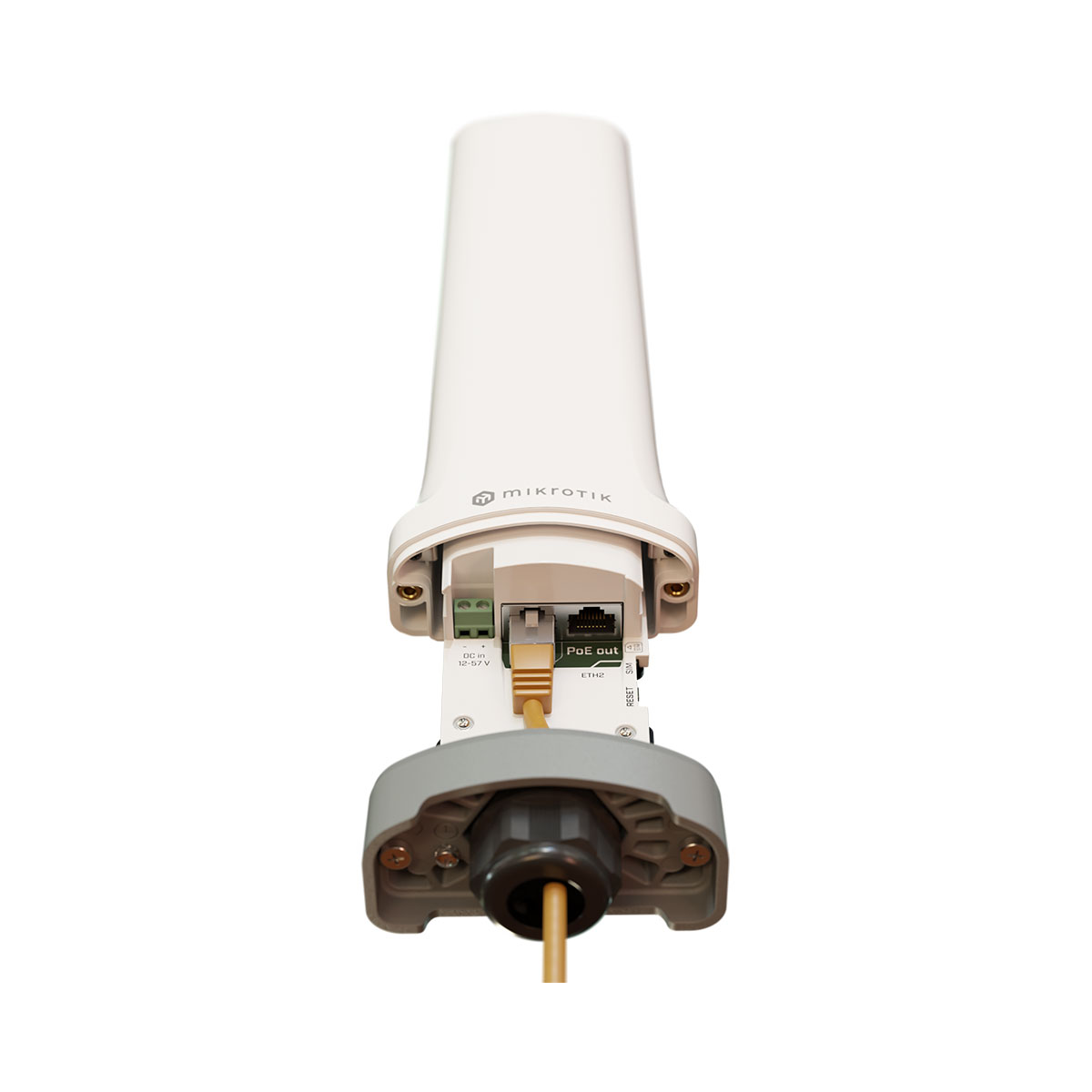

With the IP66 water resistance rating, the sturdy unit can survive a variety of harsh environments and setups: damp attics, rainy forests, farming equipment and so on. It has PoE-in, PoE-out, and a 2-pin DC terminal for handy powering. And to make management even easier - we’ve added a simple single-chain 2.4 GHz wireless - so you can use the MikroTik smartphone app to configure everything.
Also, a fun bonus: the board supports GPS, so if you know your way around RouterOS scripting, you can try collecting weekly, daily or even hourly location data as well!
| Specifications | |
| Product code | CME22-2n-BG77 |
| CPU | QCA9531-BL3A-R 650 MHz |
| CPU architecture | MIPSBE |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| RAM type | DDR2 |
| Storage | 16 MB, Flash |
| Number of 100M Ethernet ports | 2 |
| Switch chip model | QCA9531 |
| Wireless interface mode | QCA9531-BL3A-R (2.4 GHz) |
| Wireless | 802.11b/g/n |
| Antenna gain | 2 dBi |
| GNSS interface model | BG77 |
| GNSS standard | BeiDou, Galileo, GPS, Glonass |
| Antenna gain (GNSS) | 3.9 dBi |
| IoT modem | BG77 |
| Cat NB type | Cat NB2 |
| Cat NB band |
B1/B2/B3/B4/B5/B8/B12/B13/B18/ |
| Cat M type | Cat M1 |
| Cat M band |
B1/B2/B3/B4/B5/B8/B12/B13/B18/ |
| Dimensions | 253 x 88 x 60 mm |
| Operating system | RouterOS v7, License level 4 |
| Operating temparature | -40°C to +70°C |
| Powering | |
| Number of DC inputs | 2 (PoE-In, 2-pin terminal) |
| PoE-In input Voltage | 18-57 V |
| Max current at Min voltage | 0.78 A |
| Max current at Max voltage | 0.53 A |
| 2-pin terminal input Voltage | 12-57 V |
| Max current at Min voltage | 0.893 A |
| Max current at Max voltage | 0.53 A |

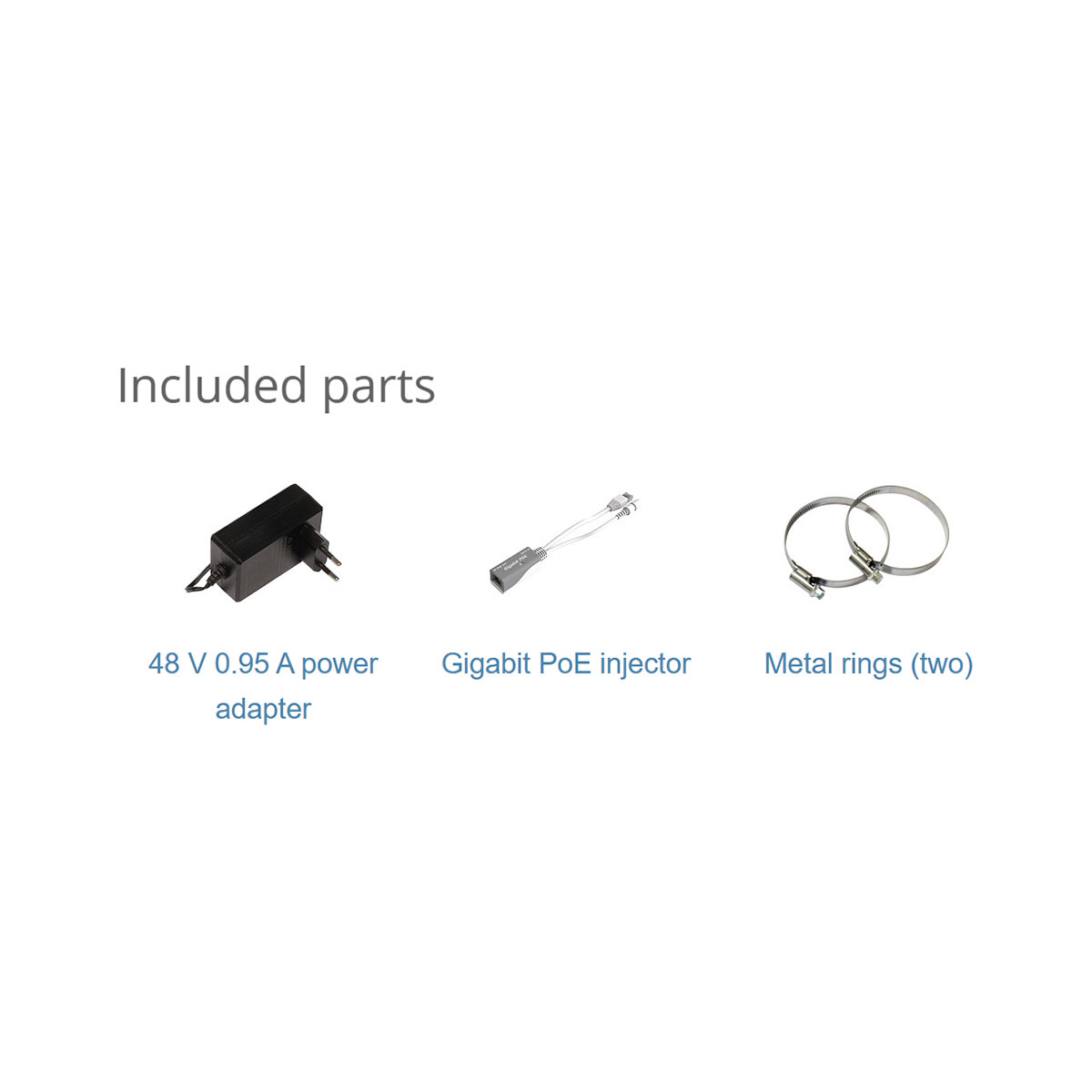

| Power adapter nominal voltage | 48 V |
| Power adapter nominal current | 0.95 A |
| PoE-Out | 802.3af/at |
| Smart PoE | Injector |
| PoE-In | 802.3af/at |
| PoE-out ports | Ether 2, max out per port output (input< 30 V) 600 mA, max out per port output (input > 30 V) 450 mA |
| Max total out | 0.6 A |
| Max power consumption without attachments | 6 W |
| Max power consumption | 31 W |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εξωτερικούς χώρους.
