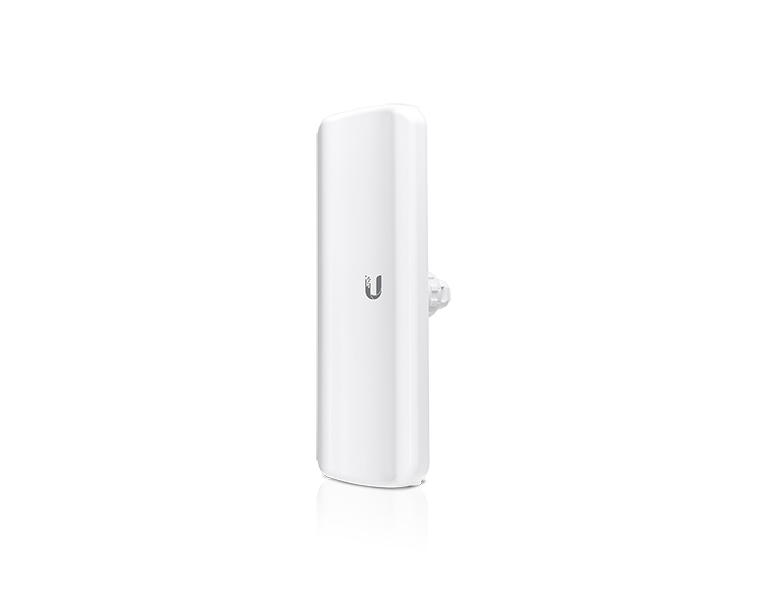

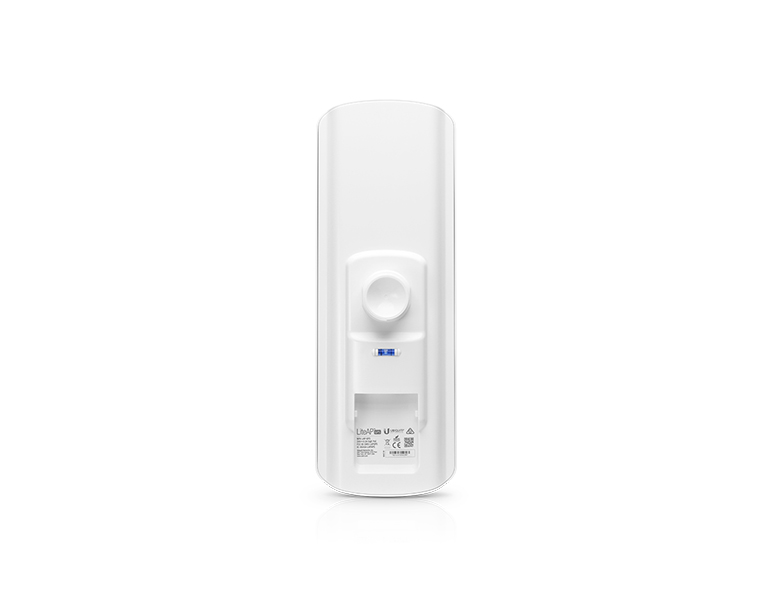

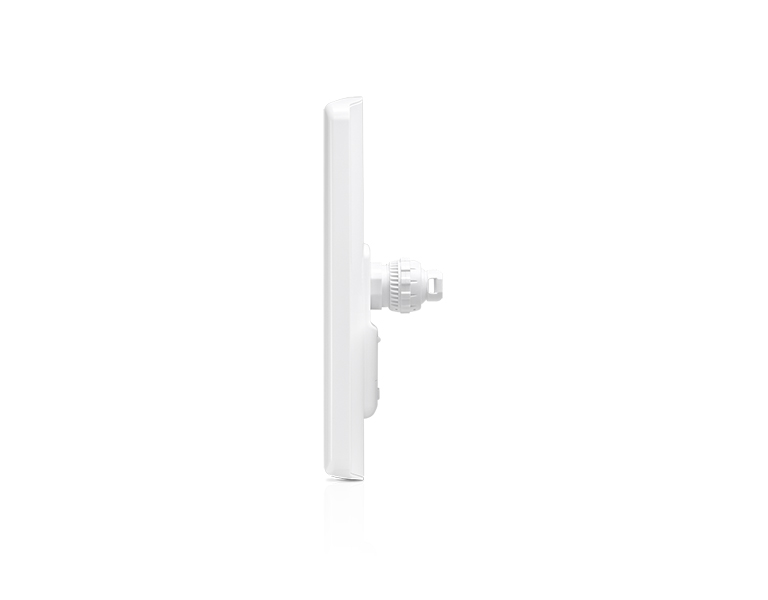

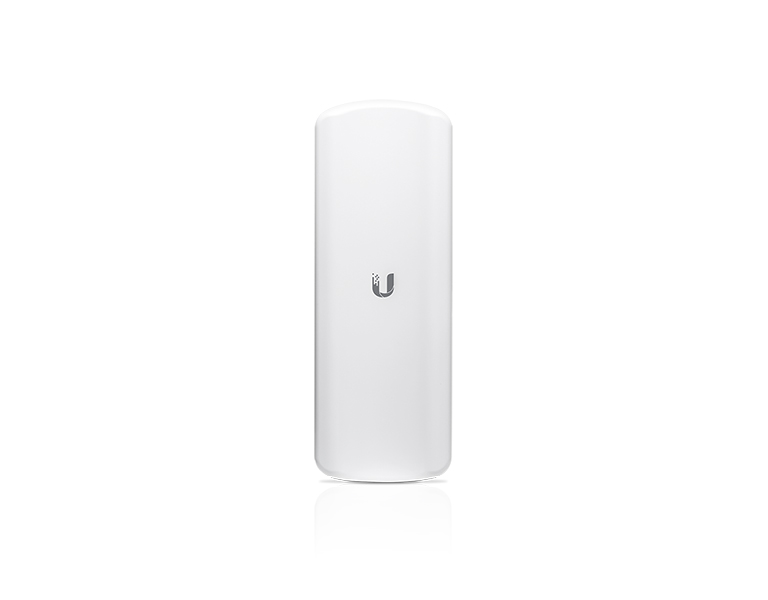

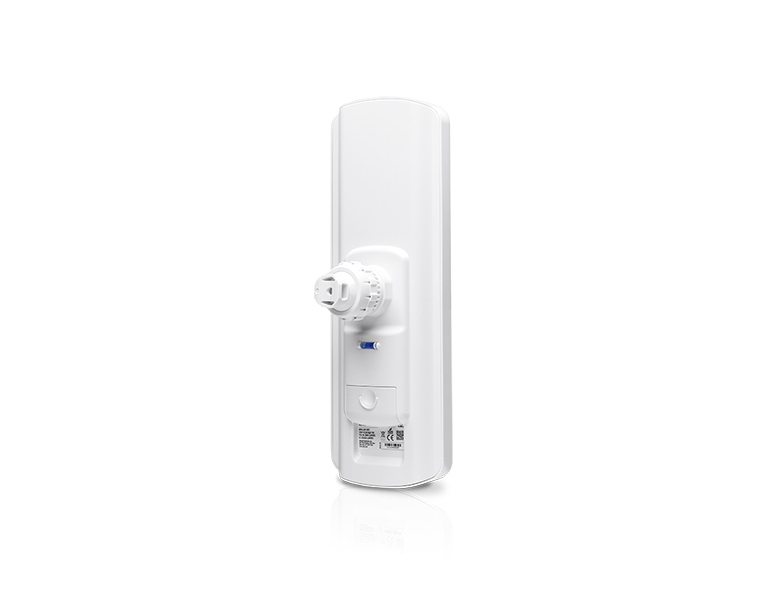

Ubiquiti LAP-GPS, Outdoor, 5GHz AC, 17 dBi, 90°
Introducing the airMAX® LiteAP™ AC, the latest high-performance access point with disruptive pricing from Ubiquiti Networks. Featuring an ultra-lightweight form factor, the LiteAP AC was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. Each of these models operates in the worldwide, license-free 5 GHz frequency range with high-performance speeds.
The LiteAP AC combines proprietary hardware and software technologies to deliver its breakthrough combination of throughput and range with cost-effective value.
Software
airOS 8
airOS® v8 is the revolutionary operating system for Ubiquiti® airMAX ac products.
Powerful Wireless Features
• Access Point PtMP airMAX Mixed Mode
• airMAX ac Protocol Support
• Long-Range Point-to-Point (PtP) Link Mode
• Selectable Channel Width
- PtP: 10/20/30/40/50/60/80 MHz
- PtMP: 10/20/30/40 MHz
• Automatic Channel Selection
• Transmit Power Control: Automatic/Manual
• Automatic Distance Selection (ACK Timing)
• Strongest WPA2 Security
Usability Enhancements
• airMagic® Channel Selection Tool
• Redesigned User Interface
• Dynamic Configuration Changes
• Instant Input Validation
• HTML5 Technology
• Optimization for Mobile Devices
• Detailed Device Statistics
• Comprehensive Array of Diagnostic Tools, including RF Diagnostics and airView® Spectrum Analyzer
Hardware
The LiteAP AC delivers up to 450+ Mbps real TCP/IP throughput and features an efficient form factor.
Quick Installation Minimal fasteners simplify installation. No tools are needed; only a single wrench is required for pole-mounting.

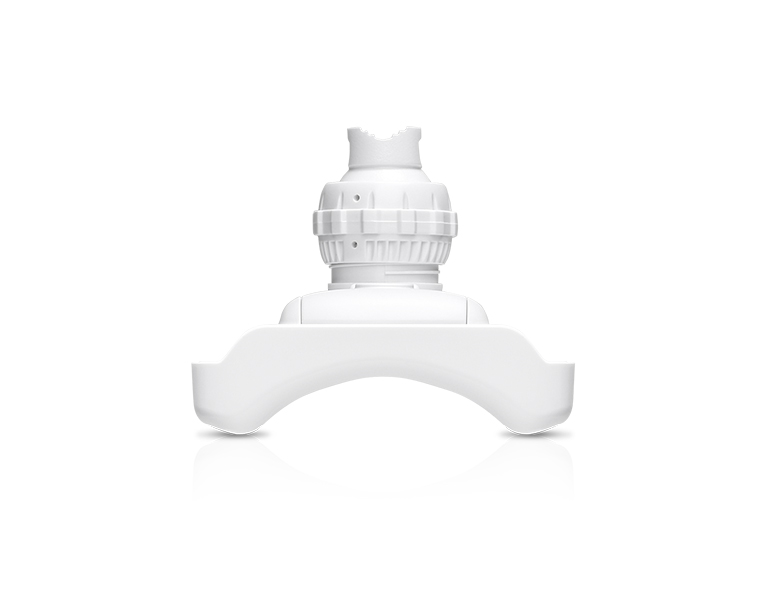

Versatile Mounting The ball-joint mount of the LiteAP AC provides adjustment flexibility for versatile mounting options.
Efficient Design The LiteAP AC features a lightweight antenna with an integrated radio in a sleek design.
Gigabit Ethernet The LiteAP AC delivers high throughput over its wired connection.
GPS Sync Support
Precise GPS frame synchronization enables co-located LAP-GPS devices to transmit and receive data without interfering with each other, allowing for better frequency reuse and increased network stability.
Mobile App Support
The LAP-GPS integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Accessing airOS via Wi-Fi
The Ubiquiti Network Management System (UNMS™) app provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store® (iOS) or Google Play™ (Android™). UNMS allows you to set up, configure, and manage your device, and offers various configuration options once you're connected or logged in.
| Specifications | |
| Dimensions (Mount Not Included) |
360.98 x 124.57 x 71.28 mm |
| Weight(No Mount) | 752 g |

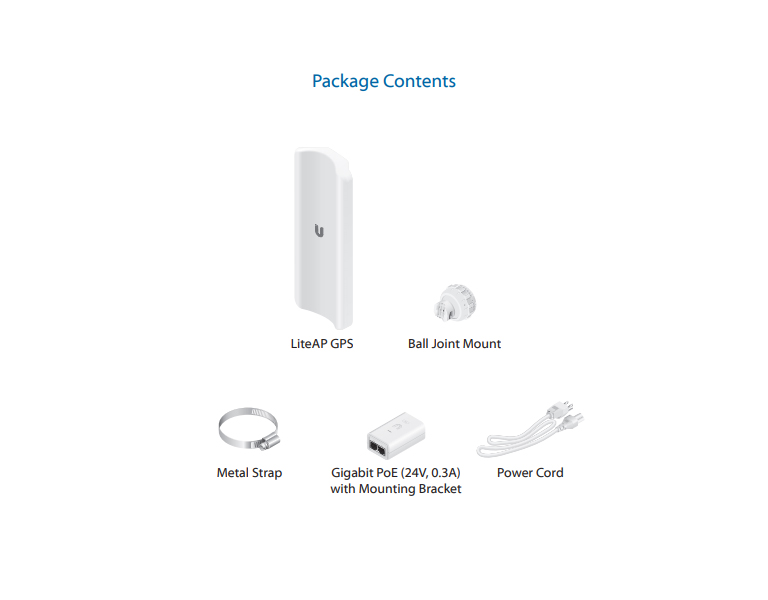

| Mounting Kit | Pole Mounting Kit (Included) |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Memory | DDR2 64 MB |
| Max. Power Consumption | 7.1W |
| Max. TX Power | 25 dBm |
| Antenna Gain | 17 dBi |
| Power Supply | 24V, 0.3A PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Processor Specs | Atheros MIPS 74Kc, 533 MHz |
| Shock and Vibration | ETSI300-019-1.4 |
| ETSI Specification | EN 302 326 DN2 |
| ESD/EMP Protection | ± 24 kV Contact / Air |
| RoHS Compliance | Yes |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | FCC, IC, CE |
| Operating Frequency (MHz) | 5150 - 5875 |
| Management Radio (MHz) | 2412 - 2472 |
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εξωτερικούς χώρους.
