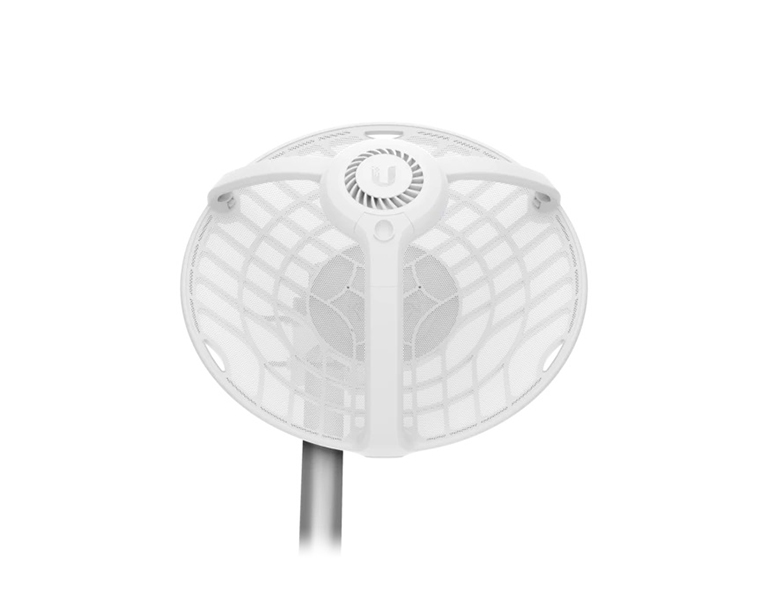

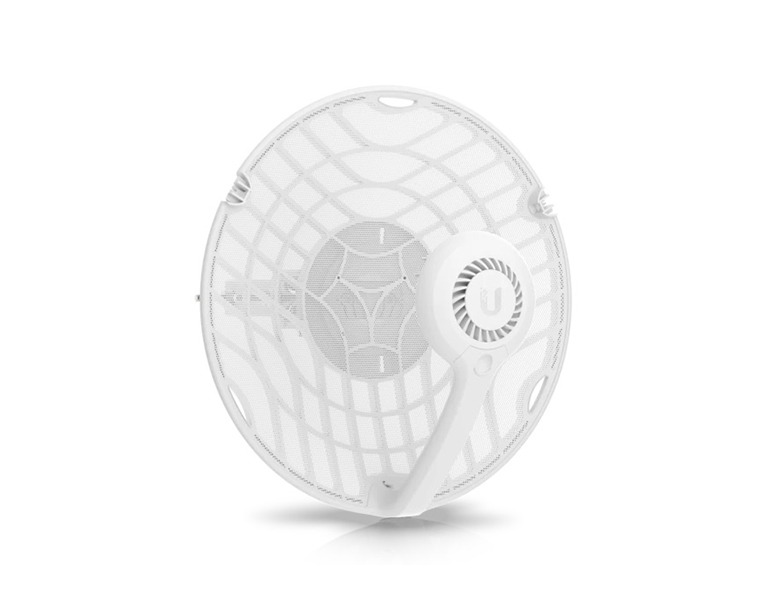

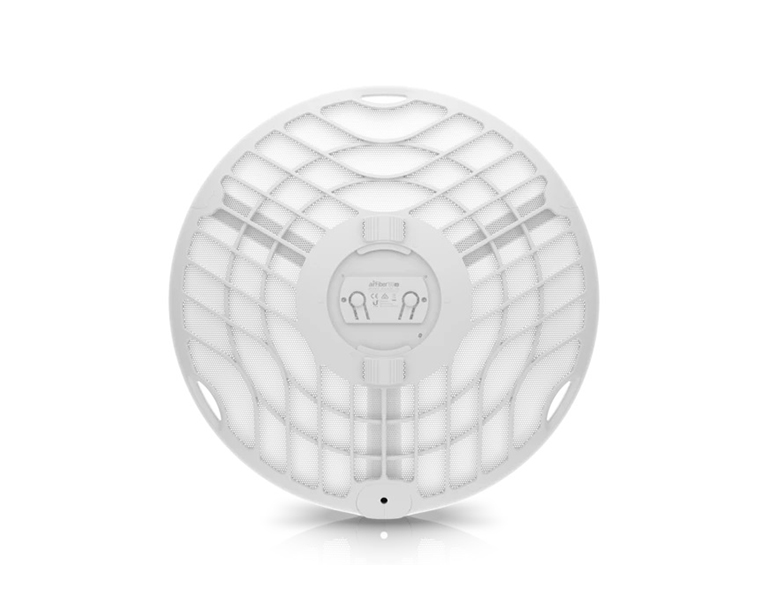

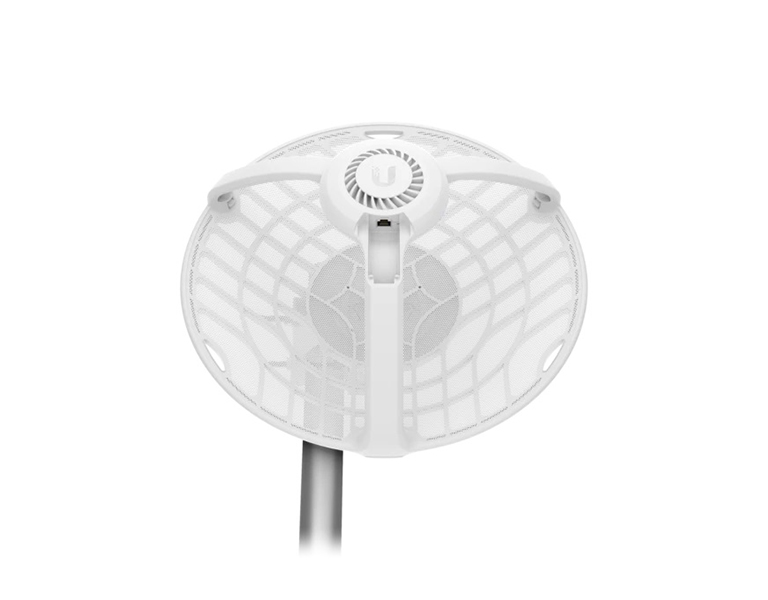

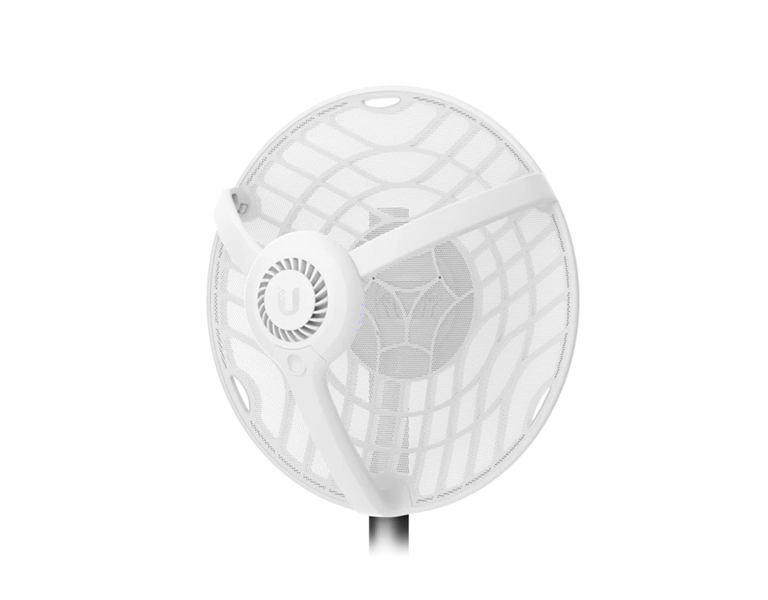

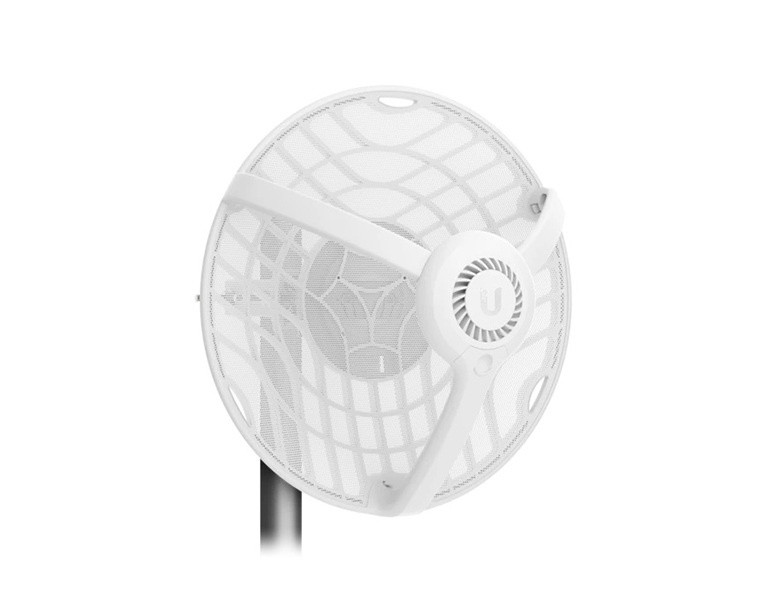

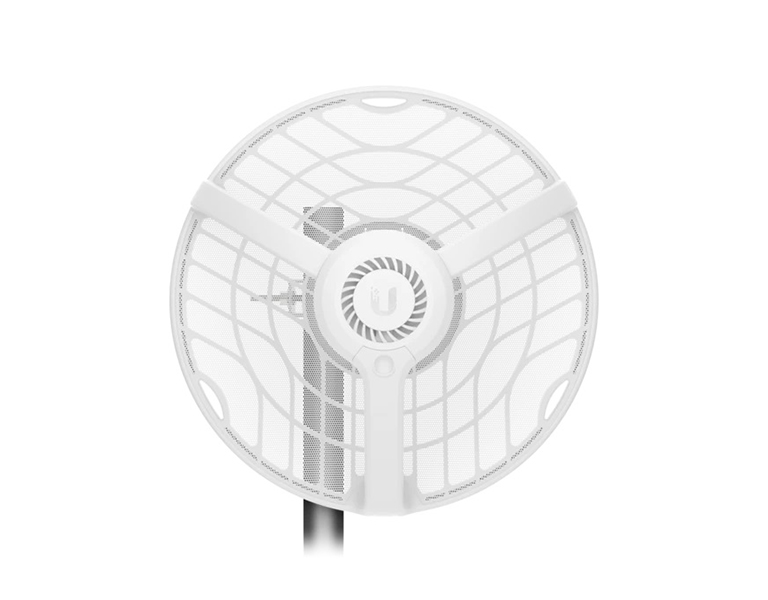

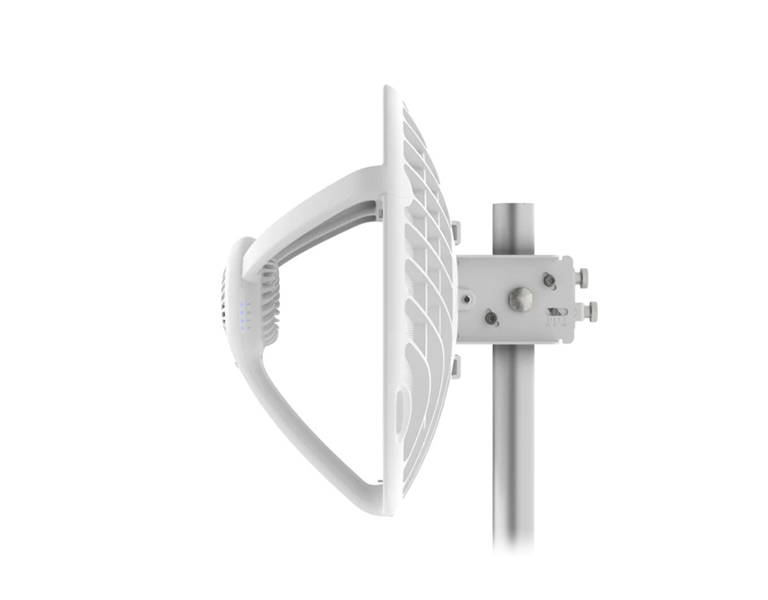

Ubiquiti AF60-LR airFiber 60 GHz Long-Range Radio System
.:Προσοχή: H τιμή αφορά σε ένα τεμάχιο!:.
airFiber 60 GHz Radio System Featuring Wave Technology with True Duplex Gigabit Performance for PtP Links over 12 km Distances.

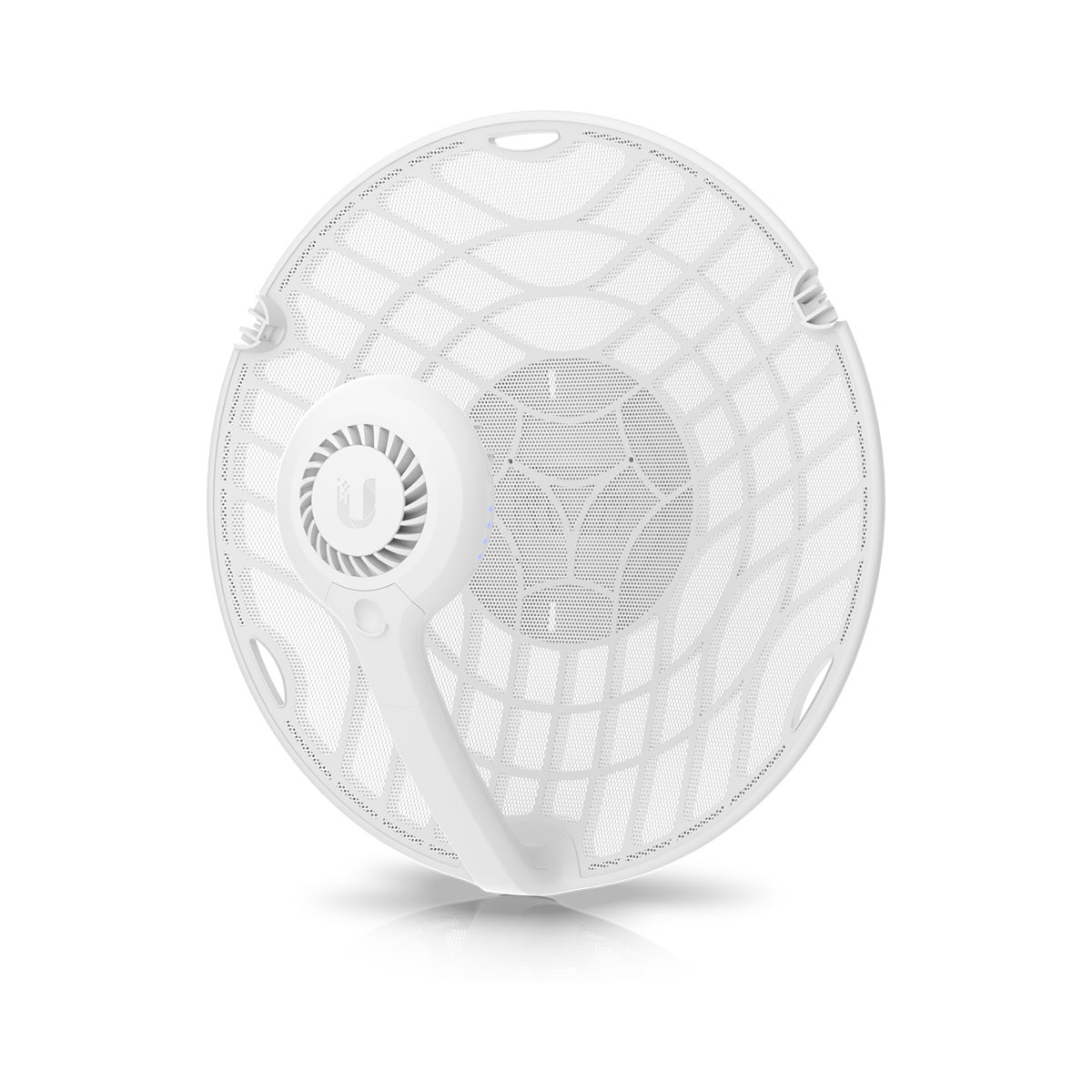

AF60-LR is a 60GHz radio designed for high-throughput connectivity over an extended range. The airFiber 60 LR features the integrated high-gain dish antenna for high speed, long-range performance Point-to-Point (PtP) links. New WaveTechnology enables incredible long-range performance within the 60GHz spectrum.
Includes a built-in Bluetooth management radio for easy setup.
Features:
• Low-Interference 60 GHz Spectrum
• Integrated GPS
• Long Range, Up to 12 km

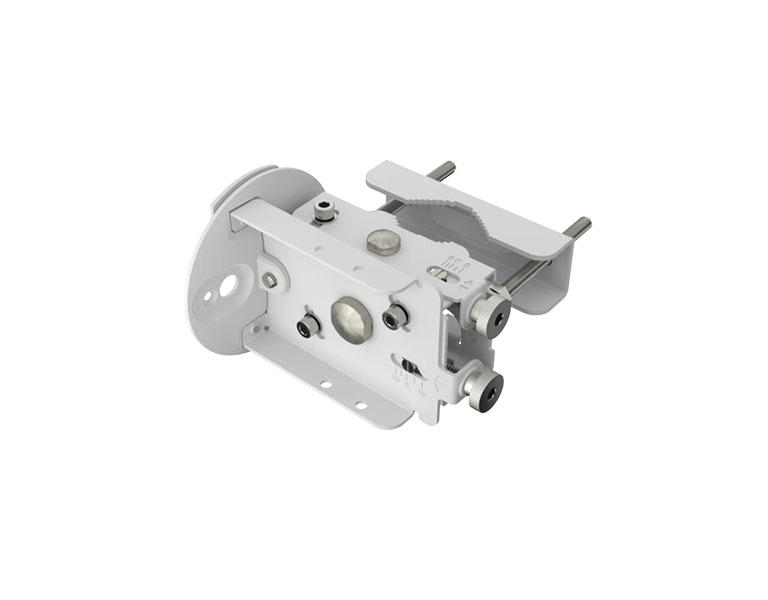

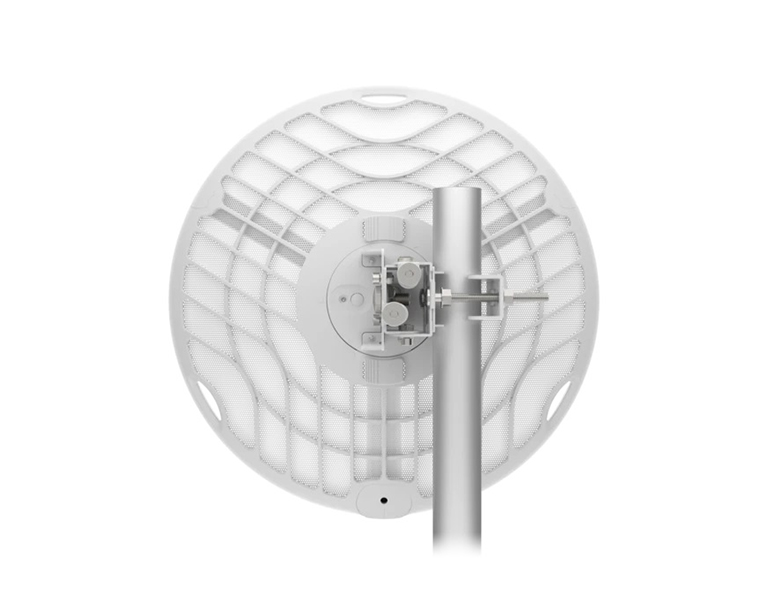

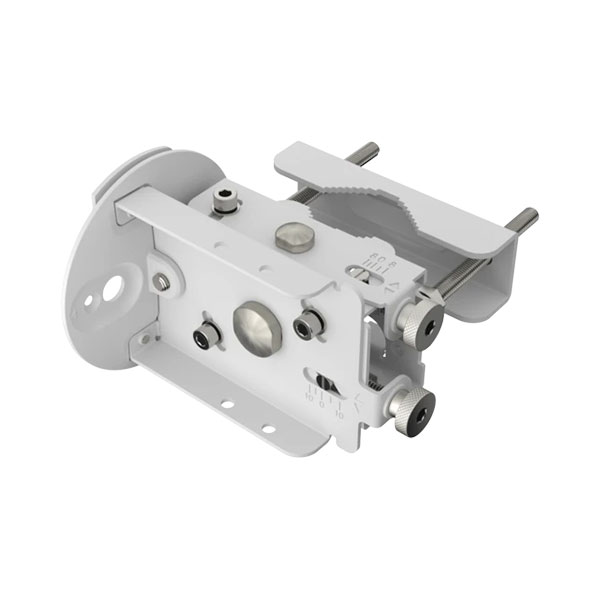

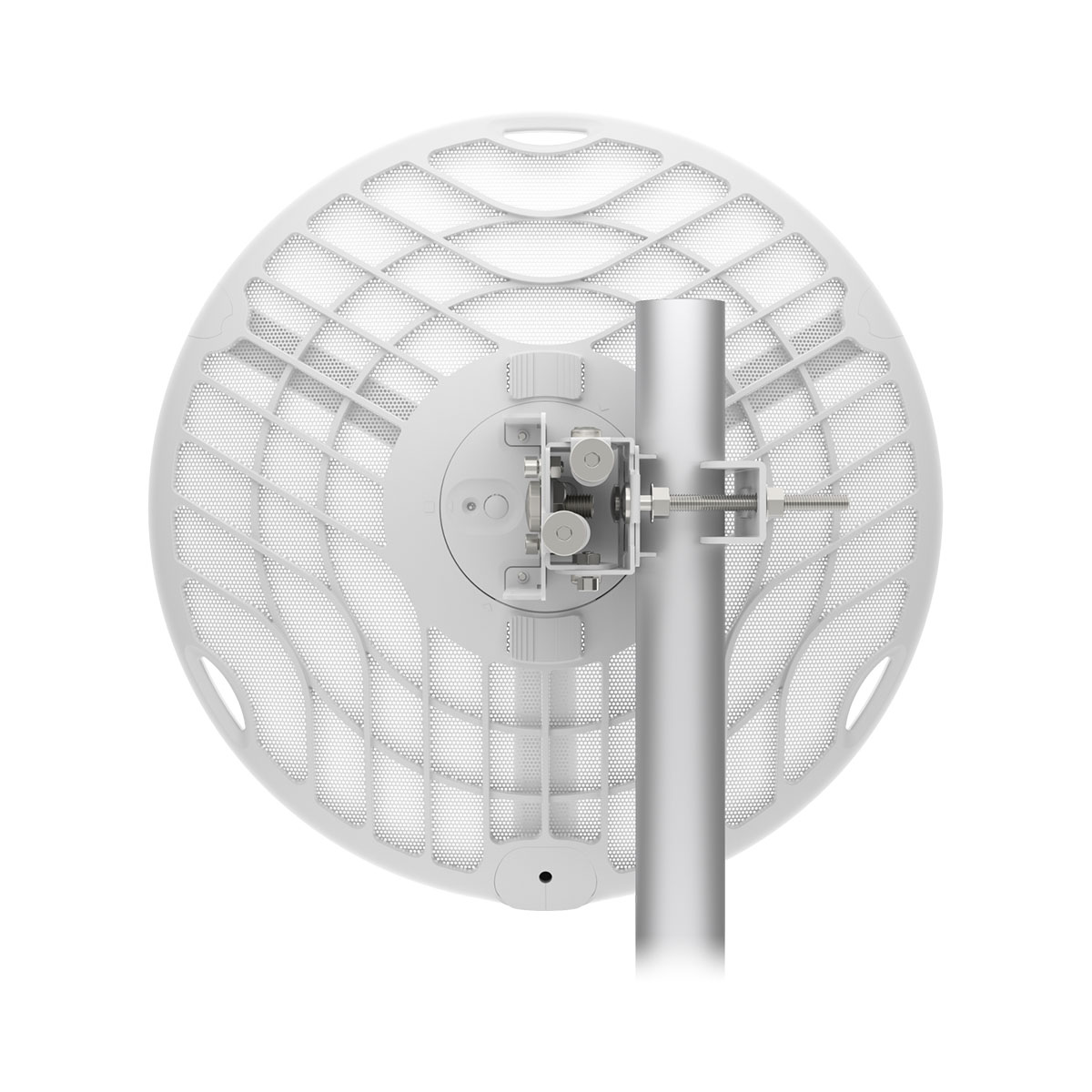

• Precision Alignment Mount Included
• link.ui.com Planning Support
• Quick Setup Using the *UISP™ App via Bluetooth
*UNMS Controller will change to UISP™ Controller from version 1.3.0 onward.
| Specifications | |

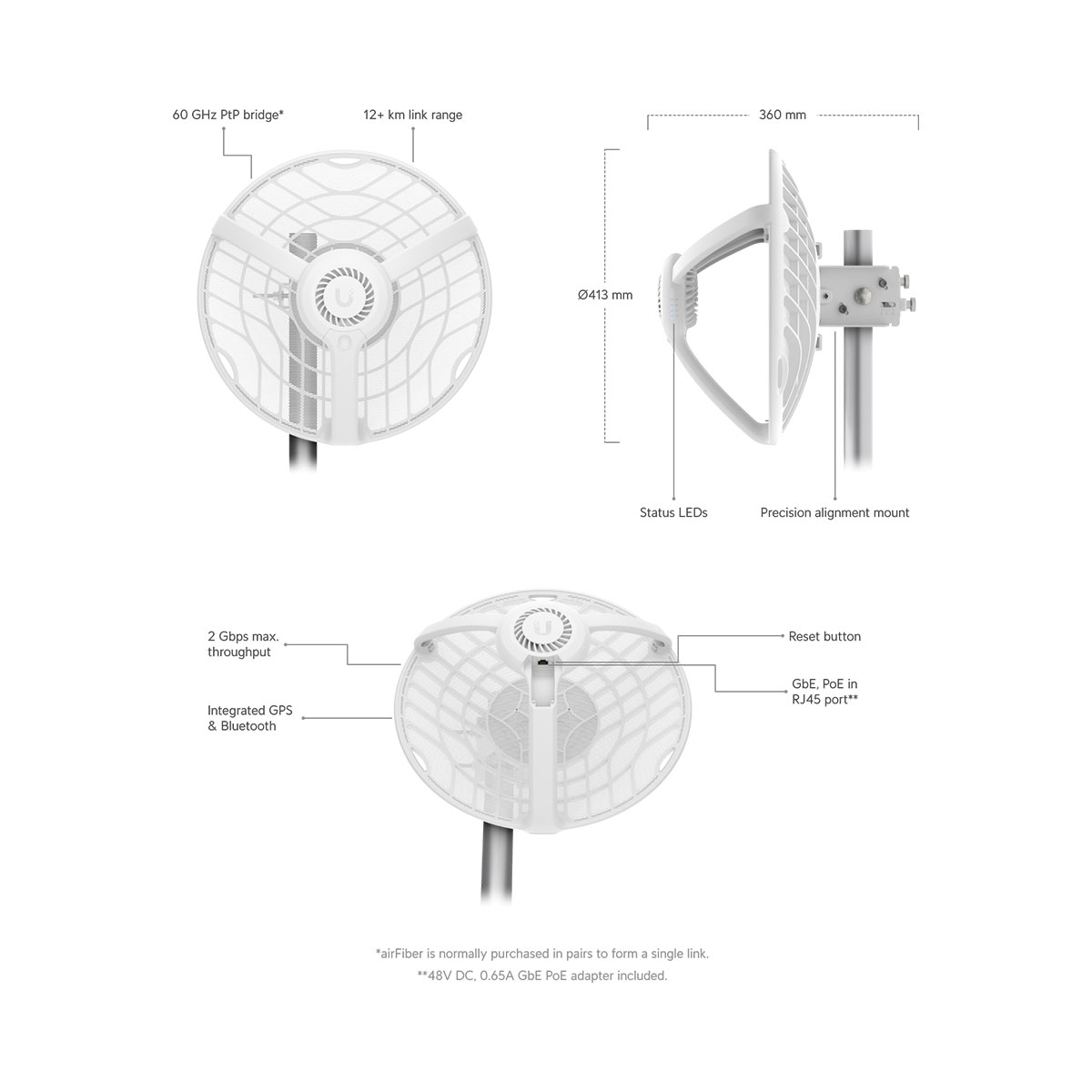

| Dimensions | Ø413 x 360 mm |
| Weight Without Mount With Mount |
1.5 kg 2.7 kg |
| Enclosure | Aluminum, UV-stabilized Polycarbonate |
| Processor | Quad-Core ARM Cortex A7 |
| Memory | 256 MB DDR3 |
| Networking Interface | 10/100/1000 Mbps RJ45 Ethernet |
| RF Connections | Internal |
| Max. Power Consumption | 18W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8-) |
| Power Supply | 48VDC, 0.65A Gigabit PoE Adapter |
| Supported Voltage Range | 48VDC ± 10% |
| ESD/EMP Protection | Air/Contact: ± 24kV |
| Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | FCC, IC, CE |
| Leds | |
| Power | Flashing White: Bootup in Progress White: Not Connected to Ubiquiti® Network Management System (UISP™) Blue: Connected to UISP |
| Ethernet | Flashing Blue: Ethernet Traffic Detected |
| GPS | Blue: Receiving at Least (4) GPS Satellite Signals |
| 60G | Blue: Active Connection |
| System | |
| Maximum Throughput | 1.8 Gbps |
| Maximum Range | 12 km |
| Encryption | WPA2-PSK (AES) |
| Software | |
| OS | airOS |
| Modes | PtP Only |
| Services | UISP, Ping Watchdog, NTP Client, System Log |
| Utilities | Antenna Alignment Tool, Discovery Utility, Ping, Traceroute, Speed Test |
| Network | Bridge Mode |
| Management interface | Bluetooth management for easy setup over UISP™ App WEB UI |
| Minimum Software Requirements | Modern Web Browser or Android/iOS Smartphone |
| Technology | Wave |
| RF | |
| Operating Frequency | 57 to 71 Ghz * Depends on regulatory region. |
| GPS | Yes |
| Channel Bandwidth | 2160, 1080 Mhz |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, η χρήση των συσκευών που εκπέμπουν στη ζώνη συχνοτήτων 57.000 – 71.000 MHz, πρέπει να είναι σύμφωνη με τα παρακάτω:
Κανονισμός Όρων Χρήσης Ραδιοφάσματος.
Εκτελεστική απόφαση της Ε.Ε.
Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εξωτερικούς χώρους.
