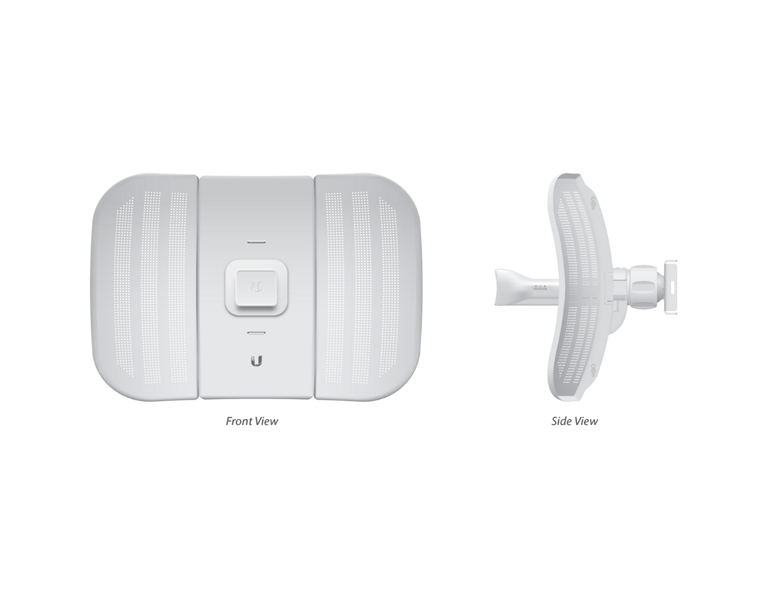

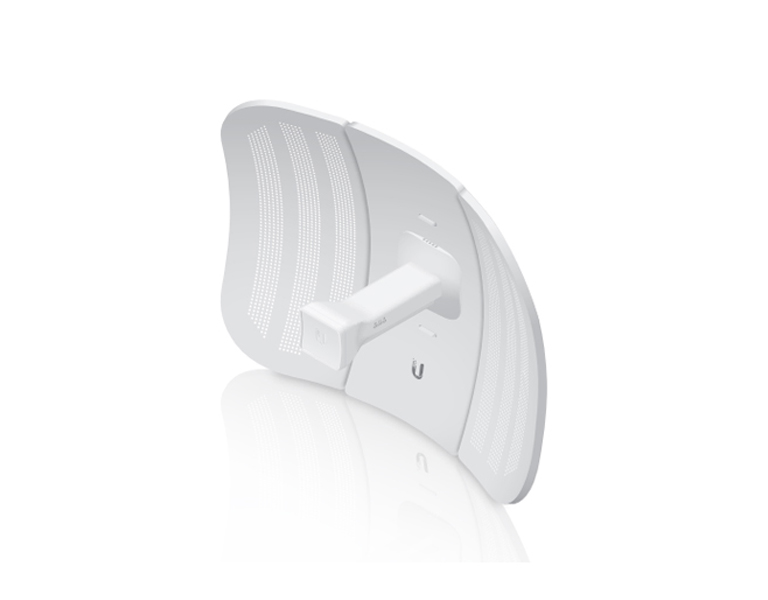

Ubiquiti LBE-M5-23 LiteBeam, outdoor, 5GHz, 23dBi, AirMAX
The LiteBeam™ is the latest evolution of a lightweight and compact, outdoor wireless broadband product from Ubiquiti Networks. Each of these models was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. It operates in the worldwide, license-free 5 GHz frequency range with high-performance speeds. The LiteBeam combines proprietary hardware and software technologies to deliver its breakthrough combination of throughput and range with cost-effective value. The InnerFeed® technology integrates the entire radio system into the antenna feed, and revolutionary airMAX TDMA protocol enhances network performance and scalability
Integrated airMAX Technology
Unlike standard Wi-Fi protocol, the exclusive Ubiquiti Networks® airMAX Time Division Multiple Access (TDMA) protocol allows each client to send and receive data using pre-designated time slots managed by an intelligent AP controller. This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency.
Compared to other systems in its class, the LiteBeam products deliver superior performance in reduced latency, throughput, and scalability.
• Intelligent QoS Priority is given to voice/video for seamless access.
• Scalability High capacity and scalability.
• Long Distance Capable of high-speed, 30+ km links.
Full Adjustment Flexibility

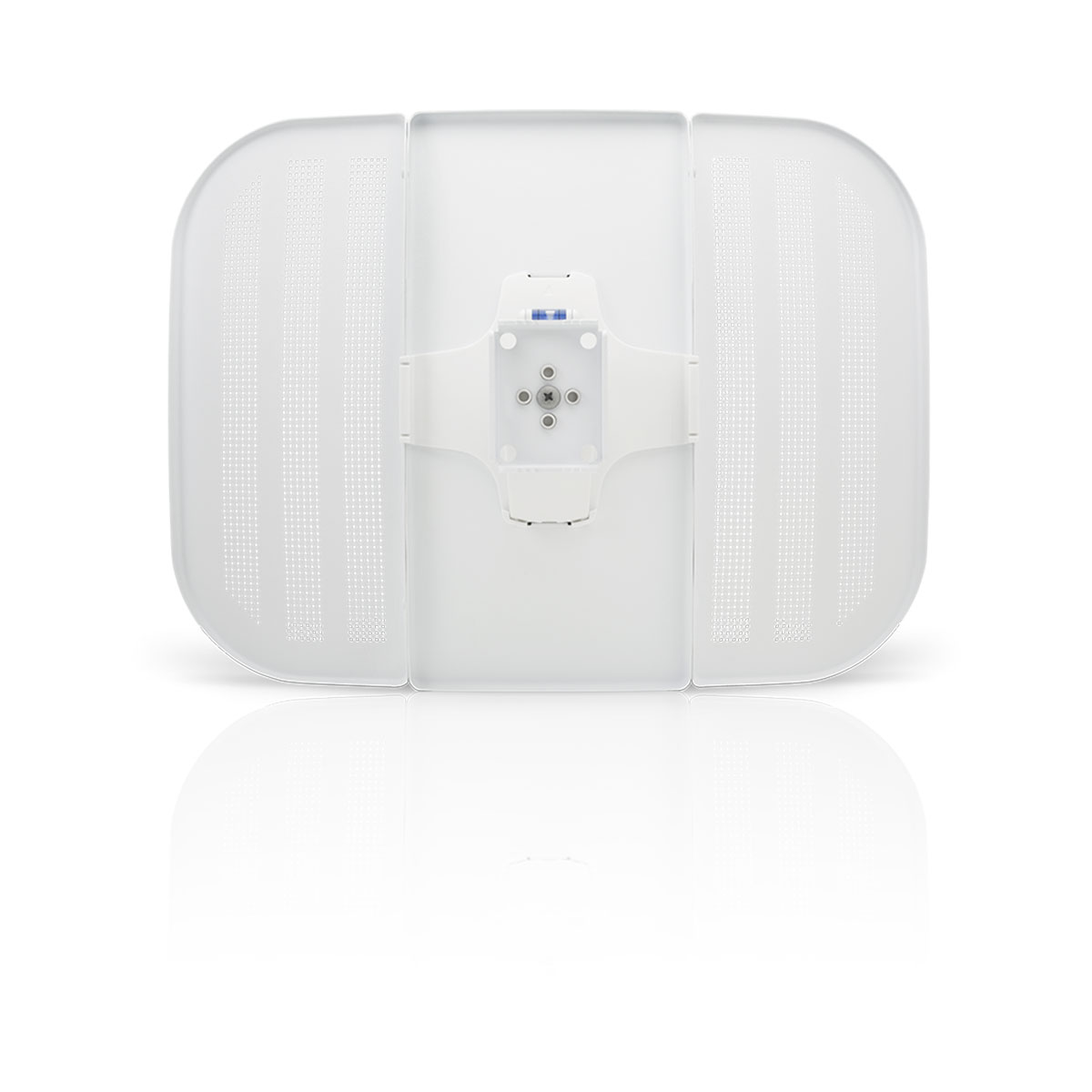

The LiteBeam features a unique ball joint mount that provides adjustment flexibility along three axes for versatile mounting options. The mounting system, coupled with the built-in bubble level, enables quick and easy alignment.
Quick, Snap-and-Lock Assembly

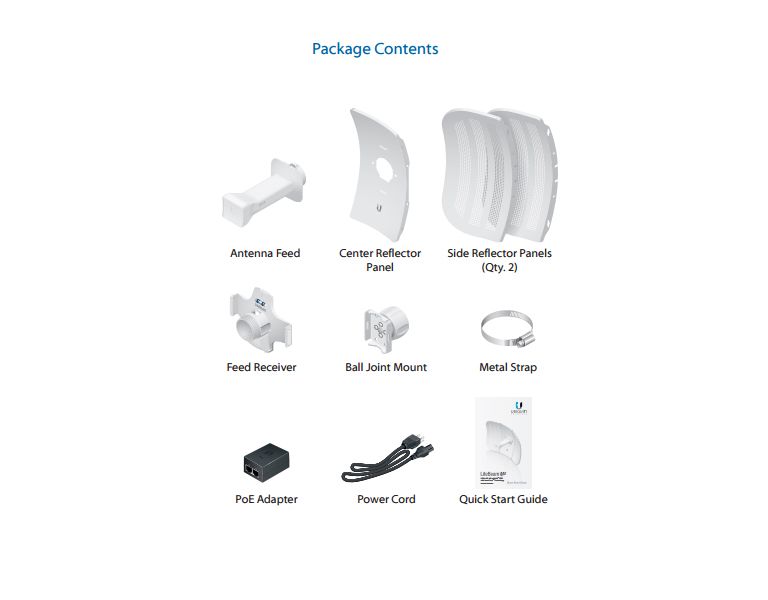

No tools are required. Simply snap the feed, antenna panels, rear housing, and ball joint mount together for a secure, solid assembly.
| Specifications | |

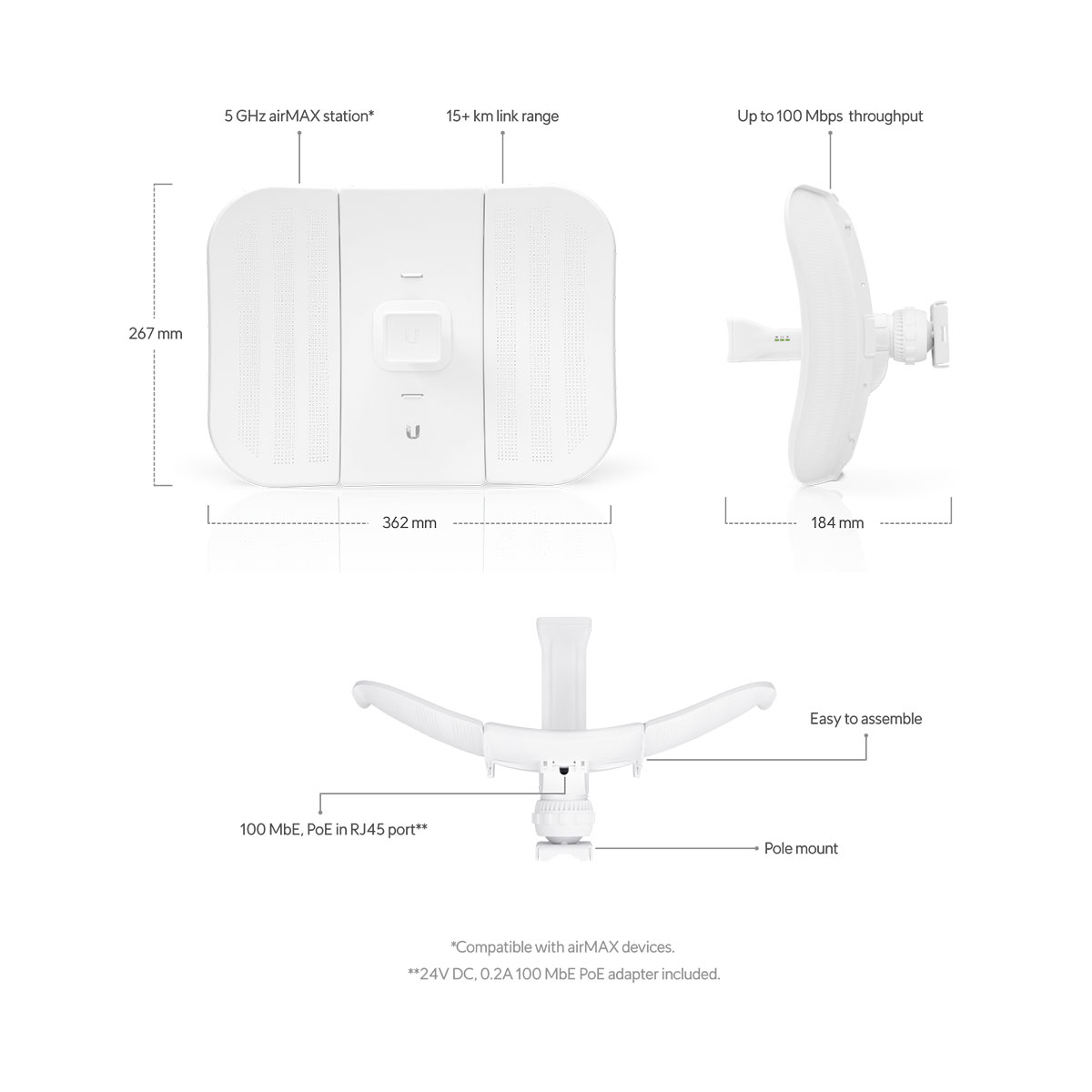

| Dimensions | 362 x 267 x 184 mm |
| Weight | 750 g |
| Mounting Kit | Pole Mounting Kit (Included) |
| Max. Power Consumption | 4W |
| Power Supply | 24V, 0.2A PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Operating Temperature | -40 to 70° C |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 |
| ETSI Specification | EN 302 326 DN2 |
| ESD/EMP Protection | ± 24 KV Contact / Air |
| System Information | |
| Processor Specs | MIPS 74K |
| Memory | 64 MB |
| Networking Interface | (1) 10/100 Ethernet Port |
| Regulatory / Compliance Information | |
| Wireless Approvals | FCC, IC, CE |
| RoHS Compliance | Yes |
| Antenna Information | |
| Operating Frequency | 5150 - 5875 MHz |
| Output Power | 25 dBm |
| Gain | 23 dBi |
| Max. VSWR | 1.5:1 |
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εξωτερικούς χώρους.
