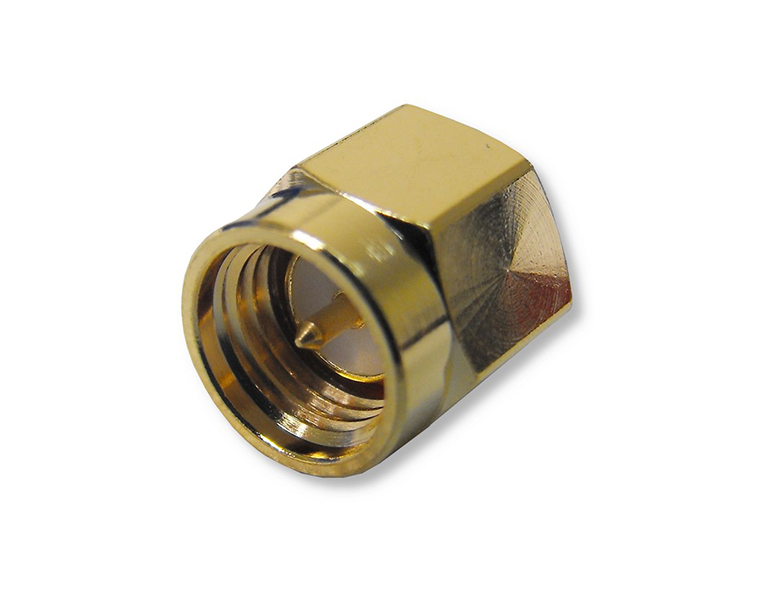

E-zy EZ-SMAM195 SMA Male Crimp connector for 195, RG-58 series
Κωδικός προϊόντος:
EZ-SMAM195
1,80 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
1,45 €
Άμεσα διαθέσιμο
E-zy EZ-SMAM195 SMA Male Crimp connector for 195, RG-58 series
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
SMA Male Crimp connector for LMR195, RG-58 series coaxial cable. SMA Series coaxial connectors are medium-sized, threaded coupling connectors designed for use from DC to 11 GHz. Their consistently low broadband VSWR have made them popular over the years in many applications. The SMA series connector is impedance matched to 50 ohm cables.
Χαρακτηριστικά
| Specifications | |
| Impedance | 50 ohm |
| Frequency Range | 0 to 11.0 GHz |
| V.S.W.R. | 1.3 max |
| Working Voltage | 1,000 volts rms max at sea level |
| Dielectric Withstanding Voltage | 2,500 volts rms max at sea level |
| Contact Resistance | Center contact=1.0 Milliohms max |
| Contact Resistance | Outer contact=1.0 Milliohms max |
| Insertion Loss | 0.3 dB max at 10 GHz |
| Insulation Resistance | 5,000 Megohms min |
| Body | Gold |
| Center Pin | Gold |
| Crimp Tube | Gold |
| Dielectric | Teflon |
