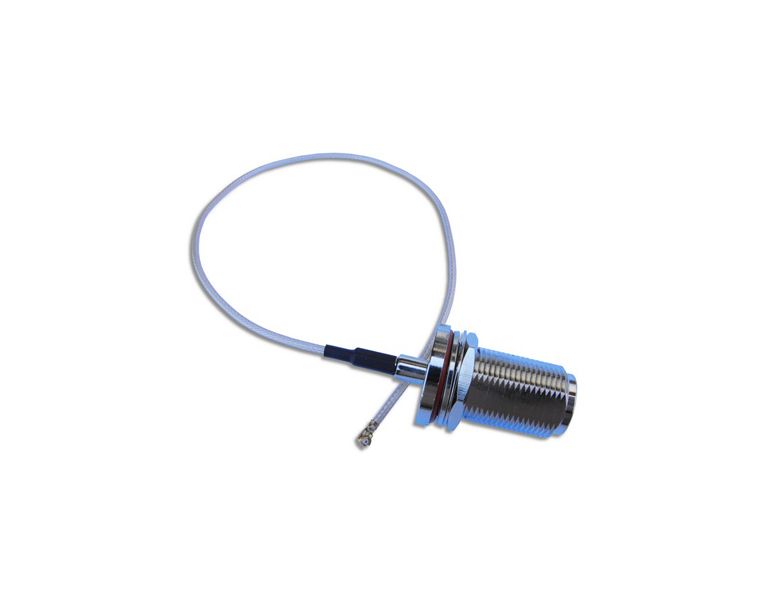

E-zy EZ-UFL2NB20 Pigtail UFL/IPEX to N-Type Bulkhead 20cm
Κωδικός προϊόντος:
EZ-UFL2NB20
Περιγραφή
Χαρακτηριστικά
Περιγραφή
U.FL/MHF to N-Type Female Bulkhead 20cm.
UFL to N-Type series coaxial pigtails have medium-sized, threaded coupling connectors designed for use from DC to 11 GHz.
Their consistently low broadband VSWR have made them popular over the years in many applications.
The UFL to N-Type series pigtail is impedance matched to 50 ohm cables.
Χαρακτηριστικά
| Specifications | |
| Impedance | 50 ohm |
| Frequency Range | 0 to 11.0 GHz |
| V.S.W.R. | 1.3 max |
| Working Voltage | 1,000 volts rms max at sea level |
| Dielectric Withstanding Voltage | 2,500 volts rms max at sea level |
| Contact Resistance | Center contact=1.0 Milliohms max |
| Contact Resistance | Outer contact=1.0 Milliohms max |
| Insertion Loss | <2,5 dB |
| Insulation Resistance | 5,000 Megohms min |
| Connector Body (UFL/N-Type) | (Gold /Nickel) Plated |
| Center Pin | Gold Plated |
| Dielectric | Teflon |
| O-Ring | Present |
| Cable Type | RG178 |
