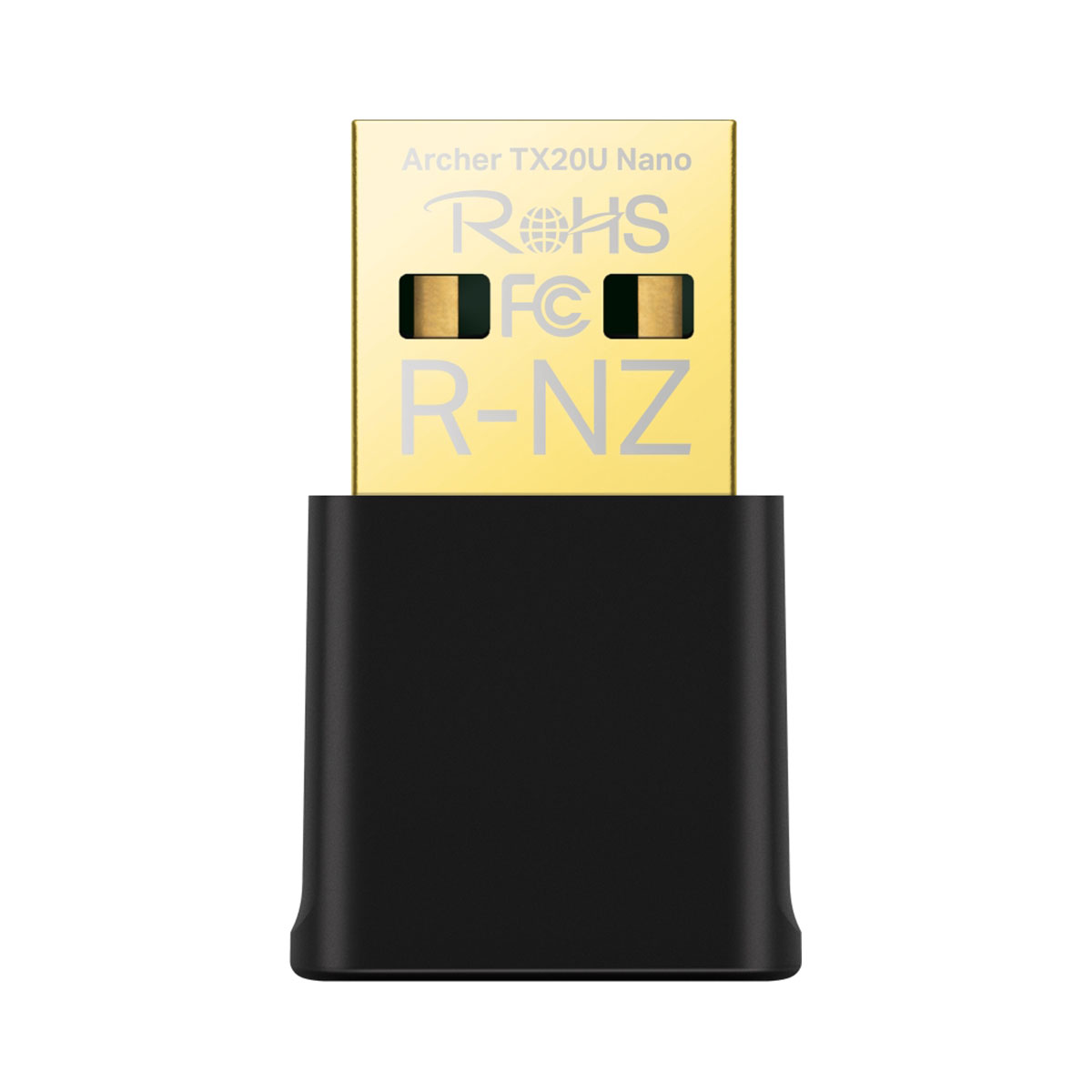

TP-LINK Archer TX20U NANO V1 AX1800 NANO Wi-Fi 6 Wireless USB Adapter
| • Fast WiFi 6 - Break the gigabit barrier with speeds up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz). • Dual Band Wireless - 2.4 GHz and 5 GHz bands for flexible connectivity. • Lower Latency Gameplay - OFDMA and MU-MIMO ensure the most efficient WiFi connection for your PC. • Improved Security - WPA3 provides the latest security enhancements for personal password protection. • Nano design – Small, unobtrusive design allows you to plug it in and forget it is even there • Setup Made Easy - TX20U Nano comes with its driver pre-loaded. Just plug and install. |
Wi-Fi 6 Upgrades Everything
The latest Wifi technology makes annoying lag and endless loading a thing of the past. Equip your PC with TX20U Nano and enjoy the future of faster network loads and more connections.
Lower Latency, Higher Efficiency, and Less Congestion
MU-MIMO - Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.
OFDMA - Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.
Advanced Security with WPA3
High-gain antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.
Miniature Design Brings Infinite Convenience
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.
*Models' appearances and specifications are not determined and will be updated accordingly. Please use the product images only for reference.
**Some features may require software upgrades or subscriptions.
****Use of Wi-Fi 6 and other features, including OFDMA and MU-MIMO, require your APs to also support the corresponding features.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
| Specifications | |
| WLAN Features | |
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax |
| Signal Rate | |
| 5 GHz | 11ax: Up to 1201 Mbps(dynamic) 11ac: Up to 867 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) |
| 2.4 GHz | 11ax: Up to 574 Mbps(dynamic) 11n: Up to 400 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
| Reception Sensitivity | |
| 5 GHz | 11ax HE80 MCS0: -90 dBm 11ax HE80 MCS11: -59 dBm 11a 54Mbps: -77 dBm 11ac VHT80 MCS0: -92dBm 11ac VHT80 MCS9: -64dBm |
| 2.4 GHz | 11ax HE40 MCS0: -94 dBm 11ax HE40 MCS11: -66 dBm 11g 54Mbps: -79 dBm 11n HT40 MCS9: -74dBm |
| Transmit Power | |
| 5 GHz | 19dBm(FCC) /21.5dBm(CE) (EIRP) |
| 2.4 GHz | 19dBm(FCC) / 18.5dBm(CE) (EIRP) |
| Wireless Modes | Infrastructure mode |
| Wireless Security | WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK△ |
| Specifications | |
| Hardware | |
| Dimensions | 26.8× 15.7 ×7.5mm |
| Others | |
| Package Contents | AX1800 Nano Wi-Fi 6 Wireless USB Adapter TX20U Nano Quick Installation Guide |
| Certification | FCC, CE, RoHS |
| System Requirements | Windows 10/11 § |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
