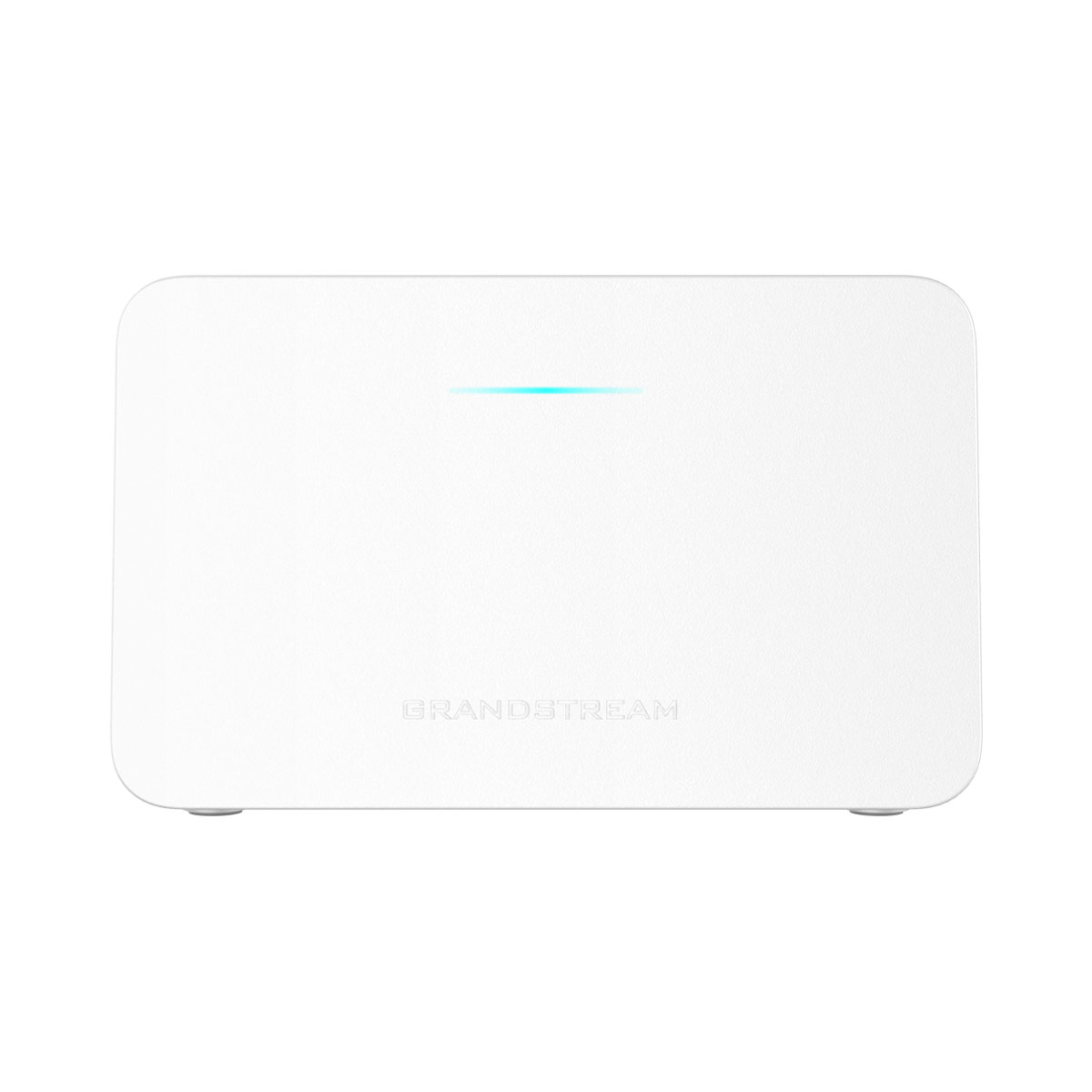

Grandstream GWN7062E Wi-Fi 6 Dual-Band Router
Grandstream GWN7062E Wi-Fi 6 Dual-Band Router
The GWN7062E is a secure dual-band AX3000 router powered by the latest Wi-Fi 6 (802.11ax) technology. Ideal for small offices, home offices and remote workers, the GWN7062E provides 2.4G 2×2:2 and 5G 3x3:2 MU-MIMO with XTRA Range technology with beamforming for maximum network throughput and expanded Wi-Fi coverage range, as well as support for wireless Mesh networks. It features a powerful 1.3GHz dual-core processor to provide Wi-Fi speeds up to 3Gbps with up to 128 wireless devices, allowing the GWN7062E to power smart office and home automation, smooth 4K Ultra HD streaming, web meetings, video conferences, online gaming and more. It offers high-performance routing and switching power along with built-in VPN support for secure in-office and inter-office connectivity. The GWN7062E provides parental controls by managing online time control, blocking inappropriate content, and offering daily and weekly statistics to keep families safe while online. This router also provides enterprise-grade security features to ensure secure Wi-Fi and VPN access, including unique security certificates and random default passwords. To ensure easy installation and management, the GWN7062E includes a built-in controller embedded within the product’s web user interface. It is also supported by GDMS Networking and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platforms. By combining accelerated Wi-Fi speeds, with advanced features including VPN and intelligent QoS, the GWN7062E is the ideal router for a growing home, small offices, business network and more.
Features:
• Powered by Wi-Fi 6 (802.11ax) with up to 3Gbps wireless throughput
• GWN7062E: 3x Gigabit ports
• GWN7062ET: 3x Gigabit ports + 2x FXS ports to provide internet and telephony access
• Dual-band (2.4G 2x2:2 and 5G 3x3:2) MU-MIMO with DL/ UL OFDMA technology
• Built-in VPN support allows easy access to corporate networks for remote employees
• Supports up to 128 concurrent wireless client devices
• Secure cloud provisioning through GDMS Networking
• Powerful security features include guest network, network blocklist, anti-hacking secure boot & critical data/control, lockdown via digital signatures, and more
• Rich firewall features including DoS, blocklist, and URL content filtering
• Supports Mesh networking with Grandstream Wi-FI points and routers to provide easy network expansion
Specifications | |
Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax |
Antennas | 1x 5GHz: maximum gain 3.4dBi 2x 2.4GHz&5GHz: maximum gain 4.7dBi for 2.4GHz, 4.3dBi for 5GHz |
Wi-Fi Data Rates | 5G: IEEE 802.11ax: 7.3 Mbps to 2402 Mbps IEEE 802.11ac: 6.5 Mbps to 1732 Mbps IEEE 802.11n: 6.5Mbps to 300Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 2.4G: IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps IEEE 802.11n: 6.5Mbps to 300Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network |
Frequency Bands | 2.4GHz radio: 2400-2483.5MHz. 5GHz radio: 5150-5895MHz *Not all frequency bands can be used in all regions |
Channel Bandwidth | HT 20/40, VHT 20/40/80, HE 20/40/80/160 |
Security | WPA/WPA2, WPA2, WPA2/WPA3, WPA3, anti-hack security boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device, security firewall including DoS, blocklist and URL content filtering, application monitoring and traffic statistics with DPI |
Wi-Fi and System Security | WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
MU-MIMO | 2×2:2 2.4GHz 3×3:2 5GHz |
Maximum TX Power | 2.4G: 24dBm 5G: 26dBm *Maximum power varies by country, frequency band and MCS rate |
Receiver Sensitivity | 2.4G: 802.11b: -96dBm@1Mbps, -88dBm@11Mbps, 802.11g: -93dBm@6Mbps, -75dBm@54Mbps, 802.11n 20MHz: -73dBm@MCS7, 802.11n 40MHz: -70dBm@MCS7, 802.11ax 20MHz: -60dBm@MCS11, 802.11ax 40MHz: -58dBm@MCS11, 5G: 802.11a: -92dBm@6Mbps, -74dBm@54Mbps, 802.11n 20MHz: -73dBm@MCS7, 802.11n 40MHz: -70dBm@MCS7, 802.11ac 20MHz: -67dBm@MCS8, 802.11ac 40MHz: -63dBm@MCS9, 802.11ac 80MHz: -59dBm@MCS9, 802.11ax 20MHz: -60dBm@MCS11, 802.11ax 40MHz: -58dBm@MCS11, 802.11ax 80MHz: -56dBm@MCS11, 802.11ax 160MHz: -52dBm@MCS11, |
SSIDs | 4 SSIDs total |
Concurrent Wireless Clients | Up to 128 wireless clients |

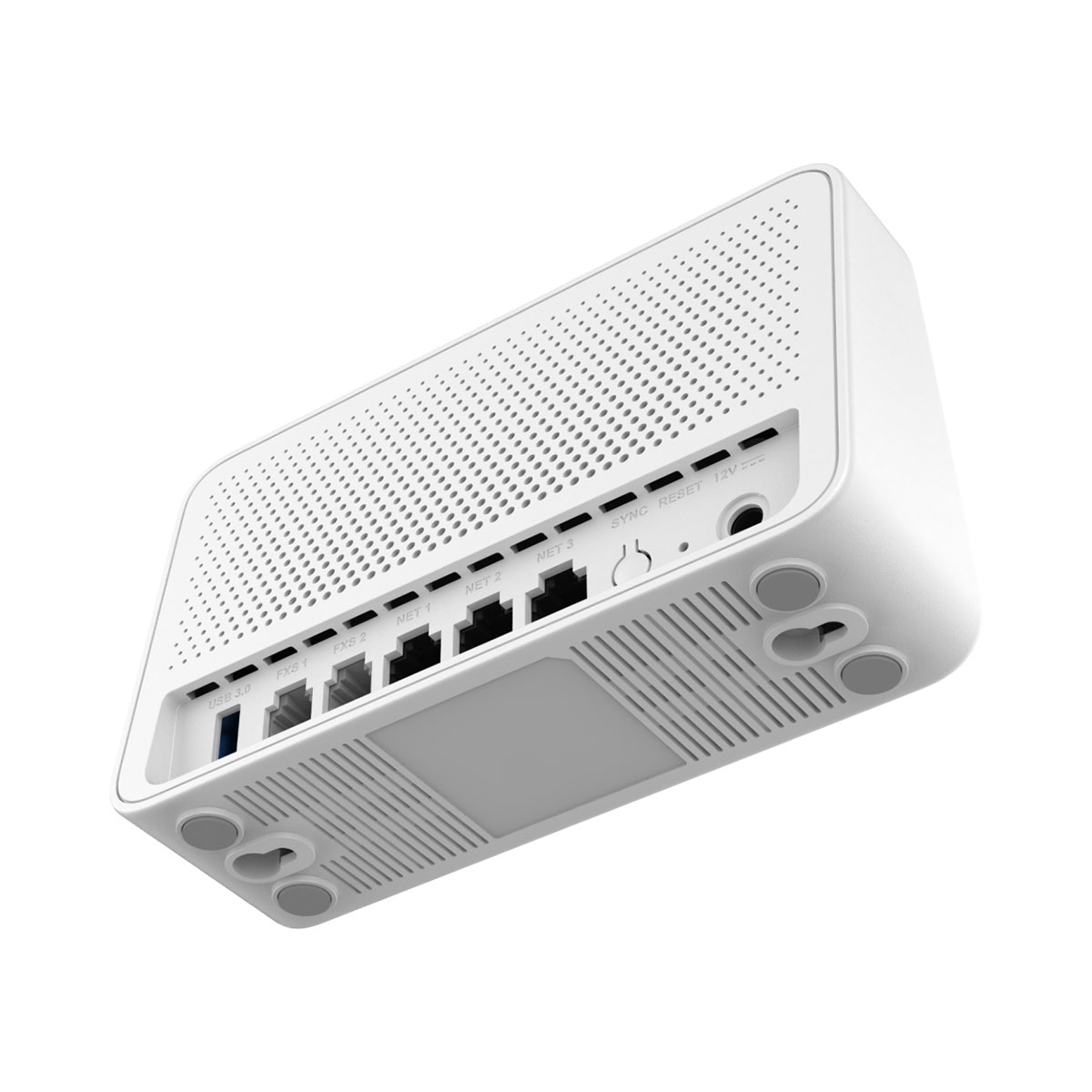

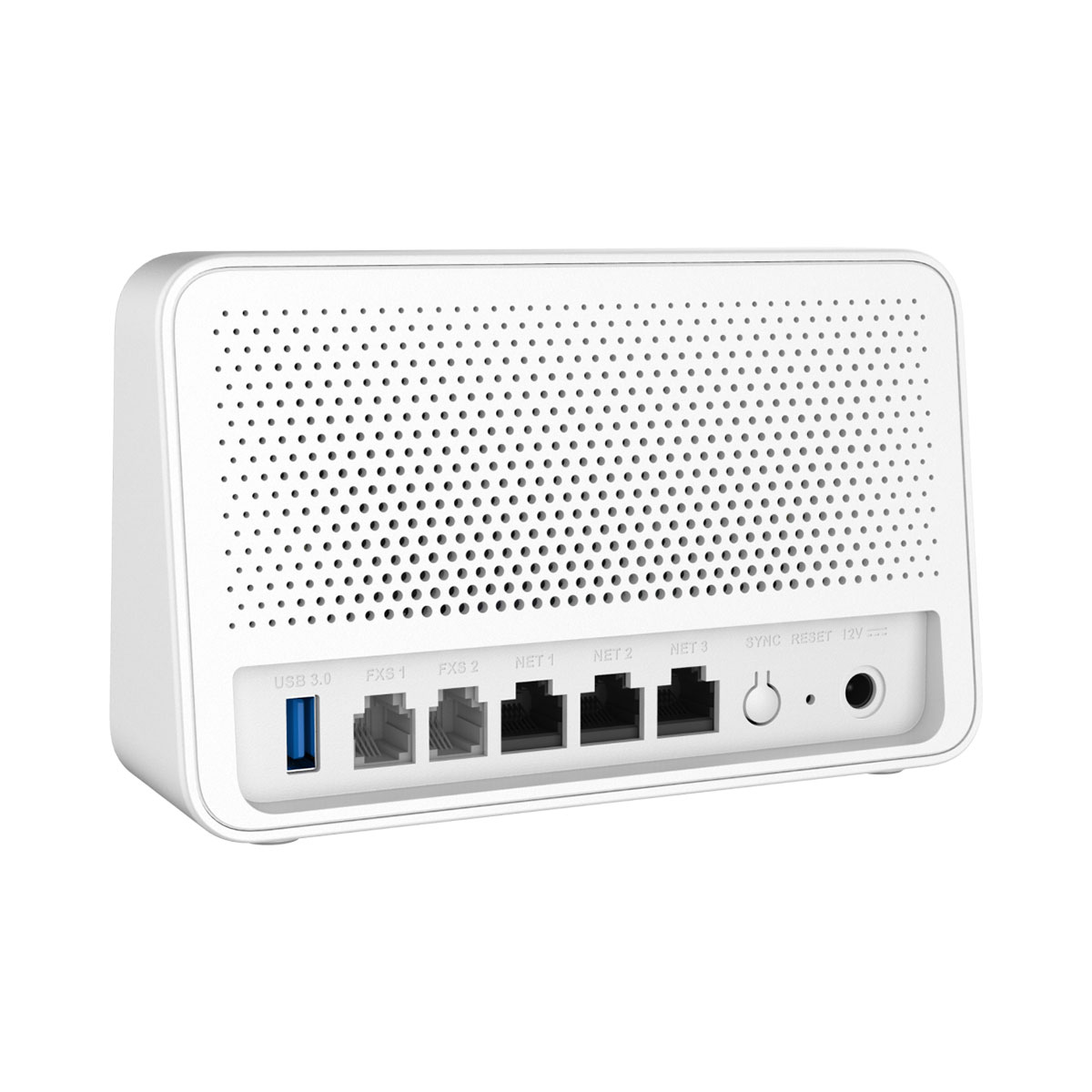

Network Interfaces | 3x autosensing 10/100/1000Mbps Ethernet ports |
Auxiliary Ports | 1x SYNC, 1x POWER, 1x RESET Pinhole |
Mounting | Desktop or wall-mounting |
LED | 1x tri-color LED for device tracking and status indication |
Network Protocols | IPv4, IPv6, 802.1p, 802.11e/WMM, DSCP |
QoS | • Support 8 queues with multiple traffic priority and bandwidth • APP QoS • QoS rules |
NAT | DDNS, Port Forwarding, DMZ, UPnP |
VPN | Supports 1 VPN tunnel: • L2TP Client • PPTP Client •IPSec Site-to-Site & Client-to-Site • OpenVPN® Server • WireGuard® Site-to-Site & Peer-to-Site |
Network Management | • Embedded controller (can only manage itself) • GDMS (Networking) offers a free cloud management platform for unlimited GWN Routers • GWN Manager offers premise-based software controller • TR-069 |
Power and Green Energy Efficiency | USB Type-C power adapter included: Input: 100~240V 50/60Hz Output: 5V/3A(15W) |
Environmental | Operation: 0°Cto 40°C, humidity: 10% to 90% RH (Non-condensing) Storage: -20°C to 60°C, humidity: 10% to 90% RH (Non-condensing) |
Dimensions | Unit Dimensions: 140mm(L)*46mm(W)*90mm(H) Entire Package Dimensions: 176.5mm(L)*170mm(W)*72mm(H) |
Physical | Unit Dimension: 95mm(L)x95mm(W)x193mm(H), Unit Weight: 690g Entire Package Dimension: 286mm(L)x126.5mm(W)x105mm(H), Entire Package Weight: 960g |
Unit Weight | Unit Weight: 185g Entire Package Weight: 465g |
Package Content | GWN7062E router, Power Adapter, Ethernet Cable, Quick Installation Guide |
Compliance | FCC, CE, RCM, IC |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
