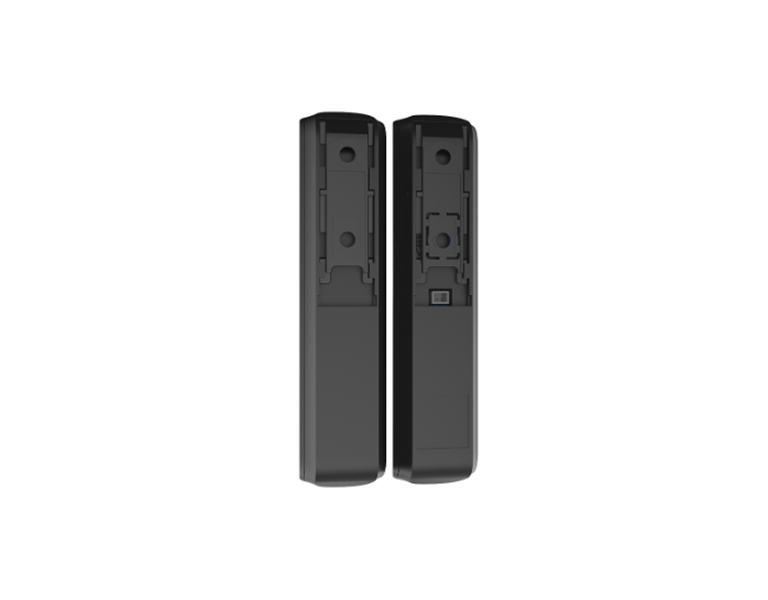

AJAX SYSTEMS AJ-DP-B - DOOR PROTECT BLACK
| • Authentication to prevent forgery • Jamming detection and communication channels encryption • Tampering alarm • Operates up to 7 years without battery replacement • External contact is available for connecting third-party detectors • Includes magnets of various sizes for installation on narrow frames and door frames |
Principle of operation
The device detects the door or window being opened by means of British-made hi-end reed switches on which the magnetic field acts. It can operate in the transmitter mode, sending a signal from the wired sensor to the hub.
Features
The device consists of two modules — detector and magnet. The set includes two magnets: the big magnet is installed at a distance of up to 2 cm, and the small magnet up to 1 cm.
Installation and set up
Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
| Technical Specifications | |
| Compatibility | |
| Control panels | Hub/ Hub Plus/ Hub 2 (2G) / Hub 2 (4G) / Hub 2 Plus / Hub Hybrid (2G) / Hub Hybrid (4G) |
| Range extenders | ReX / ReX 2 |
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms and events |
| Maximum effective radiated power (ERP) | up to 20 mW |
| Radio signal range | up to 1,200 m |
| Encrypted communication | All the data stored and transmitted are protected by block encryption with a dynamic key |
| Frequency hopping | Radio communication uses frequency hopping to prevent interception and jamming |
| Detection | |
| Sensitive element | 1 reed switch |
| Magnets | small and big one come in the set |
| Protection against reed switch chattering | The detector ignores vibrations lasting up to 0.15 s |
| Input to connect an additional detector | Wired detector with the normally closed contact type |
|
Chime |
When the system is disarmed, the siren makes a special sound to notify that the opening detectors are triggered |
| Sabotage protection | • Tamper alarm • Protection against spoofing • Communication loss detection |
| Power supply | |
| Battery | 1 × CR123A |
| Enclosure | |
| Detector dimensions | 90 × 20 × 20 mm |
| Dimensions of the big magnet | 90 × 20 × 20 mm |
| Dimensions of the small magnet | 55 × 11 × 6 mm |
| Detector weight | 29 g |
| Operating temperature range | From -10°С to +40°С |
| Operating humidity | Up to 75% |
| Protection class | IP50 |
| Package contents |
DoorProtect Jeweller
SmartBracket mounting panel
CR123A battery (pre-installed)
Big magnet
Small magnet
Outside-mounted terminal clamp
Installation kit
Quick start guide
|
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 863 – 870 MHz, προβλέπει μέγιστη ισχύ εκπομπής όπως περιγράφεται στην απαίτηση διεπαφής ραδιοεξοπλισμού 105. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς και εξωτερικούς χώρους.
