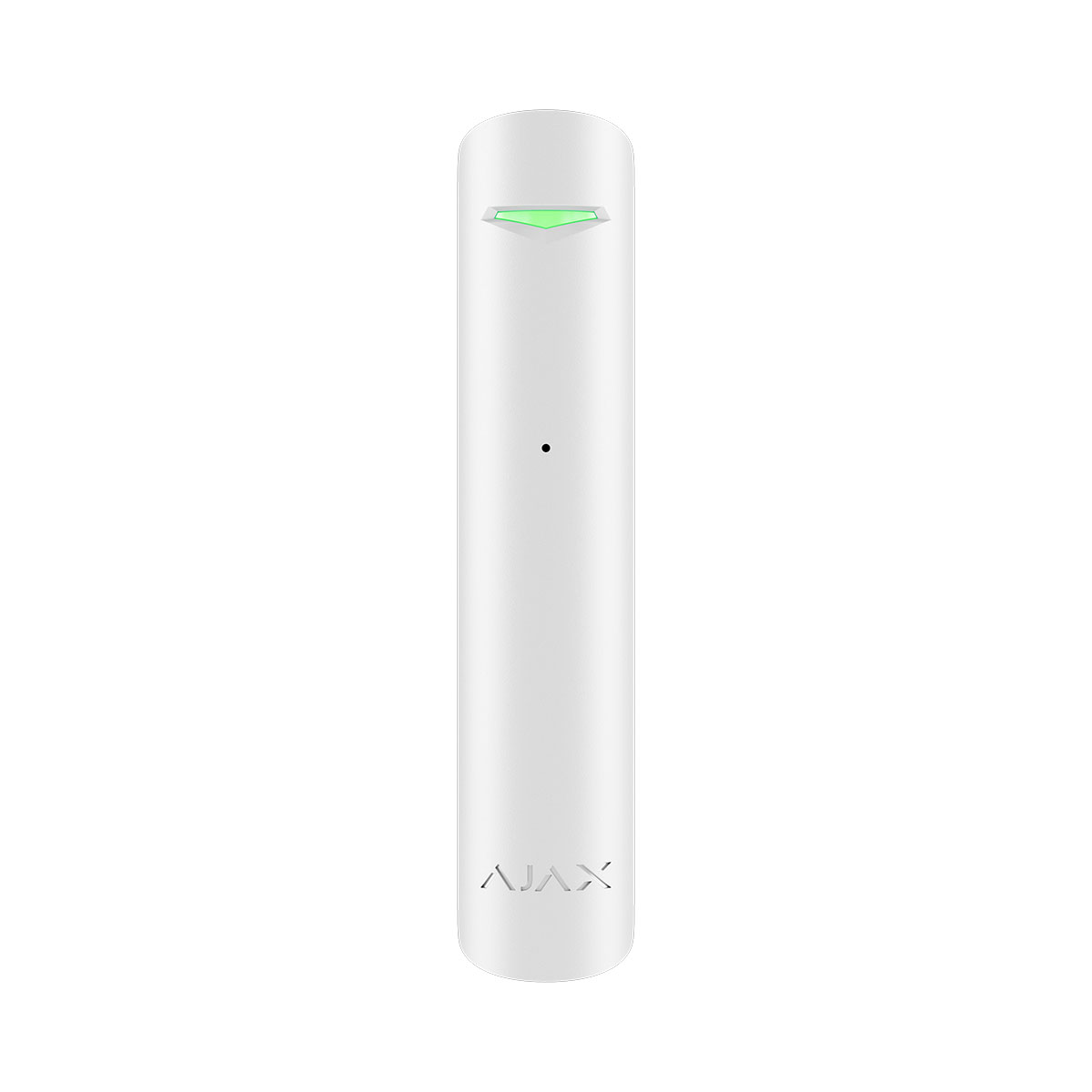

AJAX SYSTEMS AJ-GP-W - GLASS PROTECT WHITE
| • Up to 9 m glass break detection distance with 180° horizontal detection angle • Filter for false alarms caused by dogs barking or the sound of passing trucks • Up to 7 years of operation on pre-installed battery • Configuring in the Ajax mobile and desktop apps • Two-factor glass break verification algorithm: by low and high frequencies • Additional NC input for connecting a third-party detector • Up to 1,000 m of two-way encrypted wireless communication • Pairing with the security system via QR code |
Principle of operation
Detects broken glass using an electret microphone, which registers the sound of impact against the glass and of the glass falling.
Features
Two-factor detection of broken glass prevents false alarms caused by thunder, dogs barking and noise from passing trucks.
Installation and set up
Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
| Technical Specifications | |
| Classification | Surface sound radio channel security detector |
| Type of detector | Wireless |
| Installation method | Indoors |
| Compatibility | Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge |
| Sensing element | Electret microphone |
| Break detection distance | Up to 9 m |
| Alarm signal delivery time | 0.15 s |
| Sensitivity | Adjustable, 3 levels |
| Detection angle | 180° |
| Power supply | Battery: CR123A battery, 3 V |
| Battery life | Up to 7 years |
| Jeweller radio technology | Communication range with central unit — up to 1,000 m in an open space Two-way communication between devices • Self-adjusting RF output power — up to 20 mW • Block encryption based on AES algorithm • Detector polling period — 12−300 s |
| Temperature sensor | Available |
| Operating temperature range | From -10°С to +40°С |
| Permissible humidity | Up to 75% |
| Anti-sabotage | • Protection against fraud • Jamming detection • Tamper-resistant |
| Remote setting and testing | Yes |
| Dimensions | Diameter: 20 mm Height: 90 mm |
| Weight | 30g |
| Package contents |
GlassProtect glass break detector
SmartBracket mounting panel CR123A battery (pre-installed) External contact Installation set User's guide |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 863 – 870 MHz, προβλέπει μέγιστη ισχύ εκπομπής όπως περιγράφεται στην απαίτηση διεπαφής ραδιοεξοπλισμού 105. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς και εξωτερικούς χώρους.
