AJAX SYSTEMS AJ-MCAM-OUT-PHOD-W - MOTIONCAM OUTDOOR WHITE (PhOD)
| • Up to 15 m detection distance • False alarms prevention algorithm • Effortless installation and replacement • Pet immunity • Remote control and setup via the app • Anti-masking system • Temperature compensation • A built-in camera for photo verification • Up to 3 years of operation on pre-installed battery • Connecting via QR code |
Intellect false alarm filter
MotionCam Outdoor is equipped with two independent PIR sensors, the signals of which are analyzed by a two-step LISA algorithm. When both sensors detect motion, LISA performs correlation and spectral analysis of the signals, which help to instantly distinguish real threats from interferences.
Correlation analysis
Whenever MotionСamOutdoor detects motion, LISA analyses and compares signal forms from two sensors in real time. If forms are similar, the alarm is activated.
Outdoor surveillance and alarm confirmation
MotionCam Outdoor is equipped with a camera to quickly assess the situation at the protected facility. The detector takes an automatic series of photos as soon as it detects an intrusion into the territory. A series of photos combines into an animation showing the situation development in the dynamics. MotionCam Outdoor PhOD can take a series of photos by request of the user from the Ajax mobile app, regardless of the security mode. Furthermore, the device can take photos on a set schedule or when selected devices in the system trigger an alarm.
Advantages of photo verification
• Territory under surveillance
In case of any doubts, system users can check what is happening at the facility. No need to wait for an alarm. Just open the app, select the detector, and you'll see the situation in the yard in a few seconds.
• Less reasons to worry
Outdoor motion detectors operate in a complex environment full of natural sources of false alarms. MotionCam Outdoor allows system users and monitoring station operators to see in seconds whether the alarm is real, so they can respond accordingly.
• More security
Both system users and the rapid response unit must have a clear understanding of what is happening at the facility where the security alarm was triggered. The detector will show how many criminals are still on the approaches to the premises and whether they are armed. This will help a security patrol to prepare and users can avoid danger.
• Evidence in a smartphone
A series of animated photos in the app allows conveying the peculiar features of burglars to law enforcement without wasting time. Thanks to the infrared backlight, the detector spots them even in complete darkness. The chances of catching criminals on the spot increase.
Intuitive installation and connection

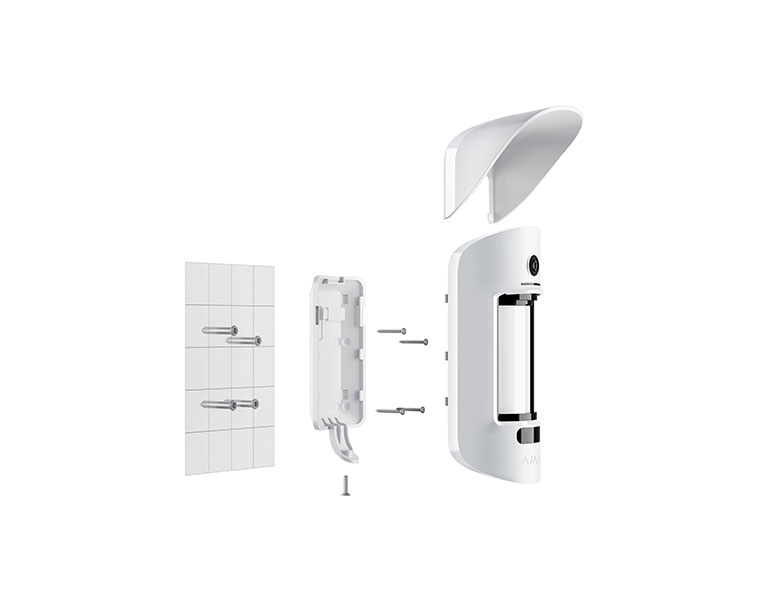

The detector connects to the Ajax security system in a few clicks. Open the Ajax app, scan the QR code and add the detector to the room. No need to disassemble the detector enclosure. The SmartBracket mounting panel allows you to securely mount the detector both on a flat surface and in a corner.
| Technical Specifications | |
| Compatibility | |
| Compatible hub models | Hub 2 (2G) / Hub 2 (4G) / Hub 2 Plus / Hub Hybrid (2G) / Hub Hybrid (4G) |
| Compatible range extenders | ReX 2 |
| Communication | |
|
Communication technology |
• Jeweller • Wings |
| Maximum effective radiated power (ERP) (Jeweller) |
up to 20 mW |
| Radio signal range (Jeweller / Wings) |
up to 1,700 m Between detector and hub or range extender in an open space. |
| Encrypted communication (Jeweller) |
All the data stored and transmitted are protected by block encryption with a dynamic key. |
| Radio frequency hopping (Jeweller / Wings) |
Radio communication uses frequency hopping to prevent interception and jamming. |
| Detection | |
| Sensitive element | 2x PIR sensor |
| Motion detection distance |
up to 3–15 m
When installed at a height of 0.8–1.3 m. Adjusted with a scrollbar on the device enclosure.
|
| Motion detection angles | horizontal — 90° vertical — N/A |
| Motion detection speed |
from 0.3 to 2.0 m/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.
|
| Sensitivity |
3 levels
Adjusted by PRO or user with admin rights in the Ajax app. |
| Pet immunity | weight: not relevant height: up to 80 cm |
| False alarm prevention |
LISA
SmartDetect
Software algorithms.
|
| Temperature compensation | Effective motion detection at temperatures from −25°C to +60°C. |
| Anti-sabotage protection | • Tampering alarm • Anti-masking system • Protection against spoofing • Communication loss detection |
| Power supply | 4 × CR123A battery Up to 3 years of battery life. |
| Battery life |
up to 4 years
with Photo on demand toggle disabled
up to 3 years
with Photo on demand toggle enabled
|
| Enclosure | |
| Dimensions | 206 × 108 × 93 mm |
| Weight | 470 g |
| Operating temperature range | from −25°C to +60°C |
| Operating humidity | up to 95% |
| Protection class | IP56 |
| Package contents |
MotionCam Outdoor (PhOD) Jeweller
Hood
SmartBracket mounting panel
Installation kit
4 × CR123A battery (Pre-installed)
Quick Start Guide
|
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 863 – 870 MHz, προβλέπει μέγιστη ισχύ εκπομπής όπως περιγράφεται στην απαίτηση διεπαφής ραδιοεξοπλισμού 105. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς και εξωτερικούς χώρους.
