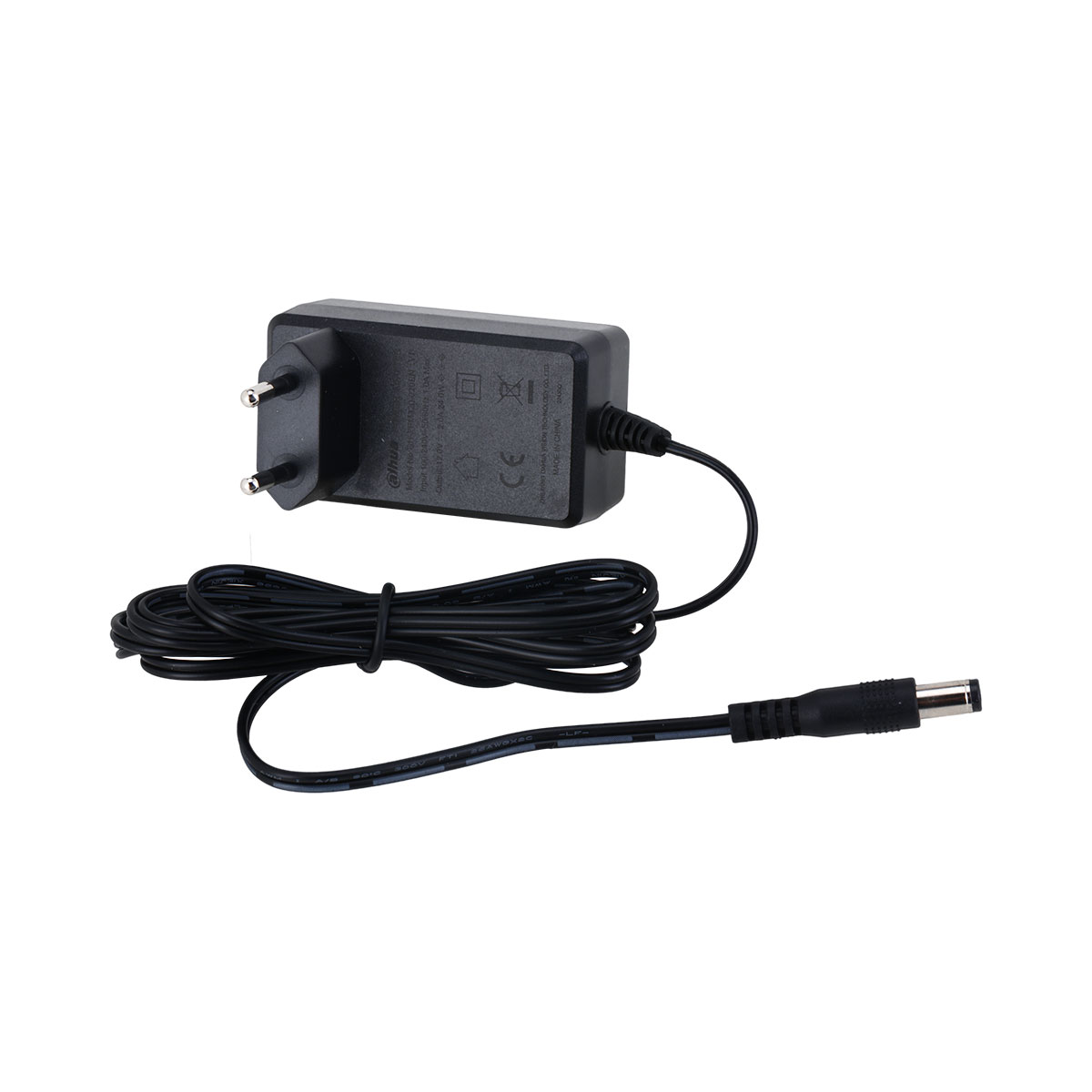

Dahua PFM320-020EN 12 VDC 2A Power Adapter
Κωδικός προϊόντος:
PFM320-020EN
Άμεσα διαθέσιμο
Dahua PFM320-020EN 12 VDC 2A Power Adapter
Υπολογισμός κόστους μεταφορικών:
Καλέστε για τιμή
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
• 100Vac–240 Vac wide input voltage range, meet the requirements in different parts for electric network fluctuation
• Easy installation
• V level of energy efficiency
• Over current, over voltage and other multiple protection
• Shell flame resistance V-0 level
DH-PFM320-020 is a 12 VDC 2A output power adapter, with V energy efficiency, over current, over voltage and other multiple protection, V-0 fire, affordable, safe and reliable, easy to install,suitable for various CCTV cameras and security scenarios.
Χαρακτηριστικά
| Technical Specification | |
| Electrical Specification | |
| Input Voltage Range | 100Vac-240Vac(max. 90Vac-264 Vac) |
| Efficiency | ≥86.20% |
| Output Voltage | DC12V |
| Rated Output Current | 2A |
| Output Power | 24W |
| No Load Power Consumption |
≤0.1W |
| Protection/Environmental | |
| Surge Protected | Line to ground: ±4KV Line to line: ±2KV |
| ESD | Contact discharge: ±6KV Air discharge: ±8KV |
| Protective Function | Over voltage protection, over current protection, short circuit protection, input protection |
| Working Temperature | 0°C ~ + 40°C |
| Working Humidity | 10%~90%(RH) |
| Storage Temperature | - 40°C ~ + 80°C |
| Storage Humidity | 5%~95%(RH) |
| Physical Properties | |
| Installation | Wall-mount |
| Net Weight | 0.096kg |
| Gross Weight | 0.112kg |
| Dimension | 70.0 mm × 40.0 mm × 27.5 mm (L × W × H) |
| Color | Black |
| Input Plug | 2-pin Euro plug |
| Output Cable Length | 1500 mm |
| Output Plug | Φ5.5 mm × Φ2.1 mm × 10 mm |
| Safety Standards | |
| Certification | CE |
