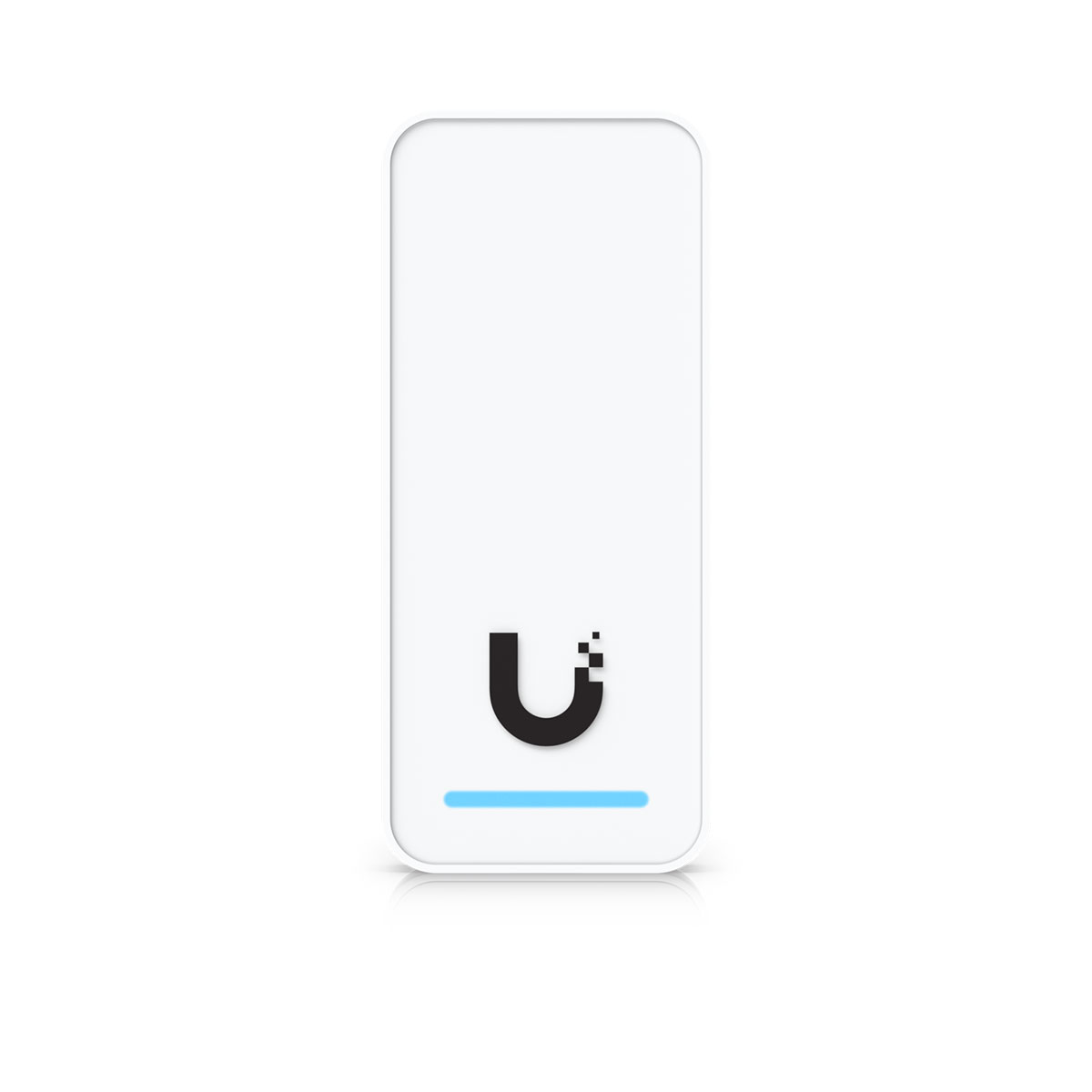

Ubiquiti UA-G2 UniFi Access Reader G2
UniFi Access Reader G2 is an NFC reader that is part of the UniFi Access solution. The reader for communicating with other elements uses a LAN port with 802.3af PoE support, it is easy to install under the plaster, it has an IP55 degree of protection and supports the latest NFC security standards (13.56 MHz) including MIFARE DESFire encryption encrypted with AES-128. Unlocking the door is quick and secure using an NFC card or a mobile app.
Supported reading technologies:
• NFC Tag 1, 2, 3, 4, 5
• MIFARE Classic
• MIFARE Plus
• MIFARE Ultralight
• MIFARE DESFire
Important properties:
• Elegant NFC and Bluetooth access reader
• Power supply via 802.3af PoE using UniFi Access Hub
• Advanced NFC security (MIFARE DESFire)
• Mobile access with app (1.5.9+)

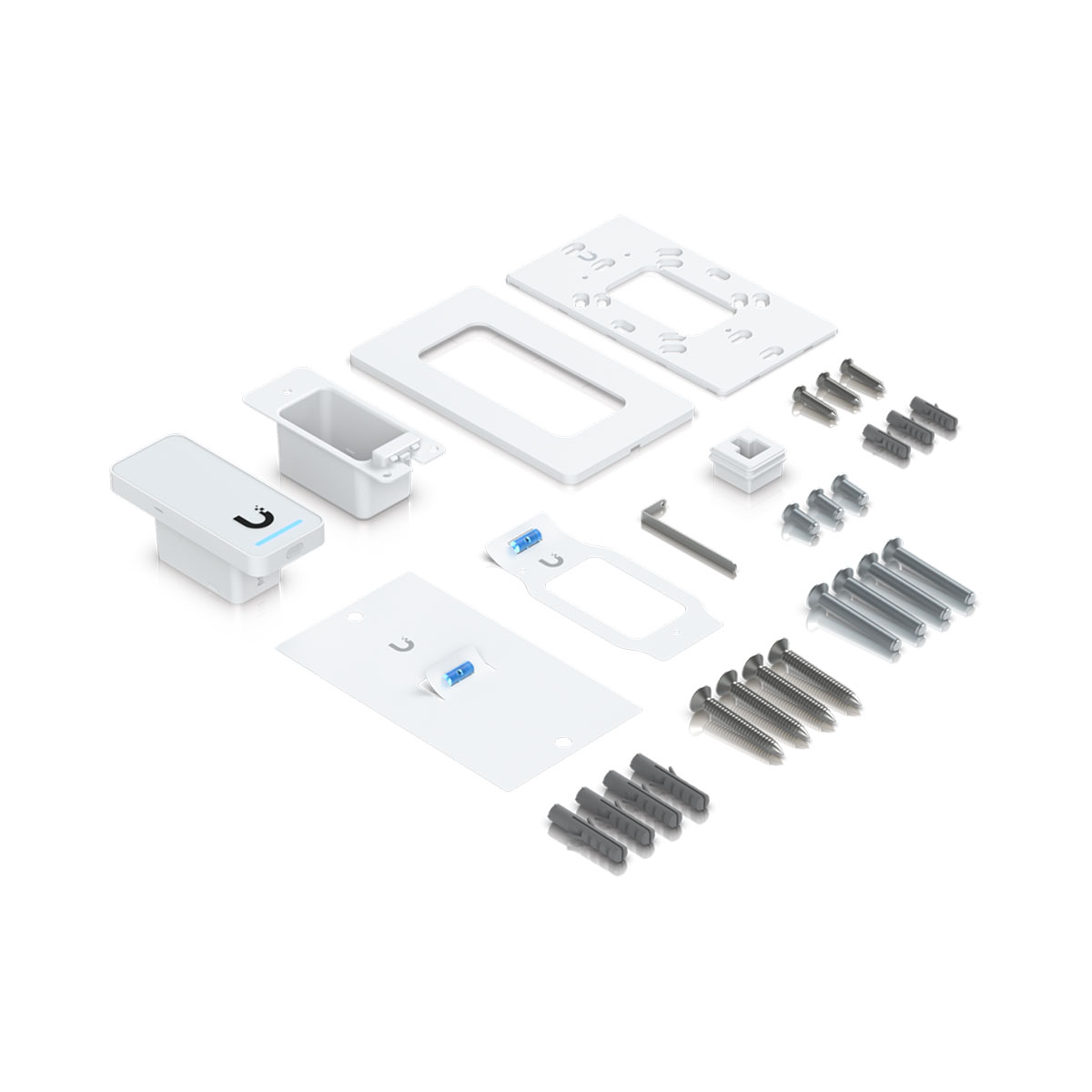

Package contents:
• UA-G2 Device
• Wall mounting box
• Screws
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 24 μήνες |
| Specifications | |
| Mechanical | |

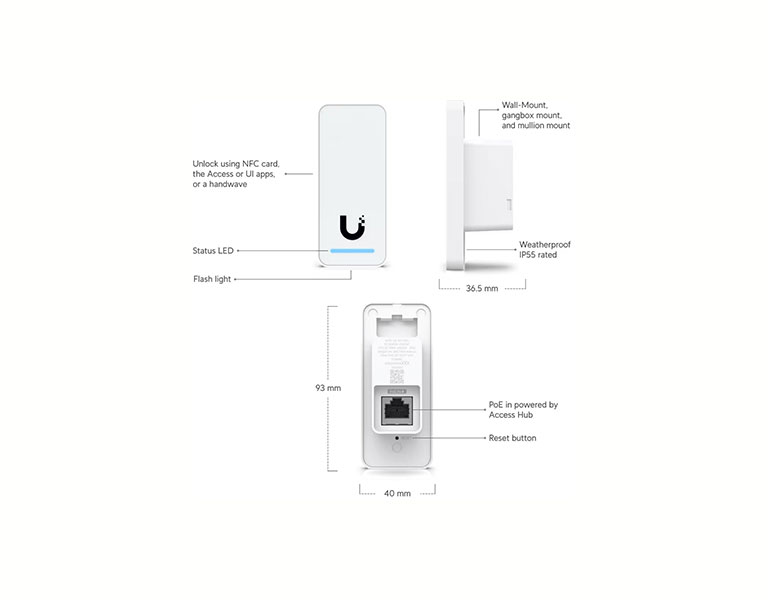

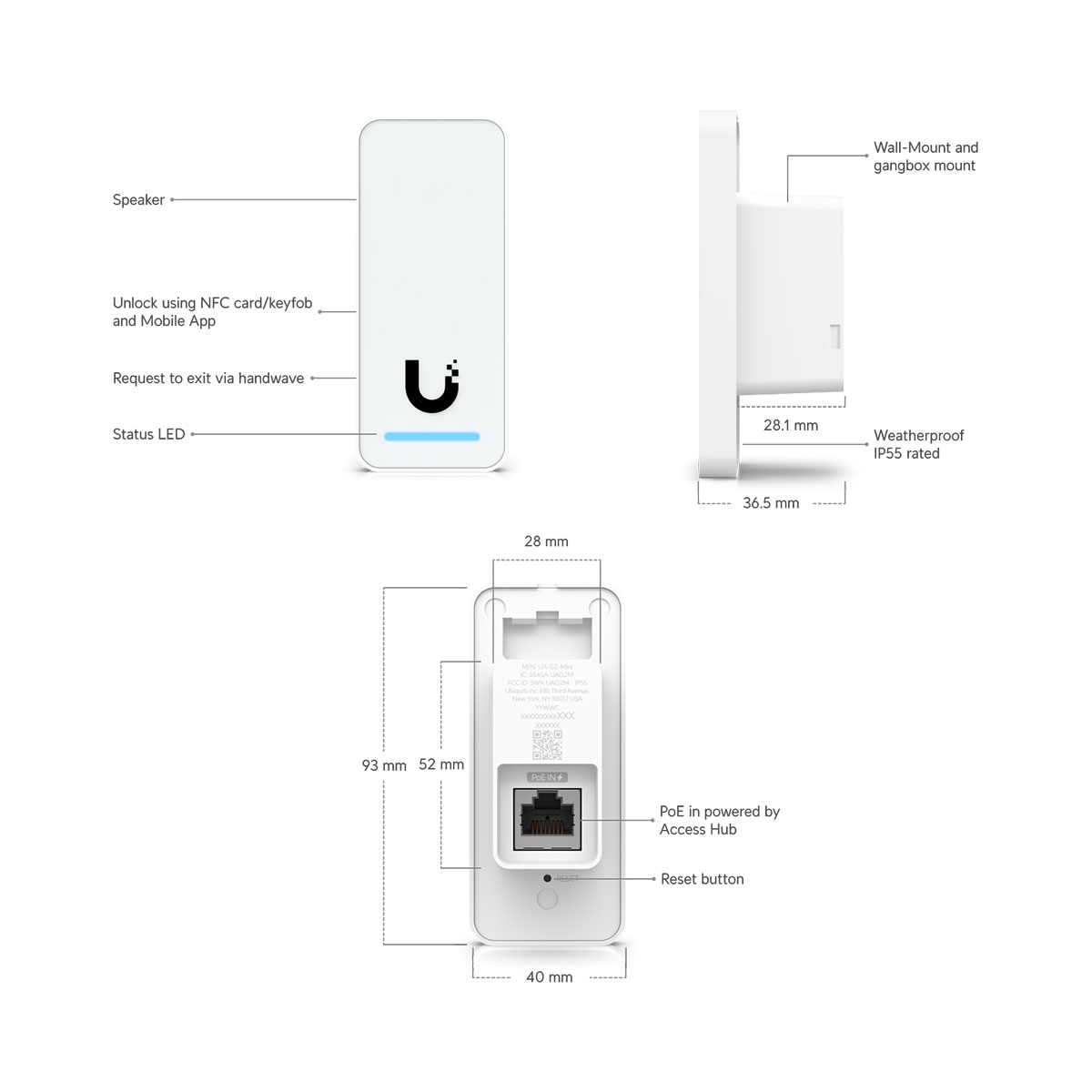

| Dimensions | 93 x 40 x 36.5 mm |
| Weight | 82 g |
| Enclosure material | Polycarbonate, glass |
| Mounting | In wall, gang box |
| Weatherproofing | IP55 |
| Hardware | |
| Networking interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.1 |
| Power method | PoE |
| Supported voltage range | 48V DC |
| Max. power consumption | 5W |
| ESD/EMP protection | Air: ±15kV, contact: ±8kV |
| Sensors | Proximity sensor |
| Speaker | (1) 8 ohm, 0.7W |
| LEDs | R/G/B/W |
| Button | (1) Factory-reset |
| NFC frequency | 13.56 MHz |
| NFC read range | < 30 mm |
| NFC standards | ISO 14443A, 14443B, 15693 |
| NFC technology | NFC Tag 1,2,3,4,5 MIFARE Classic MIFAREPlus MIFARE Ultralight MIFARE DESFire |
| Operating temperature | -30 to 45° C |
| Operating humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Management application | UniFi Access: Version 1.5.9 and later |
