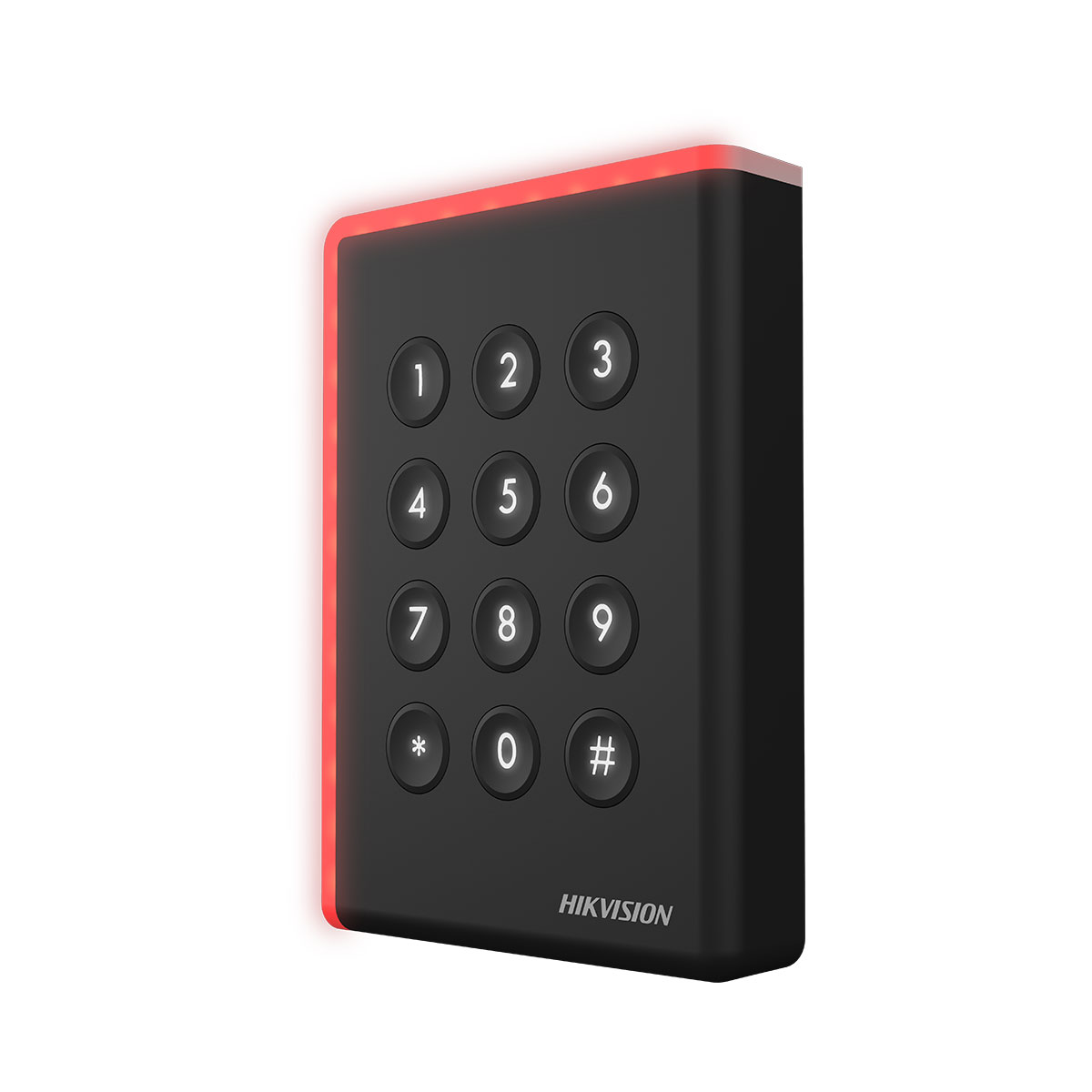

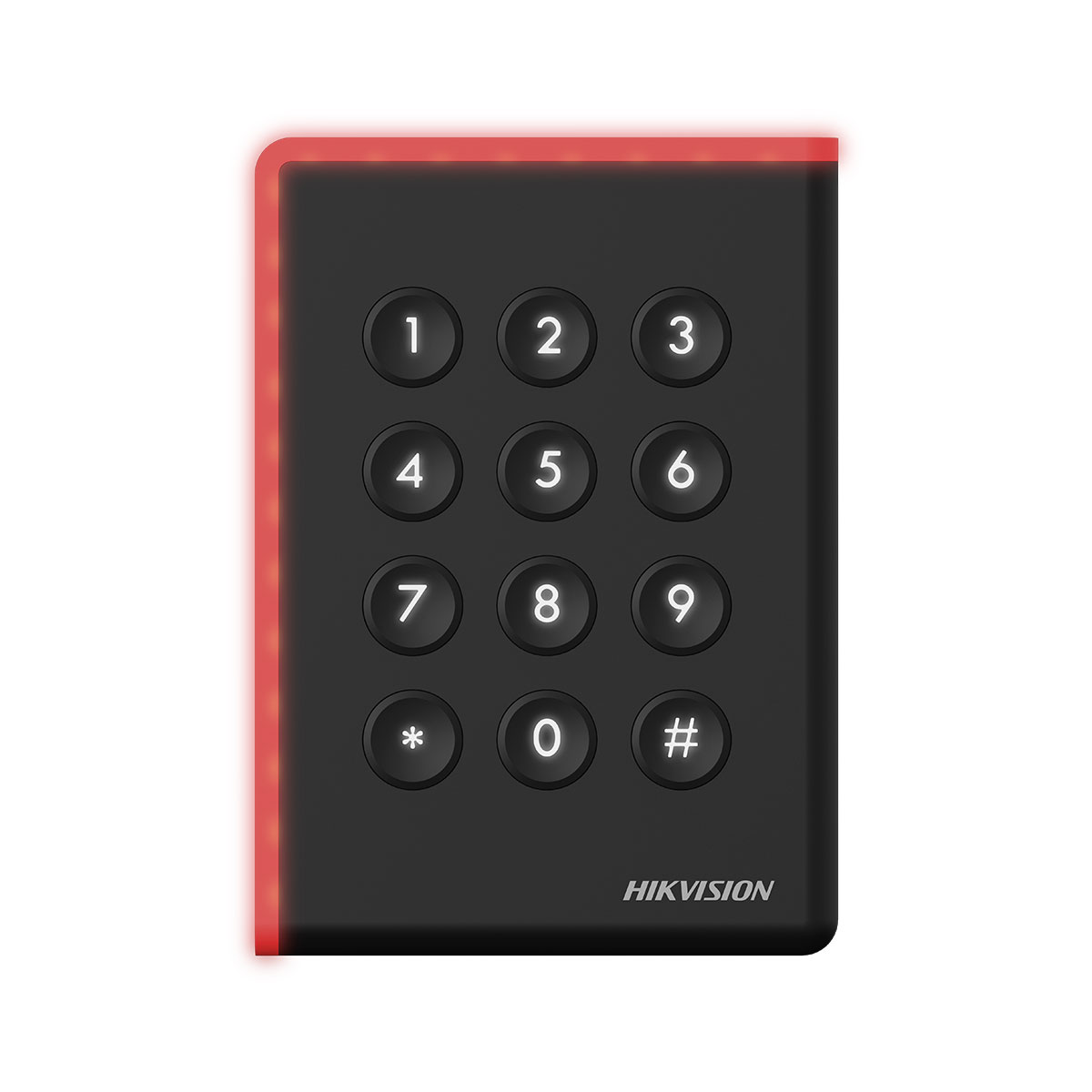

Hikvision DS-K1108AM Pro 1108A Series Card Reader
Κωδικός προϊόντος:
DS-K1108AM
Άμεσα διαθέσιμο
Hikvision DS-K1108AM Pro 1108A Series Card Reader
Υπολογισμός κόστους μεταφορικών:
Καλέστε για τιμή
Κατηγορία:
Κατασκευαστής:
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
• 32-bit high-speed processor
Support RS-485, Wiegand (W26, W34) protocol, and OSDP protocol
• Supports reading EM card (Frequency: 125 KHz) (DS-K1108AE/DS-K1108AEK）
• Supports reading Mifare card (Frequency: 13.56 MHz). Meets the standard of ISO 14443-A (DS-K1108AM/DSK1108AMK)
• Supports reading Mifare card, Desfire card, and Felica card (DS-K1108AD/DS-K1108ADK)
• Tamper-proof function
• Built-in buzzer for status indication
• Online upgrading
• Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 36 μήνες |
Χαρακτηριστικά
| Specifications | |
| System | |
| Processor | 32 bit |
| Audio | |
| Audio alert | Beeper |
| Network | |
| Communication protocol | RS-485/Wiegand (Set via DIP switch) |
| Authentication | |
| Card reading distance | ≤ 50 mm (1.97") |
| Card radio frequency standard | ISO 14443-A |
| Function | |
| ID settings | via DIP switch |
| Others | |
| Keypad | DS-K1108AE/DS-K1108AM/DS-K1108AD: No keypad DS-K1108AEK/DS-K1108AMK/DS-K1108ADK: With keypad |
| Indicator | Power indicator; Status LED indicator |
| Power supply | 12 VDC, 2 W |
| Working temperature | -20°C to 65°C |
| Working humidity | 10% to 90% (Non condensing) |
| Dimensions | 123 mm × 88 mm × 21mm |
| Protective level | IP65 |
| Installation | Wall mounting |
| Approval | FCC, CE |
