Ubiquiti UA-G3-PRO-W UniFi Access Reader G3 Professional, White
Ubiquiti UA-G3-PRO-W UniFi Access Reader G3 Professional, White

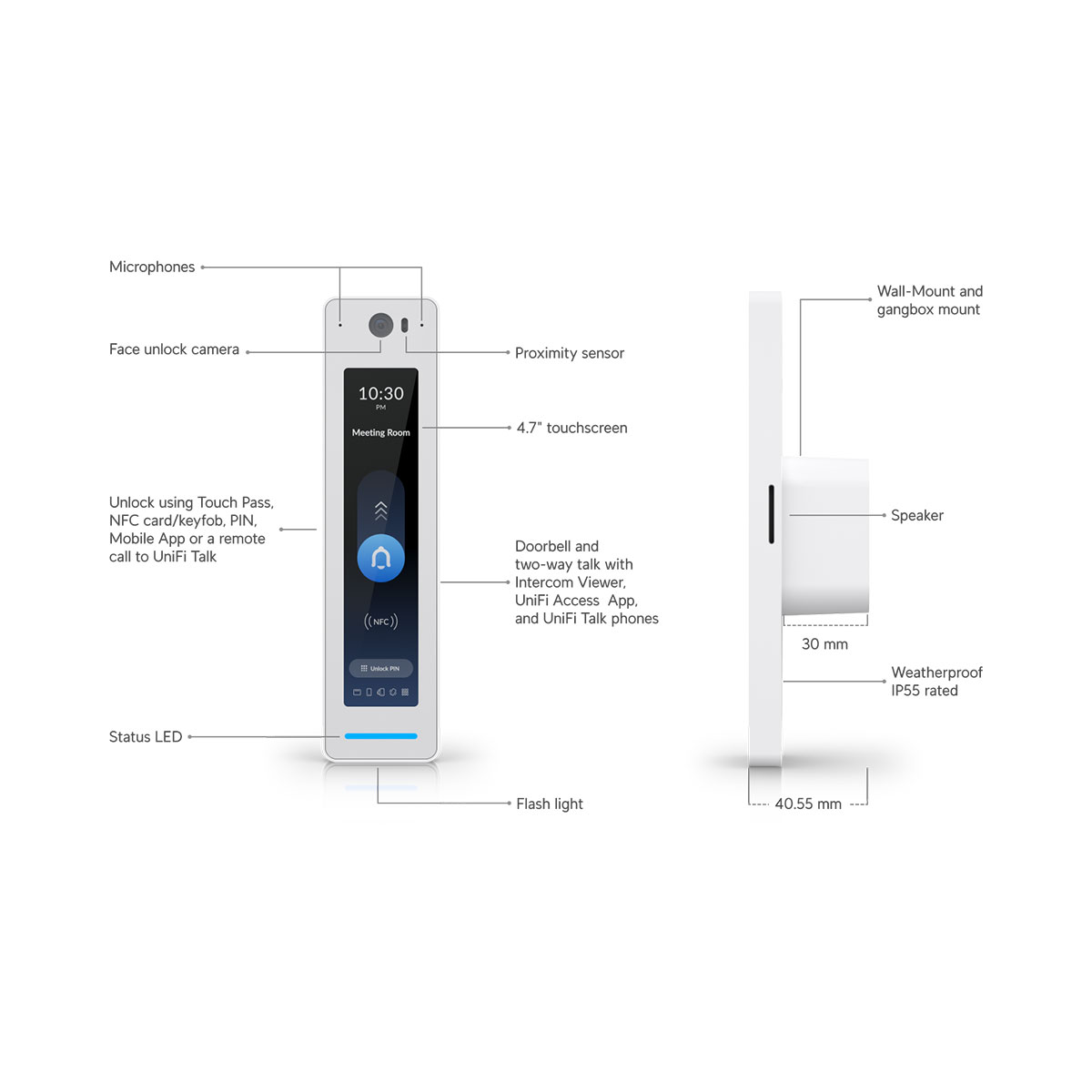

The Ubiquiti G3 Reader Pro is the third generation of access readers, supporting authorization via NFC card, Apple Touch Pass *, the UniFi Identity mobile app, face or a numeric code. With its doorbell function, camera, and built-in two-way audio, it allows communication with visitors. The IP55 certification ensures suitability for outdoor use.
The reader features (1) 10/100/1000Mbps Ethernet port with PoE support. Minimum required version of the UniFi Access application is 3.0.15.
* Users will receive 10 free Touch Passes in the first year to get started. Additional passes are $5 per user per year.

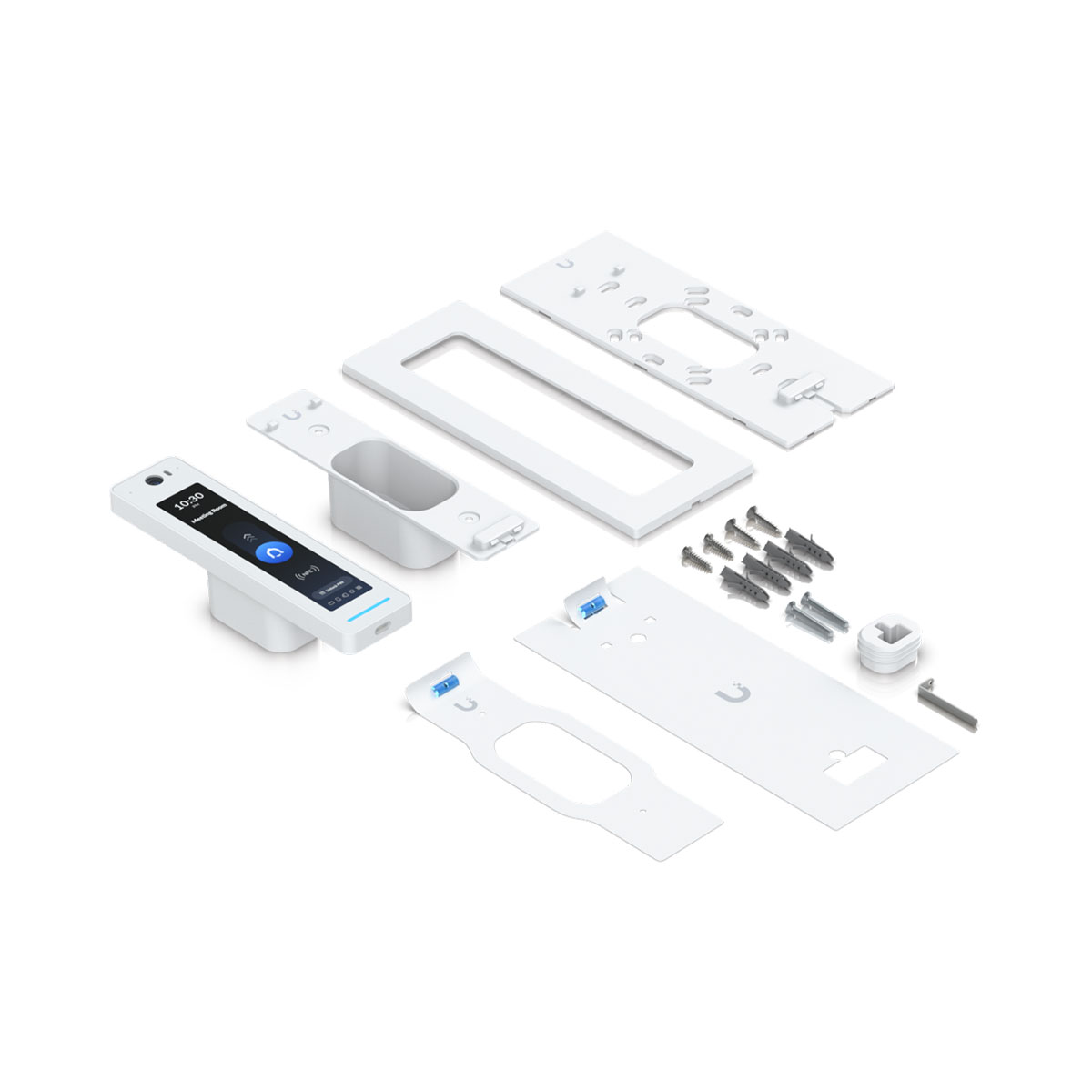

Package Contents:
Reader
Recessed Mount Box
Mounting Panel for US Recessed Box
Faceplate
(2) Drilling Templates
Rubber RJ45 Connector Cover
Installation Materials
| Specifications | |
| Overview | |

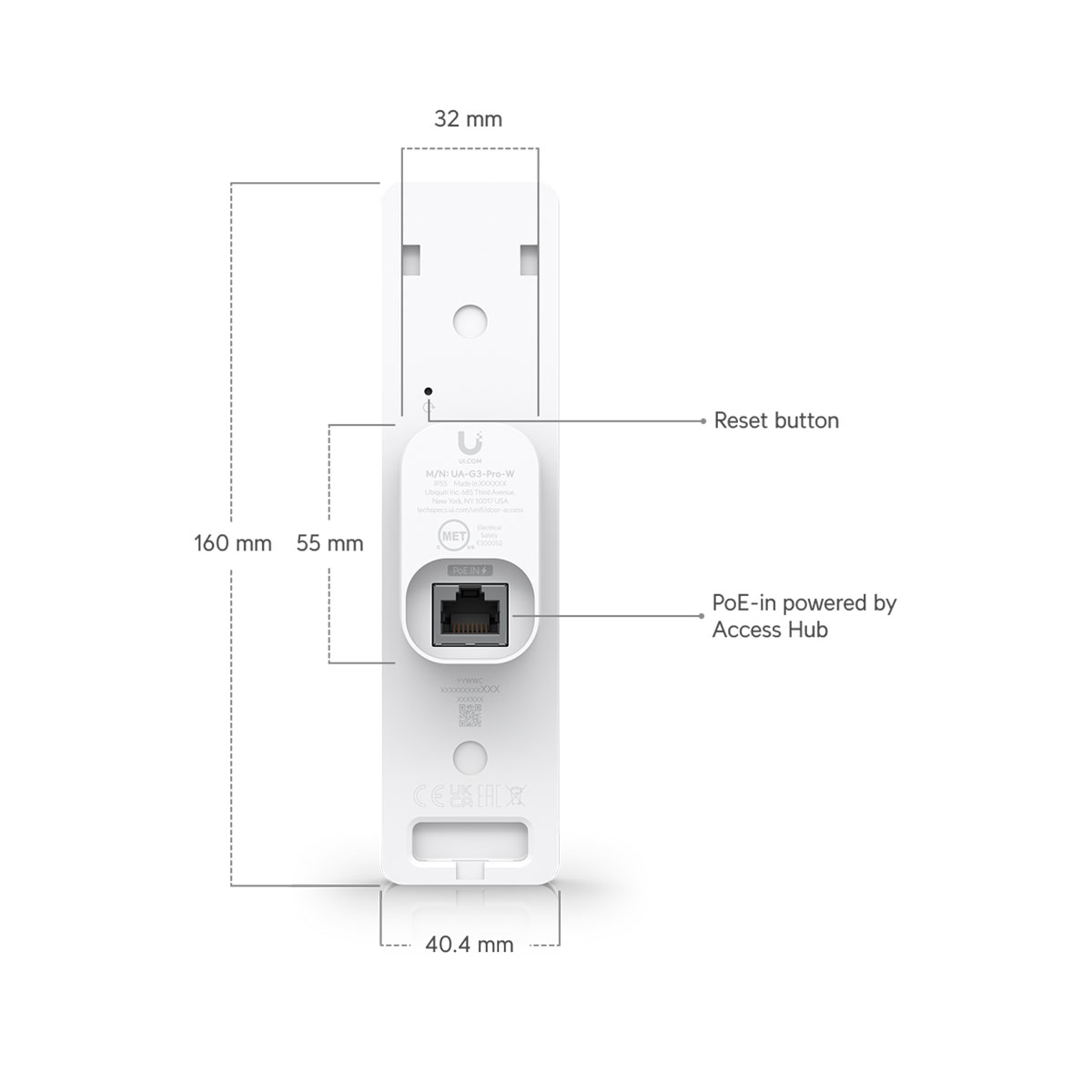

| Dimensions | 160 x 40.4 x 40.55 mm |
| Integrated Camera | Yes |
| NFC Card & Keyfob Access | Yes |
| PIN Access | Yes |
| Apple/Google Wallet | Yes |
| Mobile Unlock | Yes |
| Two-Way Intercom & Doorbell Access | Yes |
| NDAA Compliant | Yes |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Weatherproofing | IP55 |
| Mechanical | |
| Weight | 136 g |
| Enclosure material | Polycarbonate, glass |
| Mounting material | Aluminum alloy |
| Mounting | Wall, gang-box mount (Included) Angle mount, junction box (Optional) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2 NFC |
| Power method | PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Supported voltage range | 48V DC |
| Max. power consumption | 6W |
| ESD/EMP protection | Air: ±15kV, contact: ±8kV |
| Sensor | Proximity sensor |
| Display | 120 mm (4.7") diagonal |
| Touch Screen Technology | Capacitive touch |
| Display Luminance | 480 nits (Typical) |
| Screen Orientation | Portrait |
| Resolution | 1280 x 286 px |
| Camera | 4096 x 3072, 12 MP, 30 FPS |
| Microphone | Yes |
| Speaker | (1) 4 ohm, 1.5W |
| LEDs | R/G/B/W Flash |
| Button | (1) Factory-reset |
| NFC frequency | 13.56 MHz |
| NFC read range | < 30 mm |
| NFC standards | ISO 14443A, 14443B, 15693 |
| NFC technology | NFC Tag 1,2,3,4,5 MIFARE Classic MIFARE Plus MIFARE Ultralight MIFARE DESFire |
| Operating temperature | -10 to 45° C |
| Operating humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Management application | UniFi Access: >Version 1.5.9 and later |
