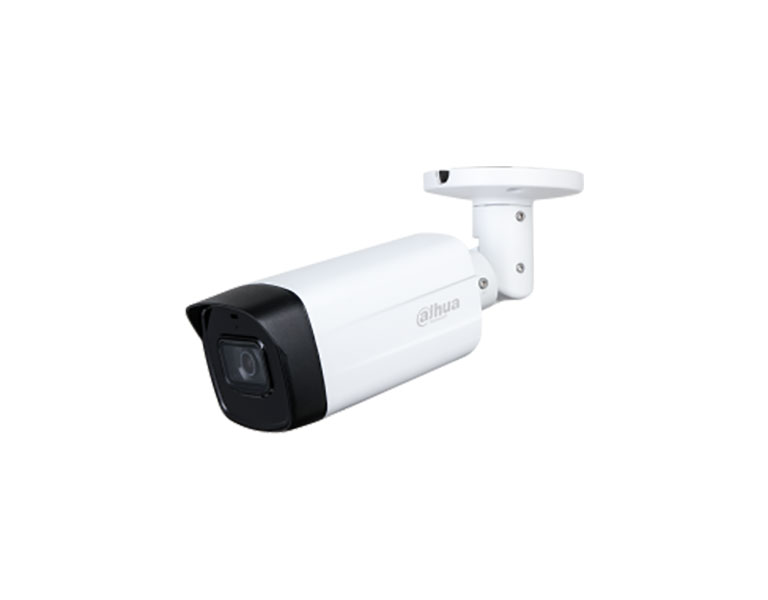

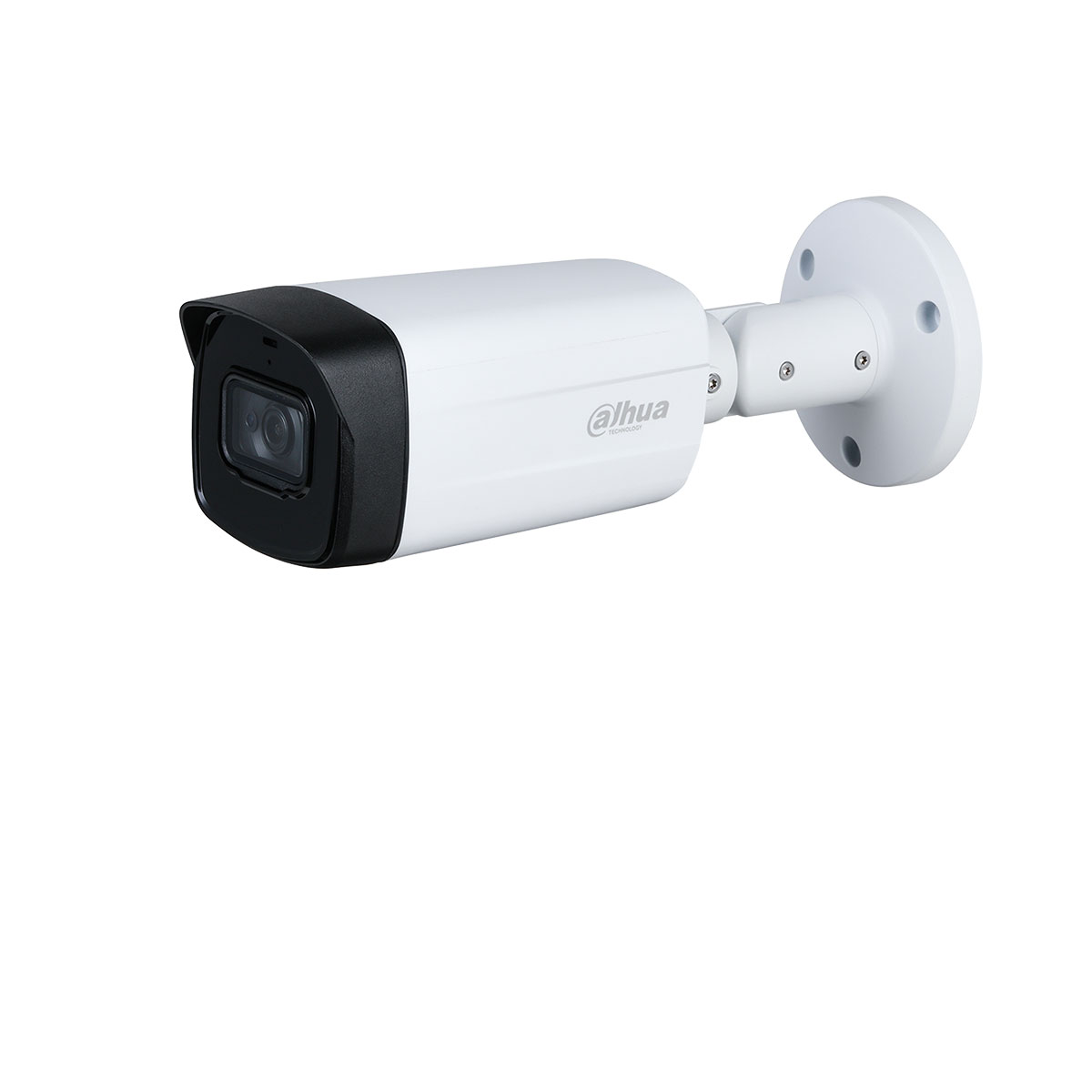

DAHUA HAC-HFW1500TH-I8-0360B-S2-3.6 5MP Starlight HDCVI IR Bullet Camera (3.6mm)

Κωδικός προϊόντος:
HAC-HFW1500TH-I8-0360B-S2-3.6
Άμεσα διαθέσιμο
DAHUA HAC-HFW1500TH-I8-0360B-S2-3.6 5MP Starlight HDCVI IR Bullet Camera (3.6mm)
Υπολογισμός κόστους μεταφορικών:
Καλέστε για τιμή
Κατασκευαστής:
Εγγύηση:
36 Μήνες
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
• Max 25 fps@5MP (16:9 video output)
• CVI/CVBS/AHD/TVI switchable
• 3.6 mm fixed lens
• Max. IR length 80 m, Smart IR
• IP67, DC12V

System Overview
Experience 5MP full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Lite series 5MP HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various motorized/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions.

Functions
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the XVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.

Long Distance Transmission
HDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 700 m for 5MP HD video via coaxial cable, and up to 300 m via UTP cable.*
*Actual results verified by real-scene testing in Dahua's test laboratory.

Simplicity
HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.

Smart IR
The camera is designed with IR LED illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua's unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera.

Multi-formats
The camera supports multiple video formats including HDCVI, CVBS and other two common HD analog formats in the market. The four formats can be switched over through OSD menu. This feature makes the camera to be compatible with most end users' existing HD/SD DVRs.

Multi-language OSD
OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes. The OSD menu includes configurations such as backlight mode, day/night, white balance, privacy mask and motion detect. The camera supports 11 languages for OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polish.

Protection
The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67 ranking, making it suitable for indoor or outdoor environments. With working temperature range of -40 °C to +60 °C, the camera is designed for extreme temperature environments. Supporting ±30% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.



Χαρακτηριστικά
SPECIFICATIONS
Camera
Image Sensor 1/2.7 inch CMOS
Max. Resolution 2880 (H) × 1620 (V)
Pixel 5MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s
Min. Illumination 0.01 Lux/F1.6, 30IRE, 0 Lux IR on
S/N Ratio >65 dB
Illumination Distance 80 m
Illuminator On/Off Control Auto, manual
Illuminator Number 2
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–180°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Focal Length  3.6 mm
Mount Type M12
Max. Aperture F1.6
Field of View H: 92°; V: 48°; D: 109°
Iris Type Fixed iris
Close Focus Distance 1.6 m
DORI Distance Detect: 80.0 m
Observe: 32.0 m
Recognize: 16.0 m
Identify: 8.0 m
Video
Frame Rate CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 4M@30 fps;1080p@30fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H
Day/Night Auto switch by ICR
Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
BLC BLC/HLC/DWDR
WDR DWDR
White Balance Auto, manual
Gain Control Auto, manual
Noise Reduction 2D NR
Smart IR Yes
Mirror Off/On
Privacy Masking Off/On (8 areas, rectangle)
Certification
Certifications CE (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3- 3:2013, EN 55024:2010+A1:2015, EN 55035:2017, EN 50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply 12V ± 30% DC
Power Consumption Max 5.2W (12V DC, IR on)
Environment
Operating Temperature –40 °C to +60 °C < 95% (non-condensation)
Storage Temperature –40 °C to +60 °C < 95% (non-condensation)
Protection Grade IP67
Structure
Casing Metal front cover + plastic main body + metal bracket
Camera Dimensions 240.7 mm × 90.7 mm × 90.4 mm
Net Weight 0.41 kg
Gross Weight 0.64 kg
