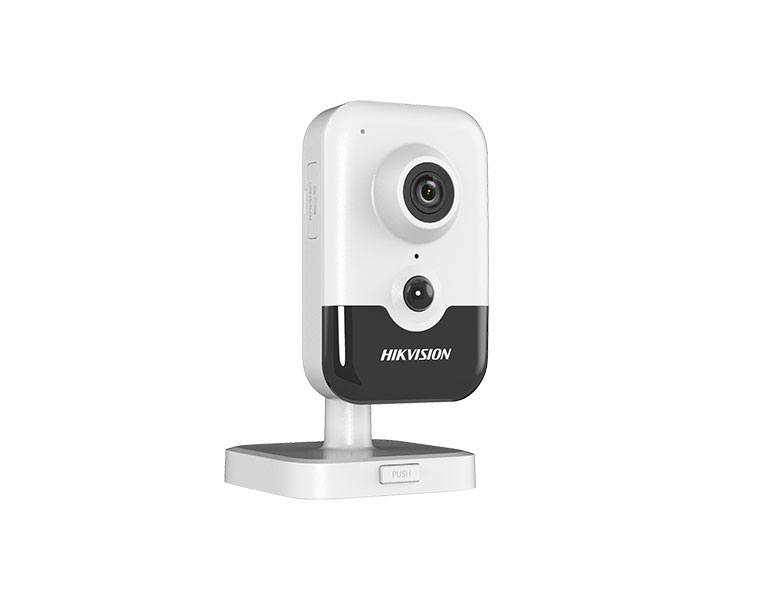

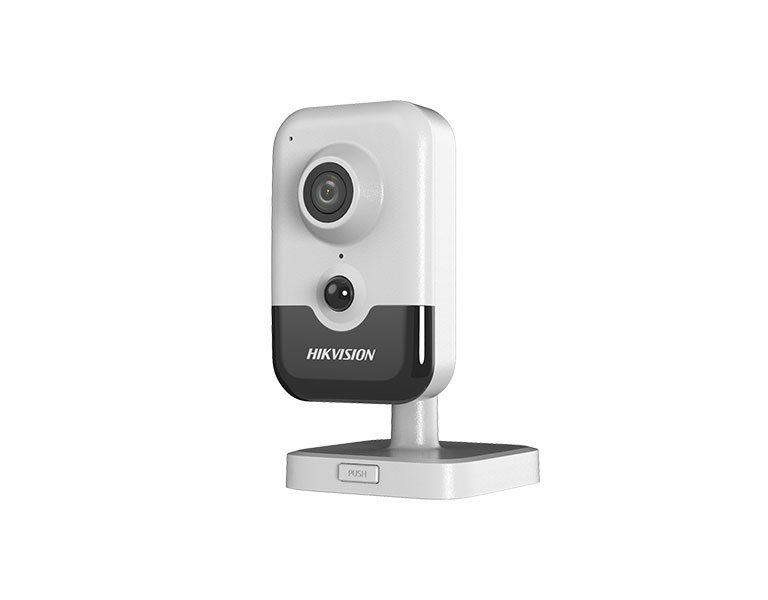

Hikvision DS-2CD2421G0-IW(W)-2.8 2MP IR Fixed Cube Network Camera (2.8mm)
Κωδικός προϊόντος:
DS-2CD2421G0-IW(W)-2.8
-2.8.3.jpg "Hikvision DS-2CD2421G0-IW(W)-2.8 2MP IR Fixed Cube Network Camera (2.8mm)")
-2.8.2.jpg "Hikvision DS-2CD2421G0-IW(W)-2.8 2MP IR Fixed Cube Network Camera (2.8mm)")
-2.8.22.jpg "Hikvision DS-2CD2421G0-IW(W)-2.8 2MP IR Fixed Cube Network Camera (2.8mm)")
Άμεσα διαθέσιμο
Hikvision DS-2CD2421G0-IW(W)-2.8 2MP IR Fixed Cube Network Camera (2.8mm)
Υπολογισμός κόστους μεταφορικών:
Καλέστε για τιμή
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
ΠΡΟΣΟΧΗ!!! Στην συσκευασία δεν συμπεριλαμβάνεται τροφοδοτικό!!!
• High quality imaging with 2 MP resolution
• Efficient H.265+ compression technology
• Provides real-time security via built-in two-way audio
• Detects human body through passive infrared is sensitive to body temperature (PIR)
• -W: Wi-Fi connection
Χαρακτηριστικά
| Specifications | |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min.Illumination | Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0°to 90°, rotate: 0°to 360° |
| Lens | |
| Lens | Fixed focal length 2.8 mm |
| Aperture | F1.6 |
| Focal Length & FOV | horizontal FOV 113.4°, vertical FOV 59.8°, diagonal FOV 135.6° |
| Iris Type | Fixed |
| Lens Mount | M12 |
| DORI | |
| DORI | D: 37.3 m, O: 14.8 m, R: 7.5 m, I: 3.7 m |
| Illuminator | |
| Supplement Light Range | Up to 10 m |
| IR Wavelength | 850nm |
| Smart Supplement Light | Yes |
| Video | |
| Main Stream | 50Hz: 25 fps (1920 x 1080, 1280 x 720) 60Hz: 30 fps (1920 x 1080, 1280 x 720) |
| Sub Stream | 50Hz: 25 fps (640 x 360) 60Hz: 30 fps (640 x 360) |
| Video Compression | Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | Yes |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio | |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Image | |
| Wide Dynamic Range (WDR) | 120 dB |
| Image Enhancement | BLC, 3D DNR |
| Image Setting | Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser |
| Day/Night Switch | Day/Night/Auto/Schedule |
| Wi-Fi | |
| Encryption Mode | 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK |
| Wi-Fi Protocol | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM |
| Frequency Range | 2.412 GHz - 2.472 GHz |
| Channel Bandwidth | 20/40 MHz |
| Modulation | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM |
| Transfer Rate | 11b/g: 54 Mbps 11n: up to 150 Mbps |
| Wireless Range | Up to 50 m (The performance varies based on actual environment) |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface, ISAPI |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X(-W model does not support), QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS, SNMP, PPPoE |
| User/Host | Up to 32 users. 3 levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| PIR | |
| PIR Angle | Horizontal: 90°, vertical: 80° |
| PIR Range | Up to 8 m |
| Interface | |
| Built-in Microphone | Yes |
| Built-in Speaker | Power: 1 W. Max. sound pressure level: 10 cm: 91 dB. |
| On-board storage | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB |
| Reset Key | Yes |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception |
| Smart Event | Line crossing detection, intrusion detection |
| Linkage | Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning |
| General | |
| Power | 12 VDC ± 25%, 0.66 A, max. 7.9 W, Ø 5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 8.9 W |
| Language | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Storage Conditions | -10 °C to 40°C. humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -10 °C to 40 °C. Humidity 95% or less (non-condensing) |
| Dimension | 102.9 mm × 65.2 mm × 32.6 mm |
| Package Dimension | 150 mm × 125 mm × 99 mm |
| Weight | Approx. 115 g |
| With Package Weight | Approx. 330 g |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014) |
| RF | FCC ID (FCC Part 15.247(BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)) |
| Safety | CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
