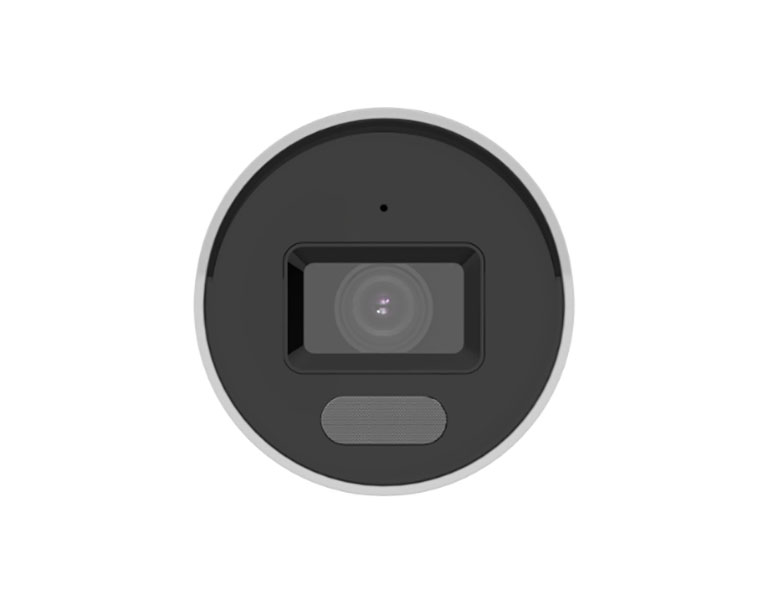

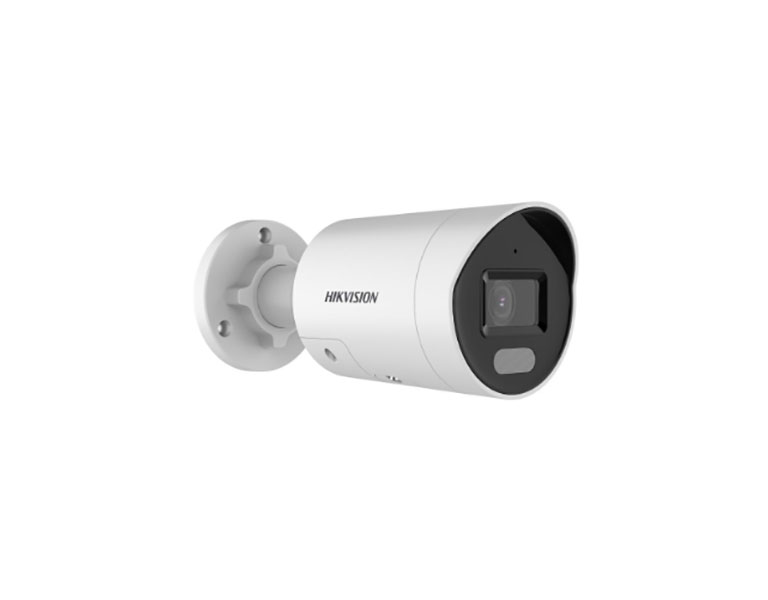

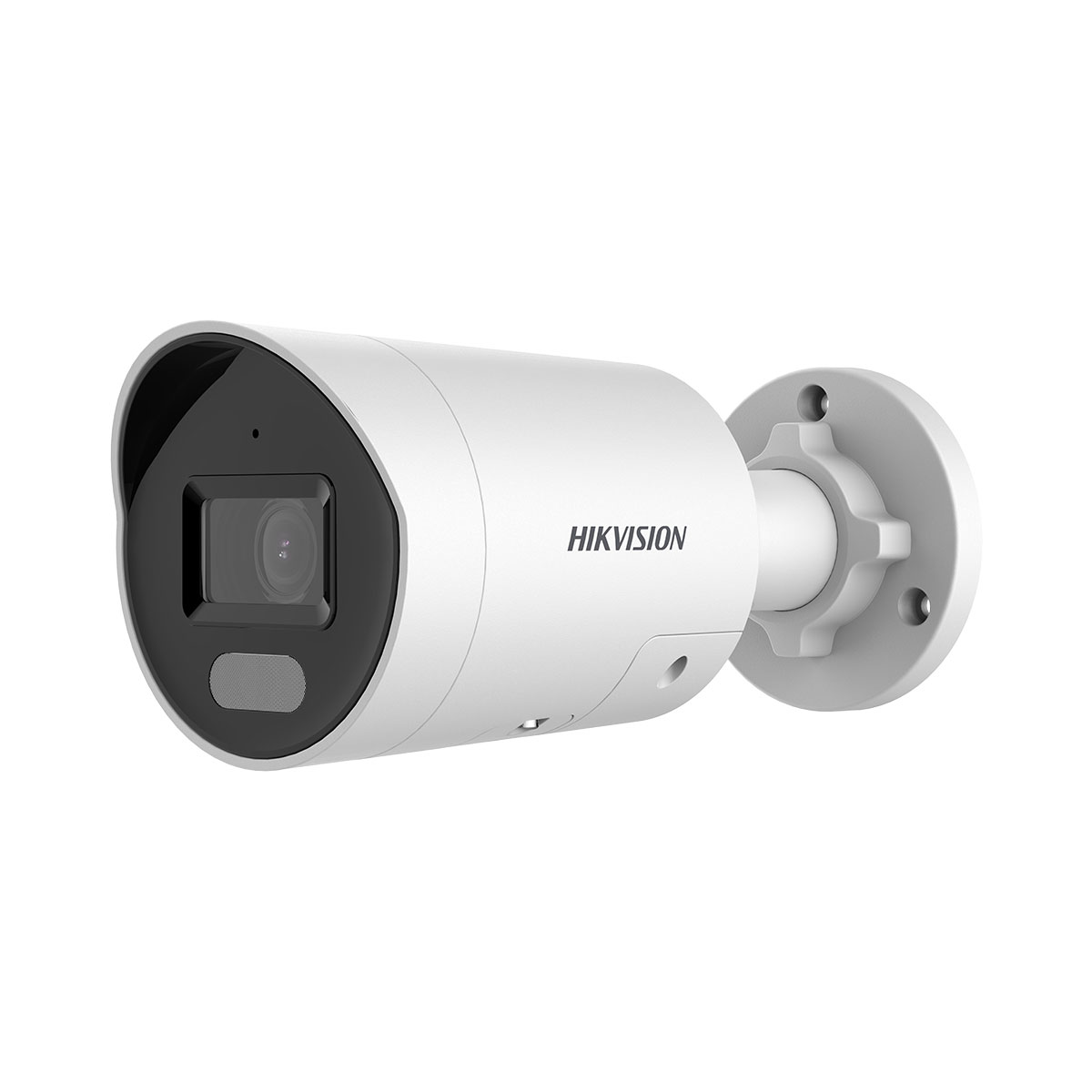

Hikvision DS-2CD2047G2H-LIU/SL(EF)-2.8 4MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Network Camera (2.8mm)
Κωδικός προϊόντος:
DS-2CD2047G2H-LIU/SL(EF)-2.8
.jpg "Hikvision DS-2CD2047G2H-LIU/SL(EF)-2.8 4MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Network Camera (2.8mm)")
-1.jpg "Hikvision DS-2CD2047G2H-LIU/SL(EF)-2.8 4MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Network Camera (2.8mm)")
-2.jpg "Hikvision DS-2CD2047G2H-LIU/SL(EF)-2.8 4MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Network Camera (2.8mm)")
Άμεσα διαθέσιμο
Hikvision DS-2CD2047G2H-LIU/SL(EF)-2.8 4MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Network Camera (2.8mm)
Υπολογισμός κόστους μεταφορικών:
Καλέστε για τιμή
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
ΠΡΟΣΟΧΗ!!! Στην συσκευασία δεν συμπεριλαμβάνεται τροφοδοτικό!!!
• High quality imaging with 4 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Clear imaging against strong backlight due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Provide real-time security via built-in two-way audio
• Support on-board storage up to 512 GB (SD card slot)
• Water and dust resistant (IP67)
Χαρακτηριστικά
| Specifications | |
| Camera | |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min.Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light |
| Max. Resolution | 2688 × 1520 |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Day & Night | IR cut filter |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 mm |
| Depth of Field | 3.1 m to ∞ |
| Focal Length & FOV | 2.8 mm, horizontal FOV 111.9°, vertical FOV 60.5°, diagonal FOV 133.6° |
| Aperture | F1.0 |
| Lens Mount | M16 |
| Iris Type | Fixed |
| DORI | |
| DORI | D: 58.2 m, O: 23.1 m, R: 11.6 m, I: 5.8 m |
| Illuminator | |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *The third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image | |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR, Defog |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| SNR | ≥ 52 dB |
| Wide Dynamic Range (WDR) | 130 dB |
| Privacy Mask | 4 programmable polygon privacy masks |
| Interface | |
| Built-in Microphone | Yes, 1 built-in microphone |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Reset key | Yes |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Built-in Speaker | Max. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB. |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Smart Event | Scene change detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, strobe light |
| Deep Learning Function | |
| Face Capture | Yes |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
| General | |
| Power | 12 VDC ± 25%, 0.45 A, max. 5.5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection PoE: IEEE 802.3af, Class 3, max. 8 W |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding |
| Storage Conditions | -30 °C to 60 °C Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C Humidity 95% or less (non-condensing) |
| Material | Metal |
| Dimension | 74.4 mm × 179.2 mm |
| Package Dimension | 234 mm × 120 mm × 117 mm |
| Weight | Approx. 510 g |
| With Package Weight | Approx. 880 g |
| Approval | |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015,KN35: 2015 |
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU |
| Protection | IP67: IEC 60529-2013 |
