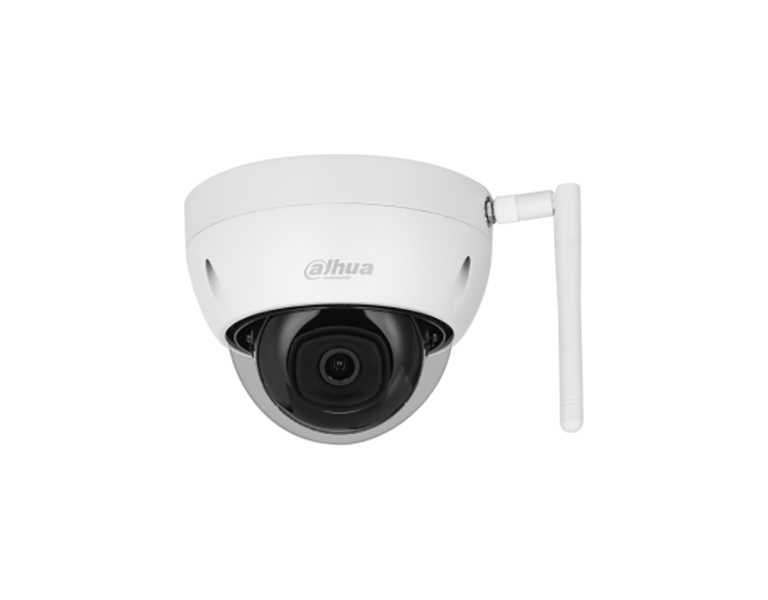

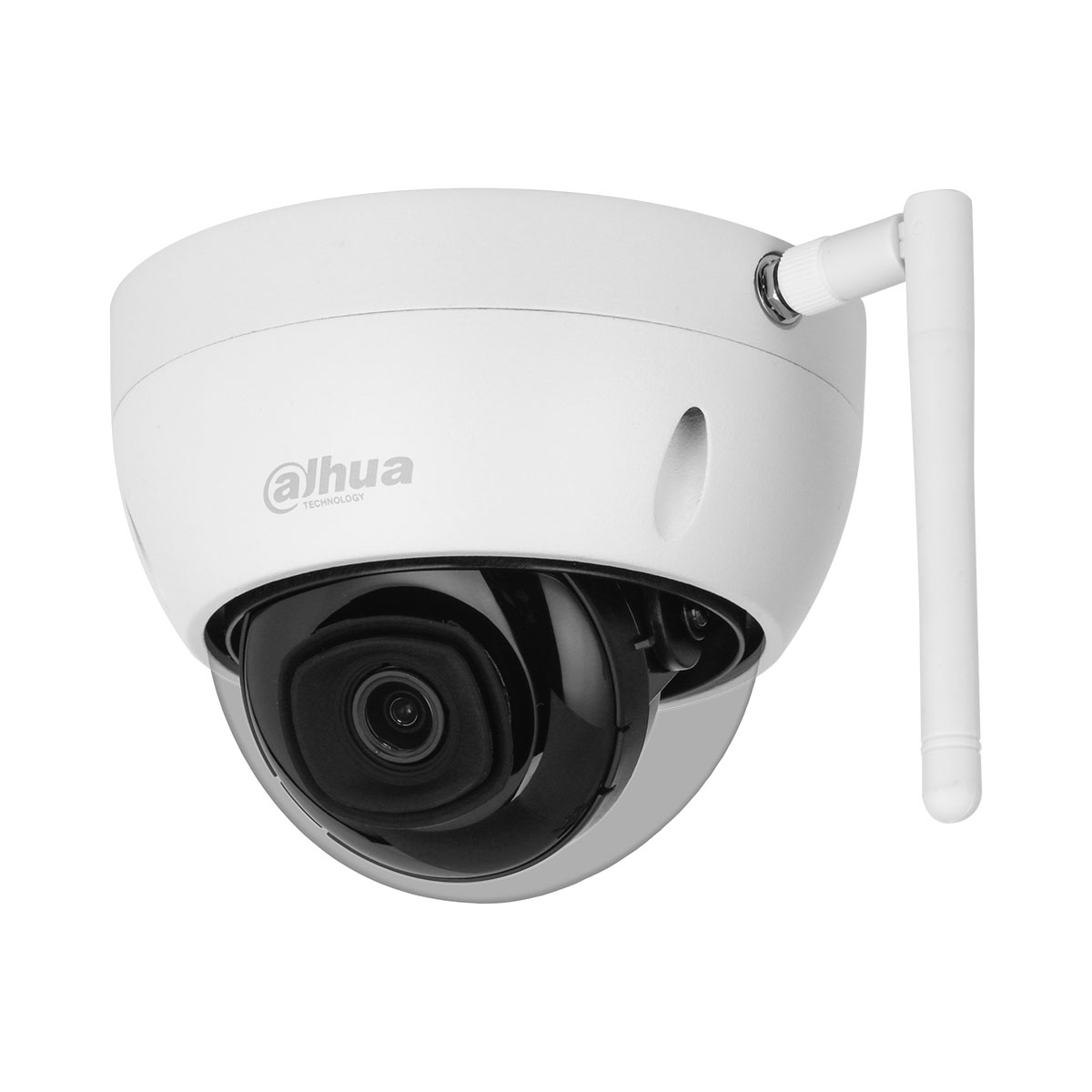

DAHUA IPC-HDBW1430DE-SW 4MP IR Fixed-focal Wi-Fi Dome Network Camera (2.8mm)
| • 4-MP 1/3" CMOS image sensor, low luminance, and high definition image. • Outputs max. 4 MP (2560 × 1440)@20 fps, and max. supports 3 MP (2304 × 1296)@25/30 fps • H.265 codec, high compression rate, ultra-low bit rate. • Built-in IR LED. • SMART H.264 +/H.265+, flexible coding, applicable to various band width and storage environments. • DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes. • Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access. • Supports single antenna 2.4G Wi-Fi that covers a range of up to 80 m in an open area. • Supports max. 256 G Micro SD card. • 12 VDC power supply. • IP67, IK10 protection. |
System Overview
With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises.
Functions
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Motion Detection
When moving objects appear in the monitoring image, Dahua Motion Detection technology triggers alarm or records.
Day/Night
Dahua Day/Night function provides color image when illumination is adequate; when illuminance is inadequate, it switches night mode and provides white and black image. It can guarantee that the network camera can work normally when illuminance changes.
Protection (IP67, IK10, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J). Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.
| Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100mW e.i.r.p. Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T. Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017 Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους. |
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 36 μήνες |
| SPECIFICATIONS | |
| Camera | |
| Image Sensor | 1/3" CMOS |
| Max. Resolution | 2560 (H) × 1440 (V) |
| ROM | 16 MB |
| RAM | 64 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.03 Lux@F2.0 (Color, 30 IRE) 0.003 Lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 30 m (98.43 ft) (IR LED) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 3 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–75° Rotation: 0°–355° |
| Lens | |
| Lens Type | Fixed-focal |
| Focal Length | 2.8 mm |
| Lens Mount | M12 |
| Max. Aperture | F2.0 |
| Field of View | H: 90°; V: 50°; D: 107° |
| Iris Control | Fixed |
| Close Focus Distance | 1.0 m |
| DORI Distance | Detect: 68 m Observe: 27.2 m Recognize: 13.6 m Identify: 6.8 m |
| Video | |
| Video Compression | H.264B; H.264; H.264H; H.265 |
| Smart Codec | Smart H.265+ Smart H.264+ |
| Video Frame Rate | Main stream: 2560 × 1440@ (1–20 fps) Sub stream: 640 × 480@(1–25 fps) 640 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams |
| Resolution | 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720) |
| BLC | Yes |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H264: 24 kbps–4096 kbps H265: 9 kbps–4096 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | DWDR |
| White Balance | Auto, natural, street lamp, outdoor, manual, regional custom |
| Gain Control | Auto |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Noise Reduction | 3D NR |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Image Rotation | 0°/180° |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE802.11b/g/n 2.4–2.4835 GHz |
| SDK and API | Yes |
| Wireless Range | Up to 80 m (The performance varies based on actual environment) |
| Cyber Security | Video encryption, configuration encryption, Digest, WSSE, account lockout, security logs, generation and importing of X.509 certification, HTTPS, trusted boot, trusted execution, trusted upgrade |
| Network Protocol | IPv4, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, DHCP, DNS, NTP, Multicast, RTMP |
| Interoperability | ONVIF (Profile S/Profile T), CGI, P2P |
| User/Host | 6 (Total bandwidth: 36 M) |
| Storage | Micro SD card (support max. 256 GB, sold separately) |
| Browser | IE Chrome Firefox |
| Management Software | Smart PSS, DSS, DMSS |
| Mobile Client | IOS, Android |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU CE-RED: Radio Equipment Directive 2014/53/EU FCC: 47 CFR FCC Part 15, Subpart B FCC ID: FCC PART 15C |
| Power | |
| Power Supply | 12 VDC |
| Power Consumption | Basic: 2 W (12 VDC) Max. (H.265+IR intensity): 4.9 W (12 VDC) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C |
| Storage Temperature | –40 °C to +60 °C |
| Operating Humidity | ≤95% |
| Protection | IP67, IK10 |
| Structure | |
| Casing | Metal |
| Product Dimensions | Φ110.7 mm × 88.7 mm |
| Net Weight | 414 g |
| Gross Weight | 592 g |
