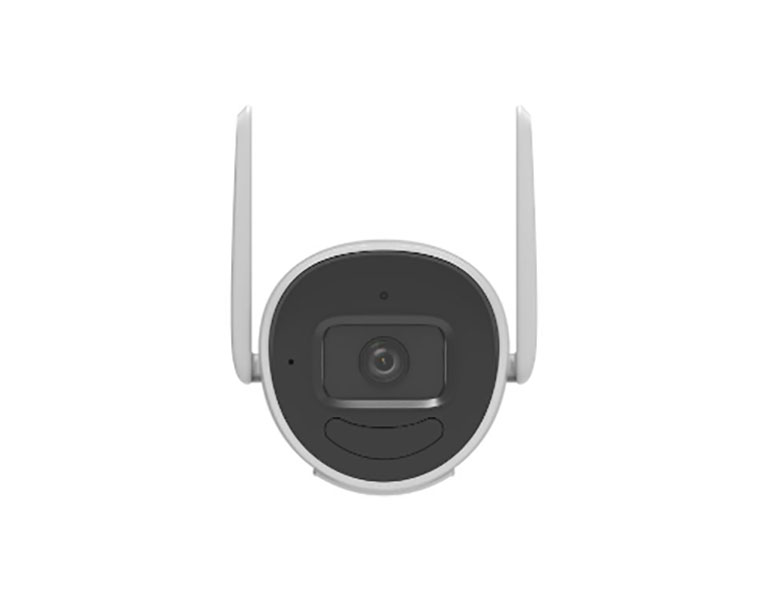

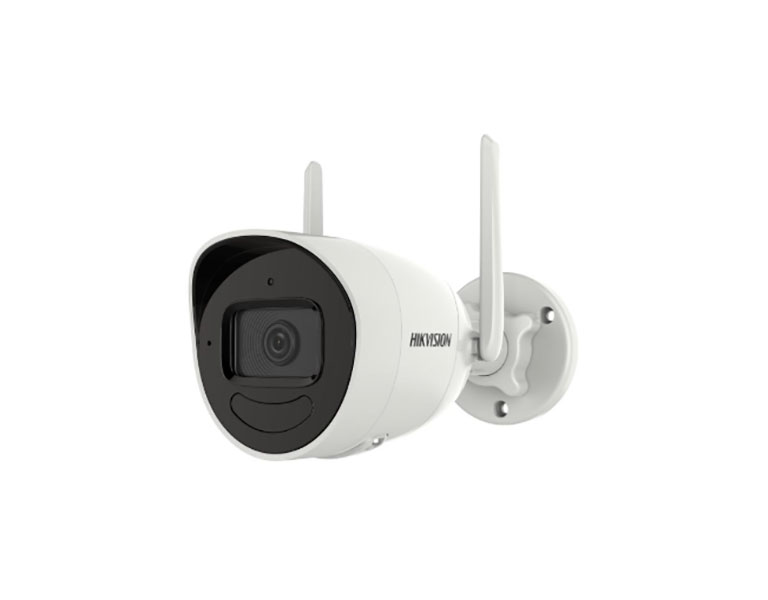

Hikvision DS-2CV2041G2-IDW(W)-2.8 4 MP EXIR Fixed Bullet Wi-Fi Network Camera (2.8mm)
Κωδικός προϊόντος:
DS-2CV2041G2-IDW(W)-2.8
-2.8-2.jpg "Hikvision DS-2CV2041G2-IDW(W)-2.8 4 MP EXIR Fixed Bullet Wi-Fi Network Camera (2.8mm)")
-2.8-1.jpg "Hikvision DS-2CV2041G2-IDW(W)-2.8 4 MP EXIR Fixed Bullet Wi-Fi Network Camera (2.8mm)")
-2.8.jpg "Hikvision DS-2CV2041G2-IDW(W)-2.8 4 MP EXIR Fixed Bullet Wi-Fi Network Camera (2.8mm)")
Άμεσα διαθέσιμο
Hikvision DS-2CV2041G2-IDW(W)-2.8 4 MP EXIR Fixed Bullet Wi-Fi Network Camera (2.8mm)
Υπολογισμός κόστους μεταφορικών:
Καλέστε για τιμή
Κατηγορία:
Κατασκευαστής:
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
Το συγκεκριμένο μοντέλο υποστηρίζει απευθείας σύνδεση του Hik-Connect με το WiFi, δεν απαιτείται καταγραφικό!
• High quality imaging with 4 MP resolution
• Realizing Wi-Fi connection and easy installation
• Provides real-time security via built-in two-way audio
• EXIR 2.0, advanced infrared technology with long IR distance
• Support on-board storage up to 512 GB (SD card slot)
• Water and dust resistant (IP66)
| Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p. Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T. Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017 Το προϊόν αυτό προορίζεται για χρήση σε εξωτερικούς χώρους. |
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 36 μήνες |
Χαρακτηριστικά
| Specifications | |
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Max. Resolution | 2560 × 1440 |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Angle Adjustment (Bracket) | Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360° |
| Day & Night | IR cut filter |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 mm |
| Lens Type & FOV | FOV 95°, vertical FOV 53°, diagonal FOV 111° |
| Aperture | F1.6 |
| Focus | Fixed |
| Lens Mount | M12 |
| Depth of Field | 2.8 mm: 1 m to ∞ |
| DORI | |
| DORI | D: 63 m, O: 25 m, R: 12 m, I: 6 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720) |
| Sub Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Audio | |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Wi-Fi | |
| Transfer Rate | 11n: up to 300 Mbps |
| Wi-Fi Protocol | 802.11n: OFDM, 802.11b: DSSS, 802.11g: OFDM |
| Frequency Range | 2.412 GHz to 2.472 GHz |
| Channel Bandwidth | 20/40 MHz |
| Modulation | 802.11n: BPSK, QPSK, 16QAM, and 64QAM, 802.11b: DBPSK and DQPSK, CCK, 802.11g: BPSK, QPSK, 16QAM, and 64QAM |
| Wireless Range | Up to 120 m (The performance varies based on actual environment) |
| Antenna | 2 Antennas |
| Image | |
| Day/Night Switch | Auto, Schedule, Day, Night |
| Image Enhancement | BLC, HLC, 3D DNR |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Settings | saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Client | Wired network: Hik-Connect, iVMS-4200 Wi-Fi: iVMS-4200 *Wi-Fi connection with Hik-Connect directly is not possible. |
| Web Browser | Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection, exception |
| Linkage | Upload to NAS/memory card, notify surveillance center, trigger recording, trigger capture |
| General | |
| Power | 12 VDC ± 25%, 0.5 A, max. 6 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, A switching adapter is included in the package. |
| Material | Base: metal, front cover: metal, back cover: plastic |
| Dimension | 175.6 mm × 73 mm × 89.1 mm |
| Package Dimension | 260 mm × 125 mm × 125 mm |
| Weight | Approx. 335 g |
| With Package Weight | Approx. 689 g |
| Storage Conditions | -30 °C to 60 °C Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Anti-banding, heartbeat, mirror, password protection, watermark, IP address filter |
| Approval | |
| EMC | FCC SDoC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014), |
| RF | FCC ID (FCC Part 15.247(BT or 2.4G)), CE-RED (EN 301489-1 V2.1.1(BT or 2.4G), EN 301489-17 V3.1.1(BT or 2.4G), EN 300328 V2.1.1(BT or 2.4G), EN 62311:2008(BT or 2.4G)), MIC (JPN) |
| Safety | CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014), CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014), |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
