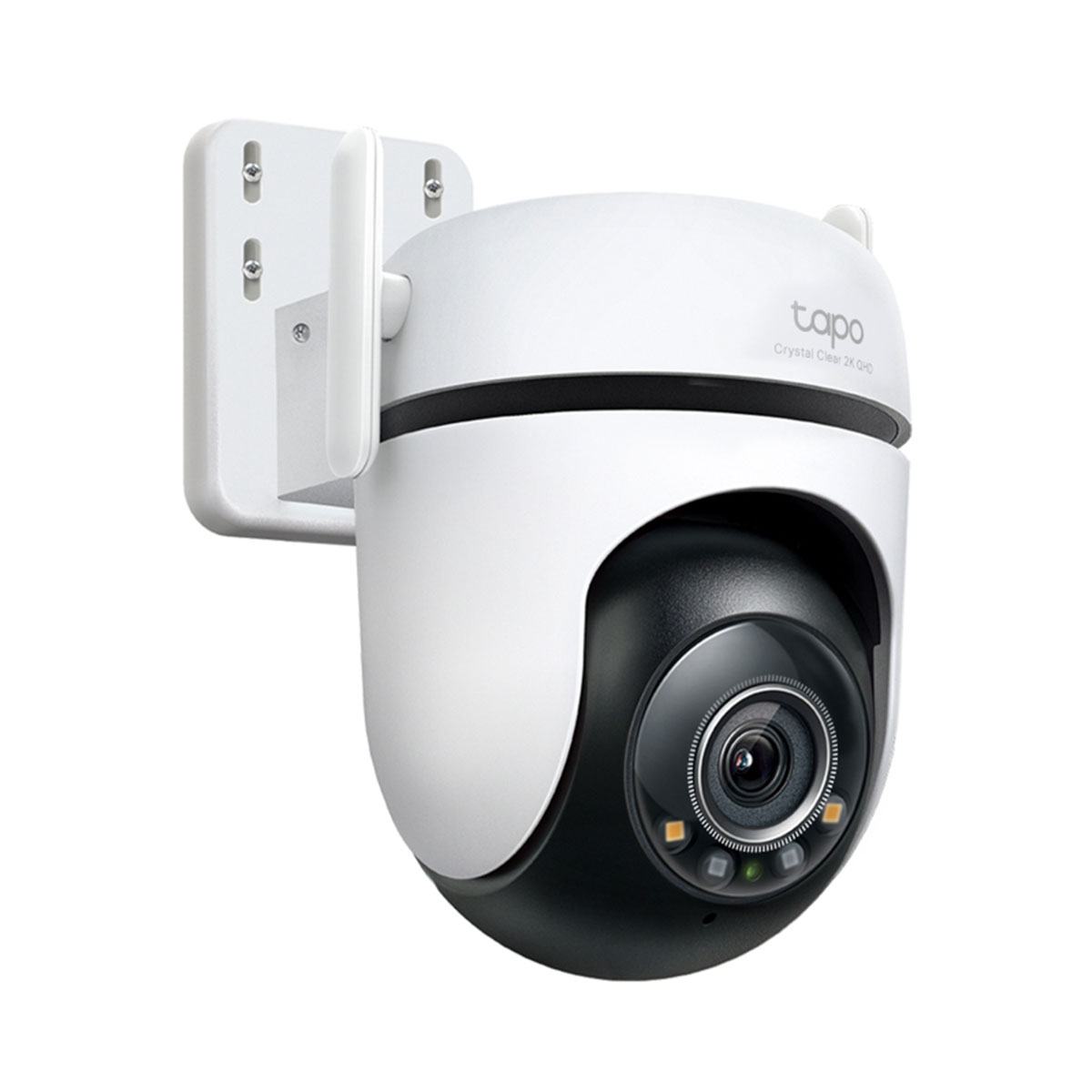

TP-LINK TAPO C520WS V2 Outdoor Pan/Tilt Security Wi-Fi Camera
|
• 2K QHD Live View-Adopting a 2560 × 1440 resolution, Tapo C520WS provides 1.7 × more pixels and delivers sharper images than 1080p. |
2K QHD Resolution & Starlight Color Night Vision
Tapo C520WS offers enhanced video quality with a 2560 × 1440 resolution, providing 1.7× more pixels and sharper images than 1080p. At night, its built-in spotlights and starlight sensor reveal brighter, full-color images and vivid details, enhancing your security.
360° All-Round Protection
Enjoy 360° horizontal and 130° vertical views with motion tracking to eliminate blind spots. Activate patrol mode to cruise among multiple custom points.
Comprehensive AI Detection
Smart AI accurately identifies people, pets, and vehicles while featuring tamper and line-crossing detection, minimizing false alerts and unnecessary notifications.
Flexible Connections & Reliable Networking
Connect your camera via Wi-Fi or Ethernet for flexible installation. Powerful dual antennas ensure connectivity up to 492ft in open areas.*
Build to Withstand Water & Dust
With IP66 weatherproofing, Tapo C520WS offers excellent waterproof and dustproof performance for outdoor scenarios. It works well in rain, dust, and heat.
Customizable Sound and Light Alarm
The ultra-bright adjustable light deters unwanted visitors, while custom audio alarms offer further use.
Secure Local & Cloud Storage
Save crucial moments to a microSD card† (up to 512 GB) or subscribe to Tapo Care for cloud storage‡ after a 30-day free trial, ensuring you never lose important footage.
Multiple Installation Options
Use the mounting screws, template, and loops** to install on any wall, ceiling, or pole for the perfect view—wherever you want.
Customizable Activity Zone
Customize detection zones to receive alerts for your most important areas.
Two-Way Audio
Communicate directly with the outdoors for your convenience.
Physical Privacy Mode
Maintains your privacy with the lens physically blocked by the housing.
*The 492 ft wireless coverage is based on TP-Link tests in open areas. Actual experience may vary due to environment, router specifications, and other factors.
** Mounting loops purchased separately.
† microSD card purchased separately. Actual storage capacity depends on the size of the microSD card used. Actual storage time also may vary with use.
‡ Subscribe for cloud storage at http://www.tapo.com/tapocare/
| SPECIFICATIONS | |
| Camera | |
| Image Sensor | 1/3” Progressive Scan CMOS Starlight Sensor |
| Lens | Focal Length: 3.2 mm Aperture: F1.6 Field of View: 112° (Diagonal), 95° (Horizontal), 53° (Vertical) |
| Video Definition | 2K QHD 4MP (2560 × 1440 px) |
| Field of View | 360° Horizontal |
| Night Vision | 850 nm IR LED, Starlight Color Night Vision |
| Lighting | 2× Built-in Spotlights |
| Interface & Button | 1× Ethernet Port 1× RESET Button 1× microSD Card Slot (Up to 512 GB) |
| Video & Audio | |
| Maximum Resolution | 2K QHD 4MP (2560 × 1440 px) |
| Frame Rate | 15/20/25/30 fps (Default 15fps) |
| Digital Zoom | 12x |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 93 dB (Level measured at 4-inch/10-cm distance) |
| Storage | |
| Local Storage | microSD Card Slot on Camera (Up to 512 GB) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| Detection & Notification | |
| AI Detection | Motion Detection Person Detection Pet Detection Vehicle Detection Line-Crossing Detection Camera Tampering |
| Activity Zones | Yes *Only works with Motion Detection |
| Output Notification | Output Notification |
| Network | |
| Network Connectivity | Connect via Wi-Fi or Ethernet |
| Wireless Connectivity | IEEE 802.11b/g/n/ax, 2.4 GHz Wi-Fi |
| Transmission Rate | 11b: 11 Mbps 11g: 54 Mbps 11n: 72.2 Mbps 11ax: 143.4 Mbps |
| Ethernet Port | 1× 10/100 Mbps RJ45 Port on Camera |
| Protocol | TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP |
| RTSP | Yes |
| ONVIF | Yes |
| Security | |
| Security | On-Device Machine Learning 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK/WPA3 |
| Power | |
| Power Source | 9V DC Power Adapter |
| Input Voltage | 100-240 V, 50/60 Hz |
| Output Voltage | 9 V, 0.85 A (DC Power) |
| DC Power Connector Size | Inside Ø: 2.1 mm Outside Ø: 5.5 mm |
| Power Cord Length | 3 m |
| Typical Power Consumption | 3.75 W |
| Maximum Power Consumption | 7.65 W |
| Hardware | |
| Smart Integration | Google Assistant, Amazon Alexa |
| Weather Resistance | IP66 |
| Mounting Options | Ceiling-Mounted Wall-Mounted Pole-Mounted (Pole-Mounting loops required but not included) |
| Operating Temperature | -30 ℃ ~ 60 ℃ |
| Storage Temperature | -40 ℃ ~ 60 ℃ |
| Operating Humidity | 10% ~ 90% RH, Non-condensing |
| Storage Humidity | 0 ~ 90% RH, Non-condensing |
| Dimensions | 123.8 × 123 × 90 mm |
| Weight | 396.84 g |
| Certication | CE, FCC, RoHS, RCM, JRF, VCCI, KC, IC, NCC, BSMI, WWA, NTRA |
| Package Contents | Tapo C520WS Camera/Tapo C52A Camera Power Adapter Mounting Anchors Mounting Screws Bracket Screws Mounting Template Mounting Bracket Waterproof Seal Waterproof Cable Attachments Quick Start Guide |
