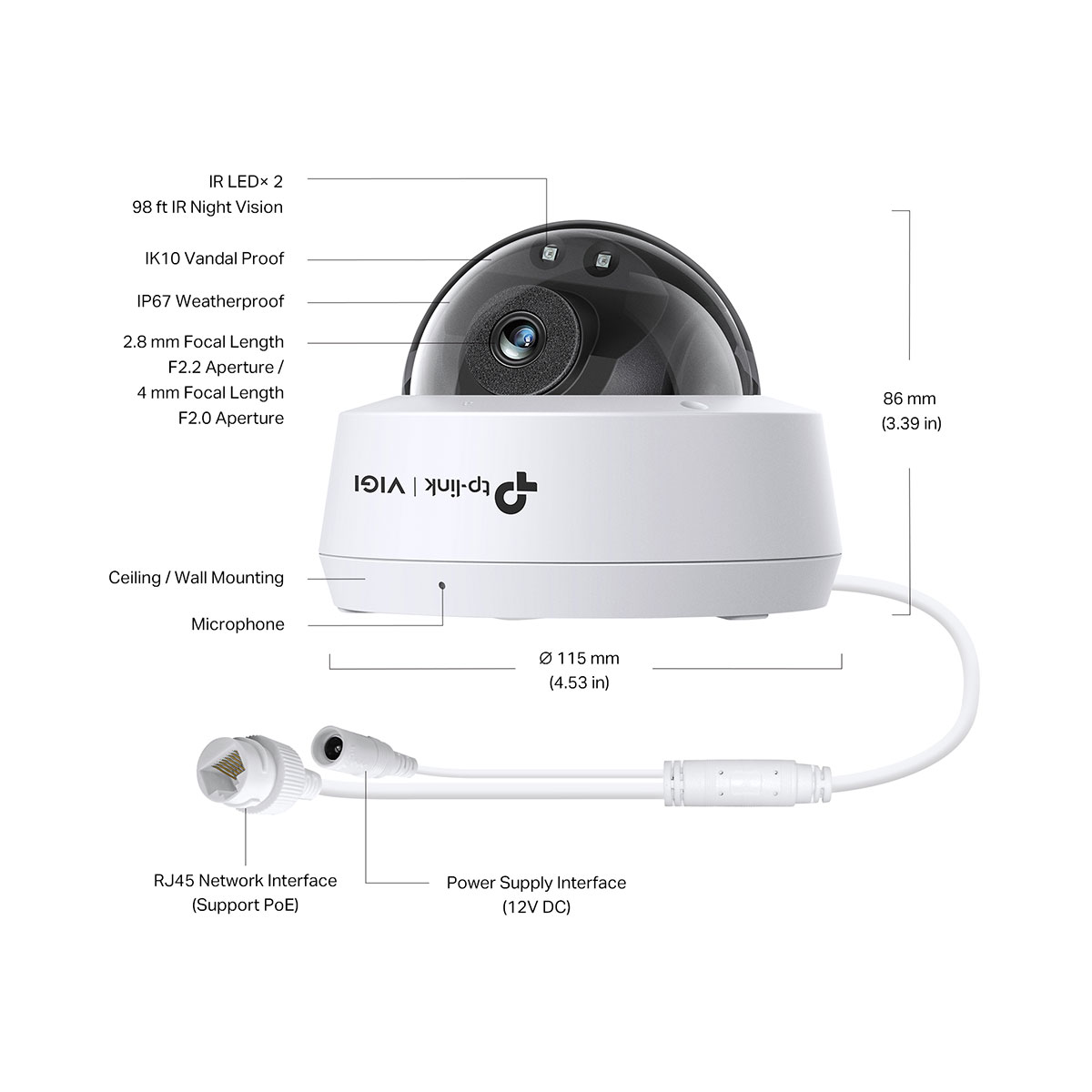

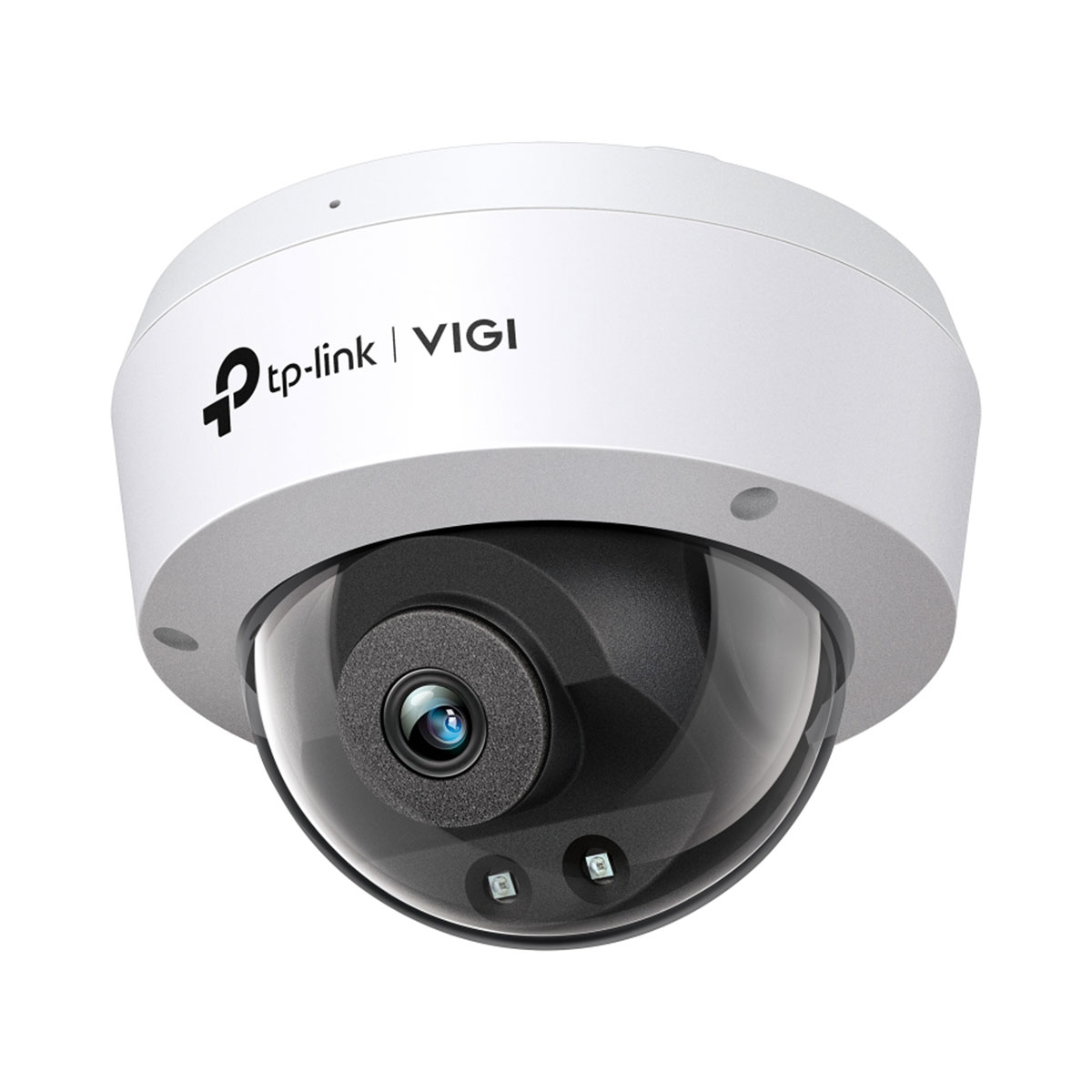

TP-LINK VIGI C230I-2.8 V1.2 VIGI 3MP IR Dome Network Camera (2.8mm)
TP-LINK VIGI C230I-2.8 V1.2 VIGI 3MP IR Dome Network Camera (2.8mm)
ΠΡΟΣΟΧΗ!!! Στην συσκευασία δεν συμπεριλαμβάνεται τροφοδοτικό!!!
|
• 3MP Super-High Definition and IR Night Vision |
Smart Video Enhancement Technology
• DWDR: Enhances video quality by improving dynamic range and detail presentation, making it perform excellently in diverse lighting conditions.
• Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
• 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
• White Balance: White Balance ensures neutral whites in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.*
*Calculations based on laboratory testing using a 3MP VIGI camera, and an actual performance may vary according to the amount of activity recorded, resolution and other variables.
| SPECIFICATIONS | |
| Camera | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Min. Illumination | Color: 0.01 Lux; 0 Lux with IR Light |
| Day & Night | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| Lens | |
| Focal length | 2.8 mm |
| Aperture | F2. 2 |
| Type | Fixed |
| FOV | Horizontal FOV: 97.8°, Vertical FOV: 52.9°, Diagonal FOV: 117.9° |
| Lens Mount | M12 |
| DORI Distance | Detect: 49 m Observe: 20 m Recognize: 10 m Identify: 5 m |
| Angle Adjustment (manual) | |
| Range | • Pan: 0° to 355° • Tilt: 0° to 75° |
| Illuminator | |
| IR LED | • Quantity: 2 • Range: 30m • Wavelength: 850nm |
| Illuminator On/Off Control |
Auto/Scheduled/Always on/Always off |
| Video | |
| Max. Resolution | 3MP (2304 × 1296) |
| Main Stream | • Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps • Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | • Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps • Resolution: 704x576, 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 4 Mbps • Sub-Stream: 64 Kbps to 512 Kbps |
| Image | |
| Image Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software • Rotation(90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | WDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch |
Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Audio | |
| Audio Input | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering |
Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw |
| Network | |
| Protocols | • TCP/IP • UDP • ICMP • HTTP • HTTPS • DHCP, DNS, RTSP • NTP • UPnP UDP • SSL/TLS • FTP/SFTP • RTP • RTSP • IPv4 • IPv6 (VIGI C220I does not support IPv6) • ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Alarm and Event Management | |
| Smart Event | • Human & Vehicle Classification • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned/Removal Detection • Abnormal Sound Detection • People Detection • Vehicle Detection |
| Basic Event | • Motion Detection • Video Tampering Detection • Exception ( Illegal Login) |
| Alarm Linkage | Message Push |
| Output Notification | Message Push |
| Interface | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Power | DC Power Port |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| General | |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Contents | • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories |
| Power Supply | 12V DC ± 5%, Max. 5 W, 5.5mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 5.5 W |
| Net Weight | 0.27 Kg |
| Gross Weight | 0.45 Kg |
| Material | Plastic |
| Protection | IP67 Waterproof, IK10 Vandal Proof |
| Product Dimensions | 115× 115× 86 mm |
| Certification | CE, NTRA, VCCI, BSMI |
