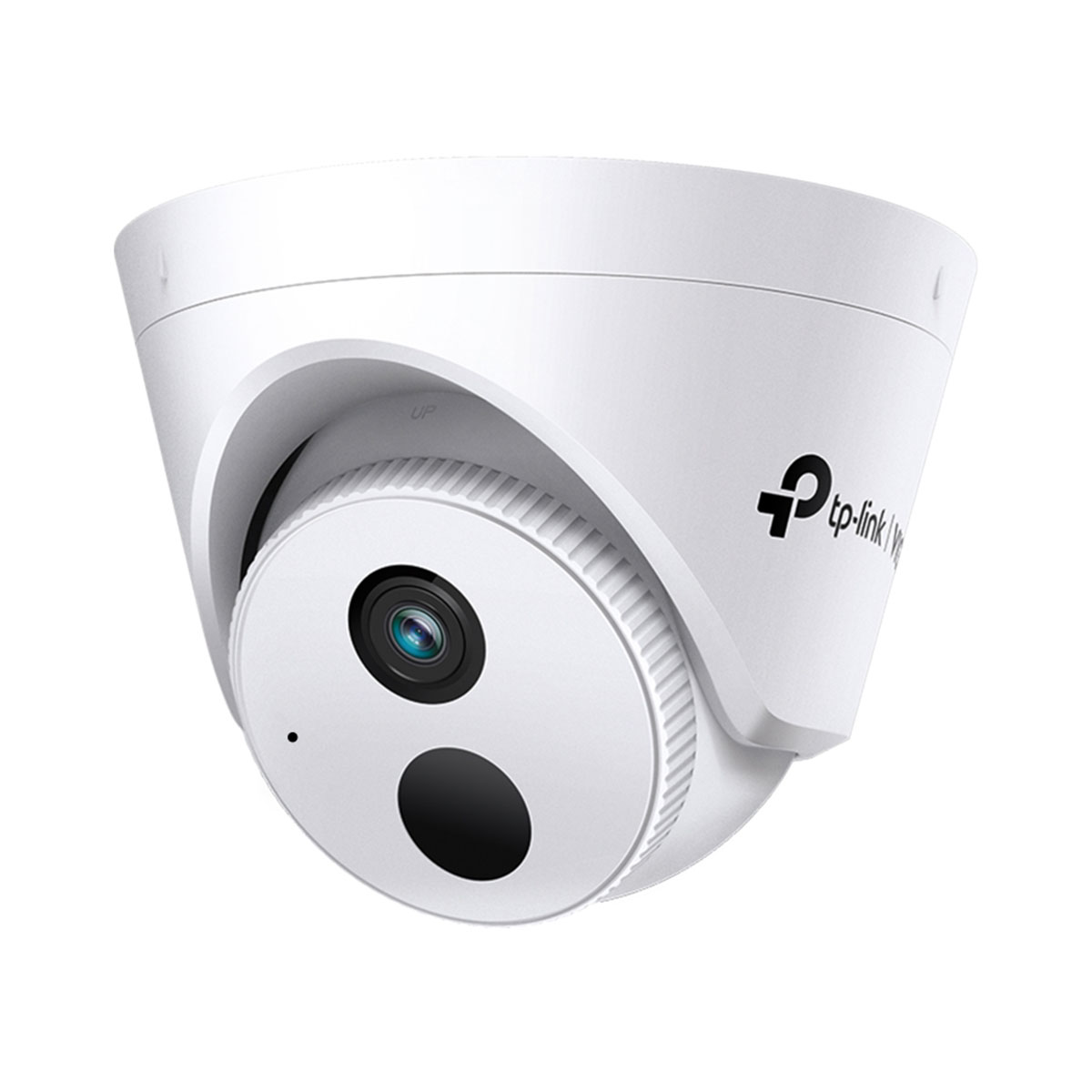

TP-LINK VIGI C440I-2.8 V1 4MP Turret Network Camera (2.8mm)
TP-LINK VIGI C440I-2.8 V1 4MP Turret Network Camera (2.8mm)
ΠΡΟΣΟΧΗ!!! Στην συσκευασία δεν συμπεριλαμβάνεται τροφοδοτικό!!!
|
• 4MP Super-High Definition and IR Night Vision |
Smart Video Enhancement Technology
• DWDR: Enhances video quality by improving dynamic range and detail presentation, making it perform excellently in diverse lighting conditions.
• Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
• 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details
• White Balance: White Balance ensures neutral whites in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.*
*Calculations based on laboratory testing using a 3MP VIGI camera, and an actual performance may vary according to the amount of activity recorded, resolution and other variables.
| SPECIFICATIONS | |
| Camera | |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux; 0 Lux with IR |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| Lens | |
| Focal length | 2.8 mm |
| Aperture | F2.2 |
| Focus | Fixed |
| FOV | Horizontal FOV: 88.8°, Vertical FOV: 48.9°, Diagonal FOV: 106.5° |
| Lens Mount | M12 |
| IR | |
| IR LED | Quantity: 1 Range: 30m Wavelength: 850nm |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| Smart Feature-set |
|
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Area Entrance Detection, Area Exiting Detection, Abandoned Object Detection, Object Removal Detection, Vehicle Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception ( illegal login) |
| Linkage Method | Trigger Notification: ONVIF, HTTPS |
| Region of Interest | 1 Region |
| Image | |
| Max. Resolution | 4MP (2560 × 1440) |
| Main Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720 |
| Sub-Stream | Frame Rate: 1fps, 5fps,10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240 |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Image Settings | Mirror, brightness, contrast, saturation, sharpness, exposure, WDR, white balance, HLC adjustable by client software, Rotation(90°/270°) |
| Day/Night Switch | Day/Night/Auto/Schedule |
| Network | |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| General Function | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| API | ONVIF |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, VIGI NVR, Web |
| Interface | |
| Communication Interface |
1 RJ45 10/100M Self-Adaptive Port |
| Video Output | No |
| Reset Button | N/A |
| General | |
| Operating Temperature | -30–60 °C |
| Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0) |
| Power Consumption | 12V DC: Max 5W PoE: class 0 |
| Material | Plastic |

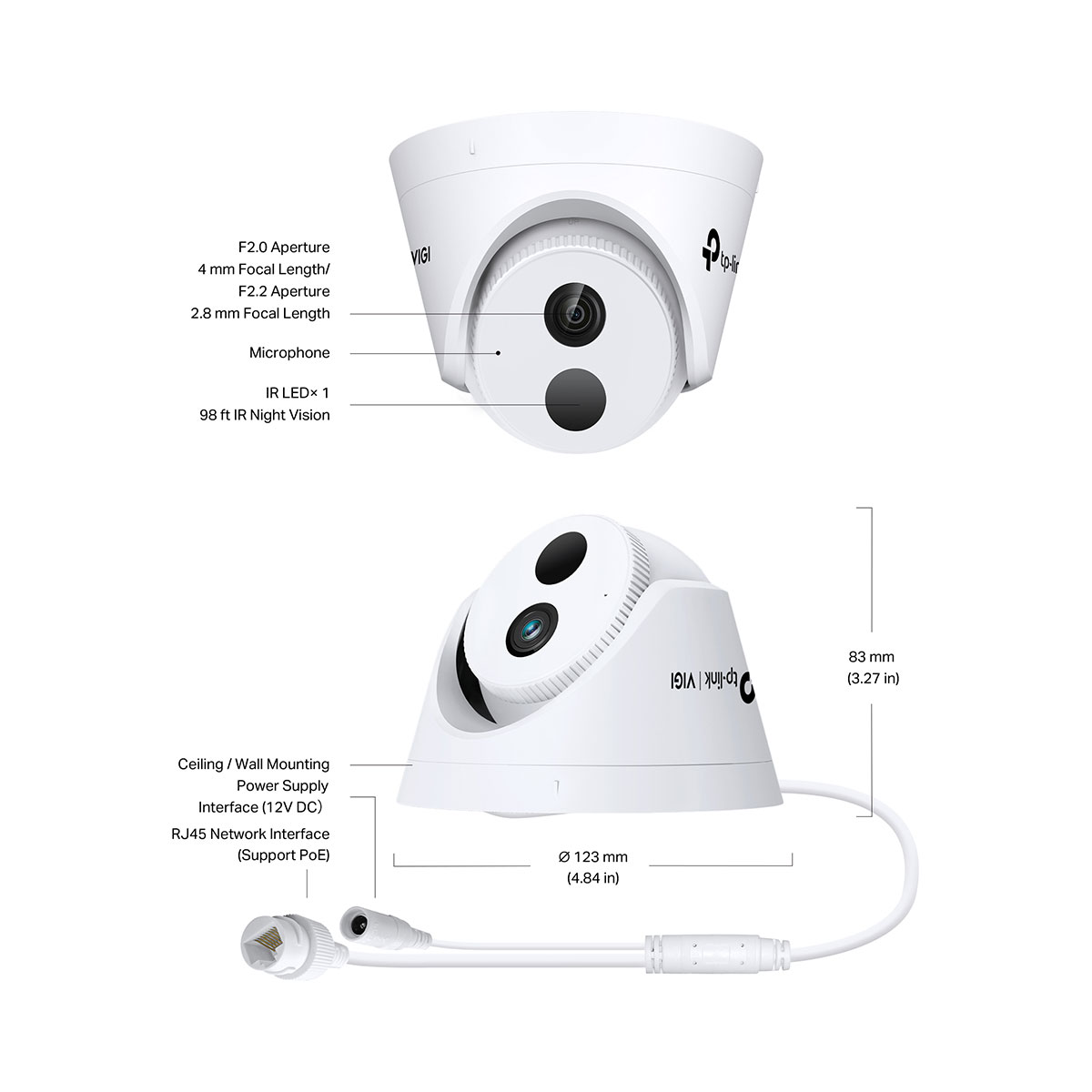

| Product Dimensions | 123 × 123 × 83 mm |
| Certification | CE/BSMI/VCCI/ONVIF |
