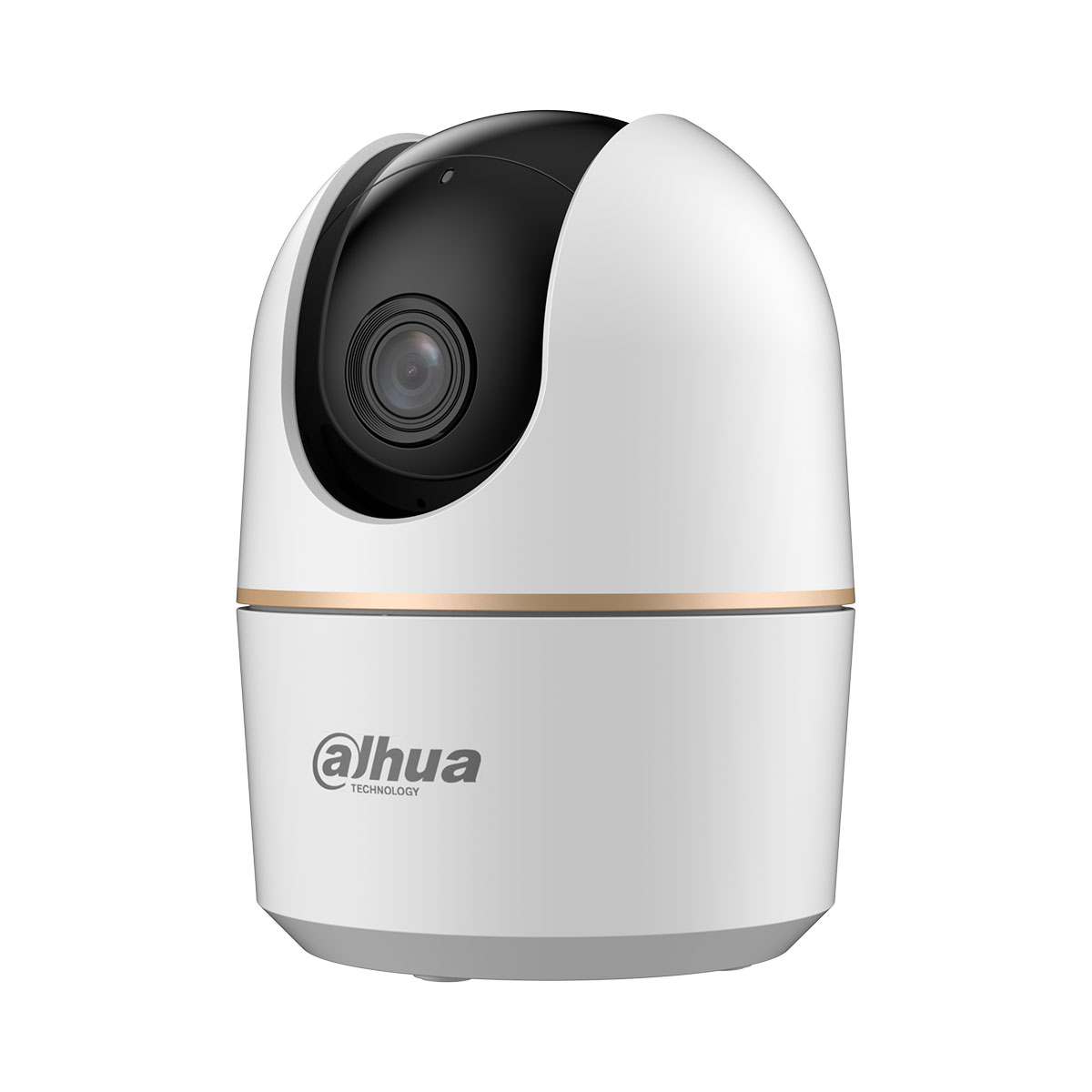

DAHUA H3A 3MP Indoor Fixed-Focal Wi-Fi Pan & Tilt Network Camera
DAHUA H3A 3MP Indoor Fixed-Focal Wi-Fi Pan & Tilt Network Camera
|
Series Overview
Dahua Wireless series cameras are not only easy to install and operate, but also perform outstandingly and cost-effective. They provide full coverage of a scene with 3MP resolution, 0° to 355° pan and -5°to 80° tilt. Their powerful functions, such as preset petrol, AI human detection & pet detection, and auto tracking, assist with the accurate detection and continuous tracking of targets. Information is also synchronously sent to your phone to keep you up-to-date. These cameras are widely used in small and medium-sized scenes such as small-sized retail stores.
| SPECIFICATIONS | |
| Camera | |
| Image Sensor | 1/3.2" CMOS |
| Max. Resolution | 2304 (H) × 1296 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Illumination Distance | Up to 10 m (IR) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 1 (IR LED) |
| Angle Adjustment | Pan: 0° to 355°; Tilt: –5° to 80° |
| Lens | |
| Max. Aperture | F2.0 |
| Field of View | H: 73°; V: 41°; D: 88° |
| Intelligence | |
| Human Detection | Yes |
| Video | |
| Video Compression | H.265 |
| Video Frame Rate | Main stream: 2304 × 1296@(1-25/30 fps) sub stream: 640 × 360@(1-25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
|
Resolution |
3M (2304 × 1296); nHD (640 × 360) |
| Video Bit Rate | H.265: 80 kbps–4096 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | DWDR |
| Motion Detection | Yes |
| Image Rotation | 0°/180° |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE 802.11b/g/n/ax 2.412-2.472 GHz,2.4G |
| Storage | Micro SD card (up to 256 GB) |
| Management Software | DMSS |
| Mobile Client | iOS;Android |
| Certification | |
| Certifications | CE |
| Power | |
| Power Supply | 5 VDC |
| Power Consumption | Basic: 1.6 W; Max.: 3.6 W (live + IR + PT rotation) |
| Environment | |
| Operating Temperature | –10 °C to +45 °C |
| Operating Humidity | ≤95% (RH), non-condensing |
| Structure | |
| Casing Material | Plastic |
| Product Dimensions | φ77.8 mm × 108.1 mm |
| Net Weight | 195 g |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
