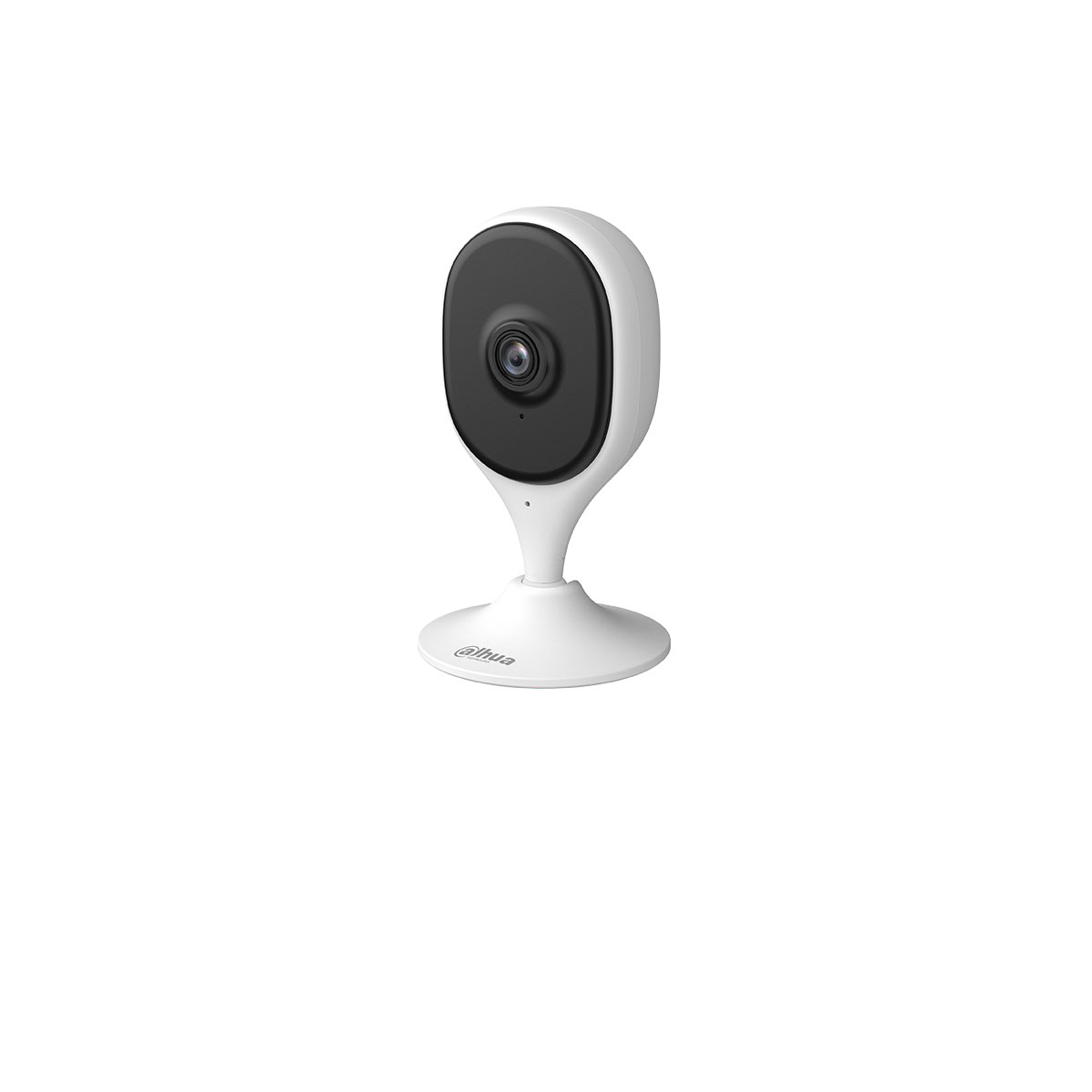

DAHUA C5A 5MP Indoor Fixed-Focal Wi-Fi Cube Network Camera
DAHUA C5A 5MP Indoor Fixed-Focal Wi-Fi Cube Network Camera
|
Series Overview
The Cube Series, which is under the Dahua Wireless series, are cameras that are not only easy to install and operate, but also perform outstandingly and are cost-effective. They capture sharp, detailed images of scenes in high definition and offer powerful functions including AI human and pet detection, privacy mode, and two-way talk. Information is synchronously sent to your phone to keep you up-to-date. These cameras are widely used in small and medium-sized settings such as small-sized retail stores.
| SPECIFICATIONS | |
| Camera | |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Illumination Distance | Up to 10 m (IR) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 1 (IR LED) |
| Angle Adjustment | Pan: 0° to 360°; Tilt: -10° to 70° |
| Lens | |
| Max. Aperture | F2.0 |
| Field of View | H: 90°; V: 49°; D: 106° |
| Intelligence | |
| Human Detection | Yes |
| Video | |
| Video Compression | H.265 |
| Video Frame Rate | Main stream: 2880 × 1620@(1-25/30 fps) sub stream: 640 × 360@(1-25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
|
Resolution |
5M (2880 × 1620); nHD (640 × 360) |
| Video Bit Rate | H.265: 80 kbps–4096 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | DWDR |
| Motion Detection | Yes |
| Image Rotation | 0°/180° |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a |
| Network | |
| Wi-Fi | IEEE 802.11b/g/n/ax 2.412-2.472 GHz,2.4G |
| Storage | Micro SD card (up to 256 GB) |
| Management Software | DMSS |
| Mobile Client | iOS;Android |
| Certification | |
| Certifications | CE |
| Power | |
| Power Supply | 5 VDC |
| Power Consumption | Basic: 1.65 W; Max.: 2.75 W (H.265+ IR intensity) |
| Environment | |
| Operating Temperature | –10 °C to +45 °C |
| Operating Humidity | ≤95% (RH) |
| Structure | |
| Casing Material | Plastic |
| Product Dimensions | Φ68 mm × 31.9 mm × 119.2 mm |
| Net Weight | 95 g |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
