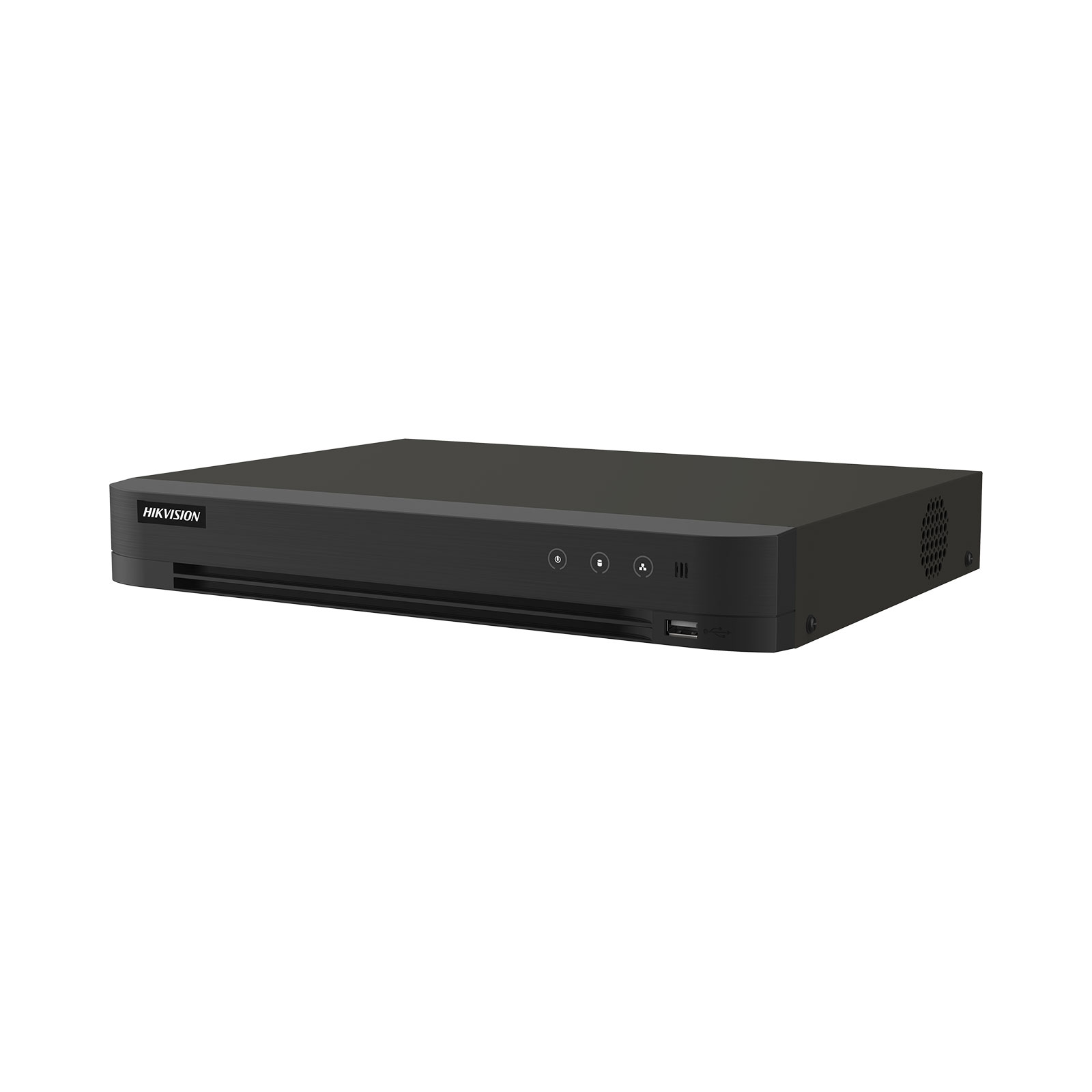

Hikvision iDS-7208HUHI-M1/XT, 8 Channels , 8 MP, 1U, H.265 Pro+, AcuSense , DVR
Κωδικός προϊόντος:
IDS-7208HUHI-M1/XT
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
Key Features:
• 8 channels and 1 HDD 1U AcuSense DVR
• Support 4-ch Facial Recognition or 8-ch advanced model
Perimeter Protection based on Deep Learning algorithm
• Support 8-ch AcuSearch Technology
• Encoding ability up to 4K/8MP @ 8fps; 3K/5MP @12fps
• Up to 16 channels IP camera inputs, each channel up to
8MP
• Up to 24*1080P@30fps decoding ability
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Support All channels Motion Detection Technology
• Support All channels HDTVI Two-Way Audio Technology
Χαρακτηριστικά
| Specifications | |
| Facial Recognition | |
| Face Picture Library | Up to 16 face picture libraries; HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash. |
| Face Picture Comparison | 4-ch face picture comparison alarm (HD analog camera) |
| Perimeter Protection | |
| Human/Vehicle Analysis | Up to 8-ch (advanced model) |
| Facial Detection | |
| Facial Detection and Capture | Face picture detection, face picture search 4-ch face picture capture |
| Video and Audio | |
| IP Video Input | 8-ch (up to 16-ch), each up to 8MP |
| Analog Video Input | 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDMI Output | 1-ch 4K (3840 × 2160)/30Hz 2K (2560 × 1440)/60Hz 1920 × 1080/60Hz 1280 × 1024/60Hz 1280 × 720/60Hz HDMI/VGA simultaneous output |
| VGA Output | 1-ch 1920 × 1080/60Hz 1280 × 1024/60Hz 1280 × 720/60Hz HDMI/VGA simultaneous output |
| CVBS Input | PAL/NTSC |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Synchronous Playback | 8-ch |
| HDTVI Input | 8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| AHD Input | 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| HDCVI Input | 8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@25fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ)，8-ch via coaxial cable |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate | Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Video Bitrate | 32 Kbps to 10 Mbps |
| Dual-stream | Support main stream or sub stream |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Decoding | |
| Decoding Capability | up to 24-ch 1080P@30fps |
| Network | |
| Total Bandwidth | 256 Mbps |
| Network Protoco | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP |
| Remote Connection | 64 |
| Network Interface | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| Auxiliary interface | |
| SATA | 1 SATA interface |
| Capacity | up to 12 TB capacity for each disk |
| Serial interface | RS-485 (half-duplex) |
| USB interface | Front panel: 1 x USB 2.0 Rear panel: 2 × USB 3.0 |
| Alarm in/out3 | N/A (optional to support) |
| General | |
| Power supply | 12 VDC, 2 A |
| Consumption (without HDD) | ≤ 24 W |
| Working temperature | -10 °C to 55 °C |
| Working humidity | 10% to 90% |
| Dimension(WxDxH) | 320 × 240 × 48 mm |
| Weight (without HDD) | ≤ 2 kg |
