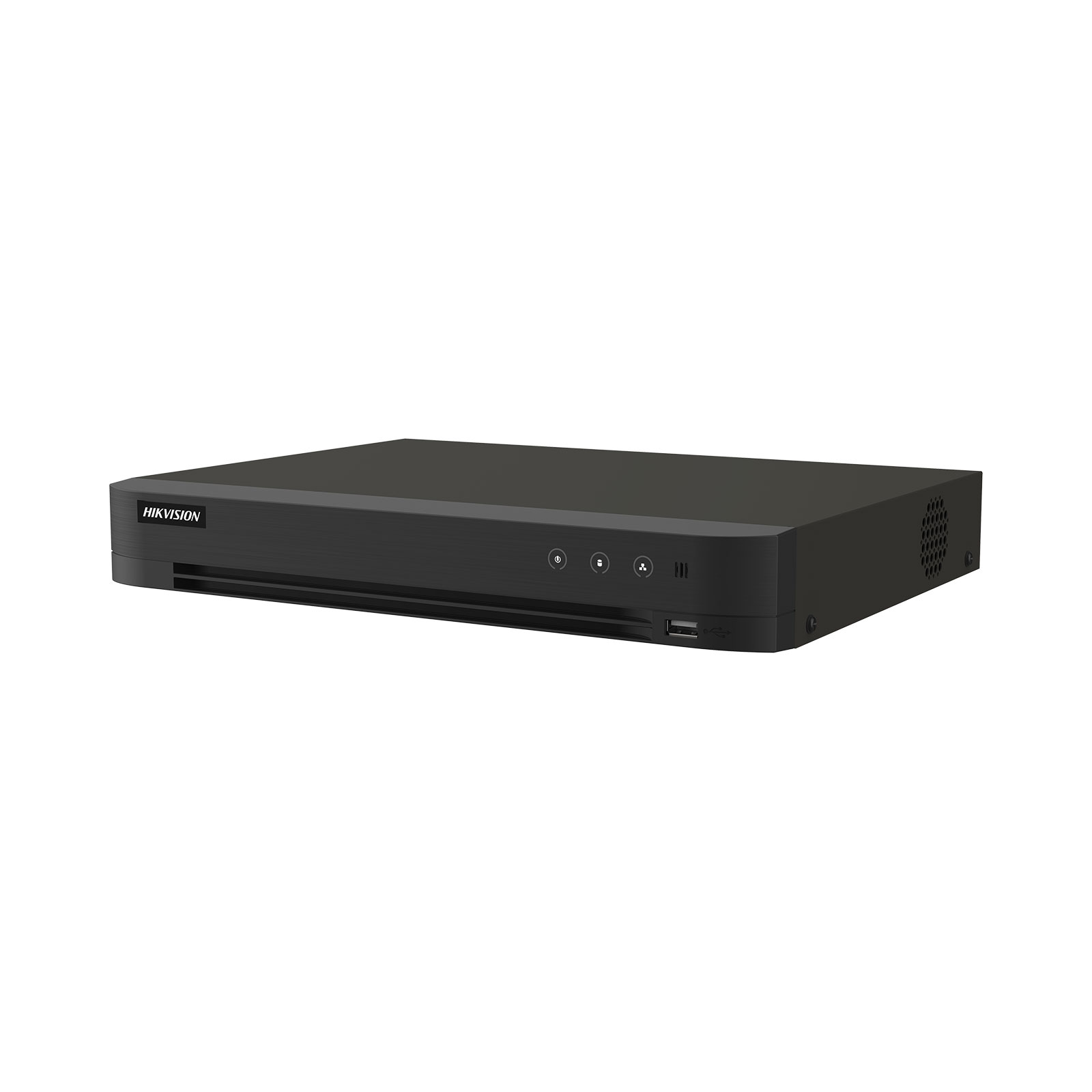

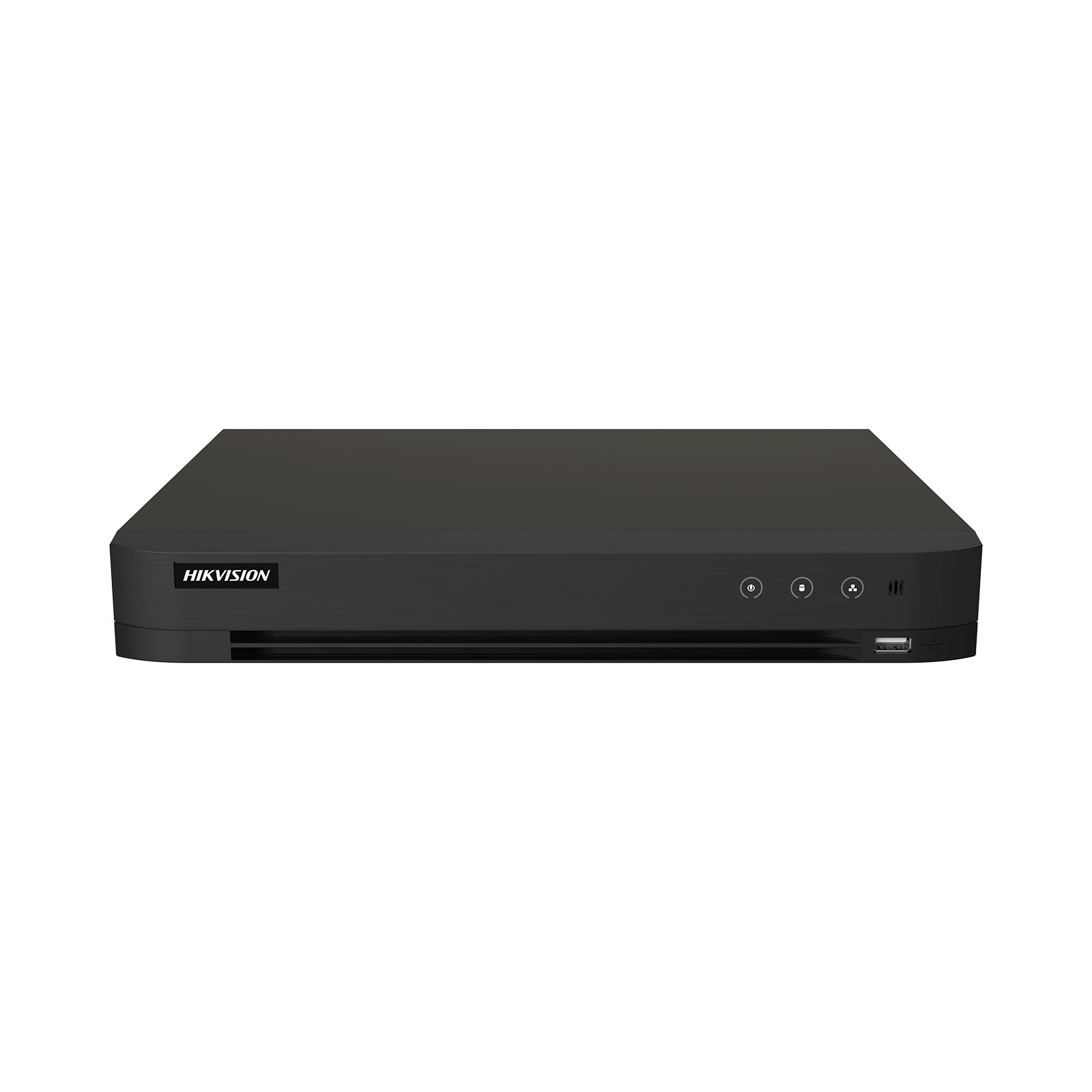

Ηikvision iDS-7216HUHI-M1/T, 16 Channels, 8MP, 1U, H.265 AcuSense DVR
Κωδικός προϊόντος:
iDS-7216HUHI-M1/T
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
Key Features:
• 16 channels and 1 HDD 1U AcuSense DVR
• Support 4-ch advanced model Perimeter Protection based on Deep Learning algorithm
• Encoding ability up to 4K/8MP @ 8fps; 3K/5MP @12fps
• Up to 32 channels IP camera inputs, each channel up to 8MP
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Support All channels Motion Detection Technology
• Support All channels HDTVI Two-Way Audio Technology
Χαρακτηριστικά
| Specifications | |
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels,it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights. Quick search by object or event type is supported. |
| Perimeter Protection | |
| Human/Vehicle Analysis | Up to 4-ch |
| Facial Detection | |
| Facial Detection and Capture |
Face picture detection, face picture search |
| Video and Audio |
|
| IP Video Input | 8-ch (up to 24-ch) Enhanced IP mode on: 16-ch (up to 32-ch), each up to 4 Mbps Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input | 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output |
| CVBS Input | PAL/NTSC |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Video Output Mode | HDMI/VGA simultaneous output |
| Synchronous Playback | 16-ch |
| HDTVI Input | 8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| AHD Input | 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| HDCVI Input | 8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@25/20fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio Input | 1-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΩ) 16-ch via coaxial cable |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input) |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate | Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Video Bitrate | 32 Kbps to 10 Mbps |
| Dual-stream | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Network | |
| Total Bandwidth | 128 Mbps |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Remote Connection | 128 |
| Network Interface | 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Wi-Fi | Wi-Fi Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface |
| Auxiliary Interface | |
| SATA |
1 SATA interface |
| Capacity | Up to 10 TB capacity for each disk |
| Serial Interface | N/A (optional to support) |
| USB Interface | Front panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0 |
| AlarmIn/Out | N/A (optional to support) |
| General | |
| Power Supply | 12 VDC, 3.33 A |
| Consumption | ≤ 40 W |
| Working Temperature | -10 °C to +55 °C |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 319 × 237 × 48 mm |
| Weight | ≤ 2.1 kg |
