The UniFi® NVR is an enterprise network video recorder that integrates an NVR, the UniFi Protect software, and a 4-drive bay. UNVR unifies enterprise-class data protection and scalable storage with simple Plug and Play integration using the intuitive UniFi Protect software. From a desktop computer or mobile device, you can access your surveillance recordings from virtually anywhere using the intuitive graphical user interface. The mobile app is available for iOS and Android-based devices. The drive bays are easily accessed from the front panel, so hard drive mounting and maintenance are simple. Using four 8 TB drives in a RAID 5 configuration, the UNVR can provide up to 30 days of 4k video storage for 15 cameras or Full HD video storage for 50 cameras.
Features:

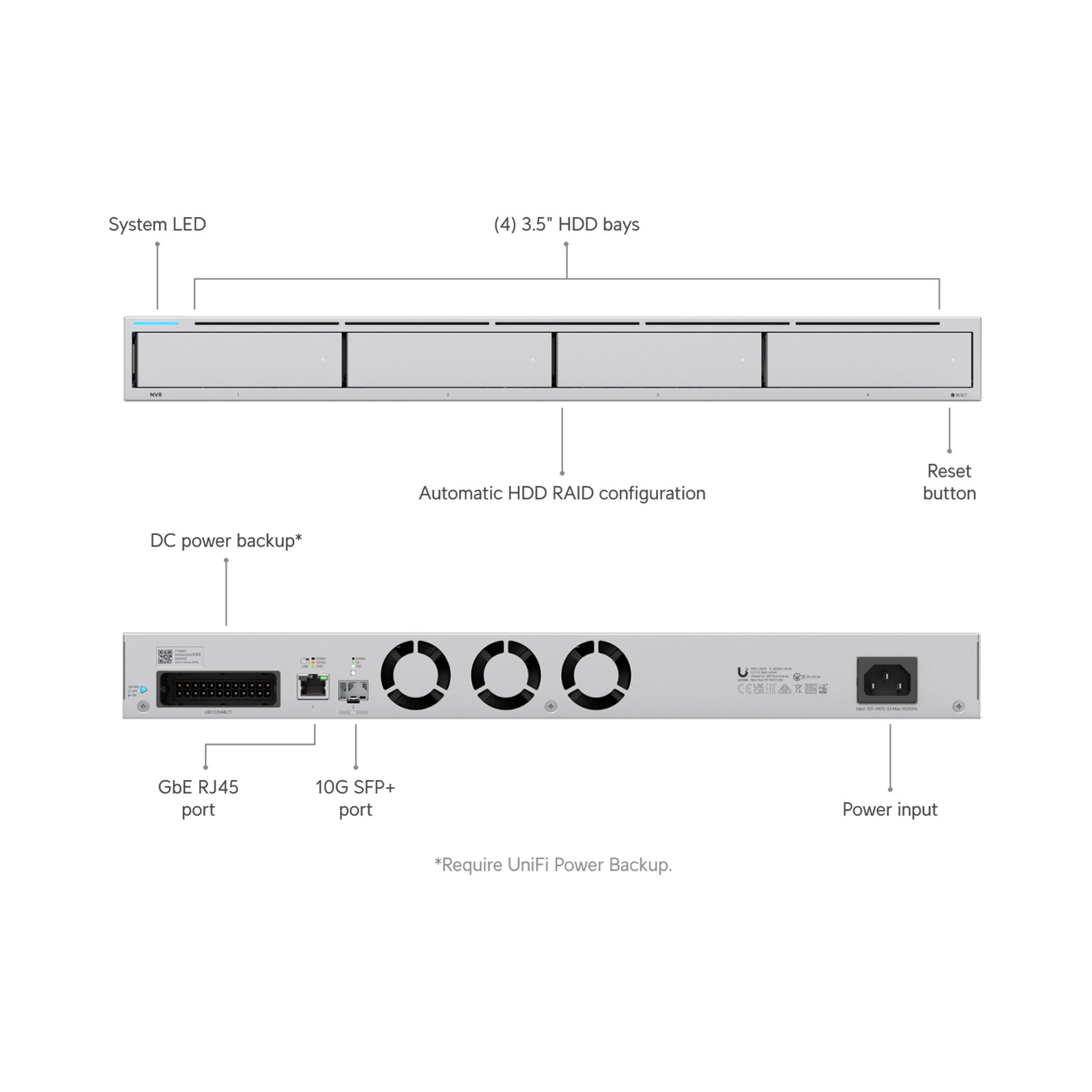

• (4) 2.5"/3.5" Drive bays
• (1) 10G SFP+ port
• (1) Gigabit RJ45 port

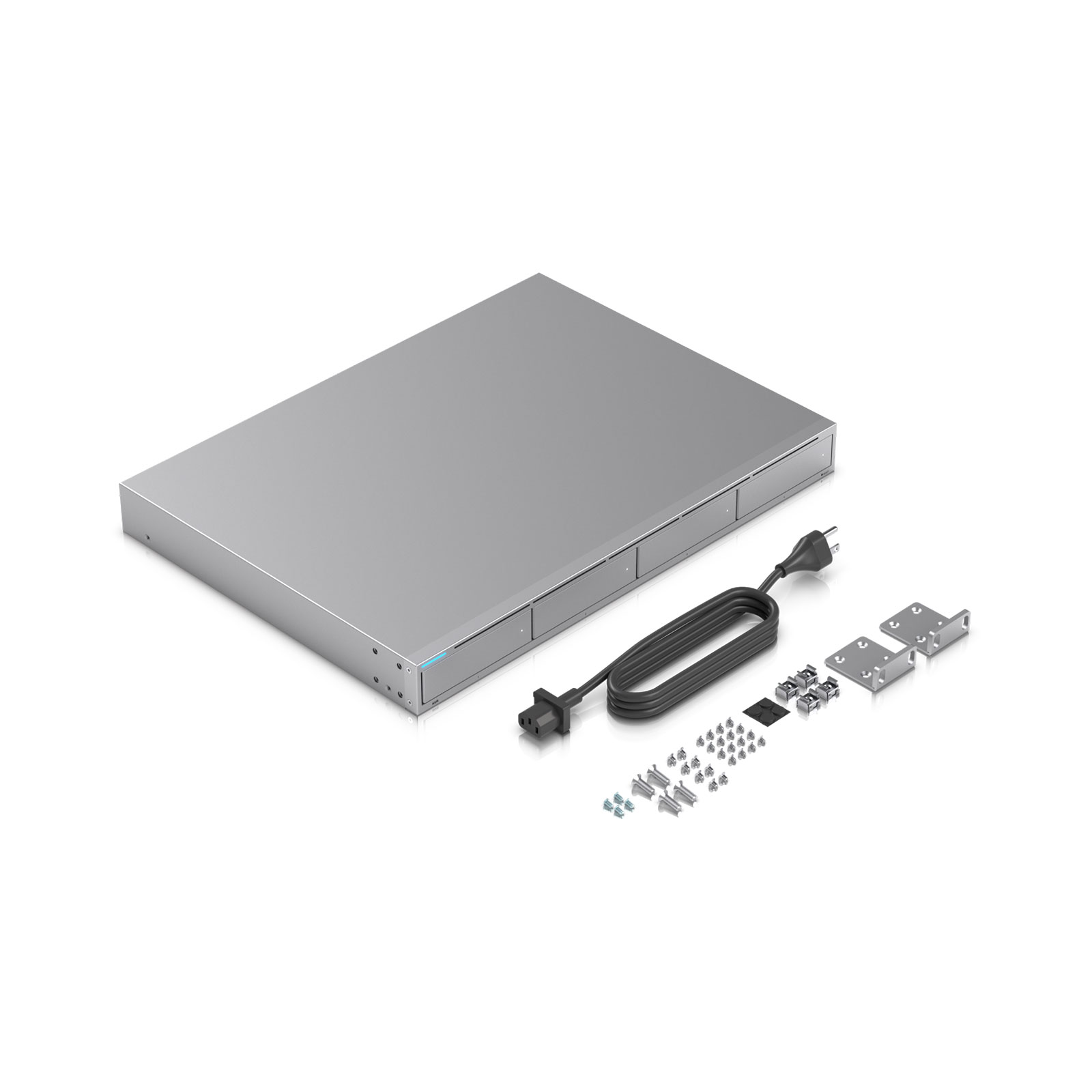

• 1U rackmountable (kit included)
• Plug and Play UniFi Protect system with NVR
• Automated secure RAID 1 or RAID 5 configuration
• Supports USP-RPS for PSU failover
| Specifications | |

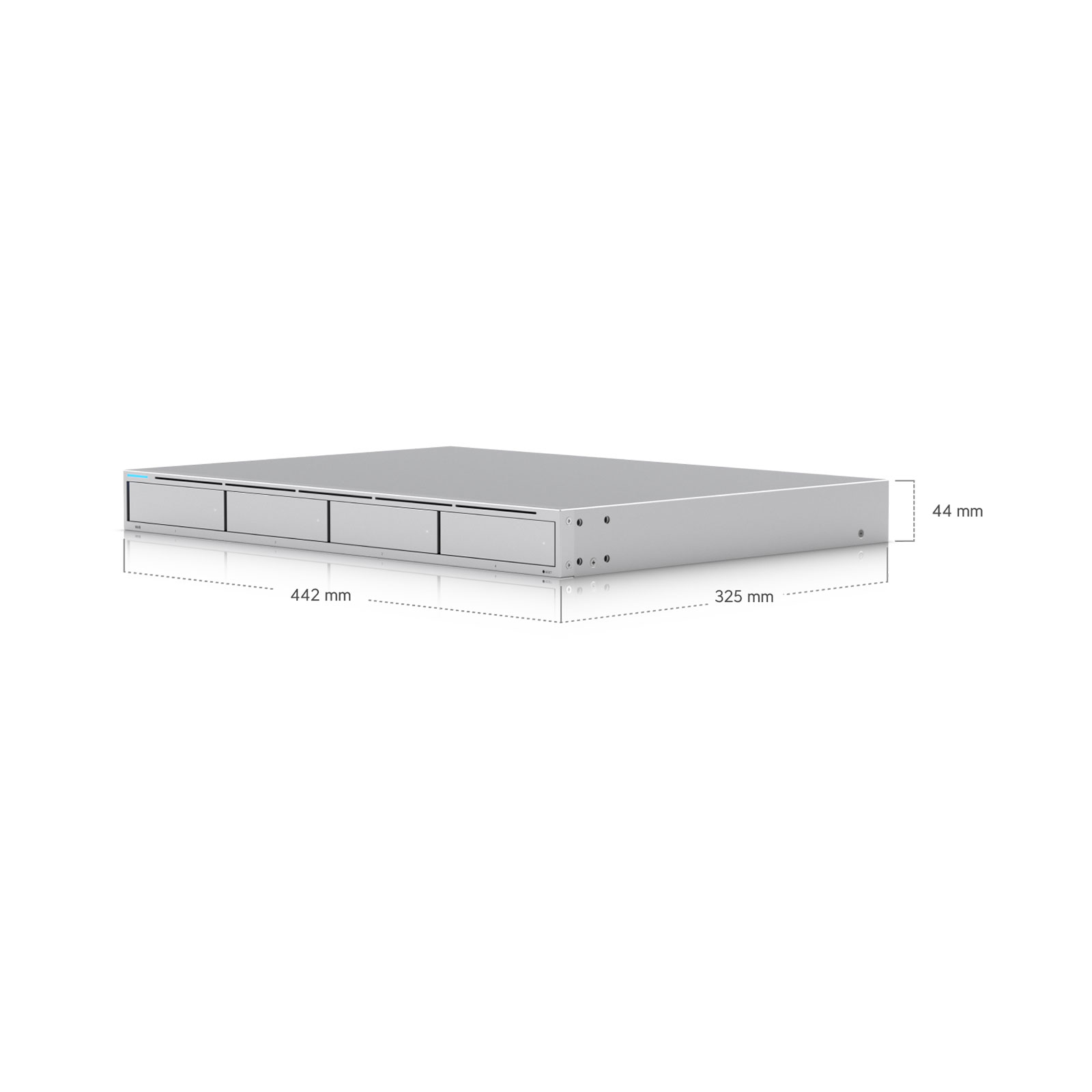

| Dimensions | 442.4 x 325 x 43.7 mm |
| Weight | Without Rackmount Brackets: 5.11 kg With Rackmount Brackets: 5.20 kg |
| Enclosure Characteristics | SGCC Steel |
| Processor | Quad-Core ARM Cortex-A57 at 1.7 GHz |
| System Memory | 4 GB DDR4 |
| On-Board Flash Storage | SPI NOR 32 MB, USB Flash 8 GB |
| Max. Power Consumption | 100W |
| Max. Power Budget for Drives | 75W |
| Power Method | (1) Universal AC Input (1) RPS DC Input |
| Power Supply | 100-240VAC, 50/60 Hz, 2A |
| Networking Interfaces | (1) 10/100/1000 Mbps RJ45 Ethernet (1) 1/10 Gbps SFP+ Ethernet |
| Management Interface | Ethernet In-Band Management |
| ESD/EMP Protection | Air: ± 12kV, Contact: ± 8kV |
| Operating Temperature | -5 to 40° C |
| Operating Humidity | 5 - 95% Noncondensing |
| LEDs System Ethernet SFP+ White SFP+ HDD |
(1) Power, Blue/White Flashing White: Bootup in Progress Flashing Blue: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted Green: 1000 Mbps, Amber: 10/100 Mbps White: 10 Gbps, Green: 1 Gbps Amber: Disk Error, White: Disk Detected |
