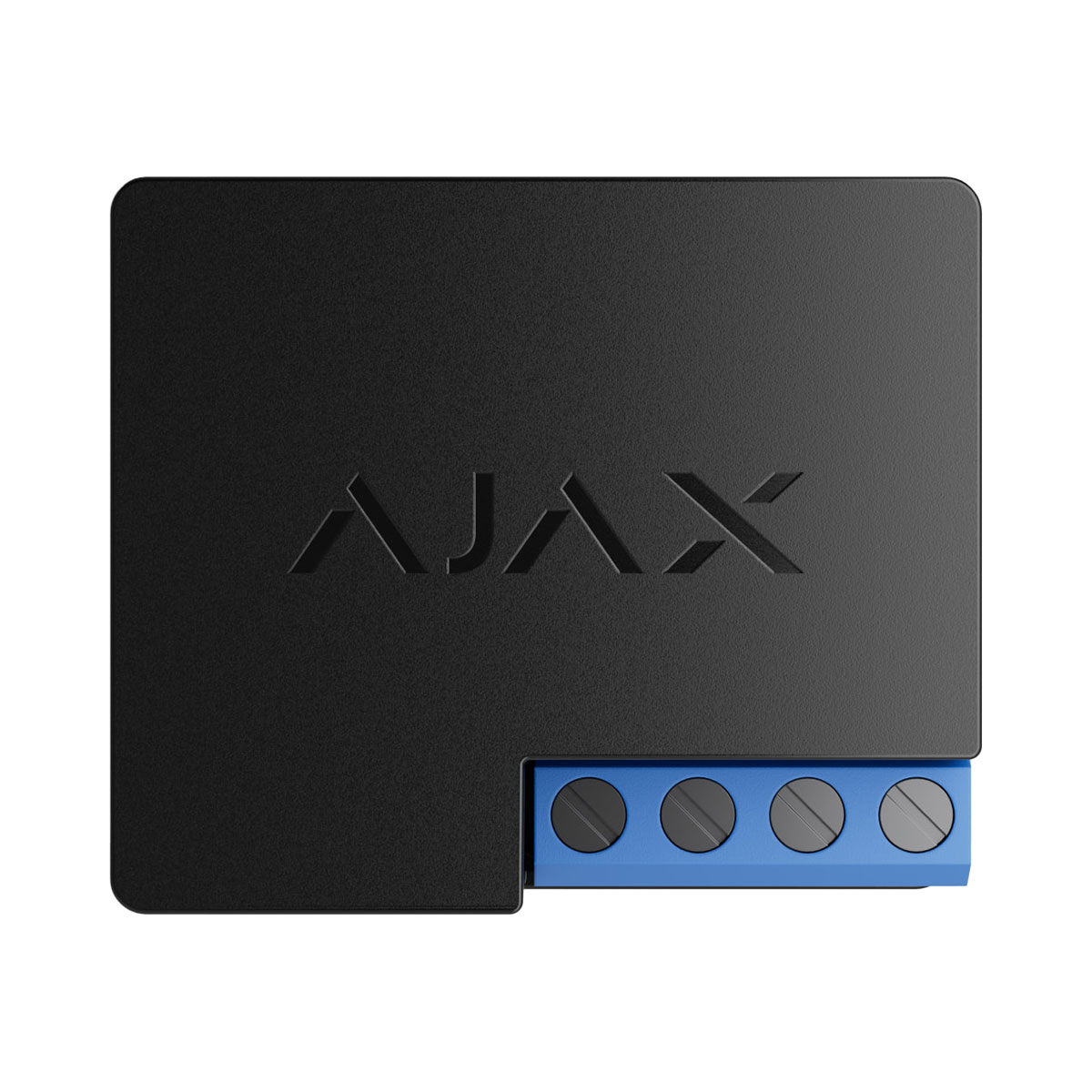

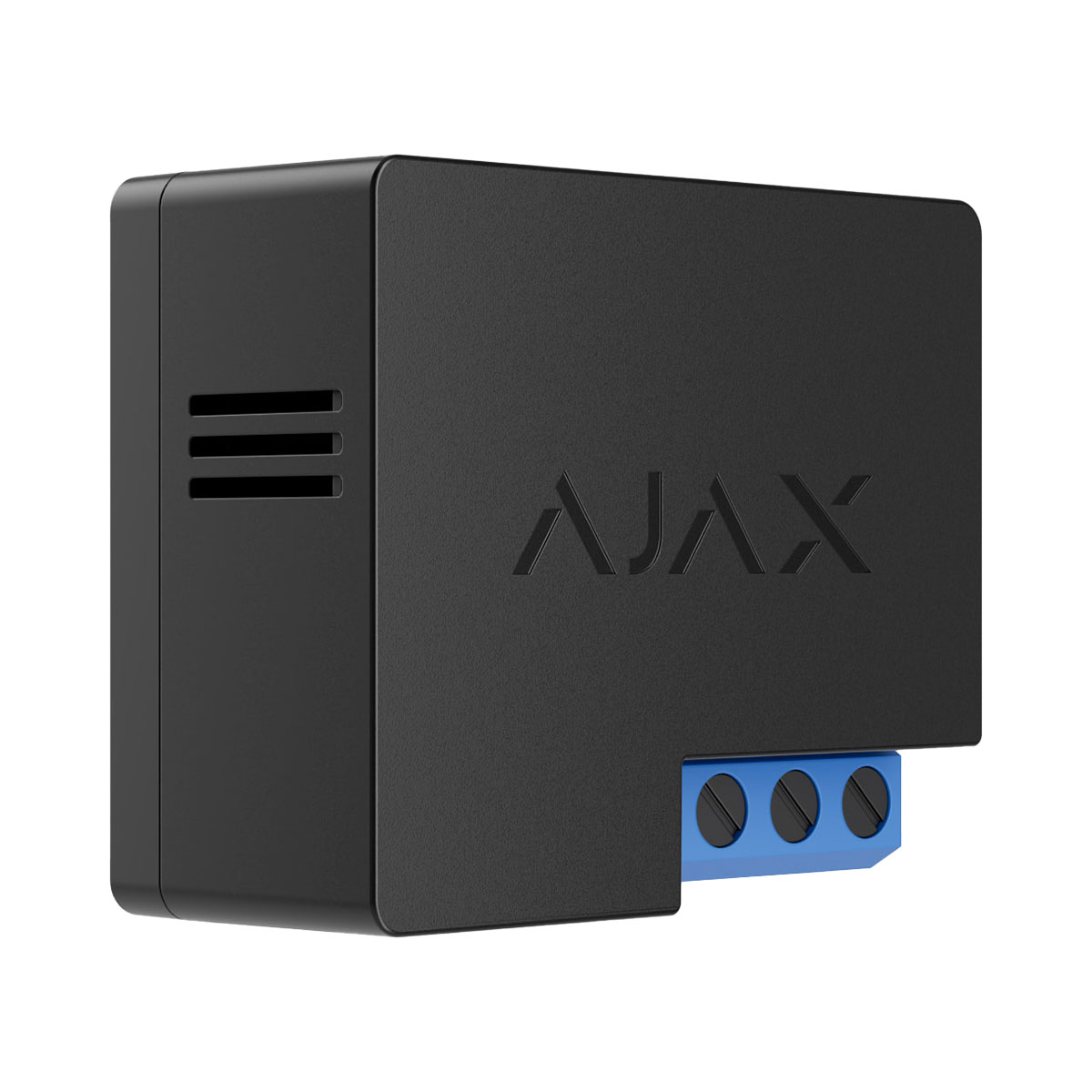

AJAX SYSTEMS AJ-WL-SW - WALL SWITCH
AJAX SYSTEMS AJ-WL-SW - WALL SWITCH
| • Allows checking electricity consumption • Executes automation scenarios • Up to 1,000 m of the encrypted wireless two-way communication with hub or range extender • Operates in bistable or pulse mode. Adjustable pulse duration: from 1 to 255 seconds • Device is controlled via mobile and desktop apps or manually with the device function button • Pairing with a hub via QR code |
Operating principle
The relay is installed in the electrical circuit gap to control the power supply of devices connected to this circuit. The device connects directly to the 110 230 V~ source and closes/opens the circuit on command. The relay can handle loads of up to 3 kW.
The device is controlled via the device function button, Ajax apps, Button, and automation scenarios. WallSwitch measures the current, voltage, energy consumed by electrical appliances, and the power they consume. This data and other operating parameters of the relay are available in Ajax apps.
Flexibility
WallSwitch is installed in the electrical circuit gap to control the power supply of devices connected to this circuit. It can operate as a momentary or latching switch, supporting pulse1 and bistable modes. The PRO or user with administrator rights can adjust the operating mode in Ajax apps.
If WallSwitch operates in pulse mode, the duration of its activation can be configured from 1 to 255 seconds. The normal state of the relay contacts is also adjustable:
• Normally closed — the relay stops supplying power when activated and resumes when deactivated.t
• Normally open — the relay supplies power when activated and stops when deactivated.
| Parameters | |
| Power supply | 110–230 V~, 50/60 Hz |
| Maximum load current | 10 А |
| Output power for EAEU countries |
up to 2.3 kW Output power for other countries up to 3 kW at 230 V~ At 230 V~ resistive load. |
| Power consumption in standby mode | up to 1 W |
| Power parameters available in the app |
current voltage power consumption, electrical energy meter |
| Voltage protection threshold (for 230 V~ mains) | maximum 253 V~ minimum 184 V~ |
| Voltage protection threshold (for 110 V~ mains) | maximum 132 V~ minimum 92 V~ |
| Current protection threshold | 13 A |
| Temperature protection threshold |
over +65°C at the place of installation over +85°C inside WallSwitch |
| Colour | black |
| Dimensions | 39 × 33 × 18 mm |
| Weight | 30 g |
| Operating temperature range | from 0°C to +64°С |
| Operating humidity | up to 75% with no condensation |
| Ingress protection class | IP20 |
| Package Contents | WallSwitch Jeweller Double-sided tape Quick Start Guide |
