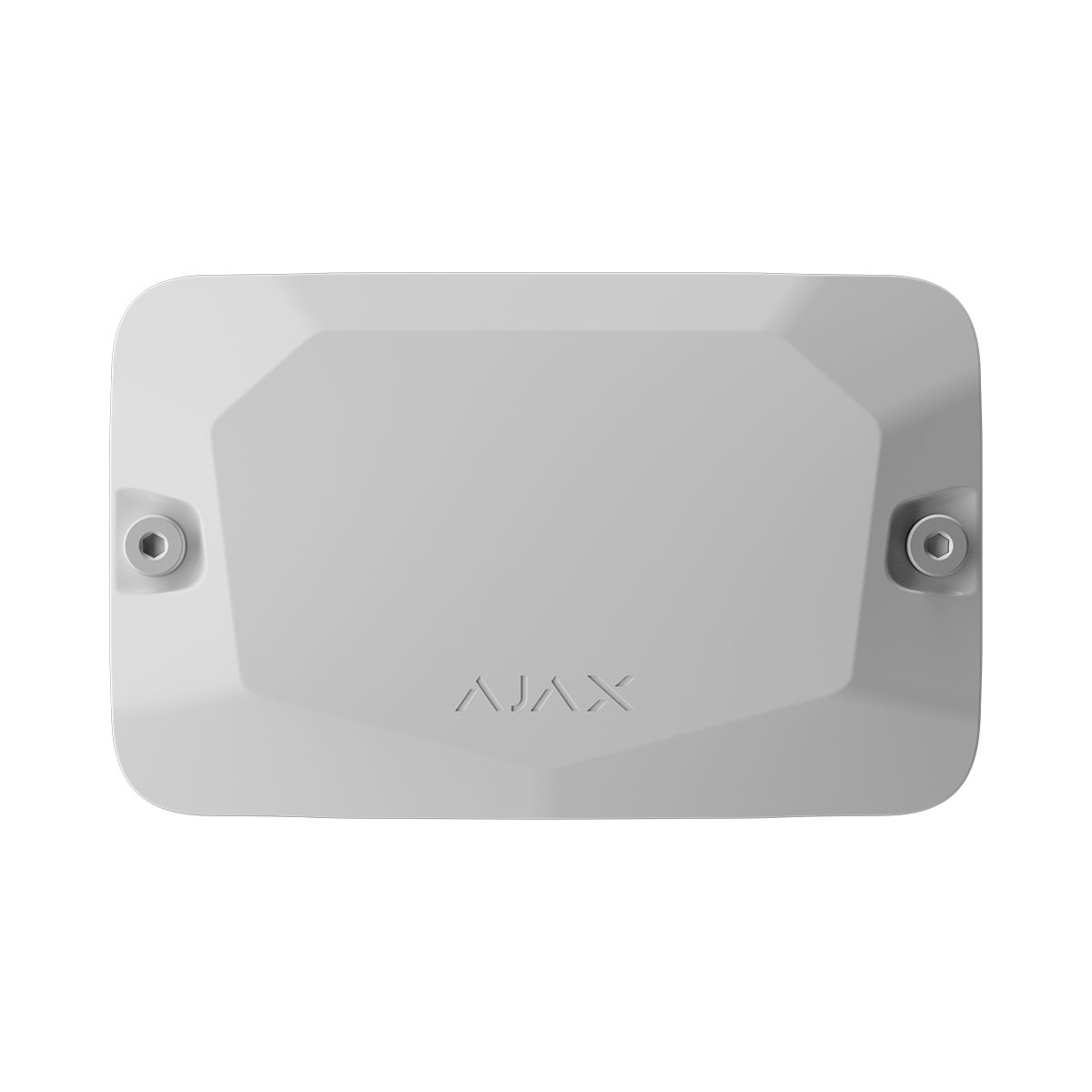

AJAX SYSTEMS AJ-CA-W, CASE A (106) WHITE

Case is the casing designed to install one or more compatible Ajax devices. The complete set includes the tamper board to protect devices from sabotage. Case has fasteners to fix the cables and channels for convenient cable organization. The casing is intended for indoor use only.

Case is produced in several versions. Each model has a different number of slots depending on the device combination:

• Case A (106) — one Ajax device;
• Case B (175) — up to two Ajax devices;
• Case C (260) — one Ajax device and 7 Ah battery;
• Case D (430) — up to eight devices and two 18 Ah batteries.

Key features
Case has latches for attaching devices without tools. Slide the latch to remove the device.
The device is fixed in two positions. You can turn it 180°.
The casing has a tamper board. It connects to the Ajax device with a wire in the complete set. The tamper detects attempts to open the lid or detach the casing from the surface. In the case of a sabotage attempt, users and the CMS will receive a notification about the tamper triggering of the device.

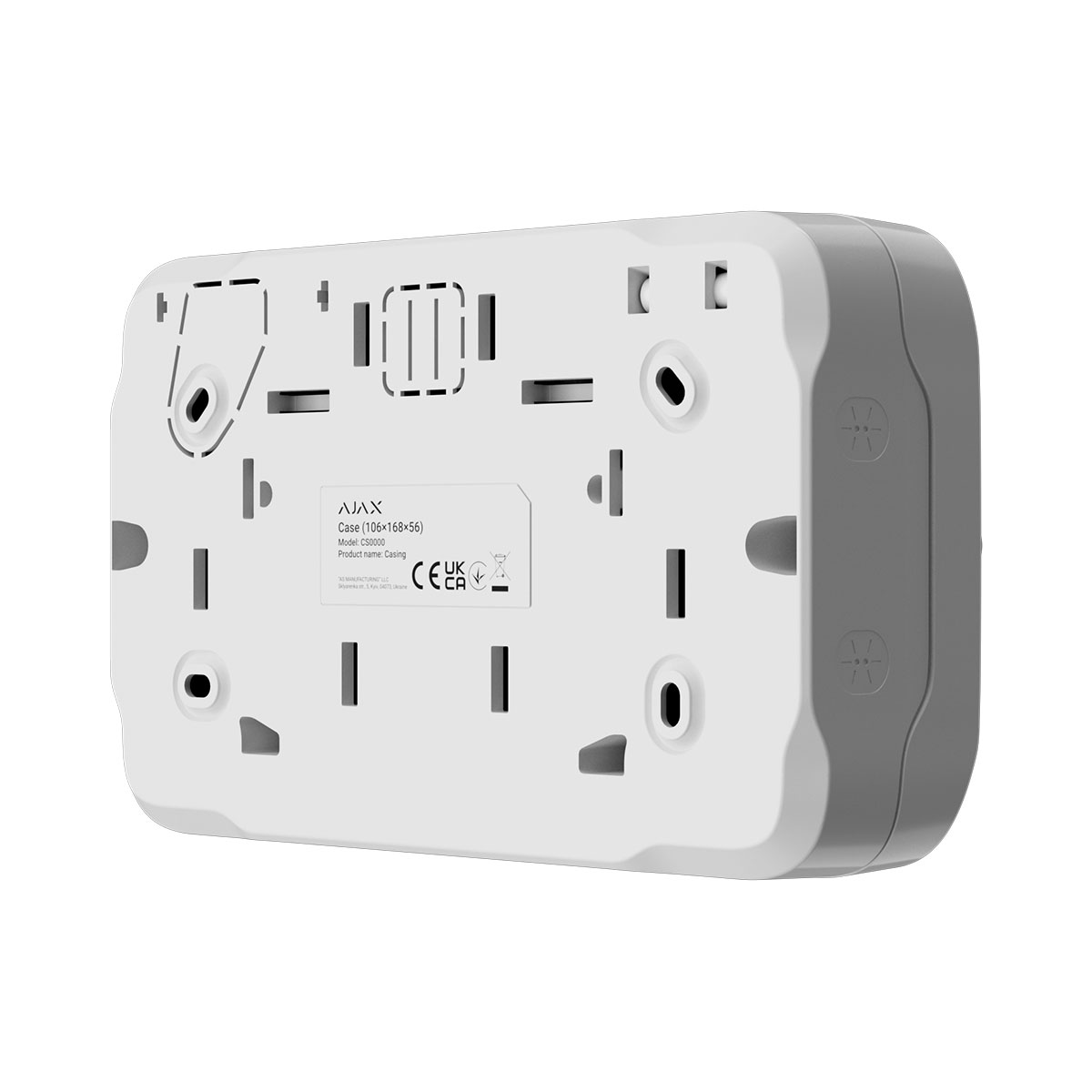

Case has fasteners to fix the cables with ties and channels for convenient cable routing. The casing has perforated parts to run the cables through the back side. There are recesses to place the drill conveniently (in case you need to drill holes and run the cables along the side, bottom, or top). During drilling, the tool rests on plastic stoppers, ensuring the installed devices remain protected.
The lid of Case A (106) or Case B (175) can be rotated 180° during installation.
The bubble level is provided to check the inclination angle of the mount during installation. Wider holes ensure that the casing is correctly installed, even if there are errors during installation.

Case C (260) and Case D (430) have battery holders at the bottom of the casing to prevent accidental dislodgement. The holding stripe for securing the battery is included with Case D (430).

Case D (430) has sixteen slots for plastic holders for Fibra modules installation. Holders are available in two versions:

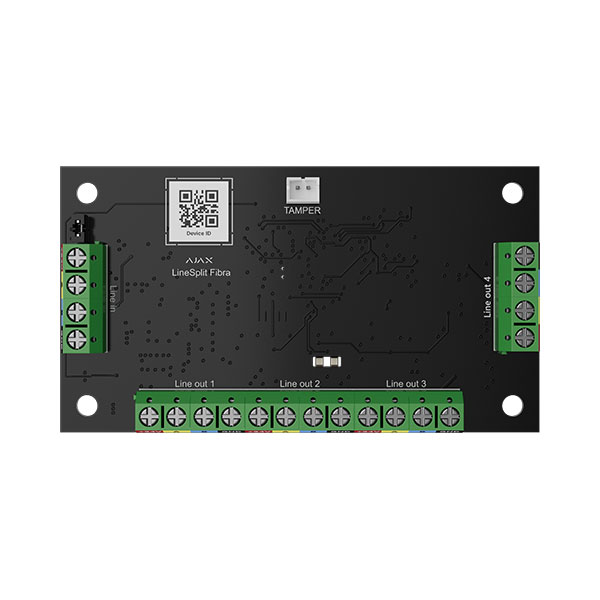

• Module Holder (type A) for Superior LineSplit Fibra, Superior LineProtect Fibra, Superior MultiRelay Fibra attachment;
• Module Holder (type B) — for Superior Hub Hybrid (4G) (without casing) and Superior MultiTransmitter Fibra (without casing).

There are four Module Holder (type A) in the complete set. Additional holders and Module Holder (type B) are sold separately.
