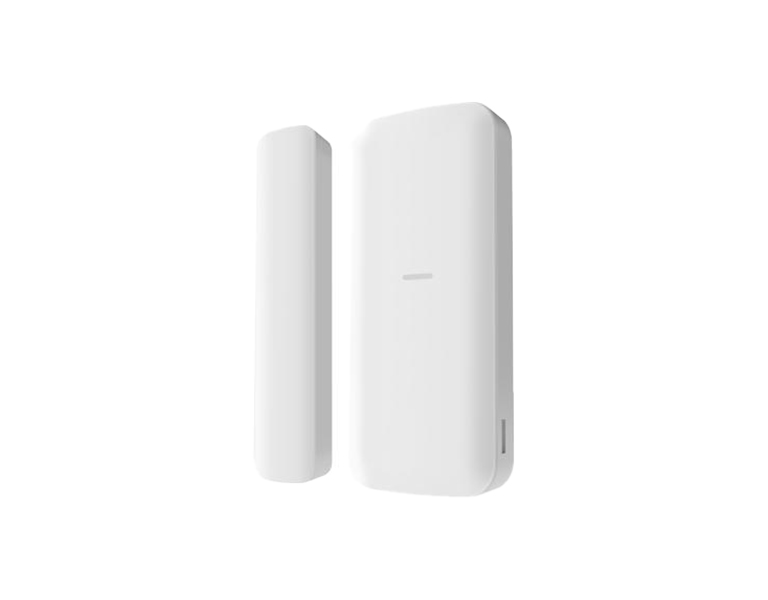

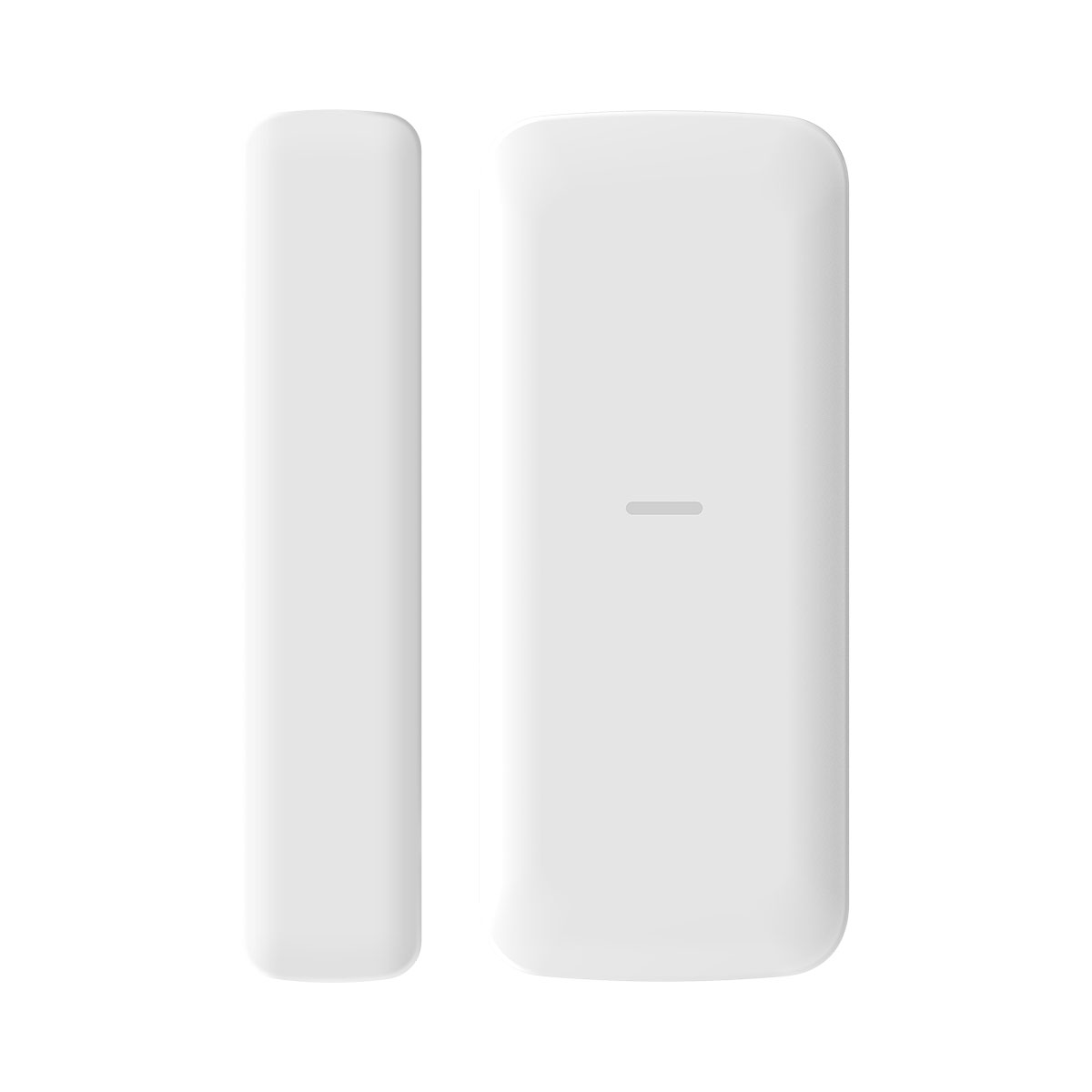

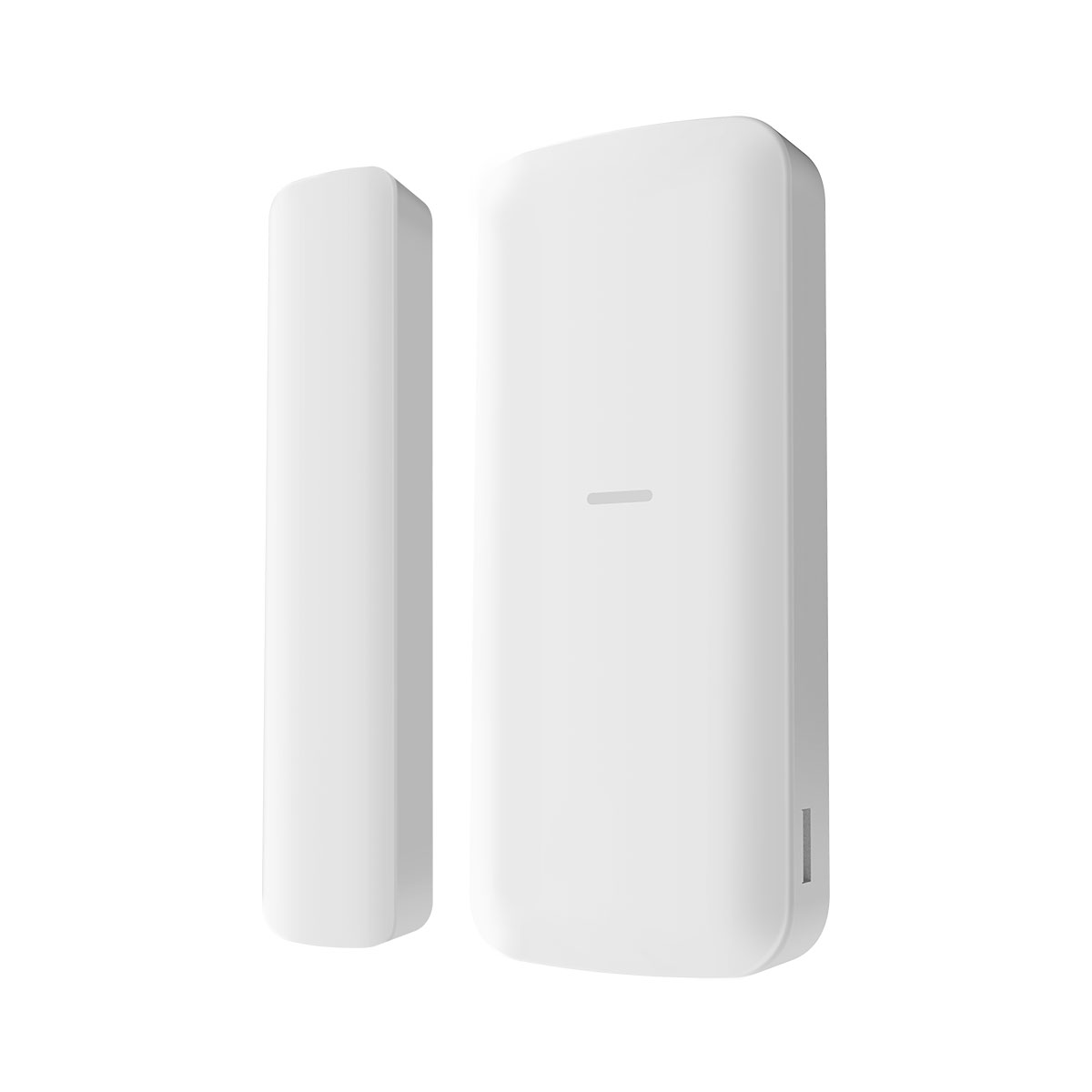

DS-PDMCS-EG2-WE is a wireless opening detector that notifies of first signs of room intrusion by means of a broken door or window, slim design specially used in window frames for vanishing installation.
• Slim design for an unobtrusive (unnoticeable) installation
• Fully remote configurable through APP
• Multiple enrollment methods and easy installation design
• Frequency hopping against jamming for reliable transmission
| Technical Specifications | |
| Detection Performance | |
| Detection Method | Opening Contact |
| Detection Gap | 52 mm Max |
| Feature | |
| Digital Processing | Support |
| Tamper Protection | Front,Rear |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
| Interface | |
| Power Switch | Power up enrolling |
| LED Indicator | Blue (alarm) |
| Transmission | |
| Transmission Technology | Tri-X Wireless |
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 868MHz |
| Transmission Security | AES-128 Encryption |
| Transmission Range(Free Space) | 1 Km |
| Frequency Hopping |
Support
|
| Enrolling Method |
Power up,Remote ID,QR Code
|
|
Electrical Characteristics
|
|
| Standard Battery Life |
Up to 3 years (standby time)
|
| Power Supply |
Battery powered
|
| Battery Type |
CR2450 x 1
|
| Typical Voltage |
3V
|
|
General
|
|
| Operation Temperature |
-10°C to 55°C
|
| Storage Temperature |
-20°C to 60°C
|
| Operation Humidity |
10% to 90%
|
| Dimension(WxHxD) |
29 mm × 69 mm × 10 mm
14 mm × 69 mm × 10 mm |
| Weight |
38 g
|
| Mounting Method |
Wall-mount
(The device only supports wooden structure installation and cannot be installed on metal surface) |
| Application Scenario |
Indoor
|
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 863 – 870 MHz, προβλέπει μέγιστη ισχύ εκπομπής όπως περιγράφεται στην απαίτηση διεπαφής ραδιοεξοπλισμού 105. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς και εξωτερικούς χώρους.
