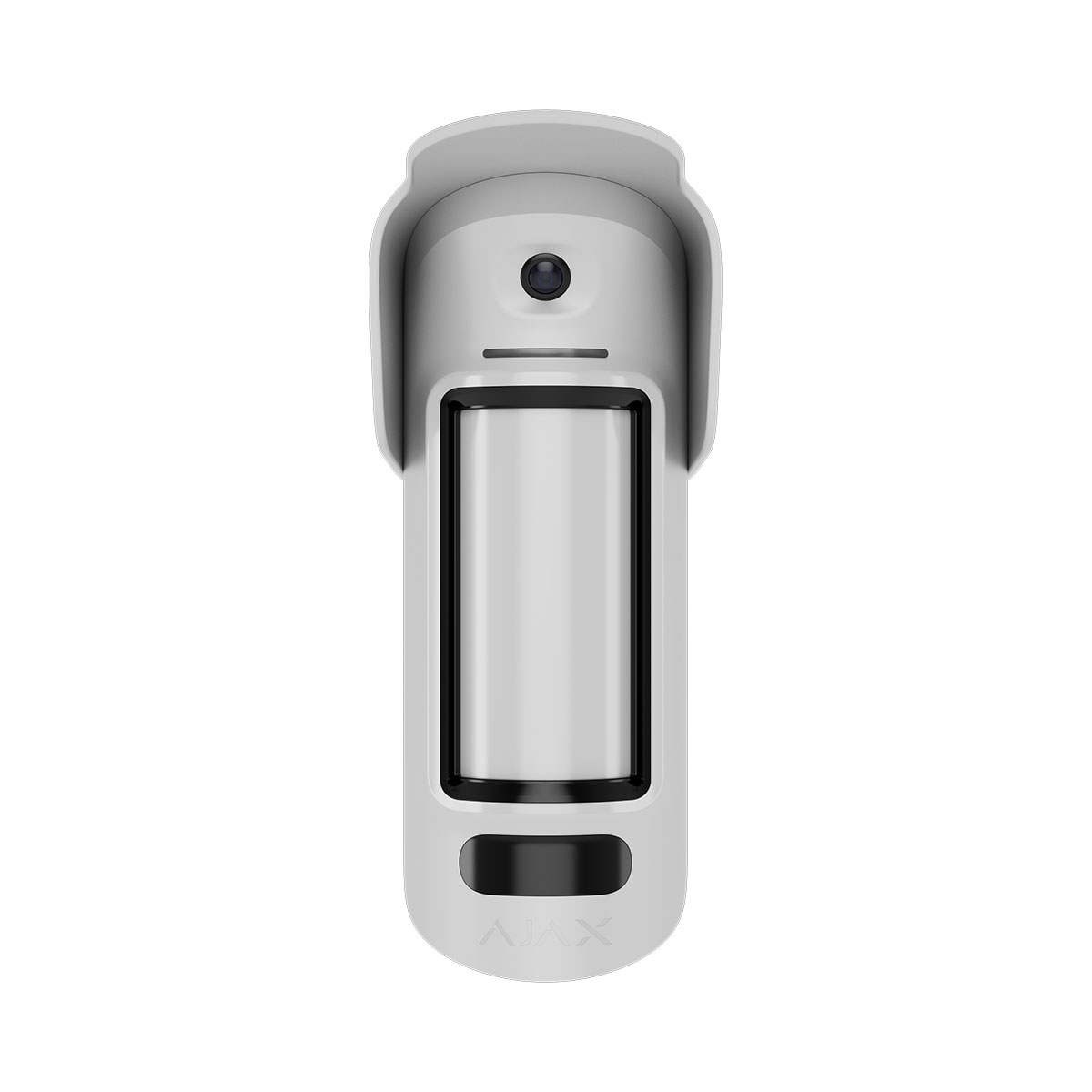

AJAX SYSTEMS AJ-MCAM-OUT-HM-PHOD-W - MOTIONCAM OUTDOOR HIGHMOUNT WHITE (PHOD)
| • Swivel mount. • 90° vertical and 90° horizontal viewing angles. • Adjustable motion detection range up to 15 m. • Dual motion detection technology for filtering false alarms. • Temperature compensation for effective detection in heat and cold. • SmartDetect software algorithm. • Four types of photo verification: by alarm, by scenario, on demand, and by schedule. • Anti-masking system. • Magnetometer and tamper alarm. |
All threats detected and verified
MotionCam Outdoor HighMount (PhOD) Jeweller is a wireless motion detector designed primarily for remote locations, warehouses, and industrial complexes, yet equally suited for offices and private houses. The device can be installed at heights ranging from 2 to 4 m, providing extensive area coverage with no blind zones. With a built-in camera, it is easy to quickly assess the situation at the protected facility. This is possible thanks to several types of photo verification available: by alarm, by scenario, by schedule, by arming/disarming, and on demand. The false alarm filter distinguishes non-threatening factors, such as swaying tree branches or heat flows. The metal swivel mount allows for flexible adjustment of the viewing angle.
Captures movement where it is most needed
Keep any commercial premises secure day and night, with no blind zones or false alarms. MotionCam Outdoor HighMount (PhOD) Jeweller detects movement at a distance of 15 m. The detector instantly takes a series of photos so the user can check the reason for the alarm. All alarms are thoroughly checked at both software and hardware levels. At the software level, the device uses algorithms such as SmartDetect and LISA. At the hardware level, it is equipped with two types of sensors — two PIR sensors and a microwave sensor — to provide dual motion detection. Also, a Fresnel lens differentiates between the PIR diagrams of people and thermal noise.
Peace of mind on demand
MotionCam Outdoor HighMount (PhOD) Jeweller is equipped with a camera to quickly assess the situation at the site. The device takes a series of photos as soon as it detects movement. A series of photos is combined into a GIF or MP4 format to show how the situation develops in the dynamics. The outdoor detector can take a series of photos by request of the user from an Ajax mobile app, regardless of the security mode. Furthermore, the device can take photos on a set schedule, by arming/disarming, or when selected devices in the system activate an alarm.
Communication through steel and concrete
Some facilities have thick walls, metal partitions, or sheer distances that affect signal quality. Ajax range extenders are designed to increase the range of a wireless network and deliver stable connection with a hub despite the obstacles. And by choosing the model with an Ethernet cable connector, you get an additional communication channel. А single system can accommodate up to five range extenders.
Ready for heat and cold

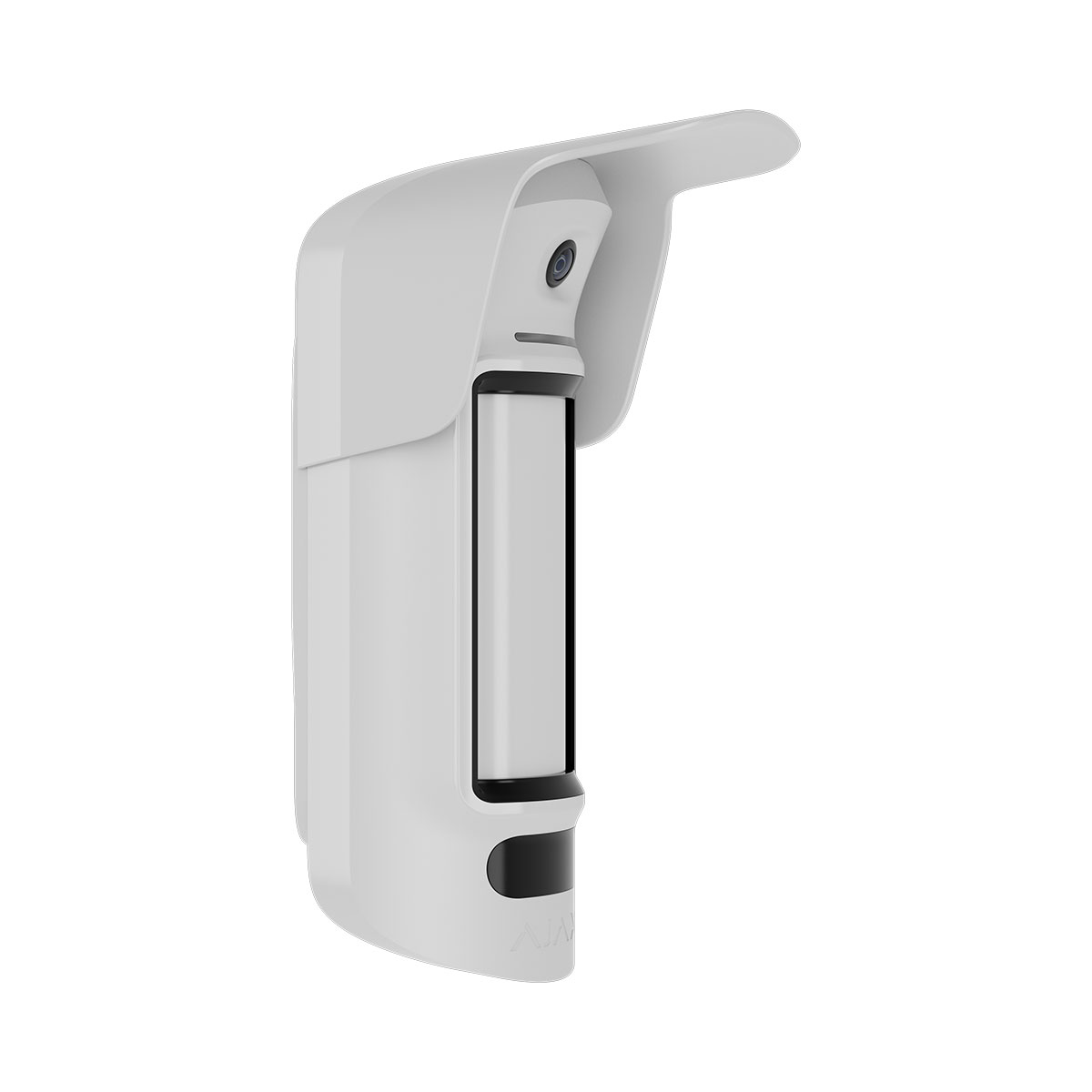

MotionCam Outdoor HighMount (PhOD) Jeweller is ready to operate in any weather. The device withstands heat up to +60 °С and cold down to −25 °С. Additionally, the detector can be installed with the hood to protect the anti-masking system from rain and snow.
| Technical Specifications | |
| Communication | |
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. |
| Frequency bands | 866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz |
| Maximum effective radiated power (ERP) | up to 25 mW |
| Radio signal modulation | GFSK |
| Radio communication range | up to 1,700 m |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping | To prevent radio interference and jamming. |
| Wings communication technology | Two-way communication. Advanced sabotage protection. Block encryption featuring a dynamic key. Data packages reload in case of transmission errors. Photo delivery check. |
| Detection | |
| Sensitive elements | 2 × PIR sensor 1 × K-band microwave sensor Operating frequency: 24 GHz. |
| Motion detection distance | up to 15 m |
| Motion detection angle | horizontal: 90° |
| Motion detection speed | from 0.3 to 2.0 m/s |
| Sensitivity | 3 levels |
| False alarm prevention | SmartDetect |
| Temperature compensation | Effective movement detection in temperatures from −25 °C to +60 °C |
| Photo verification | |
| Photo by alarm | The built-in camera is activated if the detector is armed and movement is detected. |
| Photo on demand | A user takes pictures at any time or when the detector is armed (depending on settings). The feature is disabled by default. |
| Photo by scenario | The detector takes pictures automatically when other Ajax detectors are triggered. The feature is not configured by default. |
| Photo by schedule | The detector automatically takes photos at the specified time. The feature is not configured by default. |
| Photo by arming/disarming | The detector automatically takes photos when the security state is changed. |
| Adjustable photo resolution | 640 × 480 px 320 × 240 px (default) |
| Camera viewing angles | horizontal: 115° vertical: 84° |
| HDR image | Improves the accuracy of detail in bright and dark scenes. |
| IR backlight | For night photography and low light conditions. |
| Series of pictures | from 1 to 5 images with a resolution of 320 × 240 px from 1 to 3 images with a resolution of 640 × 480 px |
| Photo delivery time | up to 9 s for 320 × 240 px resolution up to 20 s for 640 × 480 px resolution |
| Recommendations | It is recommended to install the detector at a height of 2–4 m. The pet immunity feature is not available for this device. The device is designed for outdoor and indoor use. |
| Sabotage protection | |
| Magnetometer | detects attempts to tilt or shift the detector or detach it from the surface |
| Anti-masking system | detects attempts to block the detector view |
| Protection against spoofing | device authentication |
| Main power supply | |
| Battery | 6 × CR123A Pre-installed. |
| Type | type C |
| Calculated battery life | up to 3 years |
| Detector operating voltage range | 3.8−6.5 V⎓ |
| Detector nominal operating voltage | 6 V⎓ |
| Quiescent detector current consumption at nominal voltage | 45 μA |
| Maximum detector current consumption at nominal voltage | 1,200 mA |
| Full battery capacity | 4,800 mAh |
| Low battery voltage | 4.2 V⎓ |
| Low battery recovery voltage | 5.0 V⎓ |
| End-of-life battery voltage | 3.8 V⎓ |
| End-of-life battery capacity | 300 mAh |
| Optional power supply | |
| External supply operating voltage | 12−24 V⎓ |
| Enclosure | |
| Dimensions with the swivel mount | 234 × 98 × 230 mm |
| Dimensions without the swivel mount | 234 × 98 × 137 mm |
| Weight with the swivel mount | 1,010 g |
| Weight without the swivel mount | 620 g |
| Operating temperature range | from −25 °C to +60 °C |
| Protection class | IP55 |
| Color | White |
| Package contents | MotionCam Outdoor HighMount (PhOD) Jeweller 6 × CR123A battery (pre-installed) SmartBracket mounting panel Swivel mount Hood Installation kit Quick start guide |
