• Vertical viewing angle: 100° |
The first line of defense

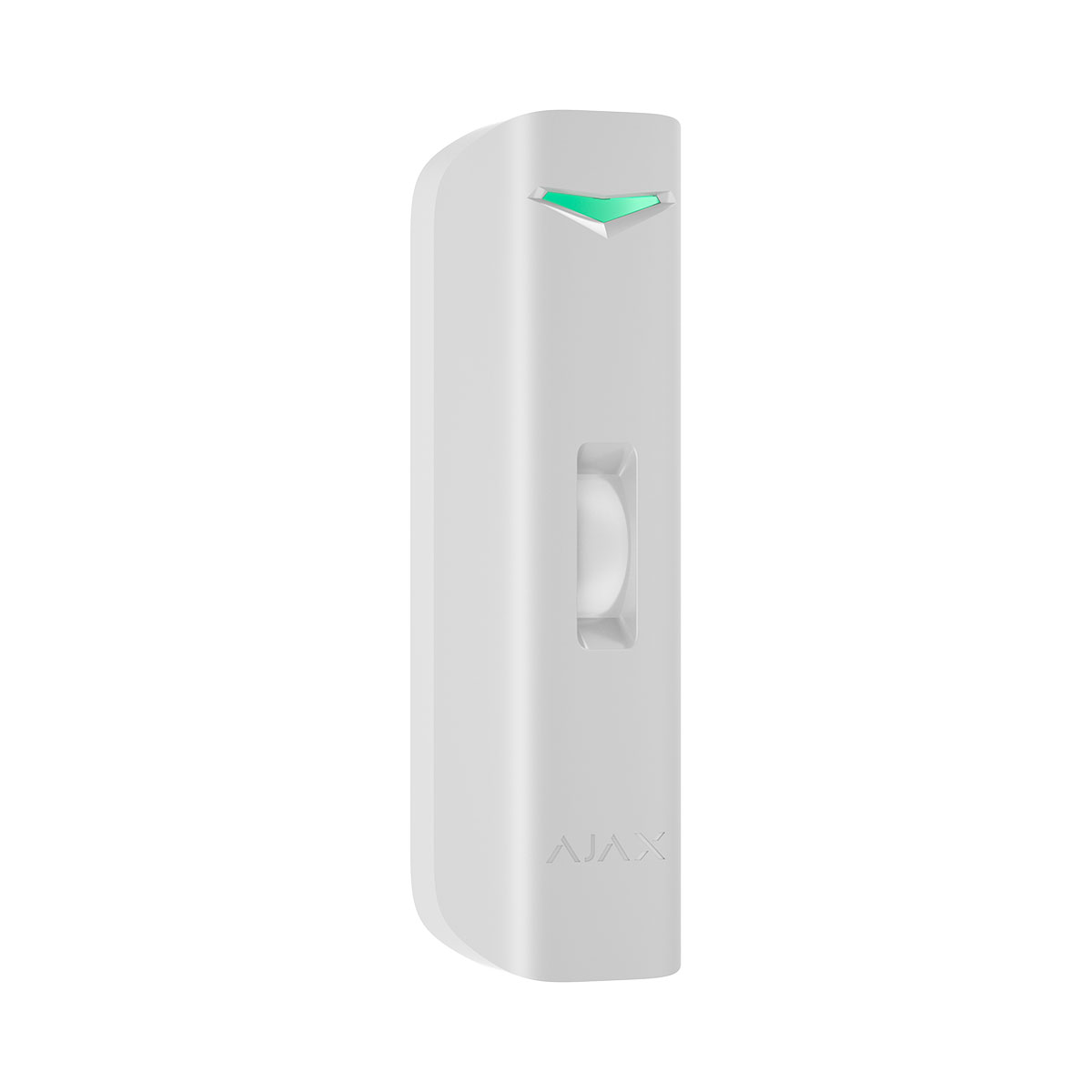

Curtain Outdoor Mini Jeweller is a curtain-type motion detector with dual motion detection technology and an anti-masking system. This product is engineered to cover windows, doors, narrow passages, and other entry points along the perimeter. Break-in attempts are exposed early — before they leave a scratch. While the device blends in, its effectiveness stands out thanks to near-zero false alarms, no blind zones, and exceptional autonomy.
Designed for tight spaces
Curtain Outdoor Mini Jeweller is a practical solution for spotting intruders early. It's ideal when an opening detector can't be installed — for example, on the window frames of a historic building. Horizontal, vertical, or angled mounting allows flexible placement options, making it easy to secure compact areas and prevent unwanted access.
Two detection modes
Curtain Outdoor Mini Jeweller has Main and Pet modes activated via the slide switch on the enclosure. In the Main mode, an alarm is triggered whenever the device detects movement. In the Pet mode, the detector ignores movement from animals of up to 70 cm tall.
System supervision
All Ajax devices perform automatic self-diagnosis and report their states to a hub. Essential parameters, including tamper, communication, and power supply, are continuously monitored. The Ajax Cloud server controls communication between the hub and Ajax apps, ensuring instant notifications for monitoring stations, security companies, and users. In case of any malfunction or communication failure, an engineer is informed immediately to provide necessary services.
Communication through steel and concrete
Some facilities have thick walls, metal partitions, or sheer distances that affect signal quality. Ajax range extenders are designed to increase the range of a wireless network and deliver stable connection with a hub despite the obstacles. And by choosing the model with an Ethernet cable connector, you get an additional communication channel. А single system can accommodate up to five range extenders.
| Technical Specifications | |
| Communication | |
| Jeweller communication technology | Two-way communication. Advanced anti-sabotage. Block encryption featuring a dynamic key. Instant notifications. Remote control and configuration in Ajax apps. |
| Frequency bands | 866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz |
| Maximum effective radiated power (ERP) | up to 20 mW |
| Radio signal modulation | GFSK |
| Radio communication range | up to 1,700 m |
| Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping | To prevent radio interference and jamming. |
| Detection | |
| Sensitive elements | 1 × PIR sensors 1 × K-band microwave sensor |
| Motion detection distance | up to 5 m |
| Motion detection angles | horizontal: 15° vertical: 100° |
| Motion detection speed | 0.3 to 2.0 m/s |
| Sensitivity | 3 levels |
| Pet immunity | height: up to 70 cm weight: irrelevant |
| False alarm prevention | Dual motion detection technology SmartDetect |
| Temperature compensation | Effective motion detection at temperatures from −25 °C to +60 °C. |
| Recommendations |
The device's recommended installation height is up to 5 m on the ceiling and 1 m on the side, depending on the protected area size. The device is designed for indoor and outdoor use. |
| Sabotage protection |
|
| Tamper alarm | Notifications on attempts to detach the detector from the surface or remove it from the mounting panel. |
| Protection against spoofing | device authentication |
| Anti-masking system | detects attempts to block the detector view. |
| Accelerometer |
alarm when the detector is moved Must be activated when the detector is installed on third-party brackets |
| Holding screw | To secure the detector on SmartBracket or hood. |
| Communication loss detection |
within 36 s Detection time depends on the Jeweller settings. |
| Power supply | |
| Battery | 2 × CR123A |
| Type | type C |
| Calculated battery life | up to 3 years |
| Detector’s operating voltage range | 4.1−6.2 V⎓ |
| Detector’s nominal operating voltage | 6 V⎓ |
| Quiescent detector’s current consumption at nominal voltage | 30 μA |
| Maximum detector’s current consumption at nominal voltage | 600 mA |
| Full battery capacity | 1,600 mAh |
| Low battery voltage | 4.48 V⎓ |
| Low battery recovery voltage | 5.14 V⎓ |
| End-of-life battery voltage | 4.1 V⎓ |
| End-of-life battery capacity | 170 mAh |
| Enclosure | |
| Dimensions of detector | 145 × 32 × 43 mm |
| Dimensions of detector with angle mount | 145 × 44 × 54 mm |
| Weight of detector | 130 g |
| Weight of angle mount | 20 g |
| Operating temperature range | from −25 °C to +60 °C |
| Operating humidity | up to 95% |
| Protection class | IP55 |
| Color | White |
| Complete set |
Curtain Outdoor Mini Jeweller SmartBracket mounting panel 2 × CR123A battery (pre-installed) Angle mount Installation kit Quick start guide |
